2 Ton Wall Mounted Jib Crane for Industrial Use, Industrial Jib Crane 2 Ton

The 2 ton wall-mounted jib crane offers efficient material handling with robust design, featuring a European-style hoist for industrial use.

Jib cranes are versatile lifting devices that consist of a horizontal arm (the jib) extending from a vertical support (the column or wall mount). The arm allows for the lifting and moving of heavy objects within a specific radius. Jib cranes are widely used for their ability to provide localized lifting solutions, making them ideal for tasks that require precise control and flexibility. They can be powered manually or electrically and are commonly used in various industrial and commercial settings.

Importance in Industrial Settings

In industrial environments, jib cranes play a critical role in improving operational efficiency and safety. They streamline the handling of materials, reduce manual lifting, and facilitate the movement of components and tools. By offering a high degree of maneuverability and precision, jib cranes help optimize workflows, enhance productivity, and minimize workplace injuries. Their ability to operate in confined spaces and their relatively low installation costs make them an essential component of many manufacturing and maintenance operations.

2 ton Wall-Mounted Jib Cranes for Sale

Specific Benefits of the 2 ton Capacity

The 2 ton wall-mounted jib crane is designed to handle loads up to 2 tons, making it a robust solution for medium to heavy lifting tasks. This capacity is particularly beneficial for industrial applications where lifting and moving substantial loads is routine. The 2 ton rating ensures that the crane can manage significant weights without compromising safety or performance. It is an ideal choice for operations that require reliable and efficient lifting of heavier materials and components.

Main Specifications of 2 Ton Wall Mounted Jib Cranes for Sale

• Capacity: 2 tons
• Valid Radius (R): 3 to 8 meters
• Lifting Height: 6 to 30 meters
• Lifting Speed: 8 m/min (or 0.8/8 m/min for dual speed)
• Trolley Speed: 10 m/min (or 20 m/min for dual speed)
• Slewing Speed: 0.5 to 1 r/min
• Slewing Angle: 0° to 180°
• Work Duty: A3 to A4

Ask for 2 ton wall mounted jib crane price for sale

Common Applications and Industries

• Manufacturing Facilities: In manufacturing settings, the 2 ton wall-mounted jib crane is used for tasks such as moving heavy components along assembly lines and lifting large parts for maintenance. Its precision and capacity help streamline production processes and improve workflow efficiency.
• Workshops: In smaller workshops, the crane aids in handling medium-sized parts and tools, allowing for efficient movement and positioning of equipment in tight spaces.
• Warehousing: The crane is valuable for moving products and materials within warehouses, assisting with inventory management and product organization.
• Construction Sites: It supports the handling of construction materials and tools, making it easier to manage materials in confined or elevated areas.
• Repair Shops: For vehicle repair and maintenance, the crane helps in lifting and positioning vehicle parts, facilitating smoother and safer repair operations.

Overall, the 2 ton wall-mounted jib crane offers a practical and efficient solution for various industrial tasks, enhancing productivity and safety across multiple applications.

Basic of 2 Ton Wall Mounted Jib Cranes

Technical Parameters

• Model: BX Wall-Mounted Jib Crane ：Capacity ：Specification: 2 tons. This crane is designed to handle a maximum load of 2 tons, ideal for medium to heavy lifting tasks.
• Valid Radius-Range: 3 to 8 meters. The operational reach of the crane extends horizontally between 3 and 8 meters, allowing it to maneuver and position loads effectively within this radius.
• Lifting Height-Range: 6 to 30 meters. The crane can lift objects vertically between 6 and 30 meters, providing flexibility for handling materials at various heights.
• Lifting Speed-Value: 8 meters per minute (with adjustable speeds of 0.8 or 8 meters per minute). The lifting speed indicates how quickly the crane can raise or lower loads. Adjustable speed options allow for precise control according to the load's weight and handling requirements.
• Trolley Speed-Value: 10 meters per minute (with an option of 20 meters per minute). This speed refers to the horizontal movement of the trolley along the jib. The crane offers variable speeds to accommodate different lifting and positioning needs.
• Slewing Speed-Range: 0.5 to 1 revolutions per minute. Slewing speed measures the rotation rate of the crane's arm. A range of 0.5 to 1 RPM ensures smooth and controlled rotation for accurate load positioning.
• Slewing Angle-Range: 0° to 180°. The slewing angle allows the crane's arm to rotate horizontally from 0 to 180 degrees, providing extensive coverage and flexibility in load handling.
• Work Duty-Classification: A3 to A4. The work duty classification denotes the crane's operational intensity and cycle. Classifications A3 and A4 indicate that the crane is suited for moderate to heavy-duty applications, ensuring durability and reliability in demanding environments.

These parameters outline the essential features and capabilities of the 2 ton wall-mounted jib crane, emphasizing its suitability for a wide range of industrial lifting applications.

Features of a 2 ton Wall-Mounted Jib Crane

Design and Construction

• Structure and Materials:
  The 2 ton wall-mounted jib crane is engineered with robust materials like high-strength steel or alloy metals. This construction ensures durability and resistance to wear, maintaining structural integrity under heavy loads. The design focuses on strength and stability to support the maximum load without deformation.
• Mounting and Installation:
  Wall-Mounting Advantages: Installing the crane on a wall saves floor space and provides a stable, fixed lifting point.
  Installation Guidelines: To install the crane, secure it to a solid wall or column. Important steps include checking the wall’s load-bearing capacity, ensuring sufficient clearance, and precise alignment. Proper installation is crucial for safe and effective operation.

Capacity and Performance

• Load Capacity:
  The crane supports loads up to 2 tons, making it suitable for medium to heavy-duty tasks. Its design ensures that it can handle this capacity safely and efficiently.
• Reach and Coverage:
  Typical Reach: The crane offers a reach ranging from 3 to 8 meters, accommodating various lifting needs.
  Adaptability: This reach allows the crane to operate effectively in different environments, from small workshops to large manufacturing areas, providing flexibility in handling loads.

Control and Operation

• Manual vs. Electric Controls:
  The crane can be operated using either manual or electric controls. Manual controls are simpler and more cost-effective, while electric controls offer enhanced ease of use and precision. The choice depends on the specific requirements of the operation.
• Safety Features:
  Safety Mechanisms: The crane includes essential safety features such as overload protection, emergency stop buttons, and limit switches. These features help prevent overloading and accidents, ensuring safe operation. Regular maintenance and adherence to safety standards are essential to keep these features functioning properly.

Typical Applications of a 2 ton Wall-Mounted Jib Crane

Manufacturing Facilities: ：Assembly Lines:

• Weight Range: 100 kg to 1,500 kg (0.1 to 1.5 tons)
• Examples: Automotive engines, transmissions, electronic circuit boards, and small machinery parts.
• Benefits: The 2 ton wall-mounted jib crane enhances assembly line operations by enabling precise lifting and positioning of components. This improves production flow, reduces manual handling, and minimizes damage to delicate parts, leading to increased efficiency and faster turnaround times.

Machine Maintenance:

• Weight Range: 500 kg to 2,000 kg (0.5 to 2 tons)
• Examples: Large motors, heavy gears, and substantial tools such as drill presses and lathes.
• Benefits: The crane simplifies the lifting and positioning of heavy parts during maintenance tasks. It improves safety by reducing manual lifting and handling, and enhances maintenance efficiency, leading to faster repairs and less downtime.

Production Support:

• Weight Range: 100 kg to 2,000 kg (0.1 to 2 tons)
• Examples: Production jigs, tooling fixtures, and workholding devices.
• Benefits: The crane aids in the accurate positioning and adjustment of production fixtures and jigs. Its flexibility enhances precision in manufacturing processes, ensuring better product consistency and improved operational efficiency.

Material Handling:

• Weight Range: 100 kg to 2,000 kg (0.1 to 2 tons)
• Examples: Metal sheets, plastic components, and bulk materials like powders or granules.
• Benefits: The crane streamlines the movement and transfer of raw materials within the manufacturing facility. It facilitates efficient handling between storage areas and processing stations, reducing downtime and enhancing production efficiency.

Quality Control:

• Weight Range: 100 kg to 2,000 kg (0.1 to 2 tons)
• Examples: Quality testing tools, inspection equipment, and test samples.
• Benefits: The crane supports the movement and positioning of quality control equipment and test samples, making inspections more efficient and thorough. It helps set up testing stations and facilitates the handling of samples, contributing to improved quality control procedures.

In summary, the 2 ton wall-mounted jib crane significantly enhances various aspects of manufacturing operations, from assembly and maintenance to material handling and quality control, by providing efficient, safe, and precise lifting solutions.

Advantages of Using a 2 ton Wall-Mounted Jib Crane

Space Efficiency

• Utilizing Vertical Space:
  The 2 ton wall-mounted jib crane is designed to maximize vertical space, making it ideal for environments where floor space is limited. By mounting on a wall, the crane conserves valuable floor area while still providing robust lifting capabilities.
• Saving Floor Space:
  Wall mounting eliminates the need for floor-based supports, freeing up space for other equipment or operations. This efficient use of space enhances the overall layout and functionality of the work area.

Cost-Effectiveness

• Comparison with Other Lifting Solutions:
  When compared to other lifting solutions like floor-mounted cranes or overhead gantries, the wall-mounted jib crane offers a more economical option. Its installation typically involves lower costs and less infrastructure modification.
• Long-Term Benefits and Return on Investment:
  The crane's durability and minimal maintenance requirements contribute to long-term cost savings. Its efficient design leads to increased productivity, making it a worthwhile investment with a strong return over time.

Versatility

• Adapting to Various Industrial Tasks:
  The 2 ton wall-mounted jib crane is versatile and can handle a wide range of industrial tasks. Its ability to lift and position different types of loads makes it suitable for various applications, from assembly lines to maintenance.
• Suitability for Different Environments:
  The crane's design allows it to adapt to diverse environments, including workshops, warehouses, and construction sites. Its flexibility ensures it can meet the needs of various industrial settings effectively.

Cases of 2 Ton Wall Mounted Jib Cranes

Project Description: 2 Ton Wall-Mounted Jib Crane with wire rope electric hoist for Sale in Mexico
This project involves the sale and installation of four 2 ton wall-mounted jib cranes, designed for use in various industrial applications across Mexico. The cranes are built to handle heavy loads efficiently and reliably. Key details of the project include:

• Jib Crane Type: BX Type Tie-Rod Wall-Mounted Jib Crane
• Capacity: 2 tons
• Arm Length: 5 meters
• Lifting Height: 4 meters
• Hoist Type: Electric wire rope hoist with european style
• Crane Power: 415V, 50Hz, 3-phase electrical supply
• Project Location: Mexico
• Quantity: 4 units

The BX Typ 2 ton wall-mounted jib cranes are designed to provide robust support with a 5-meter arm length and a 4-meter lifting height, making them suitable for handling heavy materials in industrial settings. The wire rope electric hoist ensures efficient operation, and the 415V, 50Hz, 3-phase power supply guarantees reliable performance in diverse operational environments in Mexico.

Gallary of wall mounted jib cranes for sale Mexico

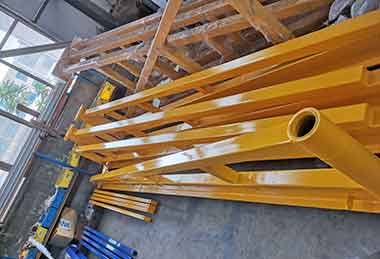

Wall mounted jib crane cantilever for sale Mexico

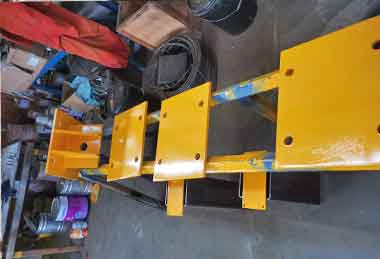

Fixing plates of jib arm of wall mounted jib cranes

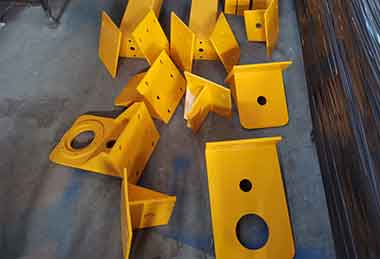

slewing parts of wall mounted jib crane 2 ton and 0.5 ton  for sale Mexico

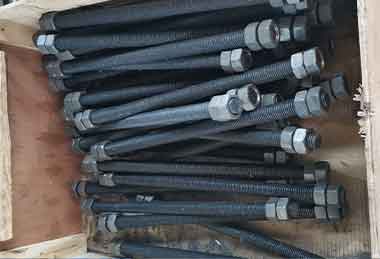

Bolts of 2 ton and 0.5 ton wall mounted jib cranes for sale Mexico

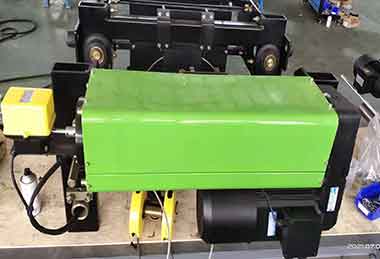

Low headroom wire rope jib hoists for wall mounted crane for sale Mexico

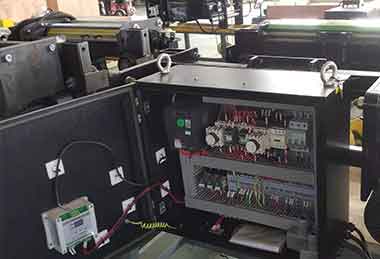

Electric hoist cabins for wall mounted jib cranes 2 ton & 0.5 ton

Custom Features of the 2 ton Wall-Mounted Jib Crane

European-Style Wire Rope Electric Hoist

• Advanced Design and Engineering:
  The European-style wire rope electric hoist is crafted with precision engineering, adhering to the high standards set by European safety and performance regulations. This ensures a robust, reliable hoist designed for heavy-duty lifting tasks. The advanced design includes features such as high-strength steel wire ropes and precision-machined components that contribute to the hoist's long-term durability and operational efficiency.
• High Load Capacity and Strength:
  Engineered to handle loads up to 2 tons, the hoist is built with a high load capacity, ensuring it can manage heavy and bulky items safely. The wire rope, which is a critical component, is designed to withstand the stresses of frequent lifting and lowering, providing reliable performance even under demanding conditions.
• Enhanced Safety Features:
  Safety is a top priority in the design of the European-style hoist. It includes advanced safety mechanisms such as overload protection, which prevents the hoist from operating beyond its rated capacity, reducing the risk of equipment failure. Additionally, the hoist is equipped with emergency stop functions and safety brakes that ensure the load remains securely in place in the event of a power failure or mechanical malfunction.
• Smooth and Quiet Operation:
  The hoist's design emphasizes smooth, quiet operation, minimizing noise and vibration during use. This is achieved through precision engineering and the use of high-quality bearings and gear mechanisms, contributing to a more comfortable and less disruptive working environment.
• User-Friendly Controls:
  The European-style wire rope electric hoist features intuitive controls that allow operators to manage lifting and lowering functions with ease. These controls are designed for ergonomic use, reducing operator fatigue and improving overall efficiency. The double-speed functionality provides the flexibility to adjust the lifting speed based on the specific requirements of the task at hand, enhancing both precision and speed.
• Energy Efficiency:
  Designed with energy efficiency in mind, the hoist incorporates advanced motor technology and control systems that reduce power consumption while maintaining high performance. This not only helps in lowering operational costs but also contributes to a more sustainable and environmentally friendly operation.
• Compliance with European Standards:
  The hoist meets all relevant European standards and certifications, ensuring it adheres to stringent safety and performance requirements. This compliance guarantees that the hoist is suitable for use in various industrial environments and provides peace of mind regarding its safety and reliability.

In summary, the European-style wire rope electric hoist is a key feature of the 2 ton wall-mounted jib crane, offering advanced design, high load capacity, enhanced safety features, smooth operation, user-friendly controls, and energy efficiency. These attributes collectively enhance the crane's performance and reliability, making it a valuable asset in industrial settings.

Implementation and Impact

The installation of these 2 ton wall-mounted jib cranes in Mexico has significantly enhanced material handling capabilities in the target industrial facilities. The robust design of the BX Type cranes, combined with the efficiency of the wire rope electric hoist, has led to improved productivity and streamlined operations. The 5-meter arm length and 4-meter lifting height ensure that these cranes can handle a variety of materials with ease, making them suitable for a wide range of industrial applications.

The 415V, 50Hz, 3-phase power supply ensures that the cranes operate reliably in the diverse operational environments of Mexico, meeting the local electrical standards and providing consistent performance. The deployment of these cranes has not only increased the efficiency of material handling processes but also contributed to safer and more organized work environments.

The successful installation of the four 2 ton wall-mounted jib cranes with wire rope electric hoists represents a significant advancement in material handling for industrial operations in Mexico. The project highlights the effectiveness of the BX Type cranes in delivering reliable and efficient performance, improving operational efficiency, and accommodating various industrial needs.

Comparison with Other Types of Jib Cranes

Wall-Mounted vs. Floor-Mounted Jib Cranes

Mounting and Installation:

• Wall-Mounted Jib Cranes: These are attached to a wall or building column, freeing up floor space and allowing for a more compact setup. Installation involves securing the crane to a strong wall, which can be less intrusive compared to floor-mounted models.
• Floor-Mounted Jib Cranes: These cranes are anchored to the floor, requiring more space and potentially affecting layout flexibility. Installation can be more complex due to the need for a stable foundation and space for the base.

Space Usage:

• Wall-Mounted Jib Cranes: Ideal for environments where floor space is at a premium. They optimize vertical space and do not obstruct floor movement, making them suitable for confined or cluttered areas.
• Floor-Mounted Jib Cranes: Typically require more space due to their base, which can limit flexibility in smaller work areas. However, they offer a stable foundation and are often used in environments where wall-mounting is not feasible.

2 ton Wall-Mounted Jib Crane vs. Higher Capacity Jib Cranes

Benefits of 2 ton Capacity:

• Versatility: The 2 ton wall-mounted jib crane is versatile and well-suited for medium to heavy lifting tasks in a variety of industrial settings. Its design allows for efficient handling of loads up to 2 tons, making it an excellent choice for many applications.
• Cost-Effectiveness: It is generally more affordable than higher capacity cranes, both in terms of initial investment and maintenance costs. This makes it a cost-effective solution for businesses with moderate lifting needs.

Limitations of 2 ton Capacity:

• Load Limitations: While it handles up to 2 tons effectively, it may not be suitable for heavier loads that require cranes with higher capacities. For operations involving very heavy or bulky items, higher capacity jib cranes would be more appropriate.
• Operational Scope: Higher capacity cranes often provide more extensive reach and advanced features, which might be needed for larger or more demanding operations. For businesses requiring these advanced capabilities, investing in a higher capacity crane might be necessary.

In summary, while the 2 ton wall-mounted jib crane offers significant advantages in terms of space efficiency and cost, it is important to consider the specific lifting needs and operational requirements when comparing it to other types of jib cranes.

Maintenance and Care

Routine Maintenance

Regular Checks and Servicing Requirements: To ensure optimal performance and longevity of the 2 ton wall-mounted jib crane, regular maintenance is essential. This includes routine inspections of the crane’s structural components, such as the jib arm, wall mount, and hoist system. Key maintenance tasks involve checking for wear and tear, lubricating moving parts, and ensuring that all fastenings and connections are secure. Scheduled servicing by qualified technicians helps to address potential issues before they become major problems, ensuring reliable and safe operation.

Troubleshooting Common Issues

Identifying and Addressing Common Problems: Common issues with wall-mounted jib cranes can include problems with the hoist mechanism, such as inconsistent lifting speeds or unusual noises. These issues often stem from mechanical wear or insufficient lubrication. Another common problem is misalignment, which can affect the crane’s ability to move loads smoothly. Regular inspections help identify these problems early. Addressing them typically involves adjusting alignment, replacing worn parts, or performing necessary repairs to maintain efficient and safe crane operation.

The 2 ton wall-mounted jib crane offers significant advantages, including space efficiency, cost-effectiveness, and versatility. Its design allows for optimal use of vertical space, saving floor area and making it suitable for confined or cluttered work environments. Its lower cost compared to higher capacity cranes and its ability to handle medium-weight loads effectively make it a valuable addition to various industrial settings.
