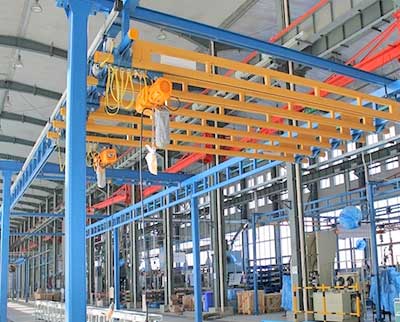

Rigid kbk crane system is a type of light duty overhead travelling crane system which provides an ergonomic and cost effective overhead crane solutions for workshops or workstations especially for those with limited height and restricted space. With modular crane designs, the light workstation cranes are available with versatile and reliable rigid crane configurations to fit a variety of applications. The robust designs of our modular crane components and the high and strict standards of overhead crane manufacturing provide high quality workstation cranes with long life and with minimum of maintenance.

The rigid kbk crane systems are available with floor mounted free standing crane designs and ceiling mounted suspension crane designs.

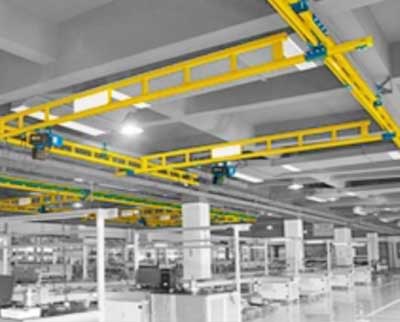

With ceiling mounted crane designs, the light rigid modular cranes are featured as following:

• Lifting Capacity: 125Kg-5000Kg, Lifting Height: 2.5m-12m, Maximum Span : 3-10m, Working Class:A3
• Cost-effective due low material cost and building costs for supportive columns or structures.
• Maximize your floor space when no additional supportive columns required.
• Offering large lifting height for being attached to roof ceiling structures.

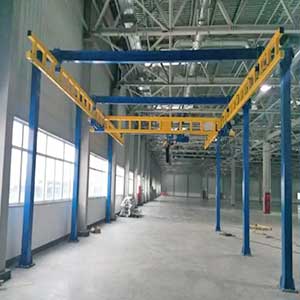

With floor mounted free standing crane design, the light rigid modular cranes are featured as following;

• Lifting Capacity: 125Kg-2000Kg,Maximum Span :3-10m,Fixed rail support spacing up to 9 meters, Working Class: A3
• With no restriction to the installation points with free standing supportive columns
• The free-standing modular cranes also can be designed with lateral connection to the building structure.
• Optimized portable supports distances and required pillar heights can ensure an effective accessible space right underneath the free standing rigid kbk cranes.
• Rigid structures allows small pillar bases with securing dowels.

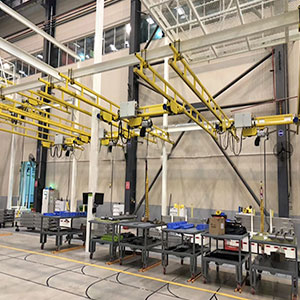

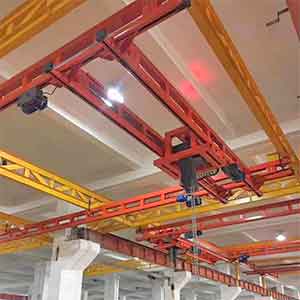

Different worksation lifting crane configerations and design for your selection

• High track strength: cold rolling, high strength steel track, light weight and heavy load.
• Semi-closed design: It efficiently prevents dust, reduces wheel wear, and extends service life.
• Cone-shaped design: keeps the trolley in the middle of the track, lowering sliding resistance.
• Low cost: it reduces the use of steel structures, lowering the cost significantly.

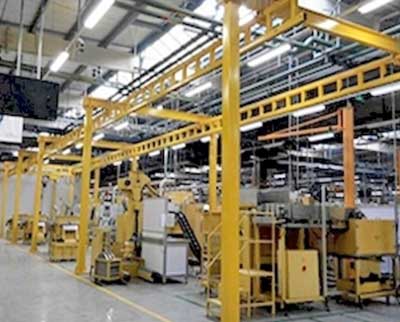

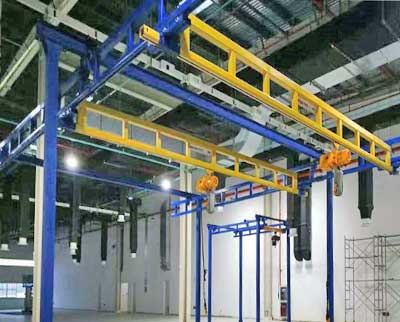

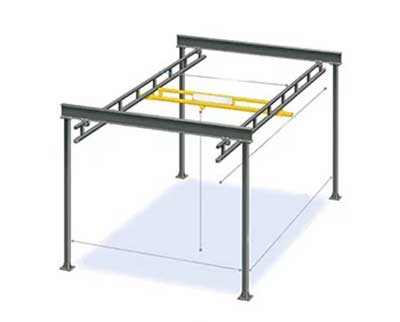

KBK free standing crane systems are developed on the bases of European technology, with modular crane designs, adopted enclose track crane beams and crane rails with strengthened truss structure to ensure the rigidity with minimum self weight which makes the production and assembly easy and fast and ensure the crane operation safe, reliable and stable. Free standing workstation cranes are applicable to a wide range of applications, especially suitable for workstations of modern machining, assembly, warehousing and production lines,etc.

Main parameters of free standing rigid kbk workstation cranes

Free standing rigid kbk workstation cranes are for light duty material handling in a defined working area but with portable supportive pillars and columns, the modular cranes can provide the simple and unrestricted connections for the working points.The multiple connections of modular cranes can meet various material handling requirements in your workshops and workstations, etc.

Main parameters of KBK Free Standing Modular Crane

• Lifting capacity of modular workstation cranes : 125Kg-5000Kg
• Lifting height of modular workstation cranes: 2.5m-12m
• Maximum span of modular workstation cranes : 3-10m
• Working class of modular workstation cranes: A3
• Ambient temperature of modular workstation cranes: -20℃-40℃

Free standing workstation cranes are available with process crane designs to meet your particular applications. The general modular crane constructions are presented as the following crane drawing for your reference. Contact us to get free rigid kbk workstation cranes drawing and crane price.

Main features

• Enclosed track design with high strength and light weight to reduce the wear of rail trolley and hoist wheels to ensure easy movement and long life.
• Truss rail structure strengthen the rails to ensure a larger load bearing, enable a long span with minimum numbers of supportive points.
• Rigid runways offering superior load positioning
• Ease of Installation due to small pillar base requirement which can be installed on any standard 6" concrete floor .
• Smooth rolling surface making the travelling of bridge and hoist trolley easier.
• Various crane designs, with multiple track profiles, spanning capabilities enabling the light duty workstation adaptable, flexible, and cost competitive.

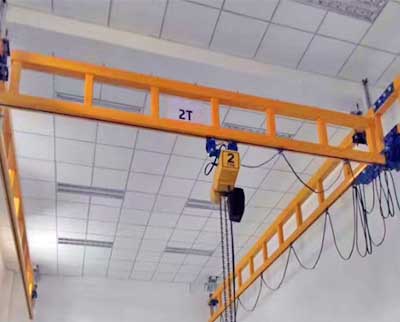

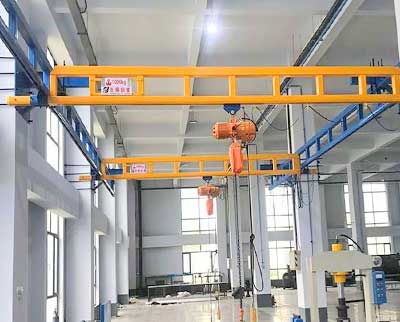

The rigid kbk modular cranes with suspension designs are more suitable for linking various production processes for light loads handling at different working sectors or stations without taking up any floor area.With truss-type track design, the light kbk cranes can reduce the lifting points and make auxiliary hanging more simple,simplifying the steel structure in the air, reducing load on the plant and saving your construction cost.

Main parameters of rigid kbk suspension workstation cranes

Rigid kbk suspension crane systems are developed on the bases of European technology, with modular crane designs, adopted enclose track crane beams and crane rails with strengthened truss structure to ensure the rigidity with minimum self weight which makes the production and assembly easy and fast and at the same time ensure the crane operation safe, reliable and stable.

Main parameters and specifications of suspension rigid cranes

• Lifting capacity of suspension workstation crane : 125Kg-2000Kg,
• Maximum span of suspension workstation crane : 3-10m,
• Fixed rail support spacing up to 9 meters
• Working class of suspension workstation crane: A3

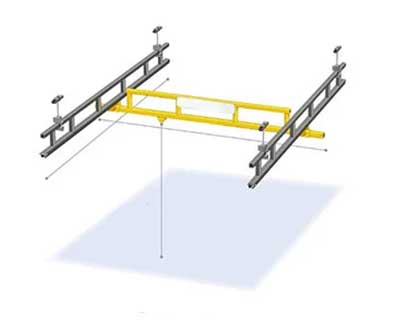

The rigid kbk suspension workstation cranes are available with process crane designs to meet your particular applications. The general modular crane constructions of the suspension kbk cranes are presented as the following crane drawing for your reference. Contact us to get free rigid kbk suspension workstation cranes drawing and crane price.

Features

• Standard modular crane design can be processed to fit wide applications with good expandability
• Light self weight, rigid runway makes the travelling light and smooth, and easy to position
• Unique trolley design can effectively prevent jamming while moving lightly
• Optional manual operation and electric operation
• Applicable to the application of light ceiling steel grid, concrete roof girders or suspended on the columns of the factory building.

Rigid light worksation crane kits

Rigid KBK crane systems are with modular designs. The basic modular kit construction is consisted of simple, well engineered standard parts and components, which can be connected with standard dimensions to ensure rapid assembly and erection and also can enable the existing modular cranes to be easily modified or extended.

Our rigid modular kbk crane systems consists of sliding door fittings, conveyor systems, festoon systems, fall arrest systems, Rail elements, , Suspension components, Trolley combination, Manual or electric travel drive, Coupling elements, Buffers,Cable slider, Cable trolley, Travelling cable, Conductor line, Standard controls, Mechanical safety devices, etc

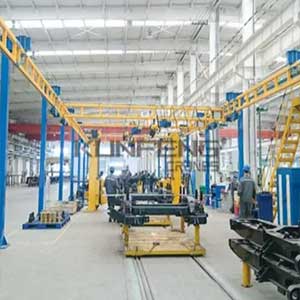

Applications of rigid track workstation crane

The rigid kbk modular crane systems are widely used for light duty material handling during production processing, assembly, maintenance and storage.The kbk rigid crane systems are typical overhead travelling crane solutions for processing lines where short- distance, frequent and repeat operation are required with lifting capacity no more than 5 tons.

KBK rigid workstation crane system is well applied in diverse industries like Automobile Making, Construction Machinery, Injection Molding,electronic assembly, Process Equipment Maintenance,Logistics,Food processing,Machinery manufacturing, Metal Manufacturing,Parts Assembly, Shipbuilding industry,Process Equipment Maintenance, Logistics,Warehouse loading,Wind Power,Rail Transfer, etc.

Process designed workstation cranes are the most cost-effective overhead crane solutions for your particular applications. Contact us to confirm the crane specifications , get free rigid kbk workstation cranes drawing and crane price. Send us an inquiry on the rigid kbk workstation cranes today.

How to customized your kbk crane system ?

• Lifting capacity of light kbk crane: __Kg
• Width (S)=__m, H=__m, L=__m, L1=__m, L2=__m
• Hoist type of light kbk crane:Electric chain hoist or Wire rope hoist or Manual chain hoist?
• Crane travel type of light kbk crane: Electrical type or Manual type?
• Voltage of light kbk crane: ____V____Hz____Phase (If electrical type)
• Control Mode of light kbk crane: Remote control or Pendant control?
• How many KBK cranes are running on the same track?
• Transportation: tell us the sea port name near you, we can quote you shipping freight.

If need more details or request a quote to our overhead kbk crane system , welcome to contact us freely to check what we can do for your workstation material handling.
