Single Girder & Double Girder KBK Crane
Flexible KBK Light Crane System

KBK crane systems including ceiling suspension kbk crane system and floor mounded free standing kbk crane systems either in single girder crane designs or double girder cranes designs for light duty material handling with capacity from 0.25 ton to 2 ton. Customized kbk light crane systems for your particular applications.

KBK crane systems, Flexible kbk light crane system

What is kbk crane system? Kbk crane is a type of light duty duty flexible beam crane system for workstations, with European modular design, consisted of suspensions,kbk rails, ballasts, trolleys, lifting hoists, sliding lines for power supply and control devices, etc. Kbk crane systems can simply be attached to the roof ceiling structures or be supported on the the supportive columns. Flexible KBK Overhead Rail Crane systems offer optimal light duty overhead travelling crane solutions for material handling in simple workshops, to highly complex logistics flow layouts,etc. Flexible modular kbk crane system can be combined based on your specific application with process crane designs, good light duty crane, cost-effective overhead travelling crane solutions.

Ceiling mounted single girder kbk crane

Ceiling mounted double girder kbk crane

Main parameters of kbk cranes

With modular crane designs, the kbk crane system can be designed flexible with combined functions based on particular application conditions and lifting requirements. The kbk cranes can be formed into single girder suspension crane, double girder suspension crane, kbk jib crane, light type gantry crane and stacking crane, etc. SWL of KBK rail system are from 125kg to 2000kg.

Main parameters of kbk cranes

• Crane type: flexible kbk crane system with modular design
• Capacity of kbk crane system: 50kg, 250kg, 1000kg, 1500kg, 2000kg,
• Span of kbk crane system: 0.7-15m
• Lifting height of kbk crane system: 3-10m
• Working class of kbk crane system: A1-A6
• Power source of kbk crane system: Customized is acceptable

Process designed KBK rail crane systems for large scale automatic material handling are available. Contact us to confirm detailed kbk crane specifications and drawings.

Main Types of Flexible Modular Design kbk Crane

Flexible combined KBK crane system is a new type overhead travelling crane system with modular crane deigning concept. Crane parts and components of various functions are separated into different modular and the modular with same function are easy to interchange.

Ceiling mounted single girder kbk crane

Ceiling mounted double girder  girder kbk crane

Freestanding single girder kbk crane

Freestanding single girder kbk crane

A kbk light crane system can be attached and mounted on the ceiling structure, without any additional supportive columns, offering a very cost-effective overhead travelling cranes，which can be designed into single girder suspension kbk cranes and double girder suspension kbk cranes.

Single Girder Suspension kbk Crane 1000kg

Kbk single girder crane is designed with KBK standard components, with direct kbk rail track, electric hoists and other auxiliary standard components, etc. The single girder kbk crane system enables material handling in specific areas quickly and accurately. Maximum span is 10m. Maximum capacity is 3000kg.Customer-specific kbk crane configuration to meet individual requirements.

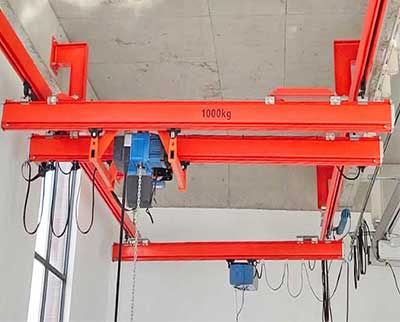

Ceiling mounted single girder supension kbk crane

Ceiling mounted single girder supension kbk crane

Features of KBK-LD type single-girder suspension cranes：

• The KBK-LD type flexible modular single girder suspension crane is made up of standard linear track and other standard components.
• The trolley travelling part at both ends of the main beam can be run on two tracks perpendicular to the main beam's direction, the single beam can be used with any type of fixed chain hoist, and the special KBK driving device can drive the hoist to run along the main beam's direction.
• This type of product is used for material transportation by plane and can be used in a workshop or warehouse.
• Because of its unique flexibility and degree of freedom, the flexible modular single-beam suspension crane can be inclined to run on the track, walk on the track with variable span, and run on two concentric circular curved tracks, which other types of lifting products cannot.
• The flexible composite single-beam suspension crane has a maximum span of 10 meters and a maximum lifting capacity of 2000Kg.

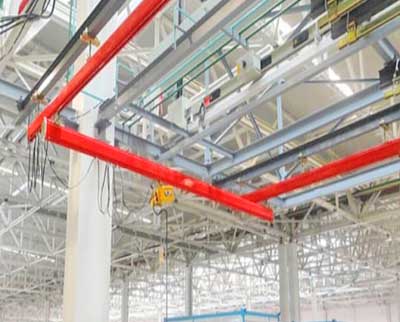

Variations of ceiling mounted single girder kbk cranes

Single girder kbk cranes are usually adopted the ceiling mounted suspension crane design. The kkb crane beams are simply hung on the roof or superstructure of the facility without additional auxiliary support, to improve your workshop space utilization.

The single girder kbk cranes with process crane design offers a very efficient and reliable, and cost-effective overhead travelling crane solutions.

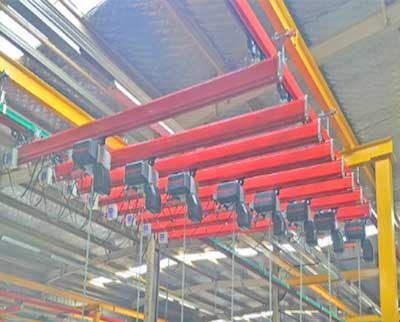

Ceiling mounted combined single girder kbk crane

KBK single beam crane can be combined to complete the lifting operation of various materials safely and quickly.

Telescopic kbk cranes

The telescopic beam kbk crane can carry loads out of the reach of the main beam to go beyond the columns or other obstacles to increase work range efficiently and make best use of the limited space. The telescopic beam is attached to the main beam and can reach out of the main beam 2.5m long at one side or both sides to enlarge service areas where crane track can not be installed such as such as pipeline downside, heat pipe, among roofs, columns, etc.

Double girder suspension kbk crane up to 2 tons

The kbk type double girder suspension cranes is consisted of standard modular kbk crane parts and components, with light weight and reasonable structural dimensions which can be installed on a light steel structure factory.With flexible swingable suspension track, the kbk crane can effectively absorb the horizontal impact to the load during braking to ensure safety and smooth travelling.

Ceiling mounted double girder suspension kbk crane

Double girder suspension crane ceiling mounted

KBK double-girder suspension cranes：

• KBK-LS type flexible modular double girder suspension crane is composed of standard linear track and other auxiliary standard parts.
• The trolley travelling part at both ends of the main beam can be run on two tracks perpendicular to the direction of the main beam, the single beam can be used with each type of fixed chain hoist, the special KBK driving device can drive the hoist to run along the direction of the main beam.
• The flexible modular double girder suspension crane is used to lift heavy materials with large span due to the use of double-rail parallel composite beam to increase the load-bearing capacity of the main beam.
• KBK Double-girder suspension cranes feature a low deadweight and favourable structural dimensions.
• Double-girder suspension cranes can even be installed in buildings of light steel construction.
• KBK classic double-girder cranes can also operate on several runways, thus providing large spans to cover extensive storage and production areas.
• The kbk cranes can be easily moved by hand. However, electric friction wheel travel drives from the KBK crane construction kit are recommended for spans greater than 6 m and load capacities exceeding 3000 kg.

Double girder suspension kbk crane

The  KBK double-girder suspension cranes with modular crane system enable goods to be easily transported. KBK double-girder suspension cranes provide fast, reliable and precise positioning for all loads, including heavy loads with large span dimensions. Rated for loads weighing up to 3000kg.

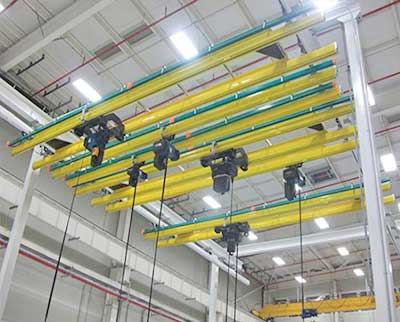

Combined flexible KBK double beam cranes

The combined flexible KBK double beam cranes are a combination of standard modular KBK components and parts which can reduce the horizontal load shock during braking to the largest extend and offer a larger span and lifting height than the single beam kbk crane.

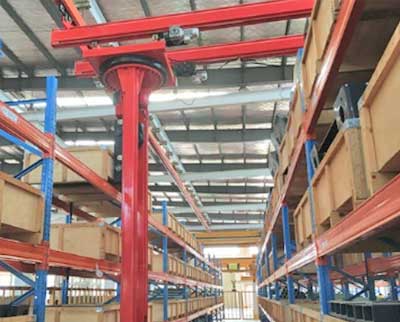

KBK stacker crane system

KBK Stacker Crane is developed on the bases of a double girder suspension crane and equipped with a special stacker trolley. KBK stacker crane can make the best utilization of the indoor height to make the in-stock, out-stock, transportation and access simply into one work process without the requirements of ladder, forklift,or any other assistant tools.The kbk stacker cranes are very suitable to handle loads such as piece cargo, vessel, tacking pallets, etc for transport, sort, store and access, etc.

The free standing kbk cranes are a type self-supporting crane with light and simple structure, which can be easily adapted to various installation environment.

The free standing kbk light crane systems offers a new type of material lifting equipment very different with the traditional overhead travelling cranes. The free standing kbk cranes are designed with lighter deadweight, more convenience in assembly, more ergonomic in use and more cost-effective.

Freestanding kbk crane with single girder design

Freestanding kbk crane with double  girder design

Features of free standing kbk crane system

• Reduce plant costs: Because the equipment does not require the assistance of the plant corbel, you can reduce plant costs by minimizing the bearing capacity of the plant column design.
• No need to change the plant structure: It can be added to an existing plant at any time based on production needs, without requiring any changes to the plant's original structure.
• Less idle equipment: The carrying space can be covered based on the needs, and accurate shooting can be performed to reduce idle equipment waste.
• More precise positioning: Light and small structure, simple operation, precise positioning.
• More energy-saving and environmentally friendly: Low power consumption, greater energy savings, and environmental protection.
• Low operating noise: Because of the simple structure and low failure rate, the scope of equipment failure is greatly reduced.
• High overall benefit: The track system requires no maintenance, the electric components are easily maintained, and the cost is low. Reduce the time and labor costs associated with equipment failure, with a high overall benefit.

Basic components and parts of kbk cranes

KBK cranes are the combination of standard modular components and parts with standardized connection dimensions which can be assembled quickly and also enables the modifications and extension of the existing installations easy and simple.

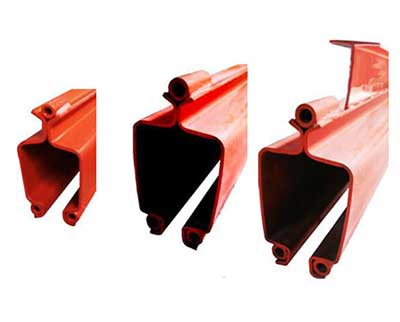

KBK rail elements

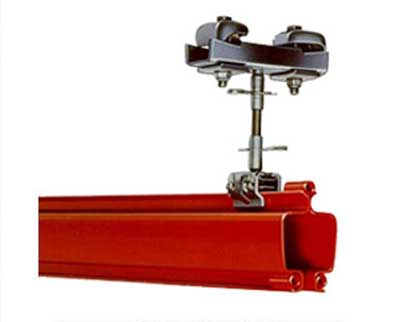

Suspension components

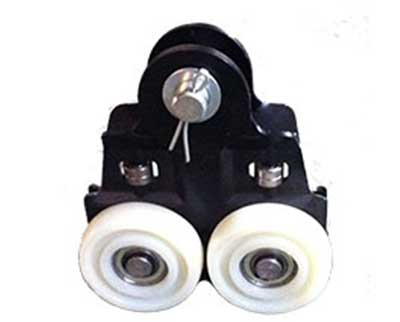

Trolley combination

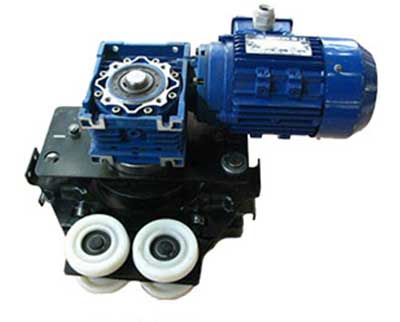

Travel drive: manual or electric as request

Advantages of kbk crane system

European Modular KBK light crane system can be offered with Ceiling Mounted Crane and Free Standing Workstation Crane designs with lifting capacity from 125kg to 2000kg. Compared with common type overhead travelling cranes, the KBK light crane system can achieve advantages such as:

• Modular design: Easy to install, maintenance, and upgradation .
• Low cost: simple structure, less steel material required, lower crane cost.
• High track strength: high strength steel track, light weight, heavy load handling.
• Environment friendly: Low power and energy consumption, lower cost for electricity
• High efficiency: Process crane design, quick and precise material handling with accurate positioning

Comprehensively, the kbk light crane system are very beneficial. With customer specific configuration, kbk crane system offers best fit overhead crane solution, optimal space utilization, easy maintenance for rail system &electrical components,convenient future modification & extension, and low crane cost. and maintenance. The kbk crane systems are very efficient and functional which can help to improve your production and safety and maximize your up time and lower your down time and labor cost during equipment failure.

Applications

The kbk crane systems are widely used for light duty material handling during production processing, assembly, maintenance and storage.The kbk light crane systems are typical overhead travelling crane solutions for processing lines where short- distance, frequent and repeat operation are required with lifting capacity no more than 2 tons.

KBK flexible combined crane system is well applied in diverse industries like Automobile Making, Construction Machinery, Injection Molding,electronic assembly, Process Equipment Maintenance,Logistics,Food processing,Machinery manufacturing, Metal Manufacturing,Parts Assembly, Shipbuilding industry,Process Equipment Maintenance, Logistics,Warehouse loading,Wind Power,Rail Transfer, etc.

Get your customized kbk crane design

Process flexible cranes ,most-effective kbk light crane system with good crane price.Process designed flexible kbk cranes are the most cost-effective overhead crane solutions for your particular applications. Contact us to confirm the crane specifications , get free flexible kbk workstation cranes drawing and crane price. Send us an inquiry on the flexiblekbk single girder or double girder crane design today.

Types of KBK crane systems for your selection

KBK light crane system includes KBK monorail suspension crane, KBK single girder suspension crane, KBK double girder suspension crane, KBK telescopic girder suspension crane, KBK stacker crane, rigid kbk crane system, and combined-type KBK cranes, and other forms, etc.

KBK Telescopic Crane, kbk Overhung Crane & Extending Cranes

KBK Stacker Crane: Light Stacker kbk Crane for Rack Warehouse

KBK Rigid Crane System

Single Girder & Double Girder KBK Crane

Monorail KBK Crane

Monorail Cranes & Monorail Hoist System

Types of kbk crane videos for your reference

500kg-5000kg KBK Light Crane System， Various Types of Light KBK Cranes & Tailored KBK Light Cranes

KBK crane with electric chain hoist, Light duty electric chain hoist kbk crane system

2 Ton Light KBK & Rigid KBK Crane System Assembled Kenya, Light KBK Crane System for Sale Kenya,

How to customized your kbk crane system ?

• Lifting capacity of light kbk crane: __Kg
• Width (S)=__m, H=__m, L=__m, L1=__m, L2=__m
• Hoist type of light kbk crane:Electric chain hoist or Wire rope hoist or Manual chain hoist?
• Crane travel type of light kbk crane: Electrical type or Manual type?
• Voltage of light kbk crane: ____V____Hz____Phase (If electrical type)
• Control Mode of light kbk crane: Remote control or Pendant control?
• How many KBK cranes are running on the same track?
• Transportation: tell us the sea port name near you, we can quote you shipping freight.

If need more details or request a quote to our overhead kbk crane system , welcome to contact us freely to check what we can do for your workstation material handling.
