Magnetic Billet Crane for Round & Square Billet Handling
Electromagnetic Overhead Cranes & Gantry Cranes for Handling Types of Ingots & Billets

A steel bloom and billet crane is a highly maneuverable electric overhead crane that moves large pieces of hot, soft metal from the melt shop to its next destination. Because the melt shop is so dangerous, it is normally located away from the other manufacturing working sites. The overhead crane feeds steel blooms and billets onto shaping rollers, transports the metal to be reheated in another furnace before shaping, transports the shaped steel to another conveyor for further processing, or delivers it to a storage location.

A steel bloom or billet crane is designed to transfer heavy loads rapidly and safely from the melt shop to the rolling mill to storage. To address the issues of handling either hot and soft metal or cooler pieces, the travelling crane employs a number of Smart Features including as Sway Control, Slack Rope Prevention, and Target Positioning, which enable operators to accomplish complex operations with ease.It can be customized to your specifications, all the way up to full automation.

Steel billet

What is steel billet ? Steel billet is a term used to describe freshly manufactured steel that is still in the shape of a rectangle or a metal bar. The billet steel needs to be processed into more useful pieces before it can be sold on the market. Raw steel is useless in its raw form, so it must be cast into the desired shape.

Billets (also known as ingots) are not usable until they are shaped into more practical forms and sizes. Although they have been heated in steel furnaces, they still require a series of molding and shaping operations such as cold and hot process, milling and cutting before being sold in shops or used for diverse applications.

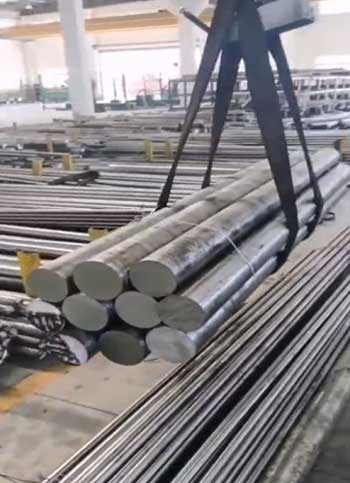

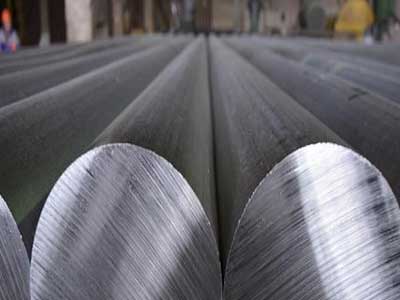

Cold round billet

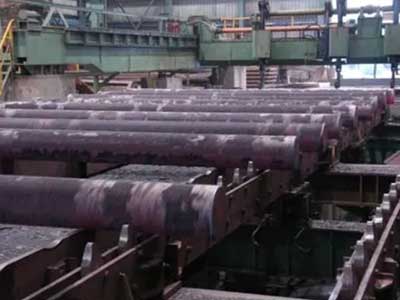

Hot round billet

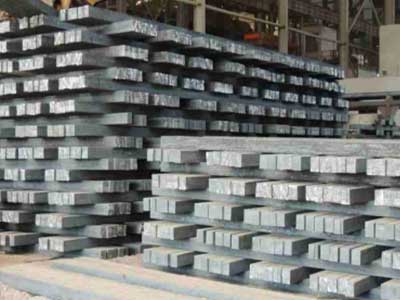

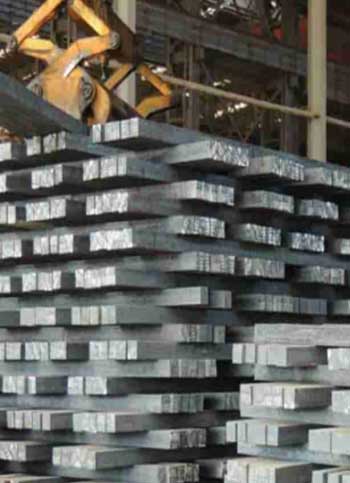

Cold square billet

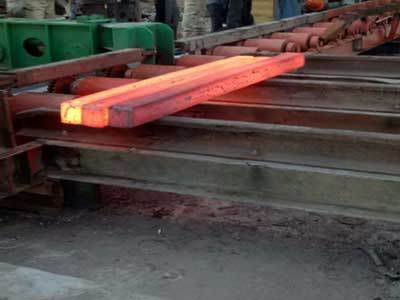

Hot square billet

Types of billet handling cranes

The Billet handling overhead cranes and gantry cranes can be equipped with lifting magnets. In addition, billet grabs or a combination of magnets and C-hooks are available when billets are extremely hot.

• Extra heavy duty non standard overhead cranes
• Extra heavy duty overhead cranes with rotating trolley
• Overhead cranes and gantry crane with magnetic beam
• Overhead cranes and gantry cranes with clamp /tongs
• Round or square billet cranes with cold or hot temperatures

Billet cranes are crucial to the operation of the rolling mill because they handle hot billets. The cranes must be constructed to resist the high temperatures while handling the steel blooms. These extra-heavy-duty cranes are used to store, carry, and feed hot billets to rolling mills.Billet cranes are designed to operate at fast speeds while maintaining safety, and they must be able to withstand radiant heat from the product.

These also include the handling of mill rolls for storage and maintenance, as well as the in-house transport of steel blooms and ingots. Modern automation technology combined with advanced crane control features helps the operator in the safe installation and movement of the load along its path.

Magnetic billet crane

The magnetic billet crane is an overhead or gantry crane that handles steel billets by using a magnetic beam spreader. The steel bloom & billet handling crane may be used to lift and move steel plate, pipe, profile steel, steel bar, steel billets, steel coil, steel spool, iron and steel scraps, and various sizes of long and bulk material or objects, at steel mills, shipyards, port yards, storage facilities, and waste warehouses, etc. The hanging beam could be rotated horizontally to accommodate various working requirements.

The dead weight of magnetic lifters is included in the crane's lifting capability. This type of heavy-duty crane has an A6–A7 working duty.

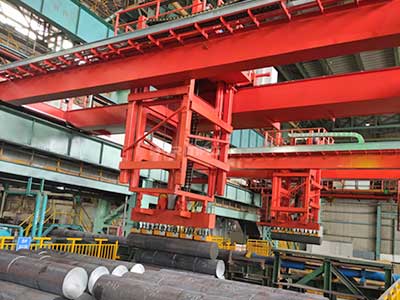

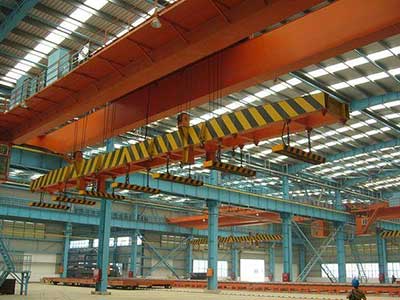

Billet handling bridge overhead crane

Billet handling goliath gantry crane

Magnetic billet cranes for round billet / bar handling

Steel bloom and round billet are semi-finished steel products made by rolling ingots or continuous castings through a series of rollers to reduce their thickness, width, and length. As a result, the name "bloom" refers to a long bar with a cross-section that resembles a flower. It can then be formed into shapes like circular bars and squares. Steel blanks are often utilized in applications that require strength, toughness, and flexibility. Steel blooms are semi-finished products made from ingots, billets, or steel blooms. Blooms have a rough surface and are often rectangular or square. They are utilized in the manufacturing of forged objects such as railway wheels and axles.

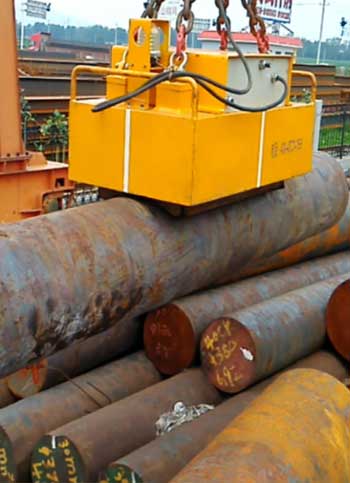

Round steel billets handling bridge crane with magnetic lifter

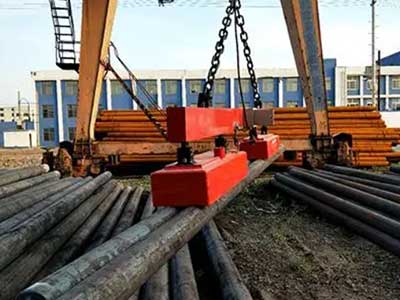

Magnetic gantry cranes with magnetic lifters for round billets

These electrically switched lifting magnets were programmed to perform a sequence of motions with the overhead crane, including picking up, holding, transferring, and releasing heavy metal round billets.

Sorting these wheel blocks into different specifications and stacking them using magnetic lifting with a smart crane not only improves overall labor productivity, but also improves the client factory's corporate image by achieving essentially automated manufacturing.

Magnetic billet cranes for square billet

A square billet is a form of semi-finished steel product created by hot rolling or extrusion. In contrast to blooms, billets are typically square or rectangular in shape with uniform lengths along their length. They are utilized in applications where strength and durability are required but ductility is not, such as structural components such as I-beams or other massive constructions. A billet is a semi-finished steel product cast in the shape of a rectangle or square. Billets have a smooth surface and are used to make items like bars, rods, and pipes.

Steel round billets on magnetic bridge crane

Magnetic beam overhead crane for large and heavy billet and ingot handling

The billet handling crane is made up of a single or double bridge, a crane traveling rail, a trolley, and an electromagnetic carrier beam. The capacity of the double girder crane is up to 100 tons, and the span is up to 31 meters or 40 meters with the processed crane design.

We deliver high levels of safety and functional reliability for ingot and billet crane systems in spite of tough loads, reliable and diverse handling functions, high or extremely fluctuating environmental temperatures.

Advantages of magnetic billet crane

Billet handling crane is a custom-designed crane for to transport Billet/Bar/Steel bloom/Plate or other elongated objects, allowing operators to improve their output. The structure, the drive system, rotating trolley mechanism, and electromagnets are essential components of this billet handling crane.

• Billet cranes are fitted with cutting-edge magnets that are tailored to their specific application and purpose.
• Powerful magnets enable the handling of a wide range of billet types.
• The magnets have been equipped with the most recent safety features, such as backup power supply, stepless control of magnet power, two-button control for load drop, and many more.

Safety features of billet handling crane

Crane safety is the most critical consideration. The billet handling crane is fitted with the following security features to ensure its safety:

• Limit Switch: Stopper safety limit switches will be supplied to prevent overtravel in all actions.
• Anti-collision device -When many crane units travel on the same railway, the cranes can install the following devices: anti-collision device, infrared non-contact and inductive type limit device, sound and light warning device, wireless anti-collision device, and so on.
• Weight overload protection device - The ingot handling crane is equipped with a weight overload protection device, which includes an automatic stopping type lifting weight limiter and a weight display device, when the crane is operating at overload.
• Limit switches for lifting and traveling
• Emergency braking system
• Electrical protection -The main insulation switch, emergency stop switch, short circuit, zero voltage protection, zero position protection, loss of field protection, current overload protection, over speed protection, phase sequence protection, and adopted crane specially anti-vibration contactor,and others are all equipped, fully implementing the safety first concept.
• Interlock device -It installs an interlock device on the cabin door and the other door leading from the cabin to the bridge structure; if the door is opened, the crane cannot operate.
• A backup power source improves operational safety by preventing emergency load decrease (free falling) in the event of a power outage.

Billet crane magnets

Magnets for billet cranes are among the crucial pieces of equipment for steel mills.For billet lifting applications, electromagnets and electropermanent magnets can both be used.Specifically designed resins enable safe handling of billets with core temperatures up to 600 °C.

The "zero drop" principle governs the operation of electropermanent magnetic systems. As a result, they are perfect for billet lifting applications. Even in the event of a power outage or damaged magnet cables, these systems continue to operate. They only need to grab the load at first.Furthermore, because these systems do not have backup battery units, no maintenance is necessary.These ingot magnets contain neodymium or samarium cobalt. Electropermanent magnets are more expensive than electromagnets despite their numerous advantages.

Electromagnetic systems are often favored for billet lifting applications due to the cost advantage and availability of adding additional functions to the systems.Such systems include backup battery units to prevent load drops in the event of a power outage.

12 ton magnet beam for billet handling for your reference

Steel round billets on magnetic bridge crane

Magnetic beam Gantry cranes with magnetic lifters for steel billets

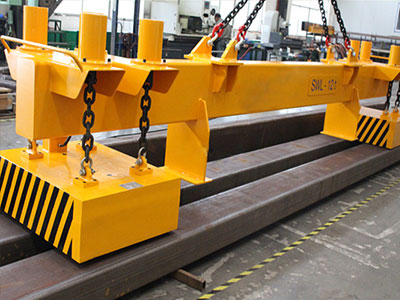

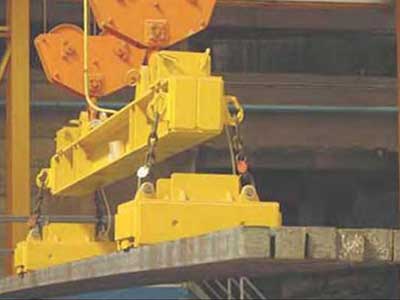

12 ton steel billet lifting magnet beam

This 12 ton magnetic lifting beam is equipped with two rectangular magnetic lifters at each end.

• Billets to be loaded: 2 long and heavy steel billets will be loaded each time.
• Challenges: Unlike flat steel products like plates, steel billet is lengthy, heavy, and irregularly constructed, making factory lifting more difficult and hard.

Tailor made magnetic lifting beam solution :

• At each end of the lifting beam, 2 rectangular magnetic lifters are suspended.

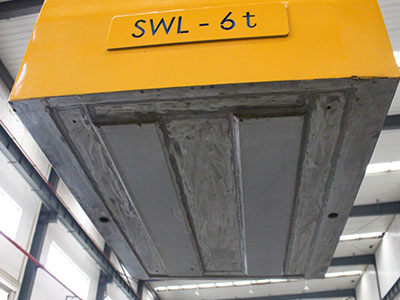

• Lifting capability - safe working load: 6 ton per lifting magnet, totaling 12 ton.
• The magnetic billet lifter is designed to lift two steel billets at the same time, accelerating production cycles and lowering the possibility of operator damage.
• The magnet lifter's bottom portion is specially made for the application based on the size and weight of the steel billet.

This electrically switched permanent lifting magnet system addresses the needs of handling systems by providing a strong clamping force with safety and reliability that other technologies cannot match.

Magnetic lifting devices are commonly used in industrial steel material handling for the following reasons:

• Fast manoeuvring times: improving handling efficiency
• It is insensitive to power interruptions due to its permanent electro magnetic property: complete protection for workers and equipment
• By using radio remote control, a single operator may complete the entire operation of grabbing, handling, and release from a distance from the load, eliminating the need for ropes or chains.
• Compact structure & small volume -Small size, satisfying multi-directional layout, preventing welding deformation, one-time clamping, multi-faceted processing.
• Powerful suction and ability - It can generate a strong suction force of 16KG/CM2, shorten the billet handling time and reduce labor costs .
• High efficiency - It only takes 0.6 seconds to complete the clamping and release operation of objects and loads, with high adsorption efficiency and fast speed.
• Safe and easy operation - Power off and magnetic protection, high safety performance, full PLC control, simple and convenient operation
• Zero maintenance -There is no heating phenomenon due to the moving parts inside, and the later maintenance cost is almost 0.
• Fully automation - Automatic material retrieving, positioning, transfer, fully automated production to realize flipping, translation, tapping and other processes, etc.

Things to consider when choosing billet crane magnets

• Where the magnetic crane will be used ? (Cooling bed, stockpiling, vehicle loading, stock yard, etc.),
• Crane lifting capacity - which should have the weight of magnetic beam spreader included
• Number, cross section, minimum and maximum billet lengths to be lifted at once.
• Maximum billet temperature -( Electropermanent magnetic systems can be utilized to lift billets with core temperatures of up to 600 °C. Beyond this temperature, they begin to lose magnetic characteristics, making it hard for the magnet to catch)

Comparisons of magnetic billet crane vs. Clamp billet crane

Magnetic lifter for billet handling - The efficient way of billets handling with no damage to billet surface, with high safety, and low maintenance. 10 ton magnet for round steel bar handling.

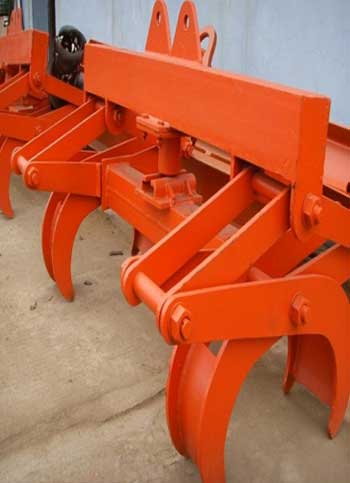

The steel billet tongs use the principle of leverage to lift the steel billet, do not need a power source, and rely on the rotating automatic locking device or the mechanical automatic locking device to perform positioning and locking. It can lift single-layer and multi-layer steel billets, and has the characteristics of flexible operation.

The Billet Tong is designed to lift one or more billets in a horizontal position at the same time.To satisfy the severe needs of steel mills, the tongs are robustly constructed for high duty application.

The most simple and economical lifting slings also can be used for billet handling, but with lower efficiency and needs more labors to help billet handling.

• Automatic electomagnet lifters- 0.6S to complete charging and demagnetization, fast speed, maintain magnetism during power failure, high safety, strong compatibility for grasping work-pieces, magnetic adsorption does not damage work pieces, low maintenance cost, etc.
• Traditional clamping and lifting devices - large volume and complex structure, troublesome layout and positioning, poor grasping compatibility, easy damage and deformation of the work-piece, high maintenance costs in the later period,

Get your customized magnetic billet handling cranes

With hundreds of billet cranes and steel mill cranes produced, our factory can offer you with a process industrial crane for your steel industries. Our crane company's reputation has been based on the satisfaction of our customers due to the high quality of our billet and ingot hanlding cranes.

We have exported cranes to Russia, Uzbekistan, the Philippines, Bangladesh, Australia, Qatar, Tanzania, Singapore, Saudi Arabia, Pure, Brazil, and Nigeria, and other places and regions. We have developed long-term business relationships with numerous well-known companies all across the world. Contact us right away for a consultation on the processed billet handling crane.
