Tundish Crane| 34 Years Tundish Crane Design & Process

Safe tundish crane design and processs for 34 years in China offers tundish crane at cost-effective price, reliable operation & high safety, etc. Design tundish crane for you!

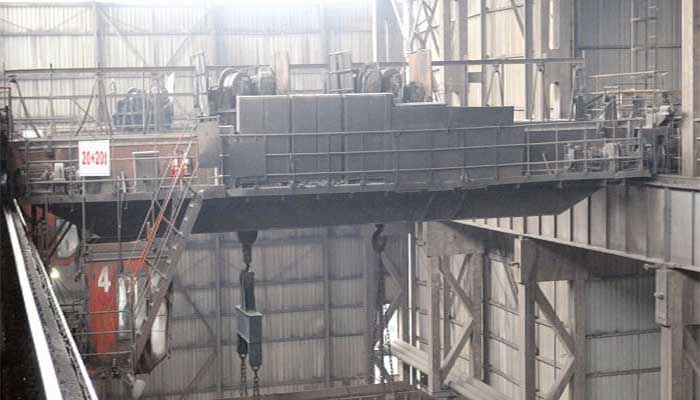

Tundish cranes are one of the process overhead crane series for the steel industry, which shares many features with other steel industry process cranes such as, the ladle cranes. Tundish cranes are processed cranes used in the steel industry for material handling, particularly tundishes. Our tundish cranes are more adaptive to the demanding working environment in the steel manufacturing workshop thanks to technological advancements and crane design innovations.

Main specifications of tundish crane

Here are some details on this type of crane. If you want to learn more, please visit our other pages to see what other hot selling items we have available, such as the electromagnetic crane with carrier beam and double girder gantry cranes.

The winch is created using the welding's steel board, the gear box with the detent, and the ratchet wheel, and it works in the highest ambient temperature of 60°C, collocate with advanced electricity. Power: AC 3Ph 380V 50Hz or as required by the client. Cabin control/remote control/control panel with pendant line is the control mode.

Overhead crane for foundry parameters:

• Lifting Capacity of Tundish Crane: 75~320t
• Span Lengthof Tundish Crane: 19~28m
• Working Classof Tundish Crane: A7
• Working Temperatureof Tundish Crane: -20℃~60℃

We will provide you with our finest services. We may also assist you in purchasing the crane's other components. So, if you require these high-quality products, we will gladly supply them at a fair cost.

Functions of tundish crane

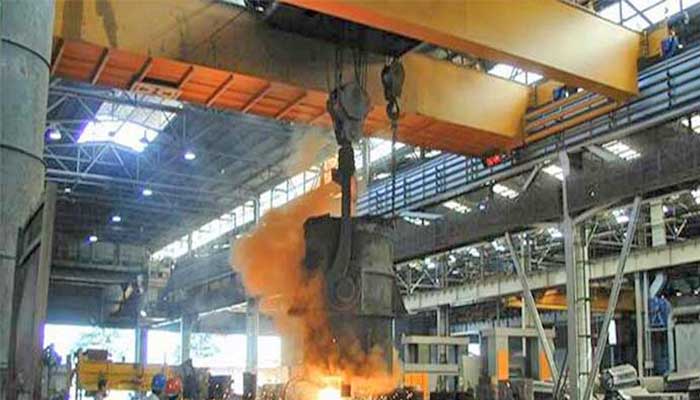

Ladle cranes for ladle or liquid metal lifting, heavy duty ladle crane for steel mill, foundry, furnace, and casting factory. Good priced ladle crane, charging crane, casting crane & foundry crane !

Choosing the right tundish crane is crucial for increasing the efficiency and production of your steel mill while also ensuring outstanding safety. Steelmaking is a complex and varied operation that necessitates a wide range of cranes. It is critical to select lifting items that fulfill the requirements of your production based on the individual characteristics of each production process and the production environment.

Single Girder Tundish Crane

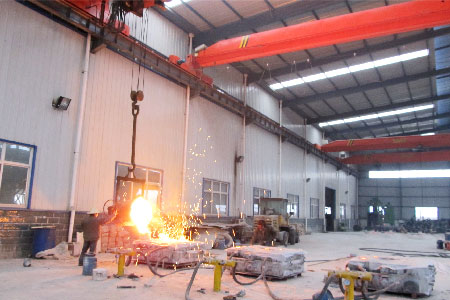

Single girder overhead hoist crane system for hot metal & ladle handlingin steel & metallurgic industries. 2 ton, 3 ton, 5 ton & 10 ton ladle hoist crane for sale.

Our dedicated overhead cranes are designed to help enhance the steel industry's production efficiency and minimize energy consumption by following the features of the steel casting process to develop lifting goods commensurate with the iron and steel continuous casting process. It is fair for you to make the suitable decision in picking lifting items, which help to decrease investment and operating costs and accomplish energy conservation, based on the peculiarities of the industrial production processes. Steelmaking is currently divided into two types: EAF steelmaking and converter steelmaking.

Double Grider Tundish Crane

However, there are certain similarities between the two processes. The converter steelmaking and continuous casting process flow is separated into three stages: first, hot metal smelting; second, molten steel refining; and third, slab continuous casting. The supply of raw materials (hot metal and scrap), hot metal pretreatment, converter blowing, furnace refining, molten steel transportation, treatment, continuous casting of molten steel (continuous casting), and billet transport handling procedure are all included in this process. The following is a list of the most common cranes used in the steel melting sector.

• The tundish is used in rolling mills to transport materials between multiple machinery.
• Tundish cranes are sometimes used to transfer molten metal. Tundishes from continuous casting machines are changed using these cranes.

Features of tundish crane

• Operation that is both dependable and efficient.

Tundish crane reliability and effectiveness are critical for uninterrupted casting.

• High-temperature resistance and sophisticated cooling technology

The Tundish crane can withstand the product's radiant heat. It's also equipped with the necessary technology to keep the equipment cool and safe.

• Improved crane performance thanks to advanced technology.

To achieve the smooth standard, the tundish crane uses advanced automation technology to ensure accurate load positioning, increase crane safety, and boost tundish crane efficiency.

We can give you with a process crane for your steel industries based on our extensive experience in constructing hundreds of tundish cranes. Our crane company's reputation has been based on the happiness of our customers, thanks to the high quality of our process cranes. Our factory has produced a variety of process cranes for various steel industry applications.

We will try try our best to offer you the perfect solution to your material handling in steel business.

Features that ensure safety

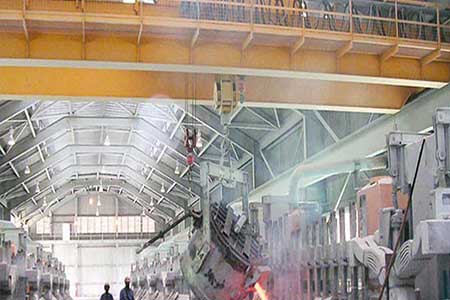

The tundish crane is primarily used in the steel smelting stage's continuous casting process, as well as the slab continuous casting stage: the continuous casting process refers to the large180 rotating turntable that pours molten steel from the molten steel tank into the middle tank, which then shunts the molten steel to the continuous casting machine. The continuous casting machine casts billet on the billet roller via the cut to generate a length of slab, which is subsequently transported to storage using the slab grabbing crane (or electromagnetic hanging beam, material raking crane).

• Crane safety is the most critical consideration. Ladle cranes are equipped with the following safety equipment to ensure their safety.
• Overhead protection: If the material exceeds the crane's capacity, the crane will sound an alarm to protect itself.
• Emergency brake: If the operating staff is confronted with an emergency circumstance, the emergency brake system can be activated to protect the linked treasure.
• To avoid any injuries to the operating employees, the control method is room control or remote control.
• Hooks with a latch: to keep objects from falling down.
• The main lifting motor is equipped with thermal and currency protection.

Detailed description of tundish crane

• Beams with a lot of strength. The crane beams are made of welded steel. As a result, there is less dead weight, more vertical and horizontal stiffness, and reduced wheel loads.
• High efficiency and long-lasting performance!
• Outstanding heat resistance thanks to the addition of a thermal-protective coating on the main beam's bottom!
• Modern cabin control with air conditioning to keep operators safe from the elements!
• Electrical equipment: Siemens or Schneider brand electric systems!
• Long service life at a cheap cost of maintenance.

Get you tundish crane

Furthermore, we provide a full range of steel mill crane services, including tundish cranes, slab cranes, scrap cranes, ladle cranes, billet cranes, coil and plate handling cranes, and so on. What you can get us from us ?One-year guarantee on entire machines;low-cost continued maintenance after warranty expires;exclusive support, etc. engineer;low-cost spare components.

Please stay in touch with us if you want to learn more about the tundish crane. We will provide you with our finest services. We may also assist you in purchasing the crane's other components. So, if you require these high-quality products, we will gladly supply them at a fair cost.
