Top running single girder eot crane specifications 3 ton, 5 ton, 10 ton, 16 ton, 20 ton. Tailored single girder overhead crane specifications for you.
Category: Hoist and Crane Specifications
Your Trusted Overhead Crane Manufacturer & Supplier
The LD type economical top running single girder overhead crane is desinged and built based on the GB3811-2008 and JB/T1306-2008 standards. The single girder overhead crane is frequently equipped with cd/md type electric hoists. They are commonly used in mechanical processing, assembly, and repair, as well as warehouses and other workplaces. It is an important tool and matereial handling equipment for modern industrial enterprises to realize mechanization and automation of the production line, reduce heavy manual work, and improve productivity.
We provide single girder eot cranes with customized specifications. They have a lifting capacity of 1-20 tons, a span of 7.5 to 28.5 meters, a lifting height of 1-30 meters, and low work classes of A3, A4. We also design and manufacture nonstandard cranes or processed overhead canes to meet the lifting requirements and applications demands of user's.
Crane specifications of single girder eot crane 1 ton
Crane Capacity | T | 1 ton | |||||||
Crane Span | m | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Lifting height | m | 6、 9、 12、18、 24、 30 | |||||||
Lifting speed | m/min | 8 or 8/0.8 | |||||||
Hoist travelling speed | m/min | 20 | |||||||
Crane travelling speed | m/min | 20 | |||||||
Total weight | kg | 1590 | 1960 | 2390 | 2850 | 3060 | 3550 | 4610 | 5660 |
Max. Wheel load | KN | 8.7 | 9.9 | 11 | 12.2 | 12.8 | 14 | 16.7 | 19.4 |
Rail recommended | Model | 24kg/m | |||||||
Total motor power | kw | 1.7 | |||||||
Main dimension of eot crane (mm) | Span (m) | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Rail top to crane top | H | 490 | 530 | 580 | 660 | 745 | |||
Rail top to hook center | H4 | 910 | 955 | 970 | 990 | 1010 | |||
Eot crane base distance | W | 1500 | 2000 | 2000 | 2500 | 2500 | 3000 | 3500 | 4000 |
Crane width | B | 2000 | 2500 | 2500 | 3000 | 3000 | 3500 | 4000 | 4500 |
Hook left limitation | S1 | 796 | |||||||
Hook right limitation | S2 | 1274 |
2 ton overhead crane specifications
2 ton overhead crane specifications
Crane Capacity | T | 2 ton | |||||||
Crane Span | m | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Lifting height | m | 6、 9、 12、18、 24、 30 | |||||||
Lifting speed | m/min | 8 or 8/0.8 | |||||||
Hoist travelling speed | m/min | 20 | |||||||
Crane travelling speed | m/min | 20 | |||||||
Total weight | kg | 1680 | 2140 | 2670 | 3480 | 3760 | 4400 | 5680 | 6850 |
Max. Wheel load | KN | 13.6 | 15.2 | 16.7 | 18.8 | 19.5 | 21.2 | 24.4 | 27.4 |
Rail recommended | Model | 24kg/m | |||||||
Total motor power | kw | 3.4 | |||||||
EOT crane main dimension (mm) | Span (m) | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Rail top to crane top | H | 490 | 580 | 660 | 785 | 820 | 875 | ||
Rail top to hook center | H4 | 1080 | 1125 | 1140 | 1160 | 1135 | 1200 | 1250 | |
Crane base distance | W | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | ||
Bridge crane width | B | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | ||
Hook left limitation | S1 | 796 | |||||||
Hook right limitation | S2 | 1274 |
Eot crane capacity | T | 3 ton | |||||||
Span | m | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Lifting height | m | 6、 9、 12、18、 24、 30 | |||||||
Lifting speed | m/min | 8 or 8/0.8 | |||||||
Hoist travelling speed | m/min | 20 、30 | |||||||
Crane travelling speed | m/min | 20 | 30 | ||||||
Total weight | kg | 1860 | 2350 | 3120 | 3680 | 3970 | 5170 | 59500 | 8100 |
Max. Wheel load | KN | 18.6 | 20.5 | 22.6 | 24.2 | 25 | 28.1 | 30.1 | 35.5 |
Rail recommended | Model | 24kg/m | |||||||
Total motor power | kw | 4.9 | |||||||
Main dimension (mm) | Span(m) | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Rail top to crane top | H | 530 | 580 | 660 | 725 | 835 | 880 | 940 | |
Rail top to hook center | H4 | 1270 | 1290 | 1305 | 1295 | 1330 | 1370 | ||
Crane base distance | W | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | ||
Eot crane width | B | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | ||
Hook left limitation | S1 | 819 | |||||||
Hook right limitation | S2 | 1291 |
5 ton eot crane specification
Crane Capacity | T | 5 ton | |||||||
Span | m | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Lifting height | m | 6、 9、 12、18、 24、 30 | |||||||
Lifting speed | m/min | 8 or 8/0.8 | |||||||
Hoist travelling speed | m/min | 20 、30 | |||||||
Crane travelling speed | m/min | 20 | 30 | ||||||
Total weight | kg | 2220 | 2860 | 3430 | 4440 | 4790 | 5550 | 68000 | 8990 |
Max. Wheel load | KN | 28.7 | 31.4 | 33.2 | 36 | 37 | 39.1 | 42.3 | 47.9 |
Rail recommended | Model | 24kg/m | |||||||
Total motor power | kw | 8.3 | |||||||
Main dimension (mm) | Span(m) | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Rail top to crane top | H | 580 | 660 | 725 | 835 | 880 | 940 | 1020 | |
Rail top to hook center | H4 | 1460 | 1460 | 1475 | 1465 | 1500 | 1540 | 1520 | |
Crane base distance | W | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | ||
EOT Crane width | B | 2000 | 2500 | 3000 | 3500 | 4000 | 4500 | ||
Hook left limitation | S1 | 842 | |||||||
Hook right limitation | S2 | 1310 |
10 ton eot crane specification
Crane Capacity | T | 10 ton | |||||||
Span | m | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Lifting height | m | 6、 9、 12、18、 24、 30 | |||||||
Lifting speed | m/min | 8 or 8/0.8 | |||||||
Hoist travelling speed | m/min | 20 、30 | |||||||
Crane travelling speed | m/min | 20 | 30 | ||||||
Total weight | kg | 3060 | 3950 | 4640 | 5590 | 6010 | 7420 | 9220 | 14000 |
Max. Wheel load | KN | 50.8 | 56.4 | 59.4 | 62.5 | 64 | 68 | 74.1 | 85.1 |
Rail recommended | Model | 24kg/m | |||||||
Total motor power | kw | 13.8 | |||||||
Main dimension (mm) | Span(m) | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Rail top to crane top | H | 735 | 835 | 890 | 880 | 920 | 1065 | 1160 | |
Rail top to hook center | H4 | 1815 | 1815 | 1840 | 1950 | 1970 | 1865 | 1890 | |
Crane base distance | W | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | ||
EOT Crane width | B | 2000 | 2500 | 3000 | 3500 | 4000 | 4700 | ||
Hook left limitation | S1 | 1293 | |||||||
Hook right limitation | S2 | 1893 |
16 ton eot crane specification
Bridge Crane Capacity | T | 16 ton | |||||||
Span | m | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Lifting height | m | 6、 9、 12、18、 24、 30 | |||||||
Lifting speed | m/min | 8 or 8/0.8 | |||||||
Hoist travelling speed | m/min | 20 、30 | |||||||
Crane travelling speed | m/min | 20 | 30 | ||||||
Total weight | kg | 3390 | 4420 | 5760 | 7350 | 7940 | 9210 | 13170 | 15300 |
Max. Wheel load | KN | 76.5 | 84.3 | 89.6 | 94.9 | 97 | 100.9 | 111.4 | 117.2 |
Rail recommended | Model | 24kg/m | |||||||
Total motor power | kw | 13.8 | |||||||
Bridge Crane Main dimension (mm) | Span(m) | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Rail top to crane top | H | 835 | 890 | 980 | 1065 | 1135 | 1200 | 1300 | |
Rail top to hook center | H4 | 2445 | 2470 | 2520 | 2495 | 2545 | 2590 | 2600 | |
Crane base distance | W | 1500 | 2000 | 2500 | 3000 | 3500 | 4000 | ||
Crane width | B | 2000 | 2500 | 3000 | 3500 | 4200 | 4700 | ||
Hook left limitation | S1 | 1293 | |||||||
Hook right limitation | S2 | 1893 |
Crane Capacity | T | 20 ton | |||||||
Span | m | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Lifting height | m | 6、 9、 12、18、 24、 30 | |||||||
Lifting speed | m/min | 8 or 8/0.8 | |||||||
Hoist travelling speed | m/min | 20 、30 | |||||||
Crane travelling speed | m/min | 20 | 30 | ||||||
Total weight | kg | 5270 | 6710 | 8550 | 10110 | 10850 | 12600 | 14280 | 14690 |
Max. Wheel load | KN | 99 | 109.1 | 116.3 | 121.8 | 124.5 | 129.9 | 134.5 | 135.8 |
Rail recommended | Model | 24kg/m | |||||||
Total motor power | kw | 19.3 | |||||||
Overhead Crane main dimension (mm) | Span(m) | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | 25.5 | 28.5 |
Rail top to crane top | H | 900 | 970 | 1050 | 1130 | 1200 | 1300 | ||
Rail top to hook center | H4 | 2400 | 2430 | 2490 | 2550 | 2590 | 2600 | ||
Crane base distance | W | 2000 | 2000 | 2500 | 3000 | 3500 | |||
Crane width | B | 2700 | 3200 | 3700 | 4200 | ||||
Hook left limitation | S1 | 1394 | |||||||
Hook right limitation | S2 | 1933 |
This single girder bridge crane is used in environments with temperatures ranging from -25°C to +40°C, humidity levels of 85%, and elevations under 1000 meters. The power supply is a 3-ph, 380V, 50HZ which can designed based on the needs of the user.
Overall Organization Drawing of single girder overhead crane, top running design
It primarily consists of three parts: the mechanism part, which includes the crane's metal frame and moving parts, the electric hoist's lifting mechanism, and the electronic parts , and safe and protection devices, and safe operation devices.

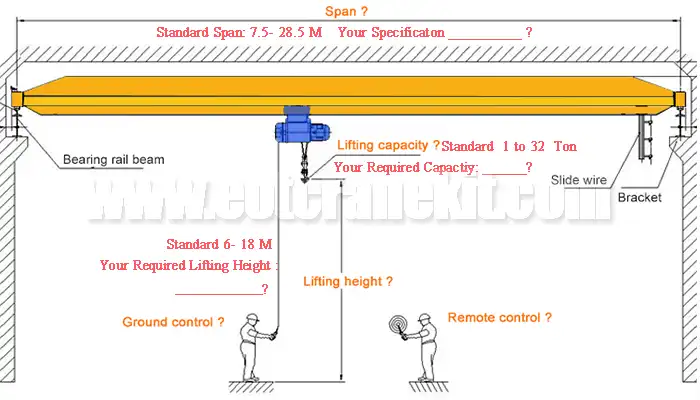

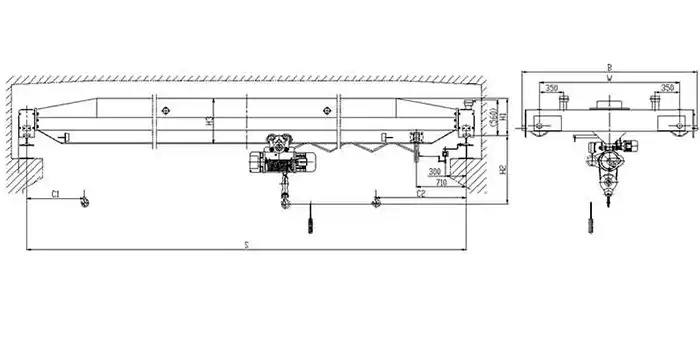

Electric single girder top running overhead travelling crane general drawing
Main Girder
Main girder is the main bearing part of the single girder bridge crane. its girder structure is made of U-shaped groove, inclined cover plate, rib plate and I beam steel plate, its upper arc is ((1/1000~4/1000)S,. When the rated lifting weight and the self-weight of the electric hoist are located in the middle of the span, the degree of camber caused is not less than the horizontal line, and no permanent deformation occurs during normal operation.

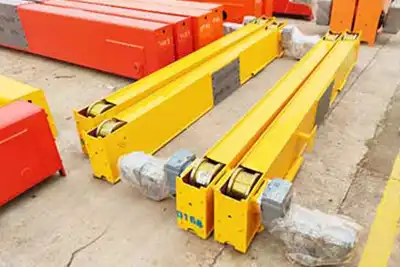

End girder is located at both ends of the main beam of crane bridge. The end carriage or end girder is bolted to the main beam by flange plats. It has a box structure made up of a U-shaped groove, a lower cover plate, a reinforcement plate, and rib plates formed by rolling steel plates or welding steel plates. The end girder has a light structure, good rigidity, a beautiful appearance, and a good welding performance.

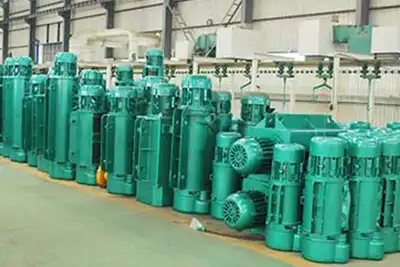

Each electric hoist will perform dynamic and static load tests, as well as rise and drop pressure tests, on a single girder overhead crane. The baking paint process is used to improve the adhesion of the paint film and its appearance. The assembly line ensures the quality of the product.

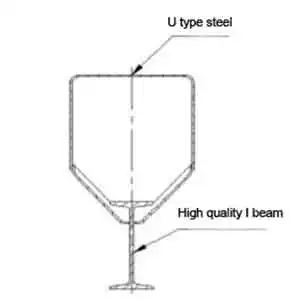

Girder cross section drawing

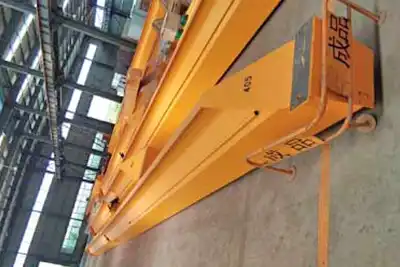

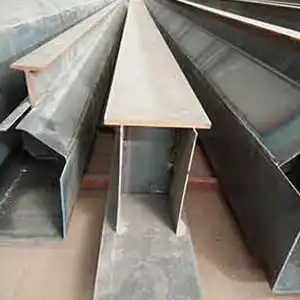

Main girder production

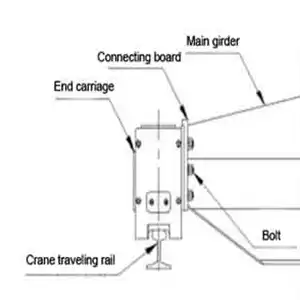

Main girder and end carriage connection drawing

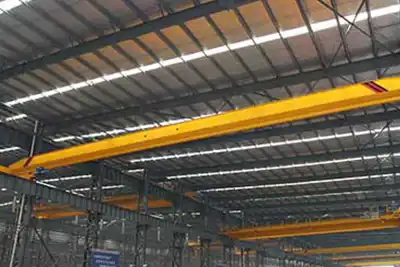

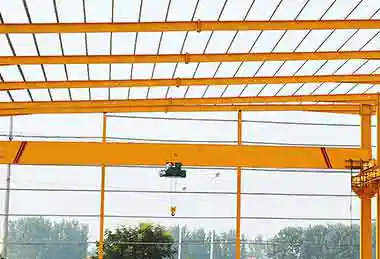

LD type single girder overhead crane top running design

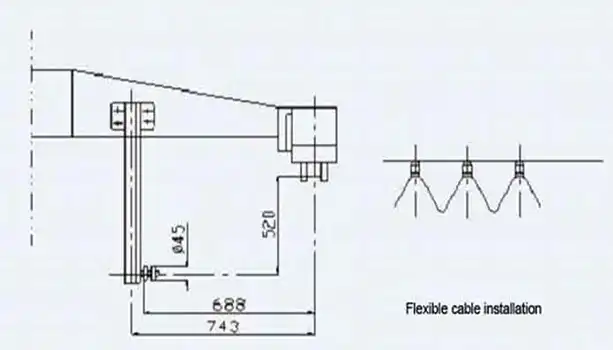

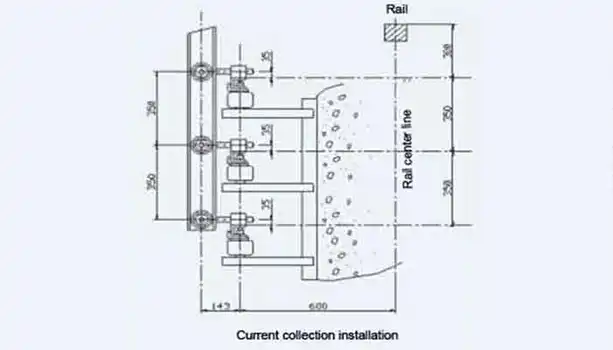

Current collection installation drawing

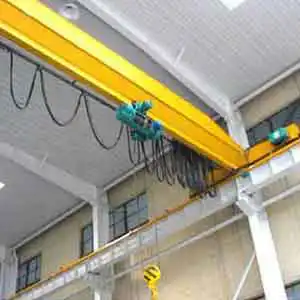

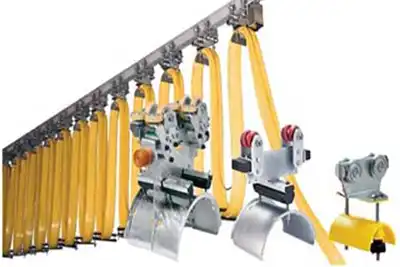

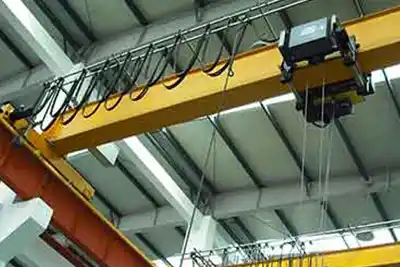

Festoon cable installation drawing

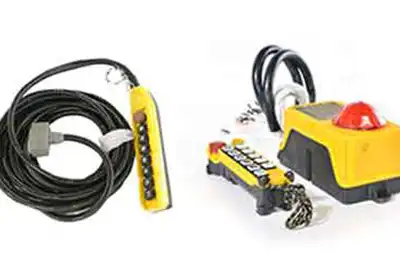

Electrical Equipment

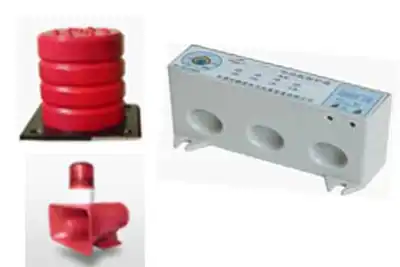

Safety Device

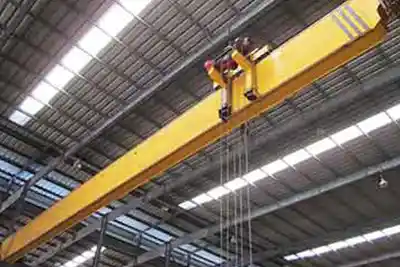

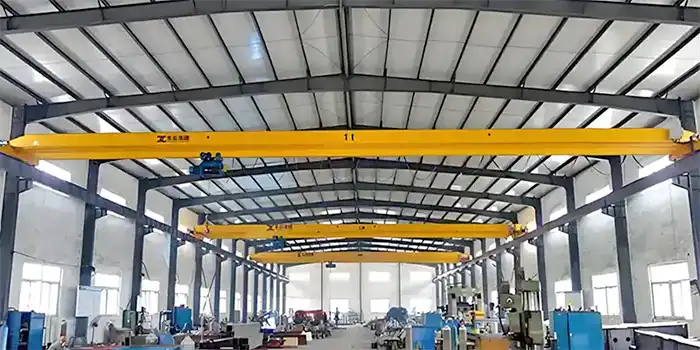

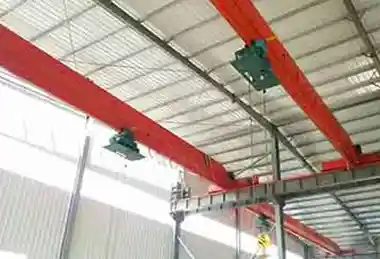

LDA(General use single girder overhead crane)
LDC (low headroom single girder overhead crane)
Low-headroom design enables the LDC type single girder overhead crane to lift objects to greater heights while taking up less room than the normal type.
LDP (partial hanging single girder overhead crane)
LB (explosion-proof single girder overhead crane)
Compact structure, good rigidity, sensitive operation, safe and reliable, beautiful appearance, strong explosion-proof, and so on are the main components of our explosion-proof single girder overhead crane .

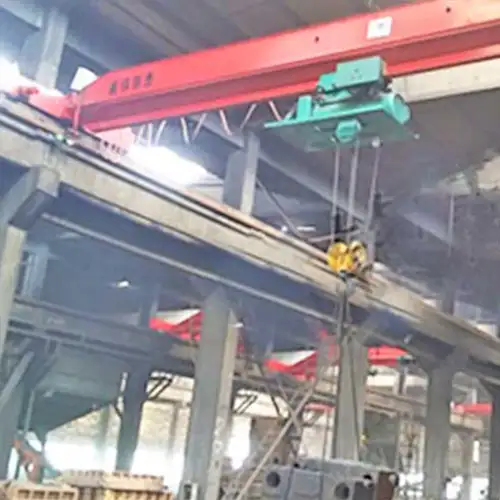

LDY(Metallurgical electric single beam overhead crane)

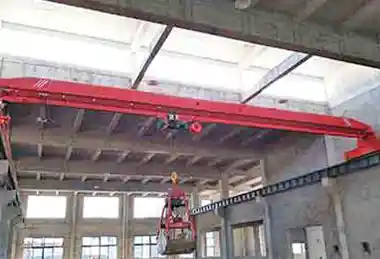

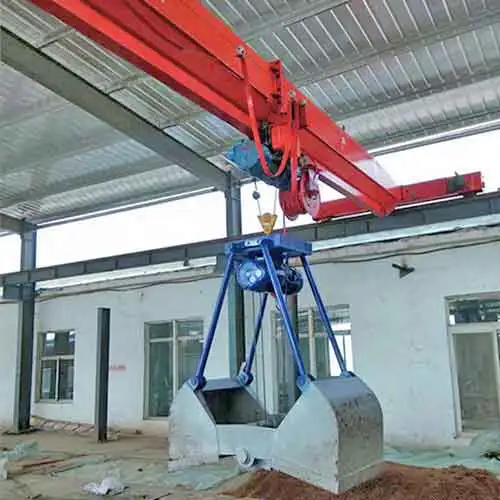

LDZ Electric grab single girder overhead crane
