Overhead Crane Buyers Beware: Runway Design Mistakes Cost Big

Even a small misalignment in the runway can cause noticeable issues. Cranes can jerk, sway, or skip slightly, which affects lifting accuracy and productivity. Precision travel depends on:

• Level and parallel rails along the entire runway span
• Proper welding, fastening, and alignment of rails to prevent movement over time
• Regular inspections in the early months to catch minor misalignments

A crane runway must withstand repeated heavy loads for years. Long-term durability requires:

• Sturdy beams and supports that resist deflection and bending
• Materials suited for the environment, including outdoor exposure, humidity, or temperature changes
• Protective coatings if the crane operates in corrosive or outdoor conditions

A durable runway reduces the frequency of repairs and ensures that the crane continues to run smoothly, safely, and efficiently over its lifetime.

Even the strongest runway fails if the rails are not installed correctly. Misalignment can seem minor at first but often worsens over time, causing operational inefficiency and wear.

Key Points:

• Rails that are not level or parallel cause crane sway and vibration.
• Misalignment increases wear on wheels, trolleys, and hoists, shortening lifespan.
• Lifting accuracy and productivity can drop if alignment problems are ignored.

Practical Tip: Use laser alignment tools during installation and perform a recheck after the first few weeks of crane operation.

The runway must be strong enough to carry heavy loads without deflection. Weak or flexible beams reduce crane performance and can create safety hazards.

Key Points:

• Weak beams bend under load, causing uneven travel and operational problems.
• Excessive deflection reduces lifting precision and stresses crane components.
• Poor structural support increases accident risks for operators.

Practical Tip: Select steel beams rated for dynamic load plus safety margin, and follow local industrial standards for crane runway structures.

Environmental factors are often overlooked during planning, yet they can have a major impact on runway lifespan. Temperature changes, humidity, and corrosive atmospheres can damage even well-designed runways.

Key Points:

• Outdoor runways need expansion joints to manage temperature-driven expansion and contraction.
• Use weatherproof coatings or corrosion-resistant materials in humid or chemical environments.
• Ignoring environmental factors causes premature wear, rust, and structural failure.

Practical Tip: Conduct a site-specific assessment before finalizing materials and design.

A poorly designed runway accelerates wear on all moving parts of the crane, increasing maintenance frequency. Rails, wheels, hoists, and trolleys may require repeated adjustments, repairs, or replacements.

Key Points:

• Misalignment causes uneven wheel and rail wear.
• Frequent adjustments lead to downtime and labor costs.
• Maintenance costs rise over time, often unexpectedly.

Practical Tip: Early inspection and routine maintenance can reduce long-term costs but cannot fully fix underlying runway design issues.

Safety risks increase significantly when the runway is weak, misaligned, or improperly supported. Misaligned rails or flexible beams can lead to derailments, tipping, or dropped loads.

Key Points:

• Operator safety is at risk due to unstable crane movement.
• Heavy loads may shift unpredictably during travel.
• Accidents can result in injury, equipment damage, or production stoppages.

Poor runway design ultimately affects the bottom line. Unexpected repairs, downtime, and reduced crane lifespan increase costs and reduce return on investment (ROI).

Key Points:

• Frequent downtime disrupts production schedules.
• Repair and replacement costs can be substantial.
• A shortened crane lifespan means earlier reinvestment in equipment.

Practical Tip: Investing in proper runway design upfront is far cheaper than dealing with these post-installation costs.

Proper alignment is essential for smooth crane travel and reduced wear on wheels and hoists. Even small misalignments can create vibration, sway, and operational inefficiency.

Key Steps:

• Use professional surveying techniques to align rails and beams.
• Check that rails are level, parallel, and straight across the full runway span.
• Recheck alignment after initial crane operation to catch early shifts.

Runway beams and rails must be robust enough to carry heavy loads and durable enough for the environmental conditions they face. Weak materials or unsuitable coatings can lead to deflection, rust, or early failure.

Key Steps:

• Choose steel beams rated for dynamic loads plus safety margins.
• Use corrosion-resistant materials or coatings for humid, chemical, or outdoor environments.
• Consider temperature changes and expansion effects for outdoor installations.

Engaging crane and structural engineers before installation ensures potential problems are addressed during planning rather than after. Their expertise helps align operational requirements with structural realities.

Key Steps:

• Include engineers in the planning and design phase.
• Verify that runway specifications match crane performance and operational needs.
• Use engineering input to anticipate long-term maintenance and safety issues.

Even with a strong design, early inspection is key to catching small misalignments or support issues before they become major problems.

Key Steps:

• Inspect rails, beams, and alignment frequently during the first months of operation.
• Check for deflection, wear, or unusual vibration.
• Address small problems immediately to prevent expensive repairs.

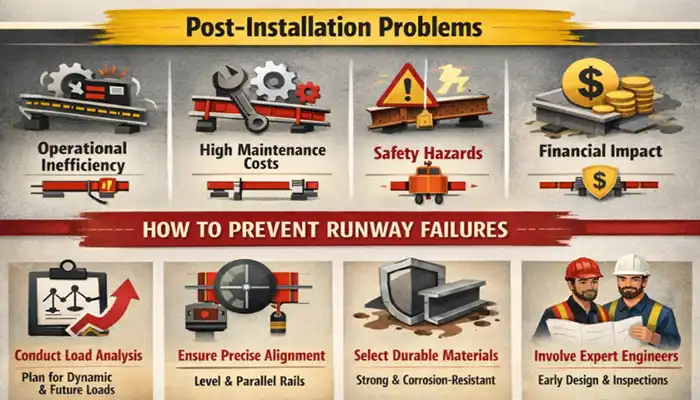

Common runway design errors often cause the most post-installation headaches:

• Underestimating Loads: Ignoring dynamic forces or future upgrades can overload the runway.
• Improper Alignment: Rails that are uneven or non-parallel cause sway, vibration, and accelerated wear.
• Insufficient Structural Support: Weak or flexible beams reduce lifting accuracy and compromise safety.
• Ignoring Environmental Factors: Outdoor exposure, temperature changes, or corrosive conditions can damage materials and lead to structural failure.

A bad runway design creates problems across operations, safety, and finances:

• Operational Inefficiency: Vibrations, sway, and uneven travel slow crane cycles and reduce productivity.
• Increased Maintenance: Rails, wheels, and hoists wear faster, requiring frequent repairs or replacements.
• Safety Hazards: Misaligned or weak runways increase derailment risk and endanger operators.
• Financial Impact: Unexpected downtime, repairs, and reduced crane lifespan lower ROI and increase long-term costs.

Preventing runway problems starts during planning and continues through early operation:

• Conduct Load Analysis: Include dynamic forces and future upgrades, with a safety margin.
• Ensure Precise Alignment: Use professional surveying techniques and laser tools for level and parallel rails.
• Select Strong, Environment-Suitable Materials: Steel beams and corrosion-resistant coatings are essential for durability.
• Engage Engineers Early: Crane and structural engineers can catch issues before installation.
• Perform Regular Inspections: Check alignment, deflection, and wear during the first months of operation.
