32 Ton Container Spreader Beam for 40ft Containers – Mozambique Project
Content Quick Link
32 Ton Container Spreader Beam for 40ft Containers – Mozambique Project
Project Date: July 28, 2026
Project Location: Mozambique
Equipment: 32 Ton Container Spreader Beam
Application: 40ft Container Handling
Quantity: 1 Set
Beam Length: Approximately 2.5 m
Accessories: Lifting Chains
Project Summary
Yuantai supplied one 32 ton container spreader beam for a container handling project in Mozambique in July 2026. The spreader beam is designed for lifting 40ft containers and was supplied with lifting chains.
The project required a dedicated lifting beam with a 32 ton rated lifting capacity and an approximate beam length of 2.5 m. The equipment provides a lifting connection between the crane hook and the container, helping organize the load path during container lifting operations.
This project is a typical example of a custom container lifting spreader beam supplied according to the customer's container size, lifting capacity and crane connection requirements.
Project Data
| Parameter | Specification |
|---|---|
| Project | 32 Ton Container Spreader Beam |
| Country | Mozambique |
| Project Date | July 28, 2026 |
| Rated Capacity | 32 tons |
| Container Type | 40ft container |
| Equipment | Container lifting spreader beam |
| Quantity | 1 set |
| Beam Length | Approx. 2.5 m |
| Accessories | Lifting chains |
| Application | Container handling |
Customer Requirement
The customer needed a 32 ton lifting solution for handling 40ft containers.
The main requirements were:
- 32 ton rated lifting capacity
- Compatibility with 40ft container handling
- Approximately 2.5 m beam length
- Lifting chains supplied with the beam
- A practical mechanical lifting arrangement
- Compatibility with the customer's existing crane lifting system
The customer did not simply require a steel beam. The complete lifting arrangement needed to consider the relationship between the crane hook, spreader beam, lifting chains and container lifting points.
Container Spreader Beam Solution

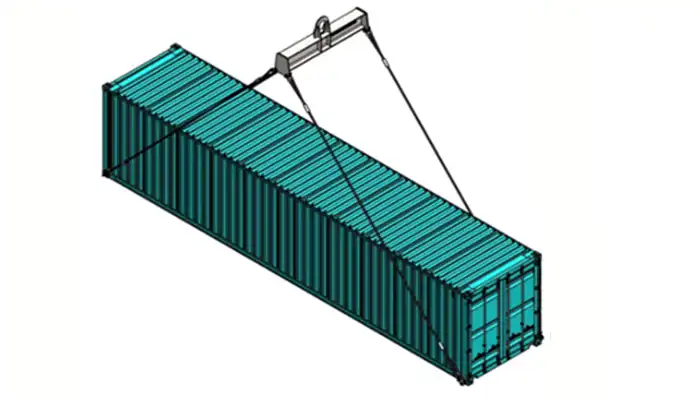

Yuantai supplied a 32 ton container spreader beam as the main lifting component.
The basic lifting arrangement is:
Crane Hook → Spreader Beam → Lifting Chains → 40ft Container
The spreader beam creates a dedicated lifting interface between the crane and the container. The lifting chains connect the beam to the container's designated lifting points.
This configuration is suitable when the customer needs a straightforward mechanical solution rather than a more complex automatic container spreader.
Why a Spreader Beam Is Used for Container Lifting
A container spreader beam helps control the geometry of the lifting arrangement.
When a container is lifted directly with chains, the chain angle and lifting-point position can affect the forces acting on the container and lifting accessories. A spreader beam provides a more controlled connection between the crane and the load.
For a 40ft container lifting application, the main considerations include:
- Container size – confirms the required lifting-point arrangement.
- Maximum container weight – determines the required lifting capacity.
- Crane capacity – must cover the complete suspended load.
- Crane hook dimensions – determine the upper connection.
- Beam length – affects the lifting geometry.
- Chain configuration – determines the connection between the beam and container.
- Operating conditions – affect the final engineering and inspection requirements.
32 Ton Lifting Capacity
The spreader beam for this Mozambique project has a 32 ton rated capacity.
When selecting a container lifting beam, buyers should distinguish between the container's maximum gross weight and the rated capacity of the complete lifting system.
The crane must be capable of lifting:
Container + Spreader Beam + Lifting Chains + Other Suspended Lifting Accessories
The lifting chains and connection components must also have suitable working load limits for the actual lifting configuration.
For this reason, the spreader beam should be engineered as part of the complete lifting system rather than treated as an independent steel structure.
Beam Length: Approximately 2.5 m
The supplied beam has an approximate length of 2.5 m.
Beam length is an important design parameter because it affects:
- Lifting-point position
- Chain angle
- Connection geometry
- Overall lifting height
- Load distribution
- Clearance around the container
The required beam length should therefore be confirmed against the customer's actual container lifting arrangement before manufacturing.
Lifting Chains Included
The Mozambique project included lifting chains with the spreader beam.
Supplying the chains together with the beam allows the lifting arrangement to be considered as a complete system.
The final chain selection should take into account:
| Factor | Purpose |
|---|---|
| Chain Working Load Limit | Confirms lifting capacity |
| Chain Grade | Determines mechanical strength |
| Chain Length | Matches the lifting geometry |
| Lifting Angle | Affects chain loading |
| Connection Type | Ensures compatibility with beam and container |
| Operating Conditions | Determines suitability for the working environment |
The actual chain specification should be confirmed from the approved engineering design and applicable lifting regulations.
Engineering Checks Before Manufacturing
For a custom container spreader beam, several technical details should be confirmed before fabrication.
Crane Hook
The crane hook dimensions should be checked to ensure that the upper connection can be safely and physically installed.
Container Lifting Points
The manufacturer needs to understand how the lifting chains will connect to the 40ft container.
Maximum Load
The maximum gross container weight should be confirmed together with the required safety and design conditions.
Beam Geometry
The beam length and lifting-point arrangement should be checked against the container and crane configuration.
Lifting Accessories
Chains, shackles and other connection components should be selected according to the actual working load and lifting configuration.
Why This Solution Fits the Project
The Mozambique customer required a relatively straightforward solution for 40ft container lifting.
A mechanical spreader beam offers several practical advantages:
- Simple lifting arrangement
- No hydraulic power unit required
- No electrical control system required
- Easy connection to a crane hook
- Lifting chains can be supplied as part of the system
- Suitable for dedicated container handling applications
- Can be customized according to crane and container requirements
For applications where frequent automated container handling is not required, a mechanical spreader beam can be a practical alternative to a more complex automatic container spreader.
Project Result
Yuantai completed the supply of one 32 ton container spreader beam for the Mozambique project.
The equipment was configured for 40ft container handling, with an approximate 2.5 m beam length and lifting chains included.
The project demonstrates how a container lifting beam can be customized around the actual lifting requirements rather than using a one-size-fits-all design.
What Information Should Be Provided When Ordering a Container Spreader Beam?
Customers requesting a quotation for a similar project should provide the following information:
| Required Information | Example |
|---|---|
| Lifting capacity | 32 tons |
| Container size | 40ft |
| Container maximum gross weight | To be confirmed |
| Crane capacity | To be confirmed |
| Crane hook dimensions | To be confirmed |
| Required beam length | Approx. 2.5 m |
| Lifting height | To be confirmed |
| Lifting-point arrangement | To be confirmed |
| Chain requirement | Included |
| Quantity | 1 set |
| Working environment | To be confirmed |
Providing these details allows the manufacturer to confirm the beam structure, connection arrangement and lifting accessories before production.
Conclusion
This 32 ton container spreader beam project in Mozambique was developed for a specific application: 40ft container handling.
Yuantai supplied one set of container lifting spreader beam with an approximate 2.5 m beam length and lifting chains included.
The project shows an important principle in container lifting equipment selection: the spreader beam should be matched to the container, crane, lifting points and accessories as one complete system.
For similar projects, Yuantai can provide customized container spreader beams according to the required lifting capacity, container size, beam dimensions, crane hook arrangement and lifting configuration.
FAQ: 40ft Container Lifting
Before requesting a quotation, buyers do not need to know every engineering detail. However, providing a basic technical specification makes it much easier for Yuantai Cranes to check the application and prepare a suitable spreader beam.
| Parameter | Typical Requirement / Range |
|---|---|
| Application | 40ft container lifting and handling |
| Rated Capacity / WLL | 20–32 ton typical; customized as required |
| Beam Length | Approx. 2.5 m typical; customized to lifting-point spacing |
| Lifting Method | Top lift or bottom lift |
| Container Type | 40ft ISO container or specified container type |
| Chain Slings | Optional / included according to requirement |
| Chain Grade | Grade 80 or specified grade |
| Number of Legs | Typically 4-leg configuration, subject to design |
| Shackles | Sized according to the actual WLL and connection arrangement |
| Upper Connection | Crane hook / shackle / specified connection |
| Lower Connection | Chain sling / shackle / container lifting connection |
| Beam Configuration | Fixed or customized configuration |
| Beam Self-Weight | To be confirmed from final design |
| WLL Marking | Required on the beam |
| Identification Plate | Manufacturer, capacity and identification details |
| Inspection / Testing | According to project and applicable requirements |
| Documentation | Certificates, test records, drawings and manual as required |
Can a 32 ton spreader beam lift a 40ft container?
Yes, a 32-ton spreader beam can be used for 40ft container lifting when the container's maximum gross weight and the complete lifting arrangement are within the rated capacities of the beam, crane, hook, shackles, chain slings and container lifting points. The 32-ton beam rating alone does not confirm that the complete lifting system is suitable for a 32-ton load.
What size spreader beam do I need for a 40ft container?
The required beam depends on the container weight and lifting configuration, not just the 40ft length. Typical buyer information includes required WLL, beam length, lifting-point spacing, top- or bottom-lift arrangement, crane hook dimensions and connection requirements. Yuantai Cranes can determine the detailed beam dimensions after reviewing these application parameters.
What capacity crane is required to lift a 40ft container?
The crane must safely handle the complete suspended load, including the container, cargo, spreader beam, chains, shackles and other accessories. For mobile cranes, working radius, boom configuration, outriggers and the crane load chart must also be considered. For overhead cranes, rated capacity, hook capacity and actual operating conditions need to be checked.
What WLL chain is required for container lifting?
The chain WLL depends on the supported load, number of effective legs, sling angle, chain grade and rigging configuration. A typical four-leg arrangement does not automatically mean that the container weight can simply be divided by four. Chain diameter alone is not enough; the selected sling should have an appropriate WLL for the actual configuration.
How does sling angle affect chain capacity?
As the sling becomes more horizontal, the tension in each sling leg increases. In a simplified symmetrical arrangement, T = W / (n × cos θ). The approximate tension factor is 1.00 at 0° from vertical, 1.41 at 45° and 2.00 at 60°. Final chain selection should use the actual configuration and applicable manufacturer WLL tables.
Do I need a spreader beam to lift a 40ft container?
Not every container lifting application requires the same type of spreader beam. The answer depends on the container design, lifting points, crane and handling method. A dedicated spreader beam can help maintain the required lifting-point geometry and provide a controlled connection between the crane and container, particularly for repeated container handling.
What is the difference between a lifting beam and a spreader beam?
A lifting beam generally carries the load primarily through bending between its lifting points. A spreader beam is normally designed to distribute and redirect lifting forces through the upper and lower rigging arrangement. The terminology can vary between manufacturers, so buyers should focus on the beam's rated capacity, structural design and intended lifting configuration.
Can a container spreader beam be supplied with chains?
Yes. Yuantai Cranes can supply a container spreader beam with compatible chain slings and connection hardware when required. The chain arrangement can be specified by grade, diameter, length, number of legs, hook type and WLL. Supplying the components as a matched package can reduce compatibility problems during installation and operation.
Can a 40ft container spreader beam be customized?
Yes. Yuantai Cranes can customize the beam according to the required capacity, length, lifting-point spacing, upper connection and lower connection arrangement. Fixed or application-specific configurations can be provided, with chain slings and shackles included when required. Customization is especially useful when the beam needs to connect to an existing crane hook or specific container lifting points.
What information is needed to design a container lifting beam?
At minimum, provide:
- Container size
- Maximum gross weight
- Cargo weight, if available
- Crane type and rated capacity
- Crane hook capacity and dimensions
- Required beam WLL
- Required beam length
- Top lift or bottom lift
- Lifting-point arrangement
- Chain sling requirements
- Shackle requirements
- Required standards and certificates
A drawing or photograph of the crane hook and container lifting points can also help.
What should I include in a spreader beam RFQ?
A practical RFQ can be as simple as:
Application: 40ft container lifting
Maximum gross container weight: ___ ton
Required beam WLL: ___ ton
Beam length: ___ m
Lifting method: Top / Bottom
Crane type: ___
Crane capacity: ___ ton
Hook dimensions: ___
Chain slings: Required / Not required
Shackles: Required / Not required
Quantity: ___ set
Certification: ___
Project location: ___
If some information is not available, send the basic load and crane details first. Yuantai Cranes can review the requirement and identify the remaining information needed for beam configuration and quotation.
