I beam jib cranes for steel beam hoisting in Welding Engineering Engineering Company in Maldives. Wall mounted I beam jib cranes for sale Maldives.

Back ground of Maldives customer

Mr. Abdulla, a Maldivian client, owns a private construction welding engineering company locally. He needed a cost-effective solution that could be deployed with the existing welding workshop layout. He has consulted with a number of crane providers in China, but he didn't found the suitable material handling solution. After consultation of Madlivian client and the basic layout of welding workshop and steel beam, EOTCRANEKIT promptly produced a professional I beam wall jib crane solution for the Maldives welding engineering company.

1 ton I beam wall jib crane for Maldives Welding Engineering

Finally, Mr. Abdulla wants to buy an I beam jib crane to hoist various steel beams indoors. Our company provides a complete quotation and jib crane design drawings for a 1 ton BX type wall mounted jib crane, fitted with an electric chain hoist, after understanding the customer's operating conditions. The precise design drawing is provided for your reference as follows:

Wall mounted I beam jib cranes 1 ton for sale Maldives

Main specifications fo jib crane for sale to Maldives:

• Lifting capacity of i beam wall jib : 1 ton
• Total arm length of wall mounted jib : 2.5m
• Lifting height of wall bracket jib : 2.8m
• Jib Hoist: Electric chain hoist
• Lifting speed: 6.6m/min
• Power supply: 380V/50Hz/3 Phase

1 beam cantilever for wall mounted I beam jib cranes 1 ton for sale Maldives

Rotationg part of wall mounted I beam jib cranes 1 ton for sale Maldives

Wall mounted plate of wall mounted I beam jib cranes 1 ton for sale Maldives

Why choose I beam wall jib crane:

• ·A I beam cantilever wall mounted jib crane is mainly consisted of a horizontal boom attached to a vertical mast, or column which is mounted with brackets.
• These I beam jib crane systems give maximum clearance in industries with many overhead barriers since the headroom of I beam cantilever crane is low and providing higher hook patch.
• For the optimum use of space, an I beam cantilever jib crane can be mounted in space limited workshops or applications and as close to the ceiling as possible.
• I beam wall jib cranes are an excellent overhead material handling solution for workshops and application with limited floor space and facilities with numerous overhead obstructions.
• Wall-mounted I beam jibs do not require any floor space or special concrete foundations, unlike floor mounted jib cranes, and they can travel or work under the of overhead travelling cranes quickly.
• Wall-mounted cantilever jibs provide semi-circular crane coverage, making them ideal for individual workstations or supplementing an existing bridge crane.
• These ergonomic systems are both economical and heavy duty, with standard spans up to 5m and capacities of up to 10 tons.

Types of I beam jib crane & low headroom jib cranes

For different applications and uses, there are different types of I beam jib cranes for low headroom workshop and warehouse applications. Based on your particular application conditions and lifting requirements, the customized low headroom l beam jib crane available. Contact us today to check what we can do to improve your productivity and safety.

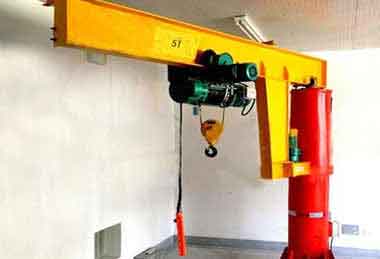

Free standing I beam jib crane

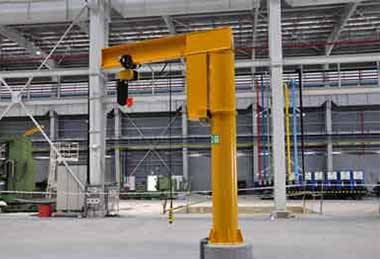

Floor mounted I beam jib crane with 360 rotating design

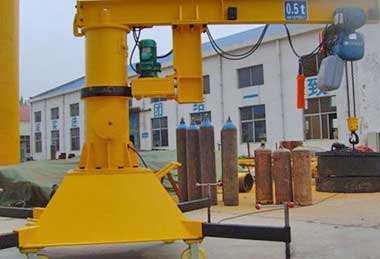

Portable jib crane with I beam cantilever

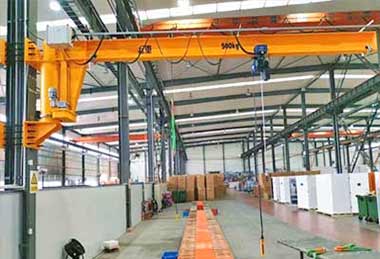

Wall mounted I beam jib crane

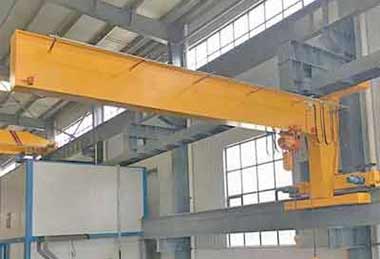

Wall travelling I beam jib crane

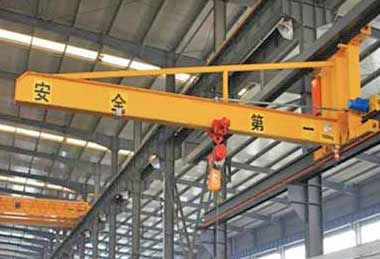

Wall mounted I beam jib crane with upper bracket

How to choose the right jib crane

• Area of rotation: Jib cranes, both freestanding and mast-style, can rotate 360 degrees. Wall-mounted cranes can rotate 180 degrees.
• Height Under Boom: The height under boom is the distance from the floor to the underside of the jib crane's boom. Consider the size of the hoist as well as the required lifting height.
• Overall jib crane height: Take into account any attachments, such as electrical entry, to ensure that the crane is free of overhead obstructions.
• Actual working span required: The distance traveled by the working hoist (or hook).
• Power requirements: Will your jib crane require power for its motor drive, trolley, or hoist, or all three? Indoors or outside?
• Installation: Customized I beam wall jib crane can review your application and make expert recommendations in collaboration with our engineering team.

Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
