Single Girder Casting Crane 10 Ton for Small Steel Rolling Mill
Single Girder Overhead Crane with Metallurgical Hoist for Ladle Casting

Single girder overhead crane 10 ton for hot ladle casting for small steel mill & small steel manufacturing plant. Metallurgic hoist single girder crane for sale. Single girder overhead crane equipped with metallurgic electric hoist are specially designed for hot ladle casting in small steel mill and small steel manufacturing plant.  Top running single girder overhead casting cranes are designed for small steel manufacturing plants to meet the needs of ladle handling at a cost-effective price. The single girder casting overhead crane is designed for use in the metallurgy industry to lift molten metal in foundry plants. The small casting overhead crane has a lifting capacity up to 10 ton and is equipped with a specially designed electric wire rope hoist with high safety and a heat insulation plate to ensure the bridge crane safety and operation safety.

The LDY single girder overhead casting crane can also handle non-molten metal and high-temperature solid metal, as well as other loads, for the best return of your investment.

2 ton overhead crane with metalugic electric hoist for small steel manufacturing plant

Parameters of small casting crane, signgle girder crane design, economical price

LDY type small casting crane is designed purposefully for hoisting and transfering molten metal in small steel rolling mill.  The specially designed single girder electric wire rope hoist for metallurgical use are used on the small casting crane, with maxmized capacity up to 10 tons.  Even though single girder crane design is adopted, the safety is ensured. If you want to get your custom single girder overhead bridge casting crane, please feel free to contact us.

Main specifications of single girder overhead casting crane

• Crane type : LDY Model Single Girder Overhead Crane for Casting Ladle
• Lifting Capacity: 1t, 2t, 3t, 5t,10t
• Working Duty: A5, A6.
• Working Temperature ﹣10℃~﹢60℃
• Relative Humidity: ≤ 50% under 40℃

The small casting crane is developed on the bases of the LD types electric single girder overhead crane and is equipped with a metallurgical electric hoist, which can meet your safety and material handling needs while also meeting your financial needs.

Heat Insulation protection of small overhead crane for ladle casting

The bottom of the main girder of the bridge crane is given a heat-insulation treatment, which requires relative humidity to be at or below 50% below 40°C and an operating temperature range of -10°C to +60°C.

• Standing beneath the casting crane during operation is strictly prohibited;
• two rope clamps are used to seal and lock the steel wire rope at the wedge connection, and the remaining length of the steel wire rope head is 200mm;
• The height of the hook from the ground must be less than 2 meters during the operation of single girder overhead casting crane .
• The user must dispense oil into the reducer prior to commissioning and startup.

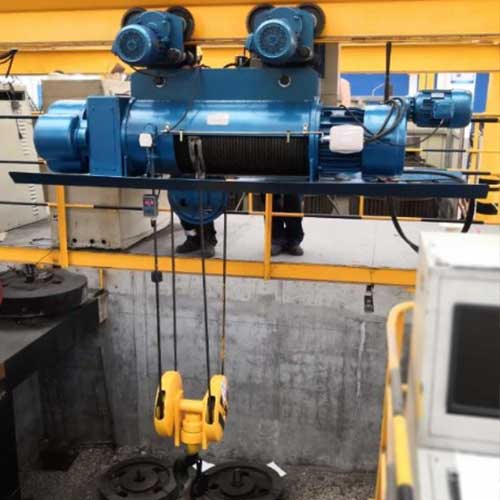

Metallurgical high temperature resistant double brake electric hoist

CDS, MDS (CDY/MDY) series metallurgical electric hoist is a  type of metallurgical use wire rope electric hoist , which is specially used for lifting molten metal or other high-temperature solid objects in small scale steel mill and manufacturing plant.  It can be used as a lifting mechanism for electric single girder casting bridge cranes, which are suitable for its use requirements and application conditions.

Application range of electric ladle hoist

• Suitable for metallurgical industry, used to lift molten metal
• Work with single girder overhead crane for ladle casting

Advantages of double brakes electric ladle hoist

• The working level of the electric hoist is up to M6;
• The hoisting mechanism is equipped with a support brake and a safety brake. When the cone motor brake fails or the intermediate transmission link fails, the DC electromagnetic brake installed on the high-speed shaft of the reducer or the ratchet brake installed on the drum will brake the heavy objects to avoid the risk of heavy objects stalling.
• It has double lifting height limit function.
• Lifting weight limit protection function
• High temperature heat insulation protection function.
• The insulation class of the hoisting motor and the running motor adopts H class, and an overheating protection device is installed in the hoisting motor winding.
• The steel wire rope is equipped with high temperature resistant steel wire rope specially used in metallurgical occasions.
• The control method is given priority to remote control.

Main parts for single girder casting cranes

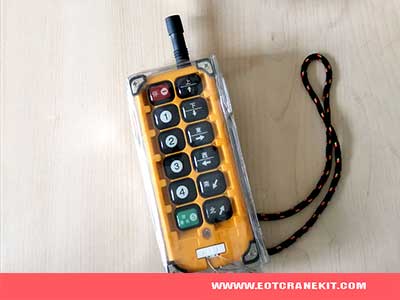

Remote control for small scale rolling mill casting crane

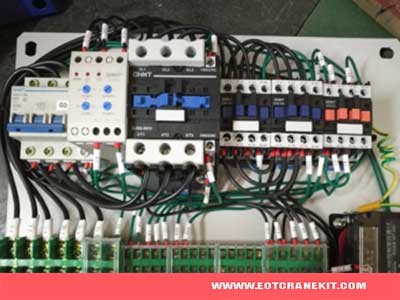

Electrics

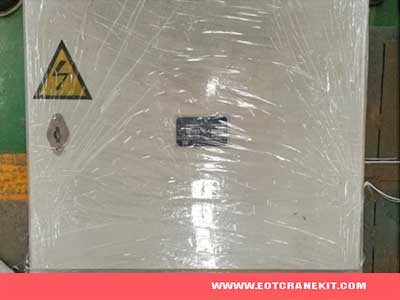

Electric box

Specifications of single girder casting overhead crane 10 tons

The YHII metallurgical electric hoist, which is matched to LDY metallurgical single girder cranes as its lifting mechanism, is used to lift melting metal from metallurgy and casting workshops. The bottom of main beam using special insulated heat protection to ensure safety and prolong your casting crane safety. The main specifications of 2 yon, 3 ton, 5 ton, and 10 ton single girder overhead casting cranes are presented for your reference. If you need any custom design, please feel free to contact us.

Get your customized single girder casting bridge crane 10 ton

The LDY type metallurgical use casting overhead crane is used in small steel rolling mills and small scale steel plants to lift and transport materials quickly and efficiently using lifting hooks or other picking tools. It works intermittently and periodically during the metallurgical production process.

In contemporary industrial enterprises, it is a vital tool and piece of machinery for raising labor productivity in metallurgy and casting operations. Get your customized casting crane design for your steel mill and plant by getting in touch with us.
