Overview of 10 ton overhead crane kit for sale s South Africa

• Crane type : European style single girder overhead crane kit, with no main girder
• Crane capacity: 10 ton
• Crane span: 15 m
• Crane lifting height: 8 m
• Crane power supply: 380V50HZ3P

In South Africa, a construction company faced the challenge of sourcing a cost-effective and efficient solution for their material handling needs. They required a 10-ton overhead crane with a 15-meter span and 8-meter lifting height. After exploring various options, they discovered a unique offering - a European style single girder overhead crane kit with no main girder. This case study delves into the features of this innovative crane kit and how it provided a cost-effective solution for the company's requirements.

Crane Type and Specifications:

• Crane Type: European Style Single Girder Overhead Crane Kit
• Crane Capacity: 10 Tons
• Crane Span: 15 meters
• Crane Lifting Height: 8 meters
• Crane Power Supply: 380V, 50Hz, 3-Phase

Features of the 10 Ton Overhead Crane Kit with No Girder:

Cost-Effectiveness:

The primary benefit of the single girder overhead crane kit with no main girder was its cost-effectiveness. By omitting the main girder from the package, the crane manufacturer significantly reduced the overall transportation cost. This reduction was a game-changer for the South African company, as it allowed them to save on shipping expenses.

Local Production of Main Girder:

The crane kit buyer was required to produce the main girder locally based on the provided drawings from the crane manufacturer. This allowed them to customize the main girder to suit their specific application and load requirements while also supporting local industries and suppliers.

Quality and Compliance:

The European style single girder overhead crane kit complied with stringent industry standards, ensuring the crane's safety, reliability, and performance. The manufacturer provided detailed engineering specifications and guidance to ensure the proper fabrication of the main girder, meeting all safety and quality requirements.

Main parts and components of10 ton overhead Crane Kit:

• Single Girder Bridge Components: The crane kit included the main girder's end trucks, trolley, and hoist. The main girder's fabrication was carried out locally, ensuring that it was structurally sound and capable of handling the 10-ton lifting capacity.
• Hoist Unit: The hoist unit provided in the kit was designed for efficient and smooth lifting operations. It featured advanced safety features, including overload protection, emergency stop, and limit switches.
• Electrical Components: The electrical components, including the control panel and motors, were included in the kit. The power supply requirements were compatible with the South African standards (380V, 50Hz, 3-Phase).

End carriages of 10 ton overhead crane kit with European style

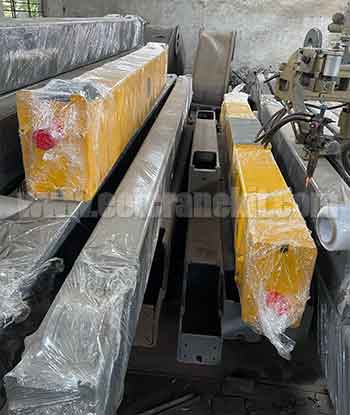

End carriages and end trucks of 10 ton single girder overhead crane kit for sale Sounth Africa

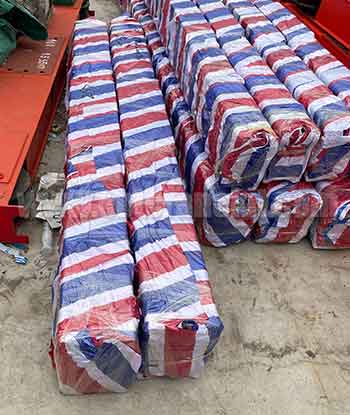

10 ton overhead crane end carriage packed for delivery to South Africa

The end carriages are a crucial component of a single girder overhead crane kit with European style. They provide support for the main girder and enable smooth movement of the crane along the runway. Here are the key features of the end carriages in a 10-ton single girder overhead crane kit with European style:

• Robust Construction: The end carriages are constructed from high-quality steel to ensure durability and the ability to withstand heavy loads and frequent use.
• Wheel Arrangement: The end carriages are equipped with flanged wheels that run on the crane runway. These wheels facilitate smooth and precise movement of the crane along the rail.
• Precise Wheel Alignment: Proper wheel alignment is crucial for the smooth operation of the crane. The end carriages are designed with precision to ensure the wheels align correctly on the crane runway, reducing friction and wear.
• Double-Flanged Wheels: The end carriages are typically equipped with double-flanged wheels to ensure stability and prevent derailment during crane operation.
• End Truck Design: The end carriages are engineered with a sturdy end truck design to provide support to the main girder and evenly distribute the crane's load across the runway.
• Adjustable End Stops: The end carriages may have adjustable end stops, allowing operators to set travel limits and prevent the crane from traveling beyond its intended path.
• Safety Features: European style end carriages are designed with safety in mind. They may include safety features such as buffer stops, bumpers, and emergency stop mechanisms to protect the crane and prevent accidents.
• Easy Installation: The end carriages are designed for easy installation and assembly, reducing the crane's downtime during the setup process.
• Compatibility: The end carriages are designed to be compatible with the main girder and other components of the single girder overhead crane kit, ensuring a seamless fit during assembly.

In summary, the end carriages of a 10-ton single girder overhead crane kit with European style play a vital role in supporting the main girder and enabling smooth, precise, and safe movement along the crane runway. They are designed with robust construction, safety features, and compatibility to ensure efficient and reliable crane operation in various industrial applications.

Features of European style wire rope hoist for 10 ton single girder overhead crane kit

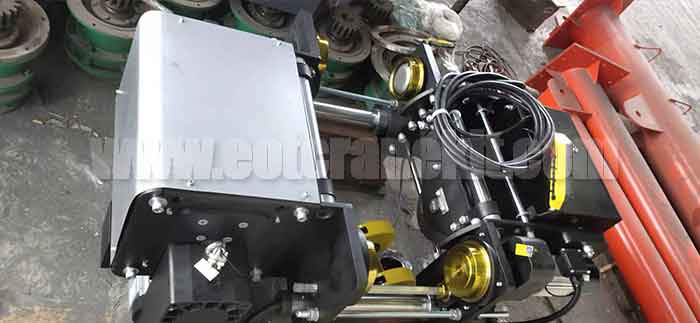

single girder overhead crane hoist for sale

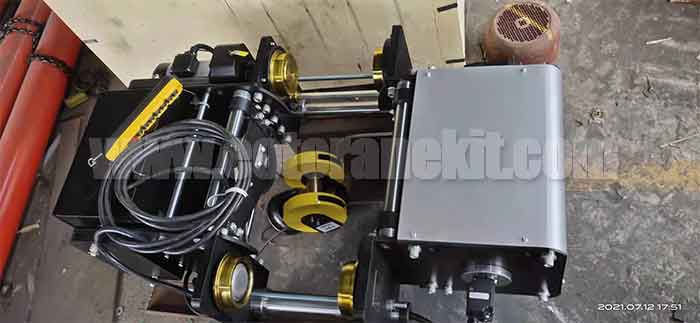

Overhead crane hoist 10 ton

European style wire rope hoists for 10-ton single girder overhead crane kits offer several advanced features and capabilities to ensure efficient and safe lifting operations. Here are the key features of a European style wire rope hoist for a 10-ton single girder overhead crane kit:

European style wire rope hoists for 10-ton single girder overhead crane kits offer several advanced features and capabilities to ensure efficient and safe lifting operations. Here are the key features of a European style wire rope hoist for a 10-ton single girder overhead crane kit:

• High Lifting Capacity: The European style wire rope hoist is designed to handle heavy loads with a lifting capacity of up to 10 tons, making it suitable for a wide range of industrial applications.
• Compact and Lightweight: European style hoists are known for their compact design and lightweight construction, which reduces the overall deadweight of the crane and allows for more efficient use of available space.
• Precise and Smooth Operation: These hoists are equipped with precision-engineered components and advanced technology to ensure smooth and precise lifting and lowering of loads, minimizing the risk of load swing.
• High Lifting Speeds: European hoists are designed to achieve higher lifting speeds, enhancing productivity and reducing material handling cycle times.
• Low Noise Level: The hoists are engineered for quiet operation, reducing noise pollution in the working environment and ensuring a more comfortable workspace.
• High Duty Cycle: European style wire rope hoists are designed for continuous use and offer a high-duty cycle, making them suitable for demanding industrial applications.
• Safe and Reliable Braking System: The hoists are equipped with reliable braking systems, such as electromagnetic brakes or regenerative braking, to ensure immediate stopping of the load in case of power failure or emergency situations.
• Load Monitoring and Limit Switches: European style hoists may include load monitoring systems and limit switches to prevent overloading and enhance safety during lifting operations.
• Remote Control and Operator-friendly Interface: Some hoists come with remote control capabilities or an operator-friendly interface, allowing crane operators to control the hoist from a safe distance.
• Low Maintenance Requirements: European style wire rope hoists are designed for ease of maintenance, with accessible service points and minimal downtime during maintenance activities.
• Compliance with Safety Standards: These hoists are engineered to meet stringent safety standards and regulations, ensuring safe operation and reducing the risk of accidents.

European style wire rope hoists are known for their reliability, performance, and safety features, making them a popular choice for single girder overhead crane kits used in various industrial settings.

European style wire rope hoists provide efficient and safe lifting solutions for various industrial applications, offering reliability, performance, and user-friendly features.

Electric hoist cabinet

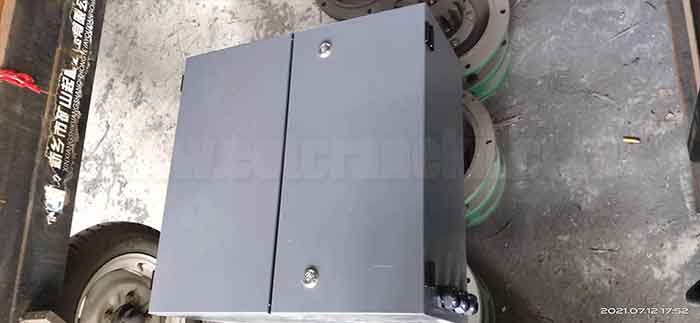

Electrical cabinet

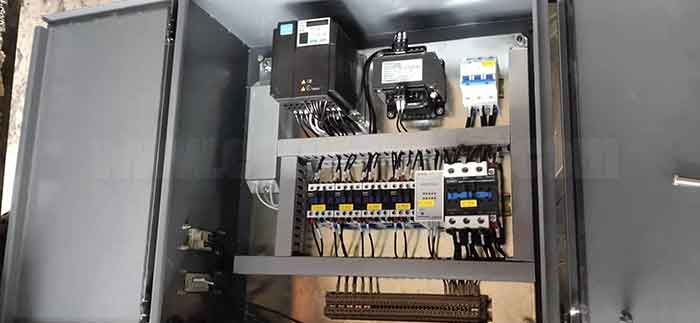

Electrics of 10 ton overhead crane kit

The features of the electrical components included in the 10-ton single girder overhead crane kit for South Africa:

• Control Panel: The electrical kit includes a control panel that serves as the central command center for operating the crane. It houses the necessary controls and buttons for crane movement, such as lifting, lowering, trolley movement, and emergency stops.
• Motors: The kit contains high-quality motors responsible for powering the crane's various movements, including lifting and trolley travel. These motors are designed for reliability, efficiency, and smooth operation.
• Power Supply Compatibility: The electrical components are designed to operate with the South African power supply standards, which are 380V, 50Hz, 3-Phase. This ensures seamless integration with the local power grid and avoids the need for additional power modifications.
• Safety Features: The electrical components may include safety features such as overload protection, circuit breakers, and limit switches to prevent damage to the crane and ensure safe operation.
• User-Friendly Controls: The control panel is designed with user-friendly controls and intuitive interface, enabling crane operators to operate the crane with ease and precision.
• Remote Control Capability (Optional): Depending on the configuration and customer preferences, the electrical kit may offer remote control capabilities, allowing operators to control the crane from a safe distance.
• Compliance with International Standards: The electrical components meet relevant international electrical safety standards and regulations, ensuring their reliability and adherence to best practices.
• Durability and Protection: The electrical components are housed in robust and protective enclosures to safeguard against environmental elements and provide durability for long-lasting performance.
• Easy Maintenance: The electrical components are designed for ease of maintenance, with accessible service points and clear documentation to facilitate troubleshooting and repairs.

In summary, the electrical components included in the 10-ton single girder overhead crane kit for South Africa offer advanced features, power supply compatibility, safety, and user-friendly controls. These components play a vital role in the efficient and safe operation of the crane, meeting industry standards and providing reliable performance in various industrial settings.

By opting for a 10-ton overhead crane kit with no main girder, the South African construction company achieved a cost-effective solution to their material handling needs. The local production of the main girder, based on provided drawings, allowed them to customize the crane for their specific requirements. With a focus on safety, reliability, and efficiency, the European style single girder overhead crane kit provided an excellent solution for their lifting operations in South Africa.
