10 Ton Underhung Crane for Sale UK, Underhung Bridge Crane 10 Ton

Discover the practical 10-ton underhung bridge crane, ideal for UK workshops, warehouses, and factories with low ceilings. Check more overhead crane for sale UK or contact us to get your customized overhead bridge crane design!

Introduction

The industrial sector in the UK has a wide variety of material handling needs, ranging from light assembly lines to medium-duty manufacturing operations. Overhead cranes, especially underhung bridge cranes, play an important role in these settings by lifting heavy loads efficiently while saving floor space. UK workshops and factories often face challenges like limited ceiling height or narrow aisles, making the choice of the right crane crucial.

This case study focuses on the 10-ton underhung bridge crane, a practical solution for medium-duty lifting tasks. It aims to provide a clear picture of its features, operational advantages, and where it works best. Whether you are looking for a 10-ton bridge crane, 10-ton overhead crane, or a 10-ton single girder overhead crane, understanding the specifications and applications will help you make an informed purchase decision.

Why focus on a 10-ton underhung crane?

• Optimized for confined spaces: Ceiling-mounted underhung cranes fit low-headroom workshops where traditional top-running cranes aren't possible.
• Versatile lifting: Suitable for lifting machinery, components, and materials up to 10 tons.
• Practical and reliable: Offers robust performance with minimal maintenance, especially with a manual hoist setup.
• Cost-efficient solution: Provides a balance between lifting capacity and installation costs for small to medium industrial operations.

With this case study, readers will get a practical overview of how a 10-ton underhung bridge crane can improve material handling, reduce manual effort, and increase operational efficiency in various UK industrial environments.

Underhung Crane Overview

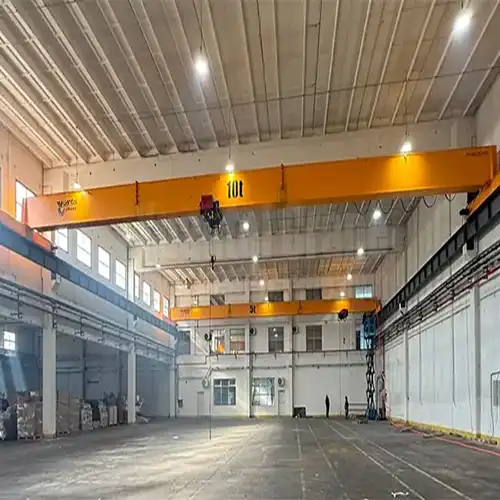

An underhung bridge crane is a type of overhead crane where the main girder is suspended from the runway beams attached to the ceiling, rather than sitting on top of them. In this case, the crane is a single girder design, meaning it has one main beam that supports the hoist and trolley system. This simple design makes it easy to install and operate, especially in workshops where headroom and space are limited.

Key benefits for UK workshops and factories:

• Space-saving design: Because the crane is suspended from the ceiling, the floor space remains free for other equipment and workflow. This is particularly useful in small to medium-sized workshops.
• Low-ceiling adaptability: Many UK factories have lower ceilings compared to heavy industrial plants. A single girder underhung crane can fit comfortably without requiring expensive structural changes.
• Cost-effective: Single girder underhung cranes are generally less expensive than double girder or top-running systems, both in initial cost and installation.
• Simple maintenance: Fewer components and straightforward construction make inspections and upkeep easier, especially when paired with a manual hoist.
• Flexibility in use: Ideal for lifting medium-duty loads, such as machinery, metal components, or finished products, with a lifting capacity up to 10 tons.

Compact and practical design features:

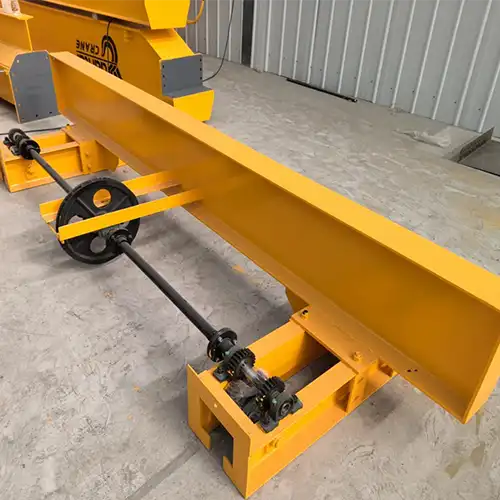

• Single girder construction for reduced weight and easier installation.
• Ceiling-mounted runway beams for optimal space utilization.
• Smooth trolley and hoist movement for precise load positioning.

In short, a 10-ton underhung bridge crane provides UK workshops and factories with a reliable, efficient, and space-friendly solution for everyday lifting needs.

Main specifications of  ceiling mounted overhead bridge cranes for uk

Understanding the technical specifications is crucial when selecting the right crane for your workshop or factory. The 10-ton underhung bridge crane is designed to handle medium-duty lifting tasks while fitting into compact spaces, making it ideal for UK industrial environments.

Key specifications of the 10 Ton underhung bridge crane:

• Crane Type: Single girder underhung bridge crane. The single girder setup keeps the design lightweight and easy to operate while maintaining stability for loads up to 10 tons.
• Crane Span: 2.4 meters (adjustable ±0.5 m). This moderate span allows flexibility for installation in different workshop layouts, while still covering sufficient working area for lifting operations.
• Lifting Height: 7 meters. The crane can lift loads to a decent height, allowing vertical space for stacking, assembly, or moving materials safely without interfering with overhead structures.
• Hoist Type: Manual hoist. A simple, reliable option for low-frequency lifting tasks. The manual hoist reduces energy consumption and maintenance costs, while still providing precise control for handling heavy items.

Practical considerations for buyers:

• Ensure the span fits your ceiling width and that the ±0.5 m adjustment range meets your space requirements.
• The 7-meter lifting height should be checked against your factory's ceiling clearance and any overhead obstacles.
• Manual hoists are ideal for workshops without heavy-duty power supply or where lifting operations are occasional.

With these specifications, the 10-ton single girder underhung bridge crane offers a balanced solution for UK factories, combining lifting capacity, compact design, and ease of use.

Design Features

The 10-ton underhung bridge crane combines a practical design with reliable performance, making it a solid choice for UK workshops and factories. Its single girder construction and ceiling-mounted layout offer clear advantages for medium-duty lifting tasks.

Structural advantages of single girder underhung cranes:

• Lightweight yet strong: The single girder design keeps the overall crane weight lower while still handling loads up to 10 tons safely.
• Simplified construction: Fewer components mean easier installation and reduced maintenance, which is perfect for small to medium industrial setups.
• Smooth operation: The crane's structure allows the hoist and trolley to move freely along the girder, providing precise positioning for lifted loads.

Space-saving design:

• Low-ceiling compatibility: The underhung setup suspends the crane from the ceiling, leaving more floor space free for machinery, workbenches, or storage.
• Optimized workshop layout: Because the crane doesn't sit on top of the runway, it minimizes obstructions and allows more flexible material flow.

Safety features and compliance:

• Load-limiting mechanisms: Prevents overloading and reduces the risk of accidents when lifting heavy items.
• Emergency stop and easy control: Manual hoist operations include safety stops for precise and secure handling.
• UK industrial standards compliance: Designed and manufactured to meet relevant safety and structural codes, ensuring reliability for everyday use.

In short, the 10-ton single girder underhung bridge crane delivers a balance of strength, safety, and efficiency. Its design ensures that lifting up to 10 tons is not only possible but also practical in low-ceiling and confined spaces.

Advantages for UK Overhead Crane Buyers

A 10-ton underhung bridge crane offers a combination of practicality and efficiency, making it an attractive option for UK industrial buyers. Here are the main advantages:

• Cost-effective for low to medium-frequency lifting: Perfect for workshops that don't require heavy-duty, continuous lifting. Manual hoist options reduce energy costs and simplify operations.
• Space-efficient design: The ceiling-mounted underhung system keeps the floor area clear, making it ideal for workshops with limited headroom or narrow aisles.
• Reliable performance: Handles loads up to 10 tons safely and efficiently, ensuring smooth and precise material handling for daily operations.
• Flexible across industries: Suitable for manufacturing, maintenance, storage, fabrication, automotive assembly, and indoor logistics hubs. No major structural modifications are needed, which saves time and installation costs.

These benefits make the 10-ton overhead  eot crane, or 10-ton single girder overhead crane a practical choice for small to medium UK industrial operations.

Conclusion

In summary, the 10-ton underhung bridge crane combines a single girder design, compact footprint, and reliable lifting capacity to meet the needs of UK workshops and factories. Its specifications—2.4 m span, 7 m lifting height, and manual hoist—make it versatile, safe, and efficient for a wide range of applications.

Recommended applications include:

• Light to medium manufacturing facilities
• Warehouses and storage areas
• Maintenance and service workshops
• Metal fabrication and engineering shops
• Automotive assembly plants
• Indoor ports and logistics hubs

For buyers searching for a 10-ton underhung bridge crane, 10-ton bridge crane, 10-ton overhead crane, or 10-ton single girder overhead crane, this solution offers reliability, space-saving design, and cost efficiency.

Contact the supplier for a quotation, detailed technical information, or to arrange a factory visit to see the crane in action.
