Hot Sale Overhead Cranes, Gantry Cranes & Jib Cranes
Popular 1–100 ton Crane Capacities, Types & Applications

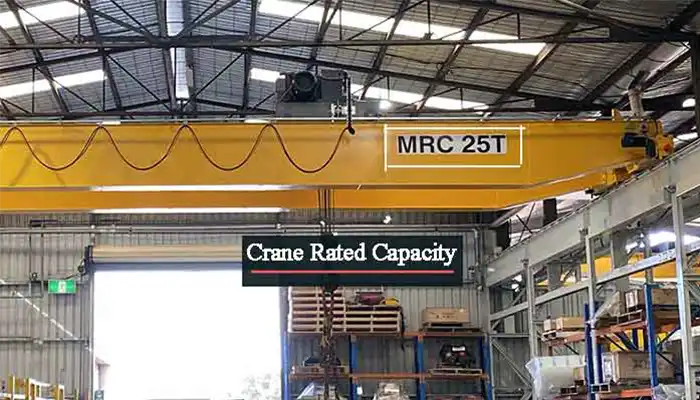

Definition of Crane Capacity
Crane capacity is the maximum weight that a crane can safely lift and maneuver during operations. This measurement is essential for ensuring that the crane operates within safe limits, preventing accidents and equipment damage. When selecting a crane for a specific lifting task, understanding its capacity is critical for maintaining safety and efficiency in the workplace. Click to check What Is Overhead Crane Capacity & Working Load Limit?

Safety Considerations: Operating a crane beyond its capacity can lead to structural failure, tipping, or dropping loads, posing serious risks to personnel and equipment. Check Crane Safety Margins: Capacity, Load Limits, Design

Task Suitability: Knowing the capacity helps in choosing the right crane for the job, ensuring it can handle the required loads effectively without strain.

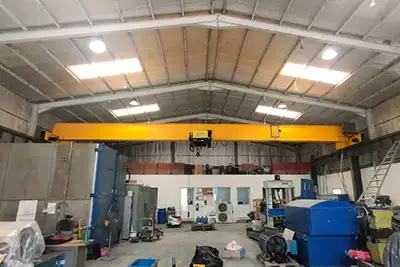

Common Overhead Crane Configurations

Overhead cranes are commonly used in factories, workshops, warehouses, production lines, and maintenance areas. Crane configuration depends on capacity, span, lifting height, duty, working environment, and the type of load being handled.

• Single Girder Overhead Crane: 1 ton, 3 ton, 5 ton, 10 ton, 15 ton, 20 ton
• Double Girder Overhead Crane: 10 ton, 20 ton, 25 ton, 30 ton, 32 ton, 50 ton, 100 ton
• European Type Overhead Crane: 5 ton, 10 ton, 12.5 ton, 16 ton, 20 ton, 25 ton
• Explosion-Proof Overhead Crane: 1 ton, 3 ton, 5 ton, 10 ton
• Electromagnetic Overhead Crane: 5 ton, 10 ton, 20 ton, 32 ton
• Grab Bucket Overhead Crane: 5 ton, 10 ton, 16 ton, 20 ton
• Foundry / Ladle Crane: 10 ton, 20 ton, 50 ton, 100 ton, 160 ton
• Dual Hook Overhead Crane: 20/5 ton, 30/10 ton, 50/10 ton
• Overhead Crane Kits: 2 ton, 3 ton, 5 ton, 10 ton, 20 ton

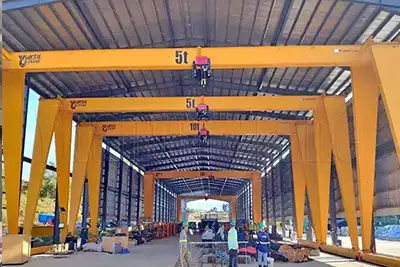

Common Gantry Crane Configurations

Gantry cranes are suitable for outdoor yards, construction sites, precast plants, shipyards, loading areas, and other locations where an overhead runway is unavailable or unsuitable.

• Single Girder Gantry Crane: 3 ton, 5 ton, 10 ton, 15 ton, 20 ton
• Double Girder Gantry Crane: 20 ton, 30 ton, 32 ton, 50 ton, 63 ton, 100 ton

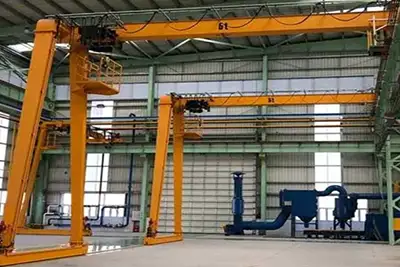

• Semi Gantry Crane: 2 ton, 3 ton, 5 ton, 10 ton, 15 ton, up to 32 ton
• Rail-Mounted Gantry Crane (RMG): 35 ton, 40 ton, 45 ton, 50 ton
• Rubber-Tired Gantry Crane (RTG): 35 ton, 40 ton, 50 ton
• Shipbuilding Gantry Crane: 50 ton, 100 ton, 200 ton, 300 ton

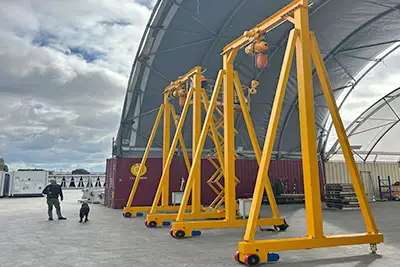

• Portable Aluminum Gantry Crane: 500 kg, 1 ton, 2 ton, 3 ton

Popular Jib Crane Capacities

Jib cranes provide localized lifting around machines, workstations, assembly areas, and production lines. Capacity, boom length, rotation, mounting method, and available headroom should be selected according to the working area.

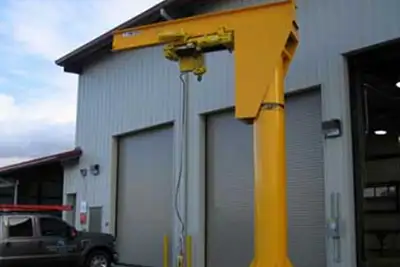

• Pillar-Mounted Jib Crane: 500 kg, 1 ton, 2 ton, 3 ton, 5 ton, 10 ton
• Wall-Mounted Jib Crane: 250 kg, 500 kg, 1 ton, 2 ton, 3 ton, 5 ton
• Wall-Traveling Jib Crane: 1 ton, 2 ton, 3 ton, 5 ton
• Articulating Arm Jib Crane: 250 kg, 500 kg, 1 ton
