10 Ton & 20 Ton Gantry Cranes Installed Successfully Netherlands
Content Quick Link
10 ton small gantry crane with portable design & 20 ton single girder gantry crane installed successfully in Netherlands manufacturing factory. Check now.
Basics of Gantry Cranes for Sale Netherlands
- Crane Type: Gantry Crane & Small Portable Gantry Crane
- Date of Placing Oder： 2019-3-26
- Date of Delivery ： 2019.8.12
- Way of Transportation： By Sea,1*40GP+1*20GP
- Way of Payment： LC 100%
- Destination country： Netherlands
- Destination port：CIF, Rotterdam port
- First Contact： 2019.3.26
- Application : Manufacturing Industry
General configurations of 20 ton single girder gantry crane for Netherlands
Crane type | |
Model | MHO |
Working Class | A5 |
Capacity | 20 ton |
Arm length (m) | 7.5 m |
Lifting Height（M） | 5 m |
Crane control | Ground control |
Voltage | 400v,50hz,3p |
Color | Standard |
Application | Indoor use |
Gantry track | P38 |
Quantity | 1 |
20 ton single girder gantry crane with low headroom wire rope hoist for Netherland manufacturing workshop

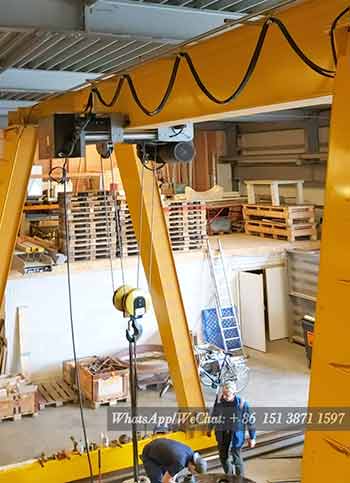

20 ton single beam gantry crane with low headroom wire rope hoist for Netherland manufacturing factory
Custom features of 20 ton single girder gantry crane
- The total height of the 20 ton single girder gantry crane is 6.55M, and the lifting height is 5M.All the production of the gantry crane is carried out strictly based on the gantry crane drawing .
- 20 ton gantry crane is distributed with gantry track and pressure plate and clamping plates.The gantry rail track model is P38, the single girder gantry crane running length is 25M. The total length of gantry rail is 50M. Due to the gantry track needs to be placed in a 40-foot container, with 168 pressure plates and 8 pairs of clamping plates.
- The power supply for the single girder gantry crane is 16 mm2seamless sliding line, with a the length of 25M, and 2 current collectors;
General configurations of 20 ton single girder gantry crane for Netherlands
Crane type | |
Working Class | A3 |
Capacity | 10 ton |
Gantry span (m) | 5 m |
Total Height（M） | 6 m |
Crane control | Ground control |
Voltage | 400v,50hz,3p |
Color | Standard |
Application | Indoor use |
Quantity | 2 |

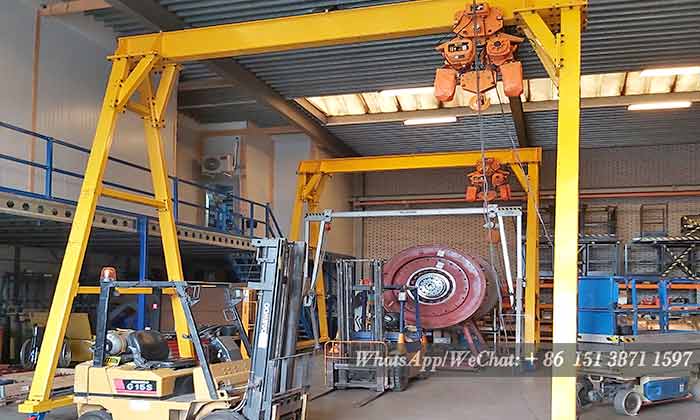

2 sets of 10 ton portable gantry crane equipped with electric chain hoists for sale Netherlands
Custom features of 10 ton small portable gantry crane
- The total height of the small portable gantry crane is 6M, the width between the two legs is 5M, the width of the wheel base of the lower beam of the small gantry crane is 3M, and the height is 4.4M.
- The assembly of the small gantry crane needs to be bolt connection. Check on small gantry crane installation guide.
- After the production is completed, the Netherlands customer will come to the factory to inspect the gantry cranes. Note that the customer has relatively high requirements on the product welds;
Customs declaration information registration
- The actual Chinese and English name of the goods: 门机, Gantry Crane
- Chinese and English name of cargo declaration: 门机, Gantry Crane
- Inland freight: USD1550
- Port charges:USD1250
- Sea freight: USD2206 (including insurance premium)
Productions & delivery of gantry cranes for Netherlands

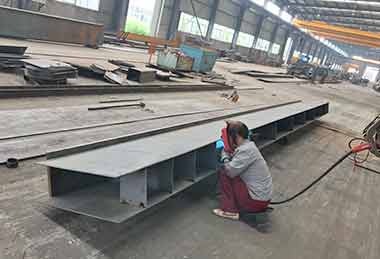

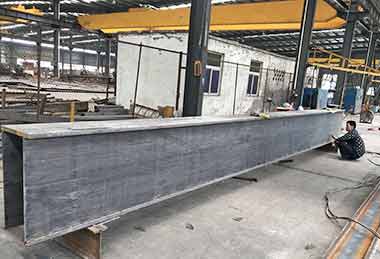

20 ton main girder welding for gantry crane project in Netherlands
20 ton main girder welding for gantry crane project in Netherlands

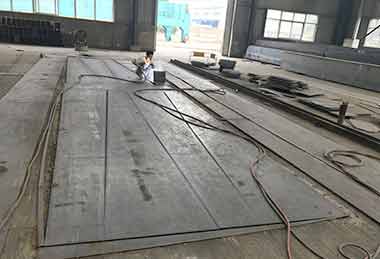

20 ton supporting legs welding for Netherlands projects

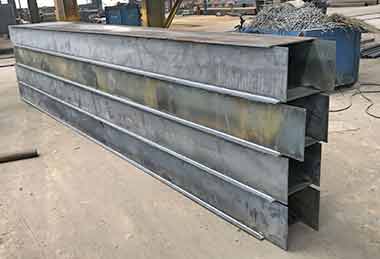

20 ton gantry crane production pictures for manufacturing factory in Netherlands

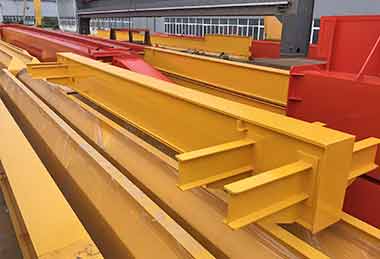

20 ton single girder gantry crane for sale Netherlands

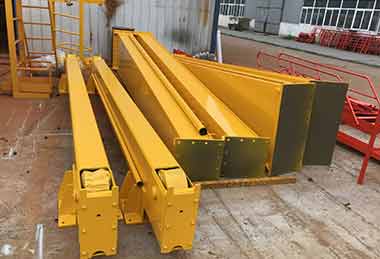

20 ton gantry crane supporting legs for customer in Netherlands

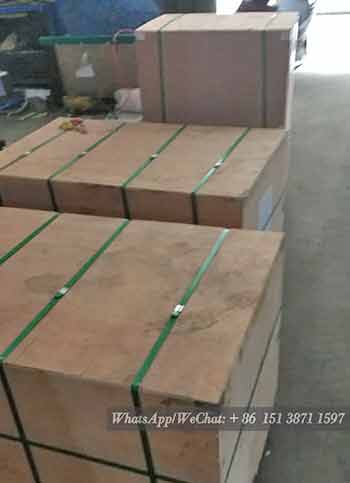

Gantry hoists including 20 ton wire rope hoist and 2 sets of electric chain hoistw packed for delivery to Netherlands

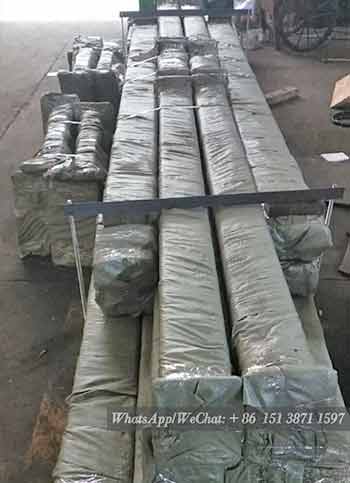

10 ton small portable gantry cranes packed delivery for sale Netherlands
Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
