Outdoor Gantry Crane for Sale, Good Price
Types of Outdoor Gantry Crane Design, Custom Gantry Crane Design for Your

Outdoor gantry cranes are commonly used gantry crane which are used to lift and move heavy loads in a variety of outdoor workplaces such as storage yards, docks, ports, railways, shipyards, and construction sites. The gantry crane was developed for a variety of applications where an overhead crane would be impractical. Gantry cranes are designed and built in a variety of configurations, sizes, and models, including single girder, double girder, rail mounted, rubber tyred, semi gantry crane, truss, and cantilever styles, and each type is designed to serve a specific lifting need.

Outdoor gantry cranes are capable of continuously transporting, loading, and unloading objects whether it is windy or rainy, day or night. The protective surface of the outdoor gantries can successfully withstand corrosive chemicals like salt spray, acid, or alkali and also provides high impact resistance in order to fulfill the demanding requirements of the outside environment.

We have designed a system for outdoor use. It is designed with highly stable and special materials that can withstand strong mechanical effects such as hail and rain. Even in snowfall, the outdoor gantry cranes can keep the system running smoothly, allowing it to be used in a variety of settings, including electroplating factories, chemical industries, and waste treatment plants.

Types of outdoor gantry crane for sale

Outdoor gantry cranes are classified into several types, including A-frame type, L-leg type, and U- frame type. Different structural features provides various functions. It can be used in railway lines, ports, and other construction sites due to its wide operating range, adaptability, and versatility.

The outdoor gantries has two modes of operation: ground and operating room. There are two types of controlling rooms: open and closed, and they can be installed on either the left or right side depending on the situation. In various situations, different approaches meet the user's preferences.

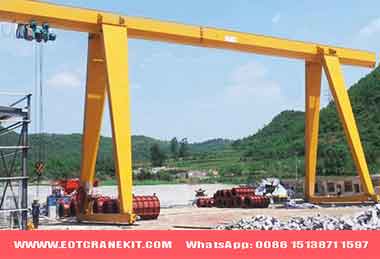

A single-girder outdoor gantry crane can lift large objects to the cantilever end. Its lifting capacity ranges from 5 to 32 tons, its span ranges from 18 to 35 meters, its lifting height ranges from 6 to 18 meters, and its work duty is typically A5. It is used to load, unload, lift, and transport materials and goods in outdoor freight yards and along railway lines.

Single girder outdoor gantry crane parameters:

• Load capacity: 3-20t
• Span: 8-35m
• Lifting height: 6-18m
• Lifting speed: 0.33-8m/min
• Trolley running speed: 20m/min
• Crane running speed: 20m/min
• Work duty: A3, A4

Due to the numerous benefits of double girder gantry cranes—including their high load capacity, wide span, outstanding stability, and variety of types—they are extensively used in the lifting business. box type girder and truss type girder are available. Besides , box-type girders are more common. Due to the steel plate used in the box type girder's welding, it is more safe and reliable.

Double girder crane parameters:

• Lifting Capacity: 5t~500t
• Span Length: 18~35m
• Lifting Height: 6~18m
• Lifting Speed: 1.5~11.5m/min
• Trolley Traveling Speed: 10~40.1m/min
• Crane Traveling Speed: 16~50m/min
• Working Class: A3-A7
• Provide Custom Option

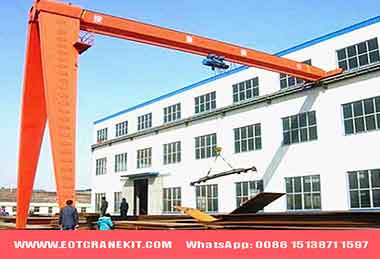

A semi-gantry crane is a type of gantry crane which has one supporting legs, travelling on the track imbeded on the ground and the other side supported on the overhead rails on the wall. When compared to a full gantry crane, this type of crane can save some money and workspace space due to its design and compact structure.

Semi gantry crane for outdoor use

• Lifting Capacity: 5t~32t
• Span Length: 12~30m
• Lifting Height: 6~12m
• Lifting Speed: 6~11.5m/min
• Trolley Traveling Speed: 37~40.1m/min
• Crane Traveling Speed: 37.7~40.1m/min
• Working Class: A3-A6
• Provide Custom Option

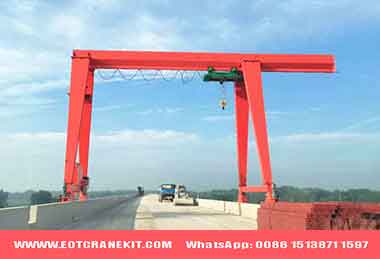

Outdoor Gantry Crane With Cantilever

• Capacity ：3.2-32t
• Span：12-30m
• Lifting height：6-9m
• Lifting speed：8/0.8m/min
• Cross travelling speed：20m/min
• Long travelling speed：20m/mim
• Working class：ISOA5-A7/FEM2M-4M
• Power source：A5

Other：Specific models and designs will be provided according to your specific application

Outdoor single girder gantry crane parameters:

• Lifting Capacity: 3t~20t
• Span Length: 8~35m
• Lifting Height: 6~18m
• Lifting Speed: 0.33~8m/min
• Trolley Traveling Speed: 20m/min
• Crane Traveling Speed: 20m/min
• Working Class: A3-A4
• Provide Custom Option

Outdoor semi gantry crane parameters:

• Lifting Capacity: 3t~20t
• Span Length: 8~30m
• Lifting Height: 6~18m
• Lifting Speed: 0.33~8m/min
• Trolley Traveling Speed: 20m/min
• Crane Traveling Speed: 20m/min
• Working Class: A3-A4
• Provide Custom Option

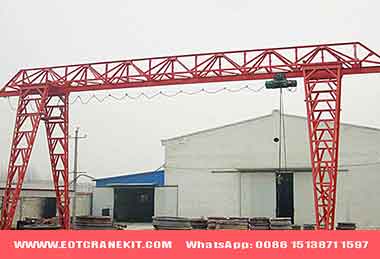

The single girder truss gantry crane refers to a crane with one truss main girder that is used to lift heavy goods with a CD or MD type electric hoist. It can be used in a variety of settings, including ports, shipyards, railway lines, and material yards. Semi-gantry cranes have only two support legs on one end, and the other end requires support from a building or other structure to travel along the track.

Single girder truss gantry crane parameters:

• Lifting Capacity: 3t~20t
• Span Length: 8~35m
• Lifting Height: 6~18m
• Lifting Speed: 0.33~8m/min
• Trolley Traveling Speed: 14~20m/min
• Crane Traveling Speed: 20m/min
• Working Class: A3-A4
• Provide Custom Option

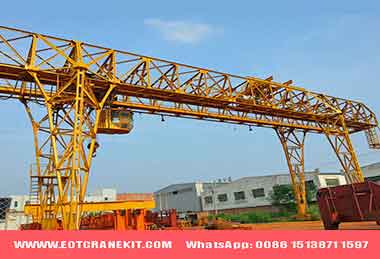

The trolley of a double girder truss gantry crane usually travels along the track on the top of the beams, while the crane travels along the track on the ground. If the double truss girder outdoor gantry crane has a cantilever, the saddle should be installed; if there is no cantilever, the saddle should not be installed.

Double girder truss gantry crane parameters:

• Lifting Capacity: 5t~200t
• Span Length: 18~35m
• Lifting Height: 6~18m
• Working Class: A5
• Traveling Speed: 28~45m/min
• Lifting Speed: 3.5~12.5m/min

Outdoor truss gantry crane with semi-gantry crane

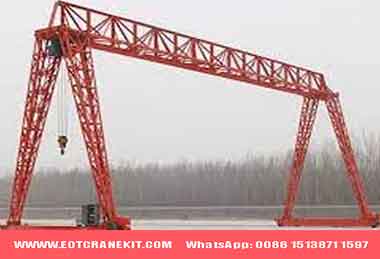

Truss gantry cranes are small and medium-sized gantry cranes with moving tracks. This industrial crane is a lifting gantry for general use. It is widely used in open storage yards, warehouses, mold manufacturing enterprises, construction sites, machinery processing and manufacturing enterprises, and other fields for loading, unloading, and grabbing material.

L-type leg single girder gantry crane:

The L type outdoor gantry crane can lift large items to the cantilever end. Its lifting capacity ranges from 5 to 50 tons, its span ranges from 18 to 35 meters, its lifting height ranges from 6 to 18 meters, and its work duty is typically A5. It is used to load, unload, lift, and transport materials and goods in outdoor freight yards and along railway lines.

L types electric gantry crane parameters:

• Lifting Capacity: 5t~50t
• Span Length: 18~35m
• Lifting Height: 6~12m
• Lifting Speed: 5.9~11.2m/min
• Trolley Traveling Speed: 36.6~39.7m/min
• Crane Traveling Speed: 39.7~48.2m/min
• Working Class: A3-A5
• Provide Custom Option

U frame gantry crane

The U frame outdoor gantry crane is a rail-mounted gantry crane that is used to lift and transport containers from one location in a port or pier to another. It has a high work duty and a fast travel speed.

Double girder container gantry crane parameters:

• Lifting Capacity: 30t~50t
• Span Length: 18~35m
• Lifting Height: 12.3~21m
• Lifting Speed: 9.2~12.5m/min
• Trolley Traveling Speed: 45~56m/min
• Crane Traveling Speed: 42~50m/min
• Working Class: A6-A8
• Provide Custom Option

RTG type double girder gantry crane:

The RTG type outoodr gantry cranes is a type of mobile gantry crane, which are used in a wide range of applications. The mobile outdoor gantry crane is available with spans ranging from five to eight containers wide and lifting heights ranging from one to six containers high.

Rubber tyred gantry crane parameters:

• Lifting Capacity: 10t~50t
• Span Length: 18~35m
• Lifting Height: 6~18m
• Lifting Speed: 5.9~13.3m/min
• Trolley Traveling Speed: 31.3~40.1m/min
• Crane Traveling Speed: 40.1~44m/min
• Working Class: A5-A6
• Provide Custom Option

Quality is at the core of the products. Our corporate culture as a professional gantry crane manufacturer is one of integrity and pragmatic leadership, pioneering and innovation, and striving for excellence.

We make an effort to construct high-quality projects and continue pursuing customer satisfaction. Our have types of outdoor gantry cranes for sale and with one source of crane services including free consultation, design, manufacturing, transportation, installation, maintenance, and other excellent after-sales services.

Safety devices of outdoor gantry cranes

Outdoor crane gantry crane with high resistance to external environmental impacts and strong adaptability to external harsh environments.

When selecting outdoor gantry cranes, work environment factors must be considered.

• - Environmental factor: It refers to the applicaiton environment of outdoor gantry cranes, which includes the high and low temperature, air humidity. The outdoor invironment will directly affect the steel selection, cable selection, and the entire electrical component of the gantry crane.
• Windbreak factor: Windbreak factor: If the annual wind speed is too high, the outdoor gantry crane should be designed with an anti-wind design that includes an anti-wind device.
• - Rainproof factor: it refers to the use of gantry crane protection on the worksite during rain. The outdoor gantry crane lifting mechanism is equipped with cover shed cabin, and related agencies installing rain cover. External cable with pipe for threading.
• - Anti-corrosion factor: The most common example is gantry crane use at the seaside, where the air has a corrosive effect, and the gantry crane is painted with anti-corrosion paint.
• - Hanging piece volume factor: It refers  to the size and shape of the loads that needs to be lifted. For example, moving and handling containers calls for an upper and lower vertical portal frame structure gantry crane. When handling long objects, an L-type gantry frame is typically used.

Of course, there are other factors as well, like working frequency, lifting object weight, and electrical control systems.

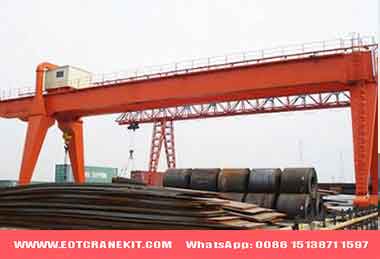

Safety features for outdoor gantry cranes

• Crane travel limit switch
• Weight overload protection device
• Lifting height limiter
• Low voltage protection function
• Phase sequence protection function
• Emergency stop function
• Rain cover for external hoists, drives, electrical cabinets.
• Warning Indicator: Flashing light and warning sound.
• Wireless infrared detector

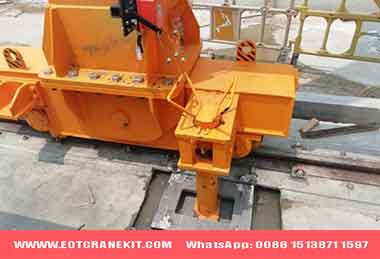

Outdoor Gantry Crane Anchoring System

Outdoor cranes are frequently subjected to nature's wrath, such as high winds and storms. A stable and reliable anchoring system secures the entire gantry crane structure at the work site, preventing the outdoor gantry crane from toppling and preventing serious accidents and loss of life and property.

Maintenance of Outdoor Gantry Crane

Outdoor gantry cranes are type of frequently used material handling crane equipment. When a safety accident occurs, the consequences are unimaginable.

The safety management of outdoor cranes is also subject to stringent rules and guidelines, in addition to the special equipment. Then, what must be done for safety management in order to ensure the overall structure's efficiency and safe operation?

Technical documentation for the equipment must include installation and use instructions, confirmation of the product's quality, and design drawings. The performance of the outdoor machine needs to be regularly inspected in accordance with the instructions. The gantry crane must have daily maintenance and self-inspection performed while it is in use.

Gantry crane installers, operators, and maintainers must undergo formal assessment and training. Our team, on the other hand, has years of experience and is completely capable of providing you with the required instruction. Because outdoor material handling works involve mainly large-scale hoisting operations, if you take the necessary precautions and make your preparations in advance, you can prevent most unforeseen circumstances from happening.

Selecting The Right Gantry Crane for Your Application

A proper gantry crane is critical to the efficient operation of your business, so the question is how to choose the right equipment for your specific applications. Consider the following factors when choosing an outdoor gantry crane:

The key is to concentrate on your specific requirements. Here are some considerations for your consideration:

• First, think about the gantry crane specifications that are required for your application, such as lifting capacity, lifting height, span, lifting speed, and hook coverage.
• Another important factor to consider is the working environment. Because outdoor environment keep changing, you may need to outfit your gantry crane with a variety of protection devices such as a wind proof device, a lightning protection device, and a rain cover.
• Then you should consider things like how frequently you use the crane and whether you prefer to move it with rubber tires or move on rails.
• Finally, you should think about some options for critical crane components like the trolley and hoist type.

Other important factors to consider when selecting outdoor lifting equipment include the crane's cost, quality, service, and supplier qualification. We recommend that you consider these questions thoroughly in order to make the best decision. We will help you in choosing the best lifting system for your specific requirements.
