Gantry Crane Parts & Crane Components, Complete Gantry Crane Kit

Gantry cranes are a type of overhead travelling crane that is supported by gantry frame legs that move on the ground track or rail. In terms of crane structure, gantry cranes are primarily composed of a running mechanism, a lifting trolley, electrical parts, and other components. Gantry crane kits for the majority of gantry cranes are primarily composed of the gantry upper bridge (including the main beam and end beam), outriggers, lower crossbeam, and other gantry crane parts and components, etc.

To increase the gantry crane's operational range, the main beam or girder can be extended beyond the outriggers on one or both sides to form a cantilever. A cantilever-equipped lifting trolley can also be used to extend the crane's operational range by adjusting the cantilever's pitch and rotation.

Single Girder Gantry Crane Parts & Components

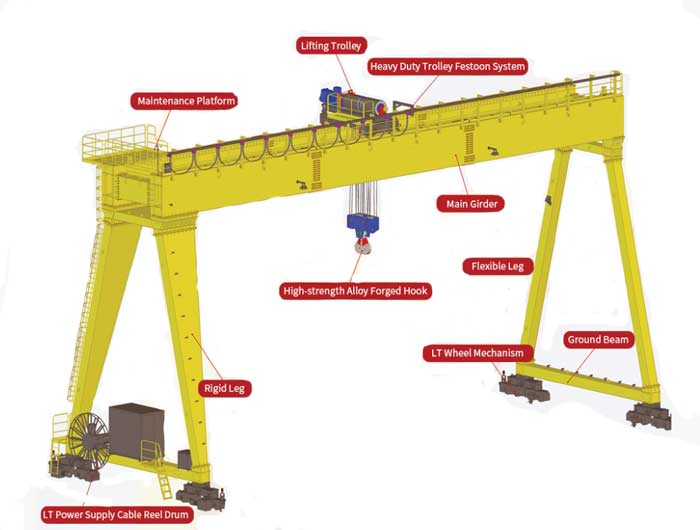

Double girder gantry crane parts and components

What are the components of a gantry crane?

In general, gantry crane parts include the following components:

Gantry crane framework: The gantry frame is made up of one or two main beams, two end beams, a walkway, railings, supporting legs, and other component pieces. And the main girder of the gantry crane can be constructed into box girder and truss girder.

• Traveling mechanism of gantry crane : Motor, brake, reducer, coupler, transmission shaft, angle bearing box, wheels, and other component parts make up the gantry crane traveling mechanism.
• Hoisting trolley :A hoist trolley is composed of three components: the trolley frame, the lifting mechanism, and the traveling mechanism.
• Lifting mechanism of gantry crane : motor, brake, connecting shaft, reducer, drum, fixed pulley block, wire rope, and other components. Gantry brakes are classified into two types: single and double.
• Crane control: pendent control, remote control and crane cabin, etc.

Packages of gantry crane kits

• Semi-gantry crane kit: The package of gantry crane kit includes the electric hoist, reducer with motor, flat cable with cable trolley, and control panel, among other things.
• Single girder gantry crane kit: A single girder gantry crane kit includes an electric hoist, a crane travelling motor, a crane wheel, and a crane control, among other things.
• Double girder gantry crane kit: A double girder gantry crane kit includes the crane girder, supporting legs, wheel block, hoisting trolley, crane control, and other components.
• Portable gantry crane kit: A portable gantry crane kit includes a gantry crane frame, an electric hoist, a wheel block, a control panel, and other components.

Single girder gantry crane kit

Double girder gantry crane kit

Semi gantry crane kit

Portable gantry crane kit

Features of gantry crane parts and components

• An appropriate structure
• An excellent performance
• Consistent acceleration and deceleration
• Dependable and secure travel
• Low noise , a comfortable cabin, and a broad view
• Simple to maintain, with excellent parts availability and computer interchangeability
• It lowers the amount of electricity consumption.

Our parts and components partners are world wide well know suppliers, such as, ABB, SEW-EURODRIVE, SIEMENS, SCHNEIDER, and others. You can outfit your gantry cranes with any brand's parts and components.

Made to order gantry crane parts and components

Which part of a gantry crane is needed? With decade of experiences, we will provide your the gantry crane parts and components you required based on your gantry crane drawing and crane specifications.

Which type of gantry crane part do you need, Cylindrical wheels, Buffers, Block brakes, Steel wire rope, lifting hooks, Driver's cab, Reducer, Casting pulleys, Casting reel, Electric motors, Electric control equipment? Contact us today to get your gantry crane parts and components now.
