1 Ton Portable Gantry Crane, Custom 1 Ton, 1.5 Ton Portable Crane
1 ton portable gantry crane for sale, economical portable gantry crane solution. Movable A frame gantry crane with electric hoist /manual hoist for sale.
| Crane Type | 1–1.5 ton movable A-frame portable gantry crane for light-duty load handling; steel frame with electric or manual hoist, manual/electric trolley; ISO A3–A5 / FEM 1Am–3M; 380/400/415V, 50Hz, 3Ph; optional radio remote control, adjustable legs, wheel locks, |
| Crane Capacity | 1–1.5 ton rated lifting capacity for handling loads up to 1,000–1,500 kg under the specified operating configuration. |
| Span Length | Typically 2–5 m span; customized according to load dimensions, load center, working clearance, and required lifting coverage. |
| Lifting Height | Typically 2–4 m; adjustable or fixed lifting height available according to load handling and available headroom. |
| Coverage Area Type | Localized mobile lifting coverage; workstations, machine areas, workshops, assembly stations, maintenance areas, warehouses, loading zones, and temporary lifting points. |
| Application | Handling 1–1.5 ton machinery, motors, pumps, molds, equipment, steel components, pallets, dies, and maintenance loads in workshops, warehouses, assembly areas, machine shops, and loading zones. |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Designed for 1–1.5 ton load handling; customized lifting height, span, telescoping or fixed-height A-frame, electric or manual hoist, manual/electric trolley, wheels, controls, and lifting attachments according to load dimensions and handling requirements |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Portable Gantry Crane Drawings
Tags: 1ton
Your Trusted Overhead Gantry Crane Manufacturer & Supplier
1 Ton Portable Gantry Crane

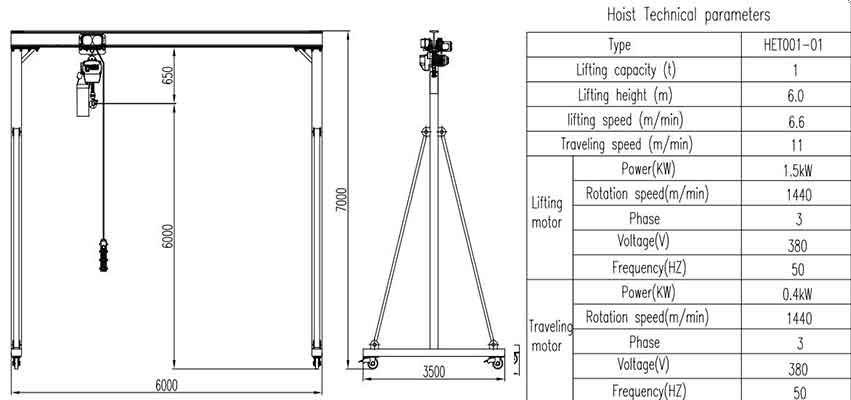

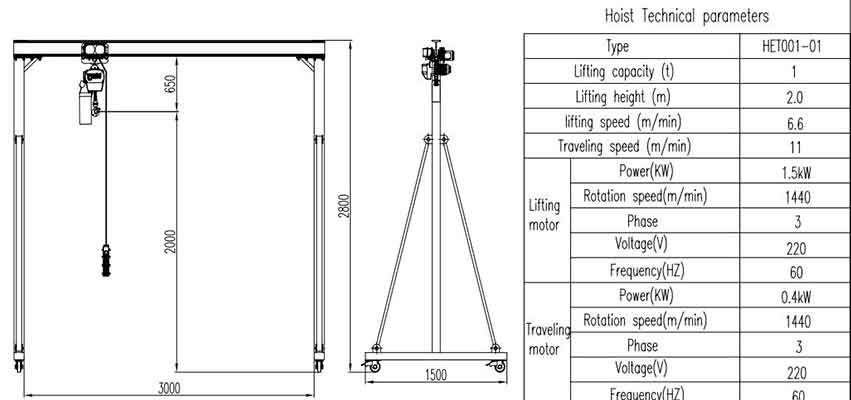

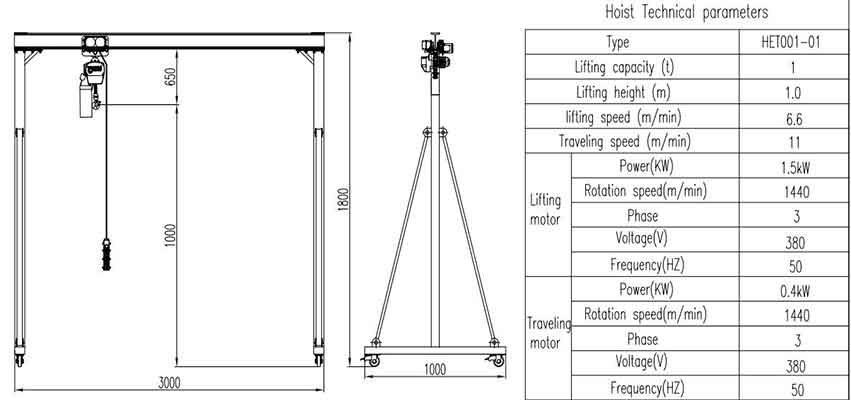

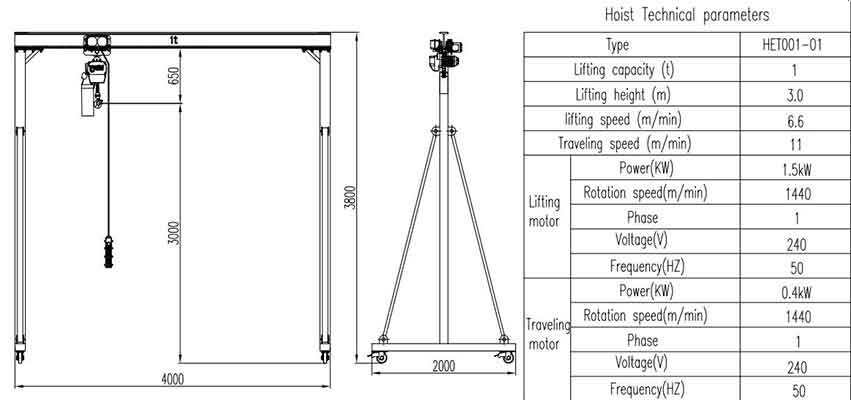

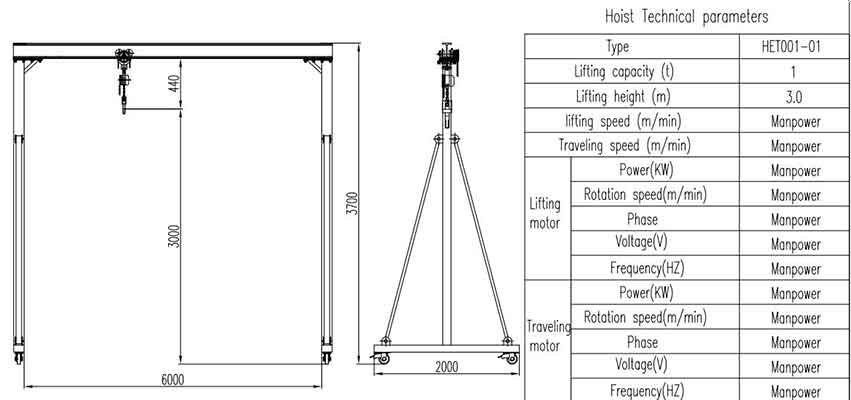

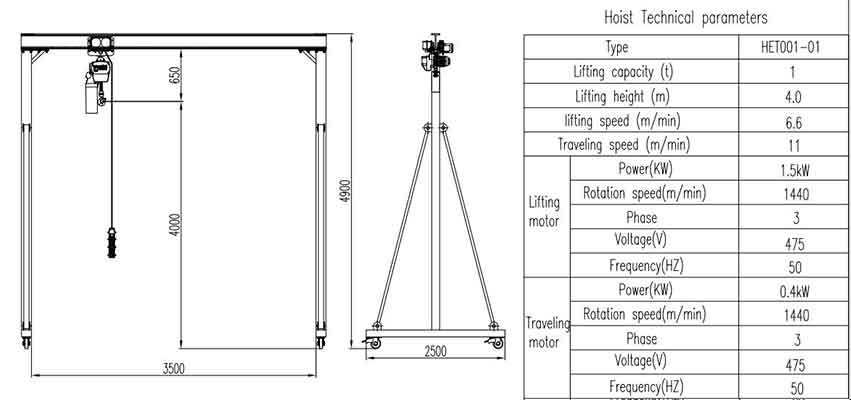

Custom 1 Ton, 1.5 Ton Portable Crane Drawing
1 ton portable gantry crane for sale, economical portable gantry crane solution. Movable A frame gantry crane with electric hoist /manual hoist for sale.
Types of portable gantry crane designs
