Multiple Point Underhung Bridge Crane 5 Ton 9m+9m H6m | 3 Support Points
Multiple point underhung bridge crane 5 ton, 9m+9m span, 6m lift, 20m total girder, 3 support points, 3 end carriages. Multi-point ceiling mounted under running crane for wide bays. 3P 380V 50Hz, A3 duty. Free drawing & quote.
Crane End Carriage 2 Ton S12m A3 × 4 Sets | End Beam, End Truck Drawing
Crane end carriage 2 ton, 12m span, A3/M5 duty, 4 sets. Overhead crane end beam / end truck for underhung bridge crane with CD2t hoist, 15.2 kN wheel load, I 20m-45c rail, Ø130mm wheel, 3P 380V 50Hz, 20 m/min travel. Free drawing & quote.
Ceiling Mounted Crane 2 Ton S3m H24m Underhung Bridge
Ceiling mounted crane 2 ton, 3m span, 24m lift for low headroom workshops. Ceiling mounted under running crane / underhung bridge crane with 0.3m cantilever, VFD long travel 20/10 m/min, A3 duty. Ideal low headroom overhead crane. Free drawing & quote.
Oil Depot Underhung Crane 1 Ton S6m H7m with CDH Hoist & 4 Lights
Oil depot underhung crane 1 ton, 6m span, 7m lift, A3 duty for Uzbekistan oil depot. Underhung crane / underslung crane with CDH hoist, 4 lighting fixtures, 7.8m girder, 8.0 kN wheel load, I 20m-45c rail, 400V 50Hz 3P. Explosion-proof version available.
Cantilever Underhung Crane 1 Ton S4.5m H18m VFD
Cantilever underhung crane 1 ton, 4.5m span, 0.3m left/right cantilever, 18m lift, A3 duty, VFD long travel 20/10 m/min. Cantilever underslung crane / underhung bridge crane with CDH hoist for high-lift narrow bays. 7.5 kN wheel load, I 20m-45c rail, Ø130
Cantilever Underhung Crane 1 Ton S3.6m H24m VFD
Cantilever underhung crane 1 ton, 3.6m span, 0.3m left/right cantilever, 24m lift, A3 duty, long travel VFD 20/10 m/min. Cantilever underslung crane / underhung bridge crane for high-lift, narrow-bay positioning. 380V 50Hz, pendant & remote. Free drawing
Double Girder Underhung Crane 3 Ton S19m H7m M5
Double girder underhung crane 3 ton, 19m span, 7m lift, M5 duty, hoist VFD 0.8~5.0 m/min. Double girder underslung crane / underhung bridge crane with crab trolley, end carriage, 40.2 kN wheel load, 350~1500mm rail, 380V 50Hz, pendant & remote. Free drawi
Underhung Crane 7 Ton S6m H12m NR71 Hoist | Underslung Crane Drawing
Underhung crane 7 ton, 6m span, 12m lift with NR71 electric hoist, remote control. Single girder underhung crane / underslung crane for heavy loads at height. 47.2 kN wheel load, 200~450mm rail, Ø150mm wheel, 380V 50Hz, A5. Free drawing & quote.
Full VFD Underhung Crane 5 Ton S10m H6.5m | All-Motion VFD
Full VFD underhung crane 5 ton, 10m span, 6.5m lift with hoist, hoist travel and long travel all VFD. Variable frequency underhung crane / underslung crane for smooth, precise, anti-sway handling. 36.3 kN wheel load, 200~400mm rail, 380V 50Hz, A5. Free dr
A6 Duty Underhung Crane 5 Ton S9m H10m Heavy-Duty
A6 duty underhung crane 5 ton, 9m span, 10m lift for intensive material handling. Heavy-duty underhung crane / underslung crane with NR electric hoist, remote control, 36.3 kN wheel load, 200~400mm rail, 380V 50Hz. Free drawing & quote.

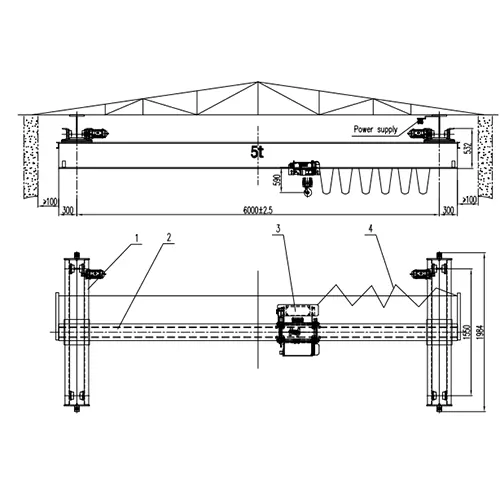

Underhung Crane 5 Ton S6m H25m High Lift | Underslung Crane Drawing
Underhung crane 5 ton, 6m span, 25m lifting height for high-bay workshops. Single girder underhung crane / underslung crane with NR electric hoist, remote control, 35.3 kN wheel load, 200~400mm rail, 380V 50Hz, A5. Free drawing & quote.

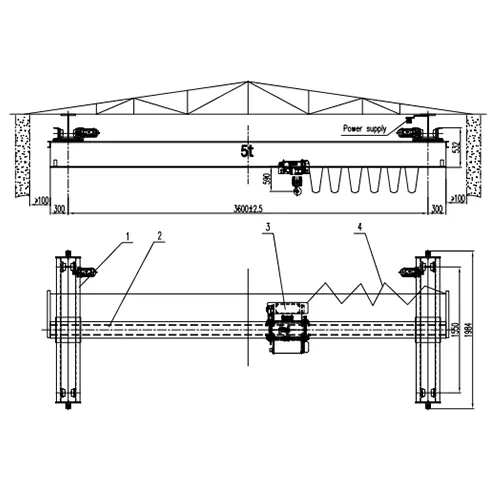

Underhung Crane 5 Ton S3.6m H6m for Radioactive Waste Container Handling
Underhung crane 5 ton, 3.6m span, 6m lift for moving solid radioactive waste containers and spent filter containers. Single girder underhung crane / underslung crane with NR electric hoist, remote control, 33.8 kN wheel load, 200~400mm rail, 380V 50Hz, A5

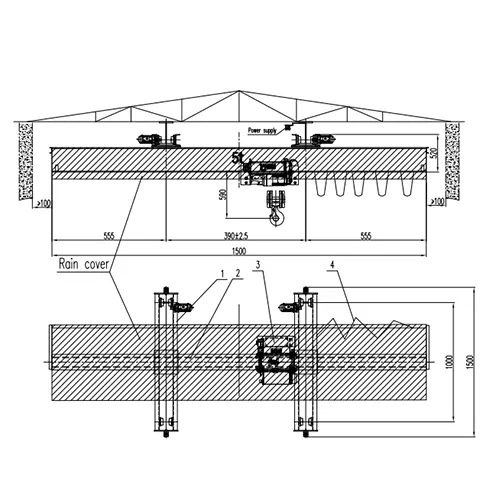

Outdoor Cantilever Underhung Crane 5 Ton S0.39m H10m
Outdoor cantilever underhung crane 5 ton, 0.39m span, 0.555m cantilever each side, 10m lift, counterweight, rain cover, 10m travel with cable. Underhung bridge crane / underslung crane with NR hoist, 36.3 kN wheel load, 200~400mm rail, 380V 60Hz. Free dra

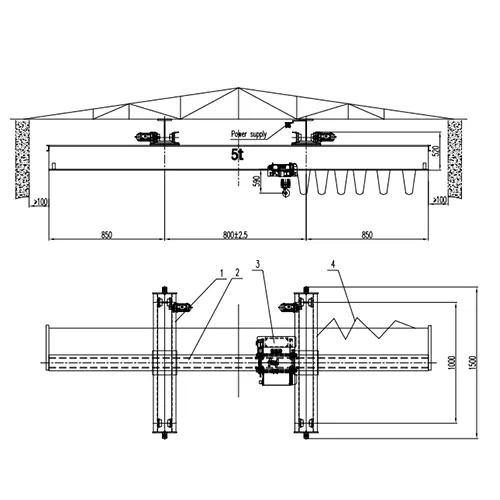

Cantilever Underhung Crane 5 Ton S0.8m H10m with Counterweight
Cantilever underhung crane 5 ton, 0.8m span, 0.85m cantilever each side, 10m lift, counterweighted design. Underhung bridge crane / underslung crane with NHS hoist, 40.4 kN wheel load, 200~400mm rail, 380V 50Hz, A5. Free drawing & quote.

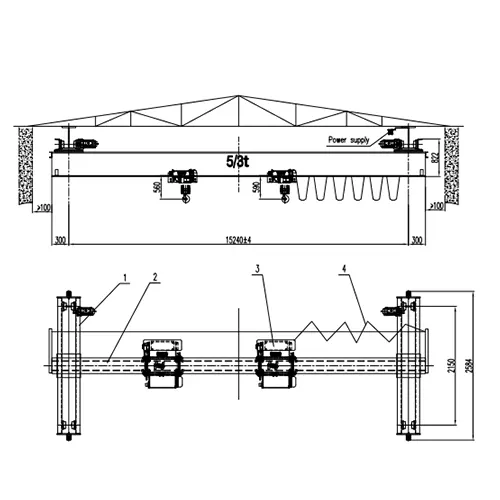

Dual Hoist Underhung Crane 5t + 3t S15.24m | 6t End Beam
Dual hoist underhung crane 5t + 3t on one girder, 15.24m span, 9.144m lift, 6t-rated end beam. Underhung bridge crane / underslung crane with 2 NR hoists, hoist VFD, 54.6 kN wheel load, 380V 50Hz, A5. Free drawing & quote.
Yuantai Cranes
Overhead Crane Manufacturer with CE, ISO, SGS, CNEX Certificates.
- Main Specifications - Capacity: 0.5–550 tons | Span: up to 40m | Speed: 0.8–12 m/min | Duty: A3–A7 | Power: 380–690V, 50/60Hz | Control: pendant/remote/cabin
- Full engineering: FEA/PLC/VFD + in-house build + global delivery + on-site support, for workshops, factories, EPC contractors, industrial projects, etc.
- Support: design, manufacturing, testing, service – end-to-end, customized lifting solutions worldwide.
How to Get an Accurate Crane Price for Your Application?
Tips: Copy the spec list, fill in your details, and paste it into the form on the right/ down-below for a quick price.
- Crane type:_____ . (e.g., overhead crane, gantry crane, jib crane)
- Max weight to lift:_____ tons. (e.g., 2t, 5t, 10t, 20t, 50t)
- Lifting height:_____ m. (How high does the hook need to reach?
- Workshop width (span):_____ m . (Distance between the two crane rails)
- Travel distance:_____ m . (How long does the crane need to move along the runway?)
- Control type:_____. (Pendant / remote / cabin Control)
- Power supply:_____. (Local voltage & frequency – e.g., 380V, 50Hz, 3-phase)
- What will it be used for?_____ (e.g., steel fabrication, concrete products, mold handling, general manufacturing, etc.)
- Any special requirements?_____ (e.g., extreme temperature, dusty or explosive environment, special paint color, etc.)
Just leave a message via the contact form and our hoist and crane engineer will contact you with in 24working hours.
Get Your Custom Quote–Quick & Easy
Fill in what you know. Skip what you don't – we'll help.Any question will be reply with 24 working hours
