1t Wall Jib Crane Drawing - BX1t-2m A3 Manual 180° No Hoist

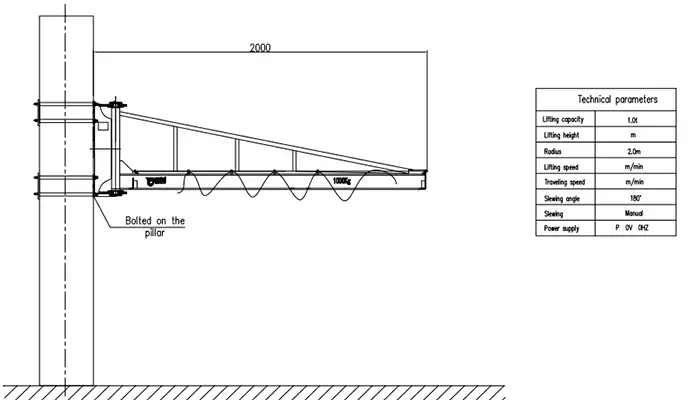

Yuantai Crane BX 1t Pull Rod Supported Wall Jib Crane Drawing (Total Beam 2.0m, A3 Duty, No Hoist, Manual 180° Slewing, Bolted Flat Plate Wall Mount)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Wall Mounted Jib Cranes
Tags: 1TonJIbCraneDrawing,1tonjibcrane
Overview: 1 Ton Wall Jib Crane with Pull Rod Support, Manual Slewing and No Hoist
Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package specifies a customized 1 Ton BX Wall Jib Crane (Model: BX1t-2m A3). This is a pull rod supported wall-mounted jib crane designed for low-headroom indoor workshops with strict ceiling constraints. It features a 2.0m total beam length, A3 light-duty rating, manual 180° slewing (no motor), and is supplied without a hoist (customer to mount their own lifting device). The design accommodates a floor-to-ceiling height of only 2800mm, with the I-beam main girder installed at 2200mm above floor level and the upper pull rod truss limited to a maximum height of just 600mm. The crane is fixed to the wall using a single flat plate bolted directly to the wall surface — no encircling of the pillar is permitted.
Who is this wall jib crane for? Ideal for:
- Low-headroom workshops with ceiling height around 2800mm
- Facilities where the crane must be bolted to a flat wall surface (no pillar wrapping)
- Applications requiring manual slewing where powered rotation is unnecessary
- Customers who already have their own hoist to mount on the jib
- Confined spaces needing compact pull rod supported jib crane design
- Light-duty lifting tasks with low frequency
Common search terms for this crane: pull rod wall jib crane, wall mounted jib crane no hoist, manual slewing wall jib crane, low headroom jib crane, flat plate bolted jib crane, 1 ton wall jib crane, 2m arm wall crane, A3 wall jib crane, pull rod supported jib crane, compact wall jib crane.
Project & Technical Overview
- Equipment Type: Pull Rod Supported Wall Jib Crane (No Hoist, Manual Slewing)
- Alternative Names: Wall-mounted jib crane, pull rod wall crane, manual wall jib crane, flat plate mounted jib crane
- Model Number: BX1t-2m A3
- Drawing PDF File: BX Wall Jib Crane Drawing 1 Ton Manual 180 Degree No Hoist Pull Rod Support
- Crane Manufacturer: Yuantai Cranes
- Duty Class: A3 (Light Duty / FEM 1Bm / ISO M3)
- Slewing Type: Manual 180° (No rotation motor)
- Lifting Mechanism: Not included (No hoist supplied — customer mounts own)
- Application Target: Low-headroom indoor wall-mounted lifting with manual positioning
- Key Dimensions: Total Beam Length 2.0m, Radius 2.0m, Main Girder Height (above floor) 2200mm, Pull Rod Truss Max Height 600mm, Floor-to-Ceiling 2800mm
- Mounting Method: Single flat plate bolted directly to wall surface
- Pillar Note: Not encircling the pillar ; wall face width 300mm
- Quantity: 1 unit
Buyer Note: This crane is specifically designed for tight spaces with very low headroom. The pull rod support structure keeps the overall upper truss to just 600mm, allowing the crane to fit under a 2800mm ceiling while the main girder sits at 2200mm. It is supplied without a hoist so the buyer can install their own chain or wire rope hoist.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | A3 (Light Duty) |
| Lifting Capacity | 1.0 t (1000 kg) |
| Total Beam Length | 2000 mm (2.0 m) |
| Valid Radius | 2.0 m (2000 mm) |
| Lifting Height | As per customer's own hoist |
| Hoisting Speed | As per customer's own hoist |
| Trolley Traveling Speed | As per customer's own hoist |
| Slewing Angle | 180° (Manual Push Slewing) |
| Slewing Speed | Manual (No motor) |
| Rotation Motor | None (Manual rotation) |
| Lifting Mechanism | Not included (No hoist supplied) |
| Main Girder Height (above floor) | 2200 mm |
| Pull Rod Truss Max Height | 600 mm |
| Floor-to-Ceiling Height | 2800 mm |
| Wall Face Width | 300 mm |
| Mounting Method | Single flat plate bolted to wall (no pillar wrapping) |
| Power Supply | None (No electrical components on crane; hoist supplied by customer) |
| Quantity | 1 unit |
Lifting Mechanism & Motor Parameters
| Component / Parameter | Specification |
|---|---|
| Lifting Mechanism | Not included (No hoist supplied) |
| Slewing Motor | None (Manual rotation) |
| Rotation Motor Power | None |
| Control Method | Manual operation |
| Control Voltage | N/A |
Technical Requirement
Note:
- Hoist Not Included: This crane is supplied without a hoist. The customer is responsible for selecting, supplying, and mounting their own compatible 1t chain hoist or wire rope hoist on the jib arm trolley.
- Manual Slewing: The crane features manual push slewing over 180°. No rotation motor or electrical supply is required for slewing.
- Low Headroom Design: The pull rod supported structure keeps the upper truss to only 600mm maximum height, allowing installation under a 2800mm ceiling. The main girder sits at 2200mm above floor level.
- Wall Mounting Method: The crane is fixed using a single flat plate bolted directly to the wall surface. It must NOT encircle the pillar . Wall face width is 300mm.
- Wall Structural Requirement: Ensure the wall structure can safely withstand the full overturning moment generated by 1t load at 2.0m radius plus the self-weight of the crane. Proper high-strength anchor bolts are essential.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About BX1t-2m Pull Rod Wall Jib Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, wall mounting options, and why it is ideal for low-headroom wall-mounted material handling.
1. What is this wall jib crane and what is it designed for?
This is a BX1t-2m Pull Rod Supported Wall Jib Crane with a 1-ton lifting capacity, designed for low-headroom indoor wall-mounted material handling with manual slewing. It is specifically configured for spaces where the ceiling height is limited to 2800mm and the crane must be bolted to a flat wall surface without encircling a pillar.
Ideal applications: low-headroom workshops, confined spaces, facilities requiring wall-mounted jib cranes, and customers who already have their own hoist.
Alternative names for this crane: pull rod wall jib crane, wall-mounted jib crane, manual slewing wall jib crane, flat plate mounted jib crane, no-hoist wall jib crane.
2. What does "BX1t-2m" mean in the model number?
- BX = BX series wall jib crane (wall-mounted slewing jib)
- 1t = Maximum lifting capacity of 1.0 metric ton
- 2m = Total beam length of 2,000 mm (2 meters)
The valid working radius is 2.0 meters (2000 mm) from the pivot center to the hoist hook position. The crane is supplied without a hoist, so the customer mounts their own 1t hoist on the trolley.
Main girder height: 2200mm above floor. Pull rod truss max height: 600mm. Slewing angle: 180° manual.
3. What are the key lifting specifications?
| Lifting Capacity | 1.0 t |
| Total Beam Length | 2.0 m |
| Valid Radius | 2.0 m |
| Lifting Height | As per customer's own hoist |
| Slewing Angle | 180° (Manual) |
| Duty Class | A3 |
| Lifting Mechanism | Not included |
| Main Girder Height (above floor) | 2200 mm |
| Pull Rod Truss Max Height | 600 mm |
| Floor-to-Ceiling | 2800 mm |
| Wall Face Width | 300 mm |
| Mounting Method | Flat plate bolted to wall (no pillar wrapping) |
| Quantity | 1 unit |
Buyer Tip: Since this crane is supplied without a hoist, ensure your selected hoist matches the trolley flange width and the 1t capacity requirement. If you need a complete crane with hoist, we can supply that as a separate configuration.
4. What is the duty class A3 and what does it mean for my application?
The duty class is A3 (FEM/ISO classification), which means:
- Light duty cycle — suitable for occasional use
- Rated for up to 500–1,000 hours of operation per year
- Ideal for workshops, maintenance bays, and light assembly areas
- Perfectly matched to the occasional nature of manual slewing wall jib crane work
What does this mean for you? If your facility requires occasional lifting with low frequency and manual positioning, A3 is the right duty class. For regular daily operations, consider A4 or A5 duty cranes.
Duty class comparison: A3 = light duty (occasional use), A4 = medium duty (regular intermittent), A5 = heavy duty (regular daily), A6 = extra heavy duty (continuous).
5. How is this crane mounted, and what are the wall requirements?
Mounting Method:
- Single flat plate bolted directly to wall surface
- No encircling of pillar
- Wall face width required: 300mm
- Pull rod provides upper support to keep the truss height to only 600mm
Wall Structural Requirements:
- The wall must safely withstand the full overturning moment generated by 1t load at 2.0m radius plus the crane self-weight.
- High-strength anchor bolts are essential.
- Verify wall material and thickness before installation — concrete or steel-reinforced walls recommended.
Buyer Note: This crane requires no electrical power supply for slewing since rotation is manual. The only power required is for the customer's own hoist.
6. Why is this crane suitable for low-headroom wall-mounted material handling?
- 1t capacity — handles light workshop components
- 2.0m working radius — practical horizontal reach for wall-mounted applications
- Manual 180° slewing — simple, reliable, no rotation motor required
- Pull rod support design — keeps upper truss to only 600mm height
- Low headroom compatibility — fits under 2800mm ceiling with main girder at 2200mm
- Flat plate wall mounting — no pillar wrapping required, ideal for existing walls
- No hoist supplied — customers can use their own compatible hoist
- A3 duty class — matches the occasional nature of light-duty work
- Compact 300mm wall face — fits narrow wall pillars
- Indoor use — protected from harsh environments
Why buyers choose this model: It offers the perfect combination of low headroom, wall mounting without pillar wrapping, manual slewing simplicity, and flexibility to use their own hoist — making it ideal for tight spaces where standard pillar cranes cannot fit.
How to Get Your Customized Wall Jib Crane
This drawing serves as a standard technical reference. Since every wall layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, valid radius / arm length, lifting height, slewing angle, wall structure details, and ceiling constraints. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the structural design, mounting plate, and wall anchor specs based on your wall conditions. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your wall dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Wall Jib Crane Solution
Yuantai Cranes provides customized BX-Series of wall jib crane solutions for workshops, warehouses, and light manufacturing facilities with limited floor space and low headroom. Each jib crane is configured according to the required capacity, valid radius, lifting height, slewing angle, duty class, wall conditions, and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–10 ton (This Model: 1.0 t)
- Valid Radius / Arm Length: 1–10 m (This Model: 2.0 m total beam)
- Lifting Height: Customized according to application (This Model: main girder 2200mm above floor)
- Slewing Type: Manual / Motorized (This Model: Manual 180°)
- Duty Class: A3–A6 (This Model: A3 Light Duty)
- Hoist Type: Customer supplied / Yuantai supplied (This Model: Not included)
- Mounting Type: Flat plate wall-mounted with pull rod support
- Wall Face Width: 300 mm (This Model)
- Power Supply: None for crane (hoist power per customer's own hoist)
- Applications: Low-headroom workshops, confined spaces, wall-mounted lifting, and light-duty material handling
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete wall jib crane projects.
Engineering Support & Workshop Adaptability
Handling 1-ton loads across a 2-meter radius in a 2800mm ceiling space with flat plate wall mounting? This technical drawing illustrates how Yuantai Crane customizes A3 light-duty pull rod supported wall jib cranes with manual slewing for space-constrained workshops.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Low ceiling height (2800mm) Standard jib cranes cannot fit due to tall truss structures. | Pull rod supported design keeps the upper truss to only 600mm height, allowing installation under a 2800mm ceiling. | Floor-to-Ceiling: 2800mm | Main Girder: 2200mm | Truss Max: 600mm |
| Wall mounting without pillar wrapping Existing pillar cannot be encircled; must bolt directly to flat wall surface. | Single flat plate bolted directly to wall surface. No encircling of pillar required. Wall face width is 300mm. | Mounting: Flat plate bolted to wall | Wall Face Width: 300mm |
| Manual slewing requirement Powered rotation not necessary or available. | Manual push slewing over 180° eliminates rotation motor, wiring, and electrical costs. Simple and reliable. | Slewing: Manual 180° | Rotation Motor: None |
| Customer already has hoist Want to use their own existing hoist. | Crane supplied without hoist so customer can mount their own compatible 1t chain or wire rope hoist on the jib trolley. | Lifting Mechanism: Not included | Trolley: Ready for customer's hoist |
How to Evaluate If This Wall Jib Crane Solution Fits Your Facility
- Ceiling Height Verification: Ensure ceiling height is at least 2800mm. Main girder sits at 2200mm above floor, and the upper truss is only 600mm maximum.
- Radius Coverage Check: Offers a 180° manual slewing coverage across a 4-meter diameter working sector.
- Wall Structure Rigidity: Ensure the wall can safely withstand the full overturning moment from 1t load at 2.0m radius plus crane self-weight. Proper high-strength anchor bolts essential.
- Wall Face Width: Wall face must be at least 300mm wide for proper mounting plate attachment.
- Slewing Type: This model offers manual 180° slewing. If you need motorized rotation, please specify during inquiry.
- Hoist Compatibility: Since the crane is supplied without a hoist, ensure your chosen hoist matches the trolley flange width and the 1t capacity requirement.
Unsure If This Wall Jib Crane Layout Fits Your Plant?
Send us your wall dimensions (Ceiling Height, Radius, Wall Face Width, and Capacity requirements). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
