3 Ton Wall Traveling Jib Crane 8m Cantilever 7m Lift

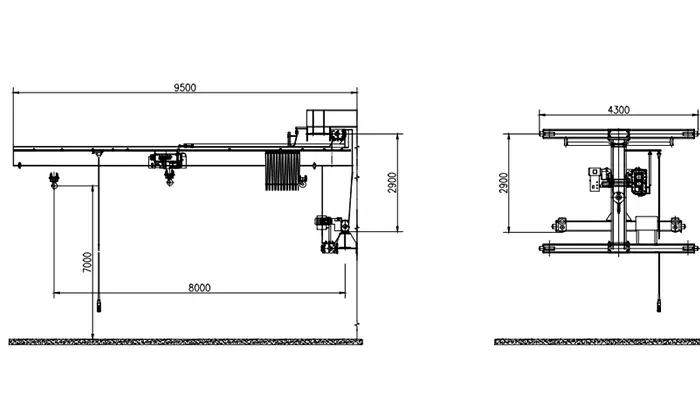

Yuantai Crane 3t Wall Traveling Jib Crane Drawing (Model: MAX8.21, 8.0m Cantilever Reach, 9.5m Total Beam, 7.0m Lift, ISO A5, 575V 60Hz 3P)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Wall Travelling Jib Cranes
Tags: 3TonJibCraneDrawing,3tonjibcrane
Overview: 3 Ton Wall Traveling Jib Crane for Longitudinal Workstation Handling
Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package features a high-performance 3 Ton Wall Traveling Jib Crane (Model: MAX8.21 / Drawing No: MAX8.2-00.00.00.00). Running on multi-tier wall tracks along structural building columns, wall traveling jib cranes operate underneath heavy overhead bridge cranes to provide dedicated workstation lifting without obstruction. This crane offers an extended 8.0m effective cantilever reach (9.5m total beam length), a 7.0m lifting height, and a compact 2.9m vertical track centers profile. Rated for ISO A5 heavy-duty service, it features variable frequency motor drives, a 3.2kW hoisting motor, and is tailored for 575V 60Hz 3P industrial electrical systems.
Who is this wall traveling jib crane for? Ideal for:
- Machinery manufacturing plants with long production bays
- Transformer and heavy equipment assembly halls
- CNC machining bays requiring longitudinal material transport
- Steel structure fabrication facilities
- Facilities with overhead EOT cranes requiring dedicated workstation lifting below
- North American industrial facilities with 575V 60Hz power systems
- Workshops needing unobstructed floor space with wall-mounted runways
Project & Technical Overview
- Equipment Type: Wall Traveling Cantilever Jib Crane
- Alternative Names: Wall mounted traveling crane, longitudinal wall crane, multi-tier wall jib crane
- Model Number: MAX8.21 Wall Traveling Crane

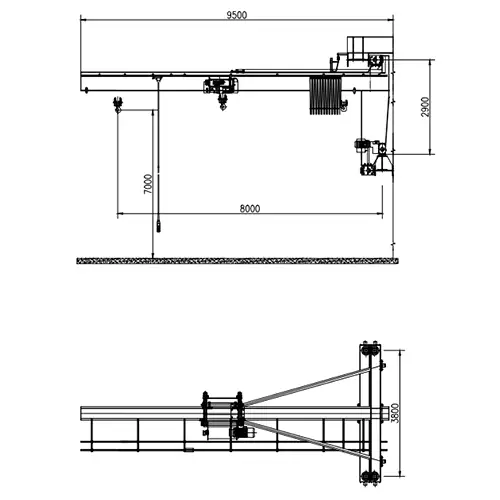

- Drawing PDF:3 Ton Wall Traveling Jib Crane Drawing 8m Cantilever 7m Lift (ISO A5, 575V 60Hz 3P)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: ISO A5 (Heavy Duty / FEM 2m / ISO M5)
- Lifting Capacity: 3.0 t (3000 kg)
- Cantilever Reach: 8.0 m Effective Reach (9.5 m Total Jib Beam Length)
- Track Gauge: 2.9 m (2900 mm Vertical Distance Between Upper & Lower Rails)
- End Carriage Length: 4.3 m (4300 mm Long Travel Structure)
- Motor Drives: 3.2kW Hoisting, 0.4kW Trolley Traverse, 1.1kW Long Travel Drive
- Power Supply: 575V / 60Hz / 3P (North American Industrial Standard)
- Control Method: Pendant control & wireless remote control
- Quantity: 1 unit
Buyer Note: This wall traveling jib crane is specifically designed for longitudinal workstation handling along building walls, operating independently of overhead bridge cranes. The 4.3m end carriage and 2.9m vertical wheel spacing distribute the high moment forces generated by a 3-ton load at 8m radius onto building column runways.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | ISO A5 (Heavy Duty) |
| Lifting Capacity | 3.0 t (3000 kg) |
| Effective Cantilever Reach | 8.0 m (8000 mm) |
| Total Cantilever Jib Length | 9.5 m (9500 mm) |
| Lifting Height | 7.0 m (7000 mm) |
| Vertical Track Gauge (Rail Centers) | 2.9 m (2900 mm) |
| Long Travel End Carriage Length | 4.3 m (4300 mm) |
| Hoisting Speed | 0.8 ~ 5.0 m/min (Dual Speed / VFD) |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (Variable Frequency Driven) |
| Crane Long Traveling Speed | 2.0 ~ 20 m/min (Variable Frequency Driven) |
| Power Supply | 575V / 60Hz / 3P |
| Total Crane Weight | 5.0 t (approx. 5000 kg) |
| Quantity | 1 unit |
Lifting Mechanism & Motor Parameters
| Component / Motor Drive | Specification |
|---|---|
| Lifting Motor Power | 3.2 kW |
| Trolley Travel Motor Power | 0.4 kW |
| Long Travel Motor Power | 1.1 kW |
| Control Voltage | 24V / 36V Safety Voltage |
| Speed Regulation | VFD (Variable Frequency Drive) on trolley and long travel |
Technical Requirement
Note:
- Multi-Tier Factory Handling Efficiency: Wall traveling cranes run along dedicated side-wall runways underneath overhead EOT cranes, serving individual assembly bays without interfering with primary factory lifting operations.
- 575V 60Hz Industrial Grid Compatibility: Motor drives and electrical controls are specifically built and insulation-tested for 575V 60Hz 3-phase power grids commonly used in North America (e.g., Canada and select US facilities).
- VFD Stepless Speed Regulation: Inverter control on trolley traverse (2~20 m/min) and long travel (2~20 m/min) eliminates load swing across the 8m cantilever arm.
- High Overturning Moment Resistance: The 4.3m heavy-duty end carriage and 2.9m vertical wheel spacing distribute the high moment forces generated by a 3-ton load at an 8m radius onto building column runways.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About MAX8.21 3t Wall Traveling Jib Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for longitudinal workstation handling.
1. What is this wall traveling jib crane and what is it designed for?
This is a MAX8.21 3 Ton Wall Traveling Jib Crane with a 3-ton lifting capacity, designed for longitudinal workstation handling along building walls in machinery manufacturing, transformer assembly, and heavy equipment fabrication facilities. It runs on multi-tier wall tracks along structural building columns and operates independently below overhead bridge cranes.
Ideal applications: machinery manufacturing plants, transformer assembly halls, CNC machining bays, steel structure fabrication, and facilities with overhead EOT cranes requiring dedicated workstation lifting.
Alternative names for this crane: wall mounted traveling crane, longitudinal wall crane, multi-tier wall jib crane, workstation wall traveling crane.
2. What does "MAX8.21" mean in the model number?
- MAX = Yuantai wall traveling crane series designation
- 8.2 = Approximate cantilever reach in meters (8.2m class)
- 1 = Design variant number
The effective cantilever reach is 8.0 meters (8000 mm) from the wall track center to the hoist hook. The total jib beam length is 9.5 meters (9500 mm). The crane travels longitudinally along wall-mounted runways with a 2.9m vertical track gauge and 4.3m end carriage length.
Lifting height: 7.0 meters. Duty class: ISO A5. Power: 575V / 60Hz / 3P.
3. What are the key lifting specifications?
| Lifting Capacity | 3.0 t |
| Effective Cantilever Reach | 8.0 m |
| Total Jib Beam Length | 9.5 m |
| Lifting Height | 7.0 m |
| Vertical Track Gauge | 2.9 m |
| End Carriage Length | 4.3 m |
| Hoisting Speed | 0.8 ~ 5.0 m/min (Dual Speed / VFD) |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (VFD) |
| Long Traveling Speed | 2.0 ~ 20 m/min (VFD) |
| Duty Class | ISO A5 |
| Power Supply | 575V / 60Hz / 3P |
| Total Weight | 5.0 t (approx.) |
| Quantity | 1 unit |
Buyer Tip: If your cantilever reach or lifting height requirements differ, Yuantai can customize the jib beam length and lifting height to suit your specific building column layout.
4. What is the duty class A5 and what does it mean for my application?
The duty class is ISO A5 (FEM/ISO classification), which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for machinery manufacturing, transformer assembly, and heavy equipment fabrication
- Perfectly matched to the demanding nature of continuous industrial workstation handling
What does this mean for you? If your facility operates multiple shifts per day with regular lifting, A5 is the right duty class. For occasional use, consider A3 or A4 duty cranes.
Duty class comparison: A3 = light duty (occasional use), A4 = medium duty (regular intermittent), A5 = heavy duty (regular daily), A6 = extra heavy duty (continuous).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 575V / 60Hz / 3-Phase
- Lifting Motor: 3.2 kW
- Trolley Travel Motor: 0.4 kW
- Long Travel Motor: 1.1 kW
- Control Voltage: 24V / 36V Low Safety Voltage
Control Modes:
- Pendant control — wired handheld controller with safety voltage
- Wireless remote control — for flexible positioning along the runway
Buyer Note: Pre-configured for 575V/60Hz 3-phase power (North American industrial standard). If your facility uses a different voltage (e.g., 380V, 415V, 440V, or 50Hz), please inform us during inquiry for customization.
VFD Advantage: Variable frequency drives on trolley and long travel provide stepless speed regulation and eliminate load swing across the 8m cantilever arm.
6. Why is this crane suitable for longitudinal workstation handling?
- 3t capacity — handles heavy machinery components
- 8.0m effective cantilever reach — deep load coverage into building aisles
- Longitudinal travel — serves all workstations along the bay wall continuously
- Operates independently below overhead EOT cranes — no interference with primary factory lifting
- VFD stepless speed regulation — eliminates load swing across the 8m cantilever
- ISO A5 heavy-duty rating — matches the demanding nature of continuous industrial work
- High overturning moment resistance — 4.3m end carriage and 2.9m wheel spacing distribute moment forces safely
- Unobstructed floor space — wall-mounted runways keep aisles clear
- 575V 60Hz compatibility — factory-built for North American industrial grids
Why buyers choose this model: It offers the perfect balance of lifting capacity, extended cantilever reach, and continuous longitudinal travel for large workshops where dedicated workstation lifting along building walls is required without interfering with overhead bridge cranes.
How to Get Your Customized Wall Traveling Jib Crane
This drawing serves as a standard technical reference. Since every workshop column bay and runway structure is unique, Yuantai Crane customizes every wall traveling system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, cantilever reach, lifting height, column track centers, and power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the wheel loads, motor power, travel speeds, and track bracket mounting details based on your plant layout. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Facility?
Send us your site dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Wall Traveling Jib Crane Solution
Yuantai Cranes provides customized BB-Series of wall traveling jib crane solutions for machinery manufacturing, transformer assembly, heavy equipment fabrication, and steel structures. Each crane is configured according to the required capacity, cantilever reach, lifting height, runway length, duty class, building column conditions, and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–5.0 ton (This Model: 3.0 t)
- Cantilever Reach: 2.0–10.0 m (This Model: 8.0 m effective reach / 9.5 m total beam)
- Lifting Height: Customized according to application (This Model: 7.0 m)
- Duty Class: ISO A3–A6 (This Model: ISO A5)
- Travel Speeds: Variable frequency speed regulation (2~20 m/min)
- Control Method: Pendant Control & Wireless Radio Remote Control
- Power Supply: 220/380/400/415/440/575V, 50/60Hz, 3Ph (This Model: 575V 60Hz 3P)
- Applications: Longitudinal workstation handling in multi-bay production lines, CNC machining bays, and equipment assembly halls
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete wall traveling crane projects.
Engineering Support & Wall Traveling Customization
Need dedicated lifting along your workshop bay walls without blocking floor aisles or overhead cranes? This technical drawing illustrates how Yuantai Crane engineers heavy 3t wall traveling cranes with an 8m cantilever reach to maximize manufacturing productivity.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| High material transport frequency across long workstation bays Requires dedicated longitudinal crane motion below overhead bridge cranes. | Wall-mounted runway traveling frame with 4.3m end carriage to service all workstations in a continuous line. | Capacity: 3.0t | Travel Speed: 2-20 m/min | Duty: ISO A5 (Model: MAX8.21) |
| Deep load coverage into the building aisle Requires extended cantilever arm length with minimal deflection. | High-rigidity box/I-beam cantilever structure providing 8.0m effective outreach and 7.0m vertical lift. | Cantilever Reach: 8.0m | Total Beam: 9.5m | Lift Height: 7.0m |
| North American 575V 60Hz industrial electrical standard Requires tailored motor winding and electrical control components. | 575V 60Hz 3P electrical package featuring 3.2kW hoist motor and VFD drives. | Power: 575V 60Hz 3P | Hoist Motor: 3.2kW | Travel Motor: 1.1kW |
| Unobstructed floor space required Keeping floor aisles clear for other operations. | Wall-mounted runways keep floor aisles completely clear while providing continuous longitudinal coverage. | Mounting: Wall-mounted runway | Track Gauge: 2.9m | No floor obstruction |
How to Evaluate If This Solution Fits Your Facility
- Unobstructed Floor Space: Moves materials longitudinally along wall runways without floor-mounted obstacles.
- Heavy Load Capacity: Robust 3-ton capacity at an extended 8.0m outreach.
- High Duty Cycle: Rated for ISO A5 continuous industrial duty.
- Specific Voltage Readiness: Factory-built for 575V / 60Hz / 3P power infrastructure.
- Building Column Verification: Ensure building columns can withstand the moment forces from 3t load at 8m radius. The 4.3m end carriage and 2.9m wheel spacing distribute these forces safely.
- Runway Length Check: Confirm the required longitudinal travel distance along the wall to determine runway length.
Unsure If This Layout Fits Your Facility?
Send us your site dimensions (Building Column Spacing, Available Runway Height, and Reach requirements). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
