Movable crane:Types of Movable Crane Designs & Movable Hoists
Small movable cranes is a type of economical movable lifting cranes solution for light duty material handling. According to different types of lifting requirement, the there are types of movable crane designs, such as the movable gantry crane series, movable floor jib crane series, equipped with types of crane hoists for various applications such as workshops use and outdoor applications.

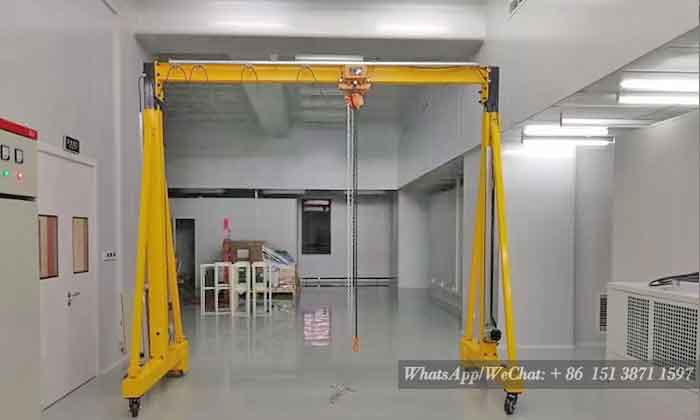

Steel movable gantry cranes
A movable gantry crane is a type of cost-effective movable overhead crane solution.Movable gantry cranes, also known as mobile gantry cranes, are a type of gantry crane that is small and light in weight, flexible, and efficient. The movable rolling gantry cranes, as one of the most cost-effective small gantry cranes, are widely used in indoor and outdoor applications such as workshops, warehouses, shipyards, freight yards, workstations, garages, and so on. Small Movable cranes are an excellent choice for many environments where an overhead crane is not practical and a standard gantry crane cannot justify the high cost due to their portability and flexibility.
Main specifications of movable gantry cranes
Main parameters of movable gantry crane：
- Lifting capacity of movable gantry : 0.5~10 ton
- Span length of movable gantry :3~6m
- Lifting height of movable gantry : 2.5~6m
- Customized specifications of movable gantry cranes are available for your app
Features of movable gantry cranes
Steel structure, electric organ, lifting mechanism, and movable wheel are the main components of movable gantry cranes. The movable gantry crane can be easily installed and requires little maintenance due to its simple and compact structure design.
- Flexible, efficient, and with a long service life.
- The small Movable gantry crane, with its adjustable structure, can lift goods of various sizes, and it has the advantages of being easy to transport and lift, as well as having a high operational safety.
- Light dead weight, compact structure, small size, and low wheel load are all advantages.
- Quick assembly and disassembly
Types of steel movable gantry crane
Based on different standards, the steel movable gantry cranes can be grouped into various types and crane configurations to meet the various lifting requirements and application conditions. If the following types of steel movable gantry cranes do not cover the one you need, please feel to cotnact us by leave a message below or contact by WhatsApp： + 86 151 3871 1597. Your tailored steel mobile gantry crane design will be sent to you within 24 working our once the required gantry crane specifications are provided.

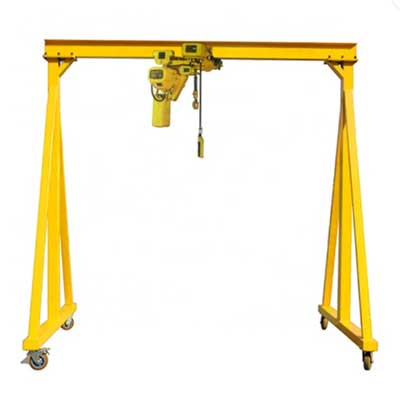

Fixed height steel movable gantry crane

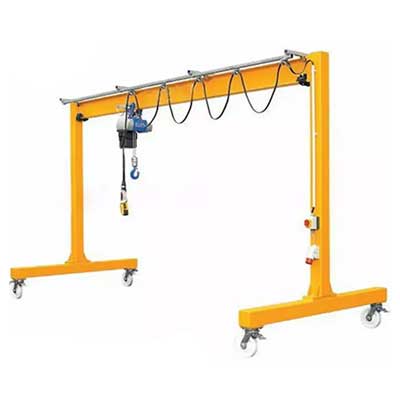

Fixed height steel movable gantry crane with T frame series

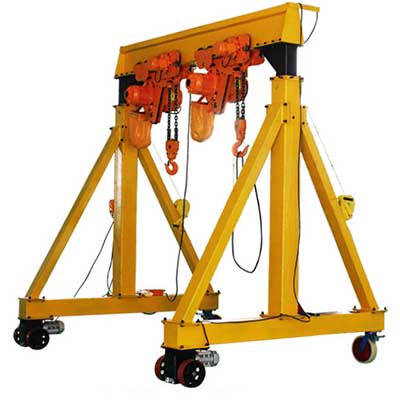

Telescopic steel movable gantry crane or adjustable steel movable gantry crane
Three way adjustable steel movable gantry crane
In terms of height adjusting methods, the adjustable steel movable gantry cranes can be grouped in the the hand winch adjustable steel gantry, hand turbine adjustable gantry and motorized adjustable steel movable gantry crane,etc.

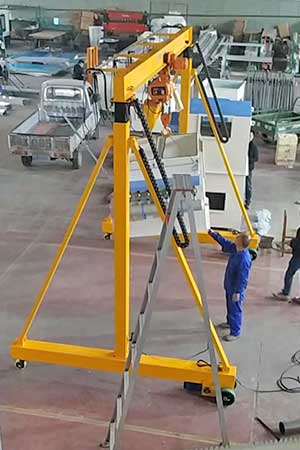

Electric motorized adjustable steel movable gantry crane

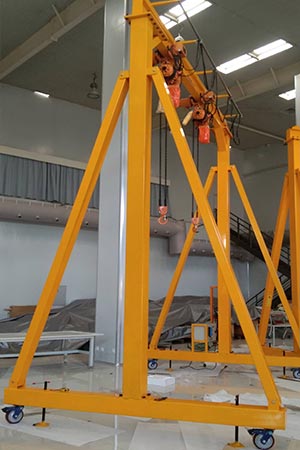

Hand push steel gantry or Motorized travelling steel gantry
In terms of power supply of crane travelling, the steel movable gantry cranes also can be provided with hand push steel gantry, motorized travellign steel movable gantry crane and rail travelling steel movable gantry crane,etc.

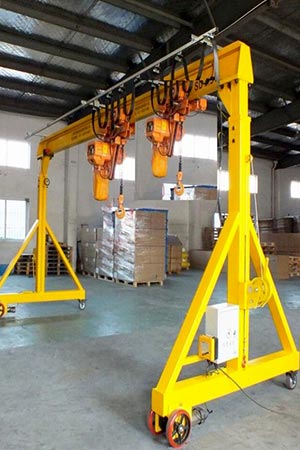

Motorized travelling steel mobile gantry crane
Application of small movable gantry cranes
- Because of their dependable and versatile designs, small movable gantry cranes are an excellent and cost-effective crane solution for a wide range of applications. Small rolling gantry cranes are commonly used in the following situations:
- Load handling is required wherever an overhead travelling crane is required in a building or facility.
- When a forklift, standard gantry crane, or other overhead traveling bridge crane solution is prohibitively expensive.
- Material handling in a specific location, utilizing the safety of a gantry crane
- Using a safer movable crane alternative instead of a forklift to maintain work and material handling.
- Whenever overhead material handling equipment is required on a sporadic basis.
Movable gantry cranes are excellent choices for applications where you need a movable, mobile, and economical way to handle material in your workshops or factories, such as a workshop, warehouse, shipyard, freight yard, workstation, garage, moulding plant, mine, construction site, welding and fabrication factory, and other occasions.

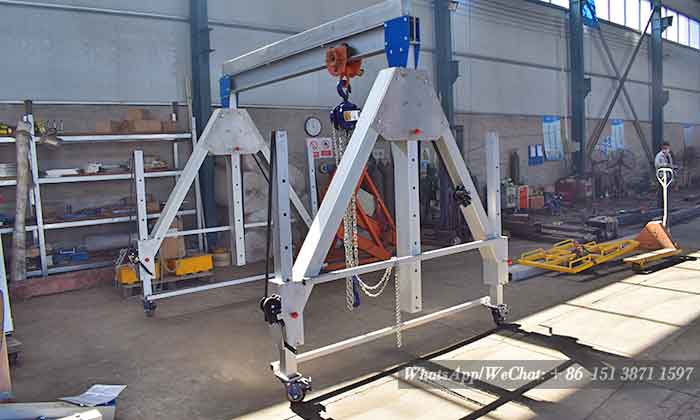

Aluminum movable gantry crane
500kg -10 ton movable gantry crane system, a type of aluminum movable gantry crane system with stationary or portable gantry crane design, with features such as light duty, foldable, easy use, and quick assembly, among others. Aluminum movable gantry crane systems are available in a variety of sizes and designs for easy assembly and disassembly. When not in use, the lightweight aluminum gantry crane folds up into a small package for transport or storage.
Specifications of aluminum movable gantry crane system
- A lightweight aluminum gantry crane is a type of light structural lifting equipment that moves materials or parts by using a pulley/trolley as a hoisting mechanism. Movable gantry crane systems can be designed to meet both domestic and European standards.
- Capacity of movable gantry crane system : 0.5 ton ~ 3 Ton, 10 ton
- Span of movable gantry crane system : 2~6m
- Adjustable height of movable gantry crane system : 2~6m
- Trolley travel of movable gantry crane system : electric/manual
- Crane travel of movable gantry crane system : electric /push manual.
- Applications:Indoor workshop/warehouse for material or part lifting and transportation.
Aluminum movable gantry crane systems can be customized. Please contact us for a price on an aluminum movable gantry crane system tailored to your specific application and needs.
Types of aluminum gantry cranes
There are several types of movable gantry crane systems. They can be designed as a small fixed gantry crane, a lightweight aluminum gantry crane, a fixed height gantry crane, an adjustable gantry crane, or a foldable aluminum gantry crane, among other things. Although movable gantry crane systems are commonly thought of as light-duty lifting devices, they can safely support operating loads of up to 10 tonnes if necessary.
Applications of movable gantry crane systems
Adjustable movable gantry crane systems are ideal for maintenance, manufacturing, repairs, and other material handling applications. A single adjustable gantry crane with adjustable height and/or span can provide a flexible lifting solution. Our adjustable movable gantry crane systems are widely used by users such as electric utilities, municipal maintenance (including subways, buses, and building amenities), research organizations, and the military for HVAC, assembly, and repairs of physical plant equipment.

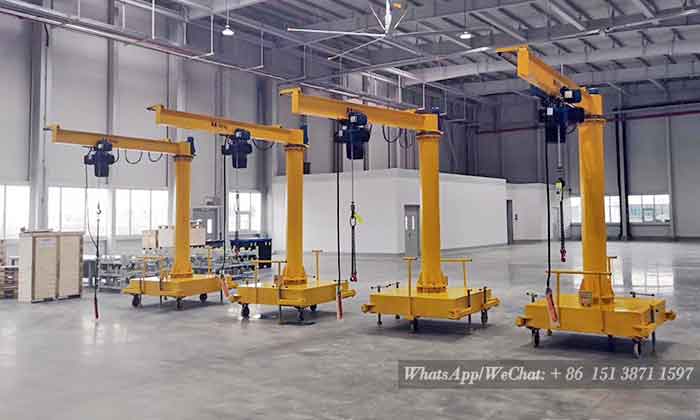

Movable jib crane
Movable floor jib cranes are a new series of jib cranes with self-supportive jib designs that are mounted on wheels and rollers for wide material handling with maneuverability and adaptability. The movable jib crane on wheels or rolling rollers is a small and light duty movable jib crane with small and medium-speed lifting equipment, unique jib structure design, safe and reliable operation, time and energy saving, high efficiency and flexibility, and cost-effective.
Types of movable jib cranes
For sale are various designs of movable jib cranes. 0.125 ton - 0.5 ton movable jib crane for sale at a low cost. For sale is a movable floor jib crane from China that is of high quality and at a reasonable price. The Movable jib crane can help you improve your material handling efficiency and safety. Check the movable floor crane right now.
Movable floor jib crane design with electric wire rope hoist
Movable floor jib crane design with electric motor driven rotating
Movable floor jib crane design with counter balanced weight
Movable floor jib crane design with light crane design
A movable jib crane is a type of lifting equipment for light loads that is widely used in the assembly and manufacturing lines of modern industries such as machine manufacturing, motor vehicle manufacturing, and shipbuilding. It can be used for both outdoor and indoor transportation, including garages, laboratories, and wharfs.
Main parameters of movable jib crane
- Movable jib crane rated load: 0.125-2 ton
- Movable jib crane base width:1200-1400mm
- Movable jib crane stand bar width: 1018-1218mm
- Movable jib crane L&h: 3000mm
- Movable jib crane H: 3700-3900mm
Features of Movable jib crane
- The movable jib crane has a movable foundation with wheels, which allows the crane to be placed in the desired location.
- The movable jib crane is adaptable and mobile. With wheels in the foundation, you can move it anywhere, including inside your truck.
- The electric chain hoist or electric wire hoist moves up and down the I-beam, and the movable foundation allows you to move the entire machine wherever you want, extending the range of your loads.
- Adaptable and mobile. Load range is broad. Simple to use and maintain. Space-saving. Cost-saving.
Applications of movable floor jib cranes
The cantilever jib crane is commonly used as a lifting solution for short distance and concentrated material handling, or in workshops where overhead travelling crane systems are not possible, due to its movable jib crane design.
Small movable jib cranes, in particular, can be a good alternative lifting equipment for high-efficiency automatic production lines in an emergency.
Molten metal, toxic substances, flammable and explosive materials, on the other hand, are not permitted to be lifted by standard rolling jib cranes.
Mobile jib cranes are commonly used in factories, mines, workshops, on the job site, warehouses, workshop production lines, assembly lines, mechanical processing, small equipment installation, and light lifting of warehouses, docks, and other locations.

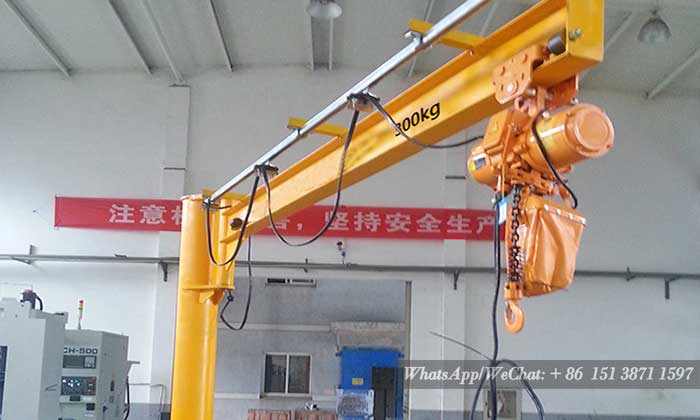

There are various types of crane hoists available for various types of movable cranes, which are primarily classified as chain block and rope hoists powered by hand or electric power.
Industrial applications of movable crane
Movable overhead cranes and eot cranes are widely used for light duty material handling in general manufacturing and industrial sectors, including but not limited to the following:
- Steel industry,
- Construction and civil engineering,
- Energy & Utilities,
- Entertainment,
- Food processing,
- Gas and petroleum,
- General Manufacturing,
- Logistics,
- Metals Processing,
- Mining,
- Paper,
- Petrochemical ,
- Biomass wastes management,
- Wind energy,
- Wood processing,etc.
Why the movable Crane & Hoists from EOTCRANEKIT is cost-effective?
The following are the reasons why the EOTCRANEKIT movable crane is cost-effective:
- Domestic demand drives technological advancements in Chinese movable cranes in China.
- Due to the large population and abundance of raw materials, as well as government incentive policies, our movable crane has a large market potential and the lowest production cost.
- Beneficial policy support boosts the competitiveness of Chinese movable cranes.
- The price of a Chinese movable crane is becoming more appealing as a result of fierce competition. Direct sale reduces the cost of Chinese movable cranes.
High safety and economical movable cranes can be customized according to your applications, please feel free to contact us to get your movable lifting crane solution. Get your customized movable crane design and crane price today.
Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
