7.5 Ton Underhung Bridge Crane for Sale Egypt for Pipe Handling

Overhead crane for sale Egypt. 5 ton top running overhead crane & 7.5 ton under running overhead crane for pipe handling, efficiency & good price.

Crane type Single girder overhead crane
Crane specifications Underhung bridge crane 7.5 ton - 6m -6 m
Way of transportation Contaifner, by shipping
Country of destination Egypt

Category: Custom EOT Crane Manufacturing

Your Trusted Overhead Crane Manufacturer & Supplier

5 Ton Top Running & 7.5 Ton Underhung Bridge Crane
for Sale Egypt Good Price for Pipe Handling

Overhead crane for sale Egypt. 5 ton top running overhead crane & 7.5 ton under running overhead crane for pipe handling, efficiency & good price

Basics of single girder overhead cranes for Sale Egypt

  • Crane Type:Single girder overhead crane
  • Date of Placing Oder: 2019.11.28
  • Date of Delivery : 2019.12.18
  • Way of Transportation: 40GP container,By Sea
  • Way of Payment: 100% irrevocable letter of credit
  • Destination country: Egypt
  • Destination port:CIF Alexandria Port
  • First Contact:2019.10.15

floor mounted 180 rotating jib crane

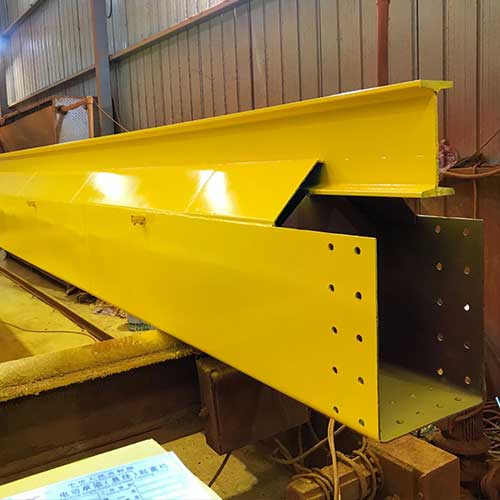

Main girder of 5 ton top running overhead crane with 20 meter span for sale Egypt


General requirements & main specifications of single girder overhead cranes

Crane type

Model

Working Duty

Tonnage (T)

Span(m)

Lifting height(M)

Crane control

Voltage

Color

Indoor/ Outdoor

Crane Rail

Quality

Top running single girder overhead crane

LD

A3

5

20

9

Pendant Control

380v,50hz,3phase

Standard

Indoor use

P24 crane rail is suggested.

1

Under hung single girder overhead crane

LX

A3

7.5

6

6

Pendant Control

380v,50hz,3phase

Standard

Indoor use

H beam 40b is re-commanded.

1

Electric wire rope hoist single speed

CD

A3

1

/

12

Pendant Control

380v,50hz,3phase

Standard

/

/

1

Crane Scale

5 ton

2

Customs declaration information registration

  • The actual Chinese and English name of the goods: single girder overhead cranes
  • Chinese and English name of cargo declaration: single girder overhead cranes
  • Sea freight: USD 1550
  • Port charge: 750USD

Gallary of top running & underhung bridge crane for sale Egypt

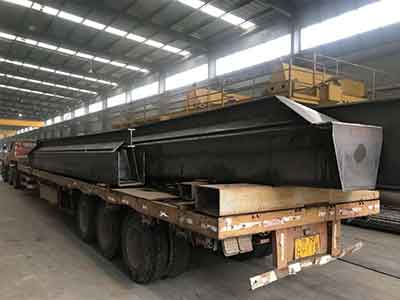

Main girder of 5 ton overhead crane for sale Egypt with a span of 20 meters which can be cut into 2 sections for easy transportation

Main girder of 5 ton overhead crane for sale Egypt with a span of 20 meters which can be cut into 2 sections for easy transportation

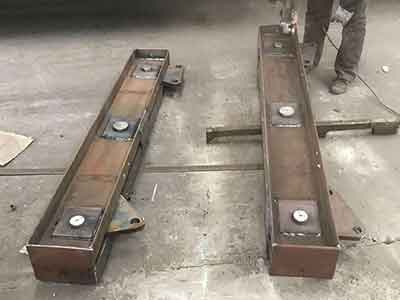

End carriages for sale Egypt under construction

End carriages for sale Egypt under construction

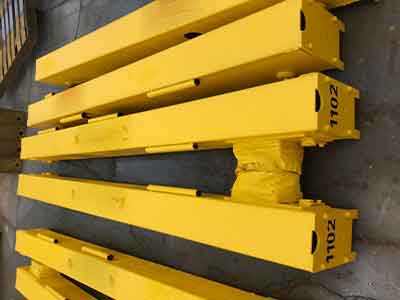

Top running crane end carriage for single girder overhead crane 5 ton

Top running crane end carriage for single girder overhead crane 5 ton

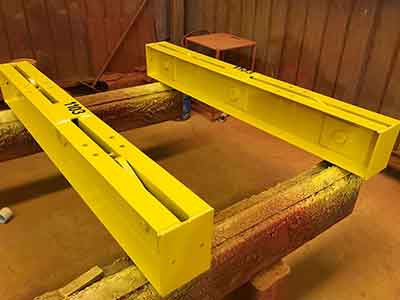

End carriages or end trucks for 7.5 ton underhung bridge crane for sale Egypt

End carriages or end trucks for 7.5 ton underhung bridge crane for sale Egypt

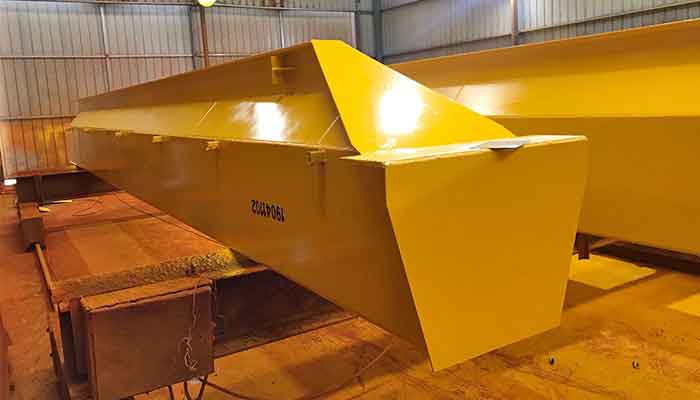

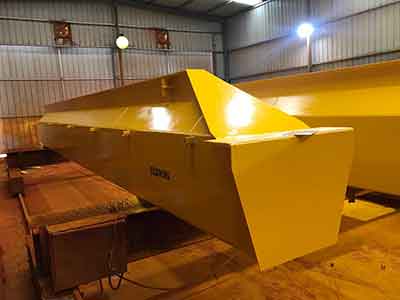

20 m crane girder section 1 for 5 ton single girder bridge crane

20 m crane girder section 1 for 5 ton single girder bridge crane

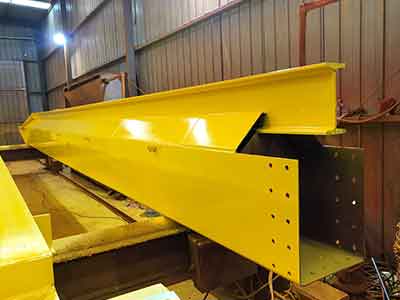

20 m crane girder section 2 for 5 ton single beam overhead crane

20 m crane girder section 2 for 5 ton single beam overhead crane

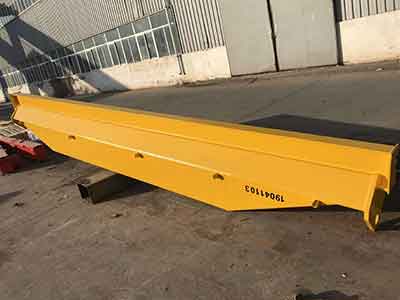

Main girder of Underhung bridge crane 7.5 ton for sale Egypt

Main girder of Underhung bridge crane 7.5 ton for sale Egypt

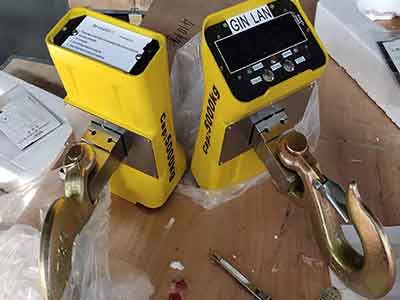

Crane scale for sale Egypt

Crane scale for sale Egypt

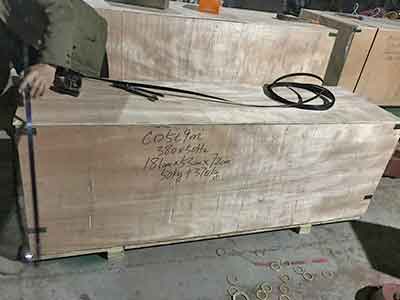

Electric wire rope hoist for sale Egypt

Electric wire rope hoist for sale Egypt

Top Running Bridge Crane v.s Underhung Bridge Crane

Top Running Bridge Cranes for Sale Egypt

Top Running Bridge Cranes

With a top-running crane design, it is easier to construct long bridge spans, and in addition, the hook height—the distance between the floor and the hook—is higher, providing the user with significantly more headroom for lifts. Because additional supporting structures are required, this design is suitable to a substantially larger capacity for heavy lifts.

A top running bridge crane has a fixed rail or track system installed on the top of each runway beam, allowing the end trucks to carry the bridge and hoist along the top of the runway system. Top running cranes can be set up as either a single girder bridge or a double girder bridge. While a double girder bridge commonly has a top running trolley and hoist, a single girder bridge uses an under-hung trolley and hoist.

Top running bridge cranes can be constructed to handle weights of any size because they have no limiting capacity. Top running cranes can be constructed with capacities ranging from less than 1/4 ton to more than 100 tons. These bridge cranes are perfect for moving very heavy loads because they are supported by the runway or building structure.

Top running cranes, which travel on rails atop the runway beam, may lift buildings with less headroom higher. Because the hoist and trolley run on top of the two bridges or girders, adding an additional hook height, a top running double girder bridge design enables the highest lifting height.

Top running bridge cranes can be built to higher capacities and can accommodate broader spans, hence they are often larger than under running cranes. There is no suspended load factor because the crane is supported by rails that rest on top of the runway beams, making installation and future maintenance simpler and faster than with an under-hung crane.

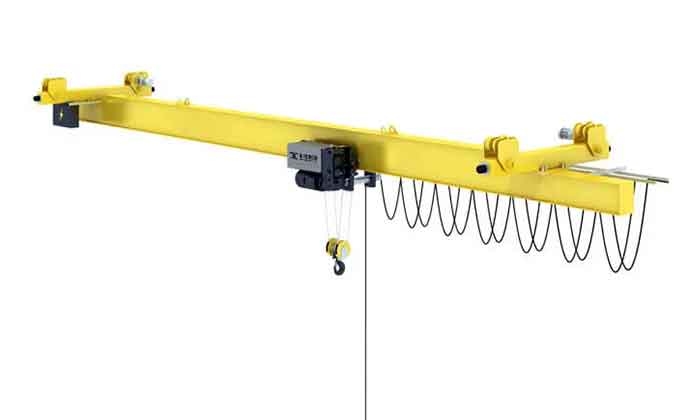

Underhung bridge crane for sale Egypt

Under-Hung Crane Configurations

Under-hung bridge cranes, which are frequently attached to the building structure itself, don't need column support systems if the building structure can support the overhead crane. This underhung crane design makes it possible to cover a larger area with fewer ceiling mounted support columns. Those columns do not hinder the work area beneath the bridge crane, which is beneficial in facilities with limited floor space or complex procedures. In exchange for this, hook height is lost. Your lifting requirements and the structure itself will ultimately decide the crane configuration that you need.

An under-running crane, also known as a "under-hung" crane, moves the bridge up and down the runway using wheels supported by the bottom flange of the runway beam. Under-hung cranes are typically designed with a single girder for lighter service and lower-capacity applications. They can also be built with two girders for increased capacity or hook height where needed.

An under running single girder crane will use an under running hoist and trolley that moves across the bridge beam's bottom flange. A double girder under running crane can run its hoist and trolley along the bridge beams' top or bottom.

When supported by roof or ceiling structures, under-hung cranes also provide excellent side approach and maximize utilization of the building's width and height. They are ideal for facilities that do not have enough vertical clearance to install a top-running overhead bridge crane system.

In conclusion, top running crane systems provide the advantage of higher capacity lifts and allow for higher lift heights and more overhead space, whilst under-hung cranes offer flexibility, functionality, and ergonomic solutions. Please click to learn more about top running vs. underhung crane. If you have any need of bridge crane, please feel free to contact us.
