Top Running Overhead Crane & Bridge Crane, Tailored Top Running Crane Design
2.5 -20 Ton Single Girder & 5 -550 Ton Double Girder Top Running Overhead crane

What is the definition of a top-running overhead crane? The top running overhead crane, which has a fixed track system installed on the top of each runway beam, is the most widely utilized crane type.

The lifting capability of a top running overhead crane is unrestricted, and it can be built to carry loads ranging from 1 to 450 tons. The crane is ideal for transferring exceptionally big loads because it is supported by steel support columns or existing concrete steel building support systems.

Top running overhead crane designed for your requirements

Top-running overhead cranes or bridge cranes, which are designed expressly for your application, are the most effective lifting solution since they provide the most coverage throughout your building. There are ample variations to fit your purpose, with single, double, and box girder configurations available.

Top-running overhead bridge cranes are designed to travel on top of a runway system supported by engineering or structural columns.

Because the hoist is situated on top of the bridge rather than underneath, double girder designs often provide a higher hook height than single girder designs.

Because we develop our overhead cranes to withstand a variety of industrial situations, they are the industry standard.

Types of top running overhead cranes

Top running crane is very flexible and versatile, which can be used to handle lifts with small and large capacity.

With no limiting capacity, the top running crane can be used to handle lifts with small capacities to very large capacities. Top running cranes consist a rail installed on top of each runway, with wheels move on the rail, rather than on the bottom flange of the runway beam. Supported by the building structure or runway support columns, or sister columns, top running overhead crane are the first option for moving extremely heavy loads.

Main configration  ans specifications of top running overhead cranes

Top running cranes can be designed in a single-girder or double-girder configuration.

Single girder top running overhead cranes

Providing you excellent value for your application, single girder designs allow you to be cost effective without compromising performance. Over the lifetime of the crane, you will save on new support structures as it has reduced wheel loads. This allows you to add more lifting capabilities to your runway structure without upgrading.

Single Girder Top Running Overhead Crane :

• Load Capacity of top running overhead crane: .25 – 20 tons
• Span of top running overhead crane: Under 20 m
• Crane duty service of top running overhead crane: Light
• Low deadweight
• More overhead space
• High speed
• Lower production cost / lower overall price

Types of single girder top running cranes

• FEM / DIN Top running Single Girder Overhead Crane European single girder overhead cranes, compact FEM hoist crane design, small & light overhead hoist crane.Good price overhead travelling crane 1-stop service.
• Chinese Style Top Running Single Girder Overhead Crane 1- 20 ton single girder overhead crane, Robust bridge crane girder, Durable single girder crane, Free single girder eot crane drawing pdf, Best value single girder overhead crane for you!
• Explosion Proof Top Running Single Girder Overhead Crane Explosion proof cranes & explosion proof hoists for hazardous dusty & gas workshops. 1- 75 ton single girder & double girder explosion proof overhead crane system for explosion proof & flame proof workshops with high safety and efficiency.
• Partial Hung Low Headroom Top Running Single Girder Overhead Crane 2 ton, 3 ton 5ton, 10 ton 16 ton single girder overhead travelling cranes with low headroom crane design, low profile hoist for low clearance workshop lifting.
• Low headroom Hoist Top Rnning Single Girder Overhead Crane Low headroom overhead travelling cranes - single & double girder low headroom overhead crane, top running & underhung low headroom bridge cranes.
• Ladle handling Top Running Single Girder Overhead Crane Single girder overhead hoist crane system for hot metal & ladle handlingin steel & metallurgic industries. 2 ton, 3 ton, 5 ton & 10 ton ladle hoist crane for sale.

European Standard Suspension Top Running Overhead Crane
Lifting capacity of Top Running Overhead Crane: 1ton,3 ton, 5 ton to 10 ton
Span ofTop Running Overhead Crane: 3-15 m
Lifting height of Top Running Overhead Crane: 3-100 m
Ask for Top Running Overhead Crane price now.

Suspension Top Running Overhead Crane Chinese type
Lifting Capacity of Top Running Overhead Crane: 0.5ton, 3 ton, 5 ton to 10 ton
Span of Top Running Overhead Crane: 3m to 31.5m
Working Class of Overhead Crane: A3 to A5
Ask for Top Running Overhead Crane price now.

FEM / DIN Top running Top Running Overhead Crane
Lifting Capacity of Top Running Overhead Crane: 3.2ton, 3 ton, 5 ton 10 ton ton 16ton
Span of Top Running Overhead Crane: 7.5m to 28.5m
Working Class of Overhead Crane: A5
Ask for Top Running Overhead Crane price now.

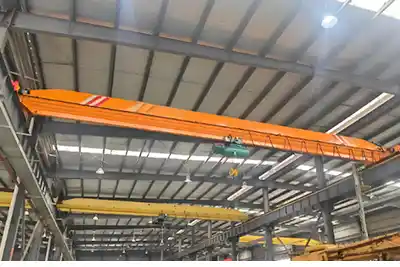

Chinese Style Top Running Top Running Overhead Crane
Lifting Capacity of Top Running Overhead Crane: 1ton, 3 ton, 5 ton,10 ton up to 20 ton
Span Length of Top Running Overhead Crane: 7.5m-28.5m
Working Class of Overhead Crane: A3, A4
Ask for Top Running Overhead Crane price now.

Explosion Proof Top Running Overhead Crane
Lifting Capacity of Single Girder Crane: 1ton, 3 ton, 5 ton,10 ton up to 20 ton
Span of Top Running Overhead Crane: 7.5m to 28.5m
Working Class of Overhead Crane: A3, A4
Ask for Top Running Overhead Crane price now.

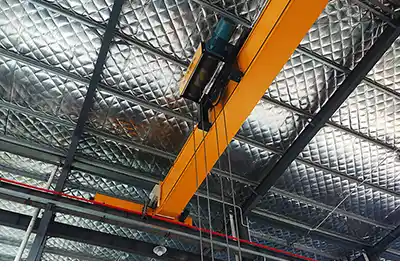

Partial Hung Low Headroom Top Running Overhead Crane
Lifting Capacity of Top Running Overhead Crane: 1ton, 3 ton, 5 ton,10 ton up to32 ton
Span of Top Running Overhead Crane: 7.5m to 22.5m
Working Class of Overhead Crane: A3, A4
Ask for Top Running Overhead Crane price now.

Low headroom Hoist Top Running Overhead Crane
Lifting Capacity of Top Running Overhead Crane: 1ton, 3 ton, 5 ton,10 ton up to32 ton
Span of Top Running Overhead Crane: 7.5m to 22.5m
Working Class of Overhead Crane: A3, A4
Ask for Top Running Overhead Crane price now.

Ladle handling Top Running Overhead Crane
Lifting Capacity of Top Running Overhead Crane: 1ton, 3 ton, 5 ton, 10t
Lifting Height of Top Running Overhead Crane: 6~18m
Working Class of Overhead Crane: M5
Ask for Top Running Overhead Crane price now.

Double Girder Top Running Overhead Crane

Double girder cranes are utilized when a comprehensive lifting solution is required. They are designed for applications with load capacities often exceeding 25 tons. Because the hook goes between the beams, double girder cranes have a higher lift height than single girder cranes.

Double girder top running overhead crane benefits:

• Load Capacity of Top Running Overhead Crane: 20-550 tons
• Span of top running overhead crane – Over 20 meters
• Crane duty service of top running overhead crane– Heavy
• Ideal when extremely high hook height is necessary
• Better hook height
• Most overhead space
• More lift
• High speed

Main types of double girder overhead cranes

• Chinese Style Double Dirder Hoist Trolley Top Running Crane Overhead electric winch crane is China traditional heavy duty double girder overhead crane equipped winch trolley,Robust & Sturdy, Affordable industrial overhead winch cranes.
• Chinese Style Double Girder Open Winch Trolley Top Runing Crane 5 ton- 63 ton double girder overhead electric crane with rope hoist trolley / chain hoist trolley, competitive hoist trolley crane system, cheaper hoist trolley crane price, good electric overhead crane solution.
• European Style Double Girder Open Winch Top Running Crane European standard double girder overhead crane with open winch trolley, a heavy duty winch crane up to 320 ton, wide specifications hook cranes for wide application. Get FEM / DIN open winch travelling bridge crane now!
• European Style Double Girder Hoist Trolley Top Running crane Advanced double girder overhead crane based on European DIN/FEM Standard with 5 ton-80 ton electric wire rope hoist trolley for hoisting industrial materials - European advanced wire rope hoist cranes!
• Top Running Ladle crane: 5 ton -74 ton steel mill ladle crane & 5 ton up 320 ton ladle crane Ladle cranes for 5 ton -320 ton ladle or liquid metal lifting, heavy duty ladle crane for steel mill, foundry, furnace, and casting factory. Good priced ladle crane, charging crane, casting crane & foundry crane !
• Electromagnetic Cranes & Electromagnet Top Running Cranes Electromagnetic overhead cranes with types of electromagnetic chucks & magnetic carrier beams for steel scraps, billet, slab,wire, coil, pipe, plate, etc., handling with efficiency and safety.
• Rotary overhead crane with electro- magnet beam spreader Magnetic crane is a double girder overhead crane with rotary crane design & electromagnet beam spreader, lifting long & larger steels, safe & efficient rotary overhead crane.
• Grab crane- Overhead crane with crane grab bucket 5 ton 10 ton 16 ton 20 ton Grab Overhead Cranes with orange peeler grabs or clamshell grab buckets for scattered material handling in power station, steel mill, port, cement plant,storage & waste recycling station, etc

Chinese style double girder hoist crane
Overhead electric winch crane is China traditional heavy duty double girder top running overhead crane equipped winch trolley,Robust & Sturdy, Affordable industrial overhead winch cranes.

Chinese style double girder open winch crane
5 ton- 63 ton double girder overhead electric crane with rope hoist trolley / chain hoist trolley, competitive hoist trolley crane system, cheaper hoist trolley crane price, good electric overhead crane solution.

European style double girder open winch crane
European standard double girder top running overhead crane with open winch trolley, a heavy duty winch crane up to 320 ton, wide specifications hook cranes for wide application. Get FEM / DIN open winch travelling bridge crane now!

European style double girder hoist trolley crane
Advanced double girder top running overhead crane based on European DIN/FEM Standard with 5 ton-80 ton electric wire rope hoist trolley for hoisting industrial materials - European advanced wire rope hoist cranes!

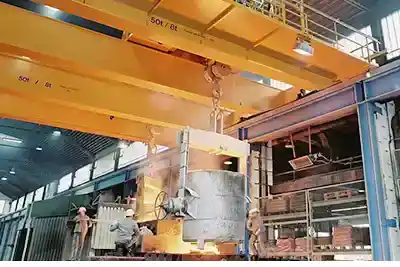

Ladle crane: 5 ton -74 ton steel mill ladle crane & 5 ton up 320 ton ladle crane
Ladle cranes for 5 ton -320 ton ladle or liquid metal lifting, heavy duty ladle crane for steel mill, foundry, furnace, and casting factory. Good priced ladle crane, charging crane, casting crane & foundry crane !

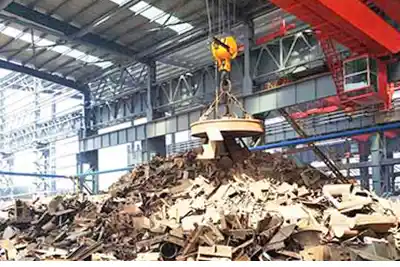

Electromagnetic cranes & Electromagnets
Electromagnetic overhead cranes with types of electromagnetic chucks & magnetic carrier beams for steel scraps, billet, slab,wire, coil, pipe, plate, etc., handling with efficiency and safety.

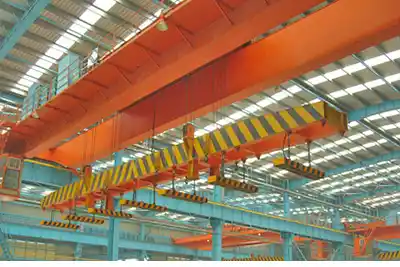

Rotary overhead crane with electro- magnet beam spreader
Magnetic crane is a double girder top running overhead crane with rotary crane design & electromagnet beam spreader, lifting long & larger steels, safe & efficient rotary overhead crane.

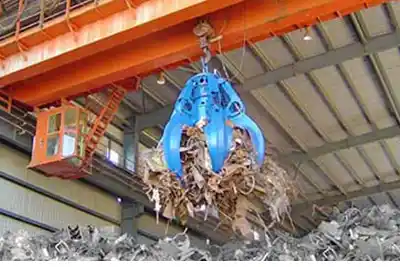

Grab crane- Overhead crane with crane grab bucket
5 ton 10 ton 16 ton 20 ton Grab Overhead Cranes with orange peeler grabs or clamshell grab buckets for scattered material handling in power station, steel mill, port, cement plant,storage & waste recycling station, etc

double girder top running overhead crane with double trolleys
Double trolley overhead cranes of (2.5+2.5)~(200+200) tons, double trolleys & double hooks for long & heavy lifting. Overhead double trolley cranes drawing & trolley crane pdf for you now.

Advantages of top-running cranes:

• Long bridge spans are easier to achieve with a top-running crane design, and the hook height—the distance between the floor and the hook—is also greater, providing the operator more headroom for lifts.

• A fixed rail or track system is stalled on the top of each runway beam by a top-running overhead crane, allowing the end trucks to carry the bridge and hoist along the top of the runway system.
• A single girder or double girder bridge can be built with a top running crane. A single-girder bridge has an under-hung trolley and hoist, whereas a double-girder bridge has a top-running trolley and hoist.

• Top-running overhead cranes have no limiting capacity, which means they can be built to handle little or huge loads, ranging from 1 to 100 tons.
• Because they ride on rails on top of the runway beam, top running cranes give more lift height for buildings with restricted headroom.
• Top-running overhead cranes are usually larger than under-running cranes because they can be designed to higher capacities and spans. Installation and future maintenance are also easier and faster than with an under-hung crane.

Applications of top running overhead crane

Top-running overhead cranes with single and double girders can be customized to practically any purpose. They're built for maximum efficiency and safety inside your facility. Typical uses for the single beam top running crane include light manufacturing and machine shops, warehousing, light assembly lines, and repair shops. The double-girder overhead crane, on the other hand, is typically seen in heavy-duty industries including steel mills, foundries, huge machine shops, and paper mills.

Metal Processing Industrial
Iron, steel, aluminum & basic metal processing industry cranes. Industry cranes for metal process- EAF charging & ladle crane, forging crane, finished product crane & scrap crane - for metallurgy harsh conditions, safe overhead travelling crane.

General Manufacturing
Types of industrial hoist & cranes for general manufacturing- Various types of industrial overhead crane systems for multiple sectors of manufacturing, integrated solution, maximum productivity, cost-effective price.

Mining Industry
Mining industry cranes, Coal mine crane systems - Safe industrial overhead crane & industrial gantry crane system for ore, limestone, coke, coal, slag, loose clay handling, explosion proof and durable.

Energy Industry
Energy generation|Top running overhead cranes for types of power plants - Top running overhead cranes & hoists systematic solutions for various power plants,i.e, traditional fuel power & waste renewable energy, wind power, hydroelectric, biomass energy, etc.

Machinery and Equipment
Industrial material handling cranes for mechanical engineering- Material handling cranes for mechanical engineering industry - overhead industrial crane solution for manufacturing of light & heavy machinery & equipment.

Pulp & Paper Industry
Pulp & paper| Industrial crane systems for paper making - Industrial overhead crane system for pulp & paper industry , full overhead travelling crane services, cost-effective paper making cranes for your paper mills.

Waste Management Industry
Waste management|Waste recycle & sorting industry cranes - Industrial overhead cranes for waste sorting&recycling. Types of Top running overhead cranes in incinerator for mixing, stacking, handling and stirring of the waste materials, etc.

Wood , Timber & Furniture
Top running overhead cranes and hoists systems for timber & wood processing. Diverse overhead crane & hoists designs for material handling in sawmills or furniture plants, etc.

Shipbuilding & Boat Making
Industry crane systems for shipyard material handling, i.e, components assembly, boats & yachts lifting, etc. Reliable & safety industry crane system.

Plastic & Rubber
Industrial hoist and crane solution for plastic & rubber industry- Injection mould installation & Die exchanging- Efficient & Accurate heavy lifting systems.

Construction and Infrastructure
Industrial material lift for construction & infrastructure- types of industry overhead travelling cranes, gantry & hoist crane system- Reliable & cost-effective.

Chemical Industry
Industry cranes for chemical & petrochemical material handling, explosion proof overhead crane & hoist system for hazardous environment.

Automobile Industry
Automotive | Industrial overhead crane & hoist for automobile - Top running overhead cranes for automotive industry from press & assembly lines to workstations & warehouses, i.e., open winch crane & Light kbk, jib crane & chain hoists,etc.

Why to use a top running overhead crane system?

• The top-running overhead crane travels on rails above the runway beams, giving it extra lifting height for buildings with restricted headroom.
• The crane's capacity ranges from one ton to more than 400 tons, making it perfect for carrying exceptionally big loads. It can also handle longer spans.
• The crane is more easier to install and maintain than a crane that is underhung.
• The crane has a long service life and a high level of safety.

In a word, whether you need greater capacity, lifting height, or overhead space, a top-running overhead crane system is the ideal choice.

Please contact us if you have any questions. We can assist you in selecting the best crane system for your needs!

Top running & under running crane, which one do you need?

When it comes to purchasing a bridge crane, many people wonder if an underrunning or toprunning crane is the best option for their needs. Of course, bridge crane systems come in a variety of designs, but determining whether to go with a top-running or under-running design is a crucial decision.

There are a few questions to consider when deciding whether a top-running or underhung crane system will best suit your facility and lifting requirements:

• Will you build a new support structure or can you use the existing support structure?
• Do you have any existing runways at your location?
• Your facility's design and layout, as well as its ceiling height
• Load capacity, lifting height, and hook approach are all factors to consider.
• How crucial is having open and unobstructed floor space?

Get your tailored top running overhead crane price

• Are you interested in learning more about our top-performing bridge crane or receiving a free quote? Please include some basic parameters that are critical to the proposal, such as:
• Rated load capacity
• Lifting height
• Span
• Power source
• What kind of material does the crane lift?
• Crane working environment
• How long does the crane travel?
• How many hours does the crane work per day?
• Your additional requirements

Various of Crane Services

Various types of process cranes are available for material handling in foundry factory and foundry plants through the process of raw materials handling, machining, fabricating, shaping and finished products handling, transportation and storage, etc.

Crane design

Crane fabrication

Crane delivery

Crane installation

Crane after-sale services

To let us know the above essential information, you may either fill out the contact form or send us an email. We will respond to your inquiry as soon as possible and provide you with a free quote.
