Open Winch Double Girder EOT Crane 5 to 100 Ton for Sale
Heavy Duty Eot Crane with Versatile Below Hook Devices for Various Industrial Use

Heavy duty double girder eot crane for sale. Check the power of open winch double girder EOT cranes, offering customizable below hook devices for efficient, specialized load handling.

Overview of Open Winch Double Girder EOT Crane

An open winch double girder EOT crane is a versatile lifting system widely used in industrial settings for handling heavy loads. This crane features a robust structure with two parallel girders supporting the hoist and lifting mechanism, providing exceptional stability and strength. The "open winch" design refers to the exposed hoist system, which enhances maintenance access and simplifies inspections.

Double Girder Design: Increased Stability and Load Capacity

The double girder design is one of the key features that make this crane suitable for heavy-duty applications.

• Increased Stability: The two-girder setup ensures greater structural integrity and stability during lifting operations, especially when handling large or uneven loads.
• Higher Load Capacity: Compared to single girder cranes, double girder cranes are capable of lifting much heavier loads. This makes them ideal for industries that require high-capacity lifting, such as automotive manufacturing, steel production, and heavy equipment handling.

The double girder configuration allows the crane to distribute the load evenly, minimizing the risk of bending or distortion, which is especially critical for operations that involve frequent lifting of heavy or oversized materials.

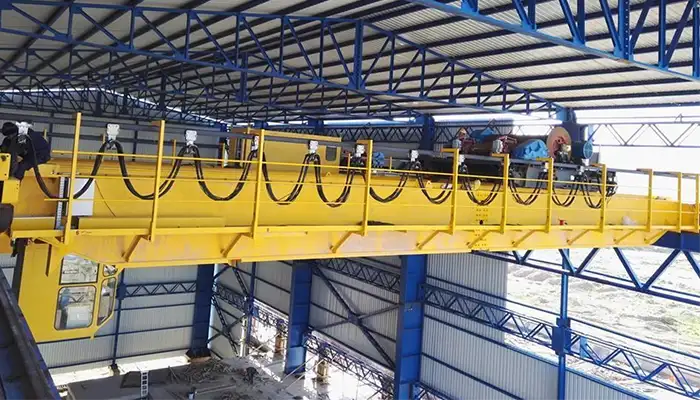

QD series of double girder eot crane with open winch trolley for sale, affordable heavy duty solution

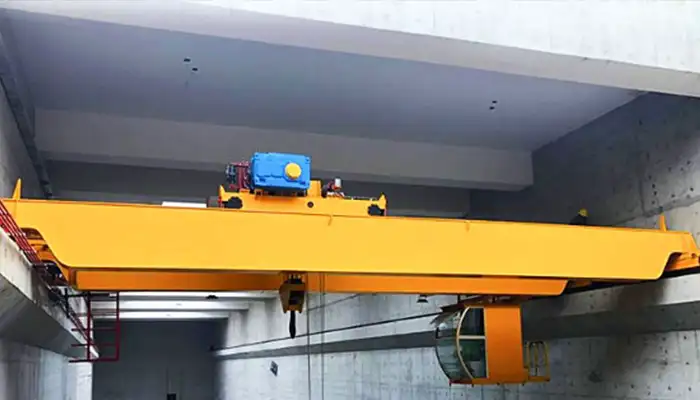

QDX series of double girder eot crane with European style open winch trolley for sale

Open Winch System: Easy Maintenance and Reduced Downtime

The open winch system is another defining feature of this crane design, offering several practical benefits for operators and maintenance teams.

• Maintenance Access: With the hoist system exposed, it is much easier to access and inspect components for wear and tear, reducing the time needed for maintenance. This accessibility helps identify issues early, leading to quicker repairs and minimizing unplanned downtime.
• Ideal for Frequent Servicing: Operations that require regular checks or servicing, such as those in manufacturing plants, benefit from the open winch system's design. Regular maintenance intervals help ensure the crane operates at peak efficiency and extends its operational lifespan.

In environments where continuous lifting operations are crucial, the open winch design significantly improves crane uptime and reliability.

Capacity and Reach: Tailored to Specific Facility Needs

Open winch double girder EOT cranes are designed to meet the lifting requirements of a wide range of industrial applications. These cranes can be customized to handle varying load sizes and reach specific facility constraints.

• Load Handling Capacity: These cranes typically have a load range from 10 tons to over 100 tons, making them suitable for heavy industrial tasks. Depending on the specific requirements, the crane's lifting capacity can be scaled to handle larger or more complex loads.
• Lifting Height and Span: The cranes also offer flexible options for lifting height and span, allowing them to accommodate different facility layouts and work environments. Whether it's lifting components in a manufacturing line or moving large equipment in a warehouse, these cranes are adaptable to various operational needs.

This flexibility in capacity and reach ensures that open winch double girder EOT cranes can be integrated into a variety of industries and operations, providing the necessary lifting power to meet specific load handling requirements.

Benefits of Double Girder EOT Cranes in Heavy Lifting

Double girder EOT cranes are highly regarded for their performance in heavy lifting operations. Their design and capabilities provide several significant advantages in industries where lifting large, heavy, and bulky loads is a routine requirement.

Higher Lifting Capacity

• Wider Load Range: Double girder cranes can handle a broader spectrum of heavy loads, from large machinery and equipment to bulk materials. This enhanced load capacity ensures that the crane can accommodate the needs of industries such as automotive manufacturing, steel production, and large-scale construction.
• Safer Lifting: By enabling the crane to handle greater weights, the risk of overloading is minimized, providing a safer working environment for operators.

Enhanced Stability

• Even Load Distribution: The two parallel girders provide superior structural support, evenly distributing the load. This prevents undue strain on any single component, reducing the risk of crane failure or structural damage.
• Improved Safety: The stability of double girder cranes is a key factor in ensuring safe operation, particularly when lifting heavy or oversized materials that may cause instability with less robust systems.

Increased Span and Lifting Height

• Longer Span: Double girder cranes offer the flexibility of extended spans, which is especially beneficial in large-scale facilities or warehouses where wider working areas are needed.
• Greater Lifting Height: The increased lifting height allows these cranes to access higher storage areas or work on taller equipment, enhancing their versatility in a variety of industrial settings, including manufacturing plants, construction sites, and shipyards.

Customization Options

• Versatility in Hoisting Systems: Double girder cranes can be tailored to specific material handling needs. Whether it's for lifting heavy equipment, large containers, or specialized materials, they can be fitted with customized hoisting mechanisms to improve lifting efficiency and meet unique operational demands.
• Adaptability to Various Industries: The ability to integrate different below hook devices further increases their adaptability, allowing for the safe handling of diverse load types, from delicate components to heavy industrial machinery.

Efficient Operation

• Continuous Operations: Double girder cranes are designed for high throughput and continuous operations, even in demanding environments. They are capable of running longer shifts with minimal downtime, making them ideal for industries that require high efficiency and rapid load handling.
• High Productivity: With their robust design and efficient operation, these cranes help maximize productivity while minimizing maintenance and downtime.

Importance of Below Hook Devices: Overview and Role in Load Handling

Below hook devices are crucial accessories that enhance the functionality of cranes, enabling them to lift, stabilize, and transport various load types safely and efficiently. These devices are designed for specific lifting tasks, ensuring that materials are handled appropriately, reducing the risk of damage and improving overall operational efficiency.

Lifting Beams

• Weight Distribution: Lifting beams are designed to evenly distribute the weight of large or irregularly shaped loads. This is particularly useful for handling items like steel plates, construction materials, or large equipment.
• Improved Stability: By ensuring an even load distribution, lifting beams help prevent tipping or swinging, enhancing safety during the lifting process.

Magnetic Lifters

• Efficient Lifting of Ferrous Materials: Magnetic lifters are ideal for lifting ferrous materials such as steel, iron, and other metals. The magnetic force eliminates the need for additional lifting slings or hooks, speeding up the process and improving efficiency.
• Quick Handling: These devices provide a fast and reliable way to lift heavy metal items, which is crucial in industries like steel manufacturing and scrap metal handling.

Clamshell Grabs

• Bulk Material Handling: Clamshell grabs are specialized for lifting bulk materials such as sand, coal, scrap metal, and other granular items. They allow precise control over loose materials, preventing spillage or uneven load distribution.
• Versatile Use: These grabs are commonly used in industries like mining, construction, and recycling, where bulk materials need to be handled quickly and efficiently.

Vacuum Lifters

• Lifting Delicate and Non-Ferrous Materials: Vacuum lifters are used for handling fragile and non-ferrous materials like glass, plastic sheets, and thin metals. The suction mechanism ensures a gentle but firm grip, preventing damage to sensitive materials during transport.
• Precision Handling: Vacuum lifters are perfect for industries that require high precision in load handling, such as the glass and electronics industries.

Spreader Beams

• Stabilizing Long or Heavy Loads: Spreader beams are designed to lift long or heavy items, such as pipes, beams, or other oversized materials. They work by distributing the weight evenly across the beam, preventing the load from tipping or swinging during transport.
• Safe and Efficient Handling: These beams are particularly valuable in industries like construction, shipbuilding, and heavy equipment manufacturing, where large and cumbersome items need to be moved safely and efficiently.

Below hook devices play an essential role in enhancing the functionality and safety of open winch double girder EOT cranes. By selecting the right device for the job, industries can ensure the safe and efficient handling of a variety of materials, whether it's heavy machinery, bulk materials, or fragile components. The right combination of crane design and lifting accessories can significantly improve operational efficiency, reduce risks, and maximize productivity across diverse industrial applications.

Key Components of Open Winch Double Girder EOT Cranes

Double Girder Design: Advantages of Double Girder vs. Single Girder Cranes

The double girder design is a key feature that differentiates open winch EOT (Electric Overhead Traveling) cranes from single girder models. This configuration consists of two parallel girders that provide superior support for the crane's hoisting and lifting mechanism, making it a robust solution for heavy-duty lifting operations.

• Increased Load Capacity: The double girder setup significantly enhances the crane's lifting capacity, allowing it to handle much heavier loads compared to single girder cranes. With capacities typically ranging from 10 tons to over 100 tons, double girder cranes are well-suited for industries requiring heavy lifting, such as steel manufacturing, automotive assembly, and heavy construction.
• Better Load Distribution: The dual-girder structure ensures that the load is evenly distributed, which helps reduce stress on the crane's components. This evenly distributed load minimizes the risk of component failure, improving the overall longevity and reliability of the crane.
• Greater Span and Lifting Height: Double girder cranes are able to achieve wider spans and higher lifting heights than their single girder counterparts. This makes them ideal for large facilities with extensive floor space or when high clearances are needed for lifting tall equipment or large materials.
• Enhanced Stability: The added stability provided by the two-girder design helps ensure safer lifting operations. With the ability to carry heavier and more irregularly shaped loads, double girder cranes can operate with greater safety, even in environments where load stability is a concern.
• Improved Durability: The extra support provided by the dual girders ensures that the crane can withstand the rigors of frequent heavy lifting without compromising structural integrity. This increased durability translates into reduced wear and tear and ultimately lower maintenance costs over time.

Structural Stability and Lifting Capacity

The structural stability of double girder EOT cranes is a significant factor in their ability to handle larger and heavier loads with reliability.

• Stronger Support for Heavy Loads: The two-girder design ensures that the crane can manage larger loads without compromising its structural integrity. This makes double girder cranes ideal for industries that need to move large or heavy items regularly, such as steel mills, automotive plants, and large construction projects. The strength of the design allows these cranes to lift and transport materials that might be too heavy for single girder models.
• Design Flexibility: Double girder cranes are highly adaptable, offering flexibility in terms of load capacity and span size. They can be customized to meet specific operational requirements, making them suitable for a variety of industries that demand both high lifting capacity and flexibility. Whether it's handling extremely heavy loads or lifting over long distances, double girder cranes can be engineered to suit the task.
• Safety and Performance: The added structural support not only enhances safety but also improves the overall performance of the crane. This is particularly beneficial in environments where high-volume material handling and fast, continuous lifting operations are necessary. The stability and strength of double girder cranes ensure smooth, consistent performance, even in the most demanding conditions.

In summary, the double girder design is essential for providing the necessary lifting capacity, stability, and durability required for heavy-duty industrial operations. The ability to customize load capacities, spans, and lifting heights, combined with the inherent stability of the two-girder configuration, makes open winch double girder EOT cranes the preferred choice for industries requiring efficient and safe lifting solutions.

Open Winch Mechanism: Functionality and Performance of the Open Winch System

The open winch mechanism is an integral component of open winch double girder cranes. It plays a critical role in facilitating efficient lifting and hoisting operations. Unlike traditional enclosed winch systems, the open winch design provides greater accessibility, ease of maintenance, and enhanced operational performance.

Ease of Maintenance

• The open winch design offers clear visibility and easy access to the hoisting system. This feature significantly reduces the time required for repairs and inspections, leading to less downtime.
• With easier access to components like the motor, drum, and hoisting mechanism, maintenance tasks such as lubrication, parts replacement, and inspections can be performed more quickly and efficiently.
• This accessibility ensures the crane remains operational for longer periods, contributing to improved productivity in industrial operations.

Enhanced Load Capacity

• Open winch systems are specifically designed to handle large, heavy loads. They are equipped with high-strength hoists that can lift a wide range of load sizes.
• Depending on the crane configuration, open winches can support loads ranging from a few tons to over 100 tons, making them suitable for heavy-duty industrial applications such as steel production, automotive manufacturing, and construction.
• This increased lifting capacity makes the open winch system ideal for environments where heavy or oversized materials need to be moved regularly.

Improved Performance

• The open design of the winch allows for better ventilation and cooling of the motor and hoisting components. This leads to improved system performance, particularly in environments where high-frequency lifting operations are required.
• By reducing heat buildup and preventing the motor from overheating, the open winch system ensures consistent performance and higher efficiency in continuous operations.
• Additionally, the enhanced cooling capabilities extend the operational life of the winch and associated components, reducing the need for frequent repairs or replacements.

Customizable Features

• Open winch systems are highly customizable, allowing for the integration of various hoist types based on specific lifting requirements. Options include electric hoists, manual hoists, and other specialized lifting mechanisms, depending on the nature of the load and the application.
• This flexibility ensures that the crane can be adapted to a variety of tasks, from heavy industrial lifting to more delicate, precision-based applications.

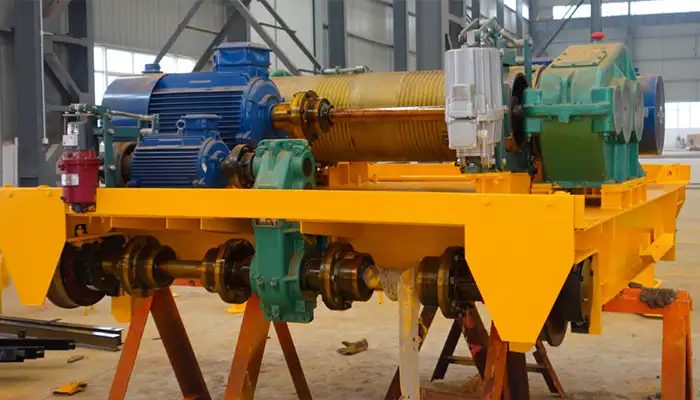

Affordable open winch trolley with tradtional style

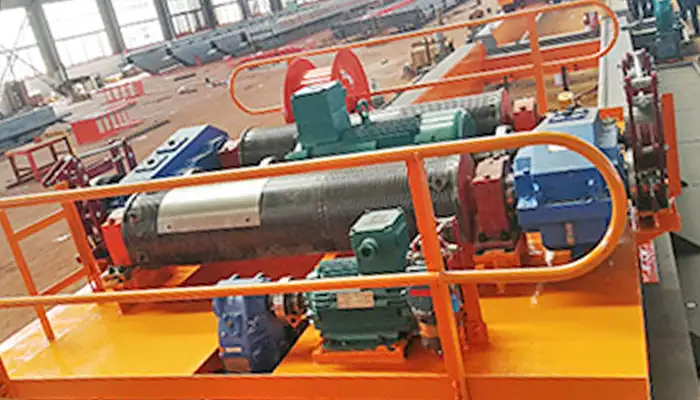

Advanced European style open winch trolley

Key Benefits of Open Winch Systems

Reduced Downtime

• The primary advantage of the open winch system is its easy-to-access design, which minimizes the time needed for maintenance and repairs. With fewer service interruptions, the crane remains operational for longer periods, contributing to improved productivity.

Increased Efficiency

• The open winch design contributes to smoother and faster lifting operations. With better ventilation, reduced friction, and optimized hoisting mechanisms, the crane operates more efficiently, increasing throughput in material handling processes.

Longer Service Life

• Regular maintenance is made easier with the open winch system, which helps extend the overall service life of both the winch and the crane. With lower maintenance costs and less frequent repairs, the crane delivers better return on investment over time.

In summary, the open winch mechanism offers substantial benefits over enclosed systems, including easier maintenance, higher lifting capacity, and improved performance. These advantages make open winch double girder cranes highly effective in heavy-duty lifting operations across various industrial sectors.

Types of Below Hook Devices

Below hook devices are essential attachments that enhance the functionality of cranes, enabling them to handle a wide range of loads more effectively and safely. These devices are designed to address specific needs depending on the material type, load shape, and industrial application.

Hooks: Standard Lifting Devices

• Versatility: Hooks are the most commonly used and basic below hook device, ideal for lifting standard loads such as pallets, machinery, and general materials.
• Simple Design: With a straightforward design, hooks are easy to use and highly reliable, making them a staple in general lifting tasks across industries.
• Load Handling: Hooks can be used in conjunction with slings or other lifting accessories to secure loads of various shapes and sizes, providing flexibility in load handling.

Lifting Beams: For Wide or Bulky Loads

• Load Distribution: Lifting beams are used to evenly distribute the weight of large or bulky loads, helping prevent strain on the crane and ensuring safe lifting operations.
• Wide Loads: These devices are ideal for handling wide or long items, such as steel plates, construction materials, or large machinery, where a single point of lift would be inadequate.
• Customization: Lifting beams can be customized to fit specific load dimensions and weight capacities, offering flexibility and efficiency for specialized lifting tasks.

Magnetic Lifters: For Handling Ferrous Materials

• Fast and Secure Handling: Magnetic lifters provide an efficient and secure way to lift ferrous materials like steel, iron, and other metals, without the need for slings or hooks.
• Ease of Operation: Using powerful magnets, these devices securely hold the load, reducing manual handling and speeding up material transport.
• Applications: Magnetic lifters are particularly useful in industries like metalworking, steel fabrication, and recycling, where handling heavy metal components is frequent and critical.

Clamshell Grabs: For Bulk Materials

• Bulk Material Handling: Clamshell grabs are designed for lifting and transporting bulk materials such as sand, coal, gravel, or scrap metal, making them ideal for use in ports, mining operations, and waste handling.
• Precise Control: The clamshell design allows for precise control over loose or granular materials, minimizing spillage and improving material handling efficiency.
• Heavy Duty: These devices are built to handle large quantities of material in a single lift, reducing cycle times and improving overall operational efficiency in bulk material transport.

Vacuum Lifters: For Non-Ferrous and Delicate Materials

• Fragile Load Handling: Vacuum lifters are used to lift delicate or non-ferrous materials, such as glass, plastic, or electronic components, without causing damage to the load.
• Efficient Lifting: These lifters utilize suction to securely grip and move materials, providing a firm yet gentle hold that protects fragile items during transport.
• Versatility: Vacuum lifters are highly versatile, used in a variety of industries including manufacturing, packaging, construction, and logistics, where non-ferrous materials and delicate items are common.

Spreader Beams: For Load Stabilization

• Even Load Distribution: Spreader beams are designed to stabilize the load, distributing the weight evenly across the crane. This prevents tipping, swinging, or unbalanced lifting during transport.
• Handling Long or Heavy Loads: Ideal for lifting long and heavy items like pipes, beams, and steel coils, spreader beams ensure the load remains balanced and stable during transport.
• Safety and Efficiency: By reducing the risk of load instability, spreader beams enhance both safety and efficiency, making them essential for handling large and complex loads in various industries.

Each of these below hook devices plays a critical role in optimizing lifting operations, improving efficiency, and ensuring safety during material handling. The selection of the appropriate device for a specific type of load allows industries to tailor their crane operations to meet operational needs while maintaining high performance and safety standards.

Industrial Applications of Open Winch Double Girder EOT Cranes

Open winch double girder EOT cranes are versatile, high-capacity lifting solutions designed for a wide range of industrial applications. Below are some key sectors where these cranes are used, along with their specific lifting capabilities and suitable below hook devices.

Manufacturing and Automotive Industry: Handling Heavy Automotive Components (e.g., Engines, Chassis)

In the manufacturing and automotive industries, open winch double girder EOT cranes are vital for lifting and transporting heavy automotive components, such as engines, chassis, and other critical parts. These cranes provide the necessary lifting capacity, stability, and precision for tasks such as assembly lines and parts handling.

Types of Below Hook Devices:

• Lifting Beams: Used to evenly distribute the load when lifting large, bulky components like car chassis or engine blocks.
• Vacuum Lifters: Ideal for lifting sensitive parts such as glass panels or delicate body components without causing damage.

Load Handling Capacity:

These cranes can typically handle loads ranging from 10 tons to 50 tons, providing sufficient strength for most automotive manufacturing tasks.

Steel Industry: Lifting Heavy Steel Plates, Coils, and Scrap

The steel industry requires cranes capable of lifting extremely heavy materials like steel plates, coils, and scrap metal. Open winch double girder cranes are essential for transporting these materials safely and efficiently in steel mills and production plants.

Types of Below Hook Devices:

• Magnetic Lifters: Used for lifting ferrous materials like steel plates, coils, and scrap. Magnetic lifters are highly efficient in securely holding metal objects during transport.
• Spreader Beams: Used to stabilize large steel plates and coils, ensuring safe handling during the lifting process.

Load Handling Capacity:

In the steel industry, open winch double girder cranes can handle loads up to 100 tons, accommodating the weight of large steel components and raw materials.

Construction and Infrastructure: Handling Heavy Construction Equipment and Materials (e.g., Beams, Cement)

In construction and infrastructure projects, cranes are essential for lifting and positioning heavy materials such as steel beams, concrete, and construction machinery. Open winch double girder cranes provide the strength and stability required for these demanding tasks.

Types of Below Hook Devices:

• Lifting Beams: Perfect for evenly distributing the load across long beams or large concrete slabs, preventing bending or damage.
• Clamshell Grabs: Used for lifting and transporting bulk materials such as gravel, cement, and sand.

Load Handling Capacity:

These cranes can typically handle a wide range of loads from 20 tons to 200 tons, making them ideal for handling heavy construction equipment and materials in large-scale infrastructure projects.

Shipping and Port Operations: Lifting Containers, Large Equipment, and Bulk Cargo

In ports and shipping yards, cranes are used for loading and unloading containers, moving bulk cargo, and handling large equipment. Open winch double girder cranes are an essential part of port operations, ensuring fast and safe material handling.

Types of Below Hook Devices:

• Spreader Beams: Crucial for safely lifting containers by distributing the weight evenly across the crane's hook, preventing load instability.
• Clamshell Grabs: Used for handling bulk materials like coal, grain, or scrap metal in port environments.

Load Handling Capacity:

These cranes are typically rated to handle loads up to 50 tons, which is sufficient for most port-related lifting tasks, including container handling and bulk material transport.

Mining and Material Handling: Lifting and Transporting Raw Minerals, Ores, and Aggregates

In the mining and material handling industries, open winch double girder cranes are used to lift and transport raw minerals, ores, and aggregates. These cranes support operations in quarries, mines, and aggregate processing plants, where high-capacity lifting is essential.

Types of Below Hook Devices:

• Clamshell Grabs: Ideal for lifting and moving loose, granular materials such as ores, coal, and aggregates.
• Vacuum Lifters: Used for safely handling non-ferrous materials or fragile equipment in processing plants.

Load Handling Capacity:

These cranes typically handle heavy loads ranging from 50 tons to 100 tons, making them suitable for large-scale mining operations and heavy material transport.

Aerospace Industry: Handling Aircraft Components (e.g., Wings, Fuselages)

In the aerospace industry, open winch double girder EOT cranes are used to handle large and delicate components, such as aircraft wings, fuselages, and engines. These cranes require precise lifting capabilities to move and position sensitive materials without causing damage.

Types of Below Hook Devices:

• Lifting Beams: Used to evenly distribute the weight of large aircraft components like wings and fuselages, preventing damage during lifting and transport.
• Vacuum Lifters: Ideal for handling delicate and lightweight materials, such as airplane interior parts or glass panels.

Load Handling Capacity:

Open winch double girder cranes in the aerospace sector typically handle loads up to 30 tons, ensuring they are capable of lifting and moving large yet sensitive aircraft components with precision.

Open winch double girder EOT cranes are essential across various industrial sectors due to their high load capacities, stability, and precision. From automotive manufacturing to aerospace, these cranes are equipped to handle diverse lifting requirements. The integration of specialized below hook devices further enhances their ability to lift and transport a wide range of materials, ensuring safety, efficiency, and reliability in every operation. Whether for heavy lifting, delicate handling, or bulk material transport, these cranes are an indispensable tool for modern industrial processes.

Customization of Below Hook Devices for Specific Loads

When lifting and transporting materials of varying sizes, shapes, and weights, the customization of below hook devices becomes essential to ensure safety, efficiency, and precision in handling. Different industries, from heavy manufacturing to delicate material handling, require tailored solutions to meet their specific needs. Below are the key below hook devices and how they can be customized for particular load types.

Heavy and Bulky Loads: Use of Spreader Beams, Lifting Beams, and Clamshell Grabs

Lifting heavy and bulky loads requires equipment that can distribute weight evenly and provide stability during transport. Customization ensures that these devices are perfectly suited for the specific challenges of lifting large, heavy, and often irregularly shaped materials.

Spreader Beams:

• Functionality: Spreader beams are used to distribute the load evenly across multiple lifting points. This ensures stability during the lift, reducing the risk of swinging or tipping. They are ideal for lifting long, heavy loads like steel beams, machinery, or precast concrete sections.
• Customization: Adjustable spreader beams can be tailored to different load dimensions, ensuring that each lift is balanced and stable. Custom spreader beams can be designed with variable length, capacity adjustments, and specific attachment points to accommodate the unique requirements of different lifting tasks.

Lifting Beams:

• Functionality: Lifting beams are designed to lift wide or bulky loads, such as heavy equipment, large panels, or long beams. They distribute the load across multiple lifting points, providing even support and preventing the material from bending or warping during lifting.
• Customization: Lifting beams can be customized by adjusting hook positions and attachments to match the precise lifting needs of the load. This increases operational flexibility, allowing the beam to be used for various lifting applications without compromising safety or efficiency.

Clamshell Grabs:

• Functionality: Clamshell grabs are commonly used to handle bulk materials like gravel, sand, scrap metal, or coal. Their design, with two clamshell-style jaws, allows for the controlled and efficient lifting of loose materials.
• Customization: Clamshell grabs can be adapted with different jaw designs, capacities, and sizes to handle various types of materials. The jaw capacity can be adjusted to accommodate specific materials, based on their density or size, making them versatile for handling different types of bulk loads.

Sensitive and Fragile Loads: Application of Vacuum Lifters, Custom Lifting Beams

Handling delicate or sensitive materials, such as glass, electronics, or aerospace components, requires specialized below hook devices that minimize the risk of damage during lifting. Customization helps to meet the specific demands of fragile load handling.

Vacuum Lifters:

• Functionality: Vacuum lifters use suction to securely lift fragile or delicate materials like glass panels, thin metal sheets, or sensitive machinery. They provide a non-invasive lifting method, avoiding any physical contact with the load that could lead to scratches or damage.
• Customization: Vacuum lifters can be customized with different suction pad designs to accommodate various load shapes and sizes. For example, larger glass panels or lightweight but fragile components can be handled with vacuum lifters equipped with extra-large suction pads or adjustable suction strength to suit the material being lifted.

Custom Lifting Beams:

• Functionality: Custom lifting beams are designed to handle delicate or non-ferrous materials, such as electronics or aircraft components, where traditional lifting methods may cause damage. These beams can be outfitted with soft lifting points or padded surfaces to prevent the load from getting scratched or deformed.
• Customization: These lifting beams can be adapted with features such as multiple lifting points or adjustable widths to handle asymmetrical or fragile loads. By ensuring even weight distribution, these custom beams help to protect sensitive items during lifting and transport.

Magnetic and Ferrous Materials: Magnetic Lifters and Their Efficiency in Handling Steel, Iron, etc.

For handling ferrous materials, such as steel, iron, or scrap metal, magnetic lifters provide an efficient and safe solution. Custom magnetic lifters can be designed to meet the specific requirements of different ferrous loads.

Magnetic Lifters:

• Functionality: Magnetic lifters use powerful magnets to lift ferrous materials without the need for slings or other rigging equipment. They are ideal for quick and secure handling of heavy metal components, reducing handling time and increasing safety in the process.
• Customization: Magnetic lifters can be customized based on the size, shape, and weight of the material being lifted. Stronger magnets can be used for larger, heavier items like steel plates or coils. Adjustable magnetic systems can also be designed to handle materials of varying sizes and configurations, making magnetic lifters versatile for different industrial applications.

Efficiency in Handling Steel, Iron, and Other Ferrous Materials:

• Enhanced Speed: Magnetic lifters allow for rapid loading and unloading of materials like steel, iron, or scrap metal. This is particularly useful in industries such as steel manufacturing, metalworking, and scrap metal recycling, where speed and efficiency are crucial.
• Reduced Damage: The non-contact nature of magnetic lifting minimizes the risk of damage to materials, particularly during the lifting and transport of large or heavy ferrous items. This helps to ensure that metal components are handled safely without any risk of dents, scratches, or other damage.

By customizing below hook devices to meet the specific needs of various loads, industries can significantly improve the safety, efficiency, and precision of their lifting operations. Whether lifting heavy and bulky materials, fragile and delicate components, or ferrous metals, the right combination of below hook devices ensures optimal load handling and maximizes operational performance. Customization enhances the versatility of lifting equipment, ensuring that cranes are capable of handling a wide range of materials while minimizing risks and improving productivity.

Key Advantages of Open Winch Double Girder EOT Cranes

Open winch double girder EOT (Electric Overhead Traveling) cranes are designed to provide superior performance in heavy lifting and complex material handling operations. Their robust structure and versatile features offer key advantages, making them an ideal choice for industries that demand high lifting capacity, enhanced safety, operational efficiency, and customization. Below are the key benefits of using open winch double girder EOT cranes.

Enhanced Load Capacity: Ability to Handle Varying Load Sizes and Weights

One of the standout features of open winch double girder EOT cranes is their enhanced load capacity, which allows them to handle a broad range of load sizes and weights. This capability makes them suitable for heavy-duty applications across various industries.

Lifting Flexibility:

• Heavy Loads: These cranes are capable of supporting significantly heavier loads compared to single girder cranes, with lifting capacities ranging from 10 tons to 100 tons or more. This makes them ideal for sectors like manufacturing, steel production, mining, and construction, where large machinery, equipment, and components need to be lifted.
• Specialized Equipment: Open winch double girder cranes can also be adapted to lift specialized equipment or oversized materials. The crane's robust design ensures the safe and efficient handling of a wide variety of load types, such as automotive components, steel plates, and industrial machinery, ensuring operational flexibility across multiple sectors.

Increased Safety Features: Safety Mechanisms for Load Stability and Operator Protection

Safety is a critical factor in overhead crane operations, and open winch double girder EOT cranes come equipped with a range of advanced safety features to protect both operators and loads.

Load Stability:

• Anti-Sway Systems: Many open winch double girder cranes feature anti-sway control systems that minimize load swinging during transport, reducing the risk of accidents, collisions, or load damage. This enhances the crane's ability to operate in tight spaces or in environments where precise load handling is required.
• Load Monitoring Systems: Integrated load cells and sensors provide real-time data on the weight of the load being lifted. These systems ensure the crane does not exceed its load capacity, preventing overloading and ensuring safe operation throughout each lifting cycle.

Operator Protection:

• Emergency Stop Mechanism: A reliable emergency stop system allows the crane to be halted instantly in case of an unforeseen event, preventing accidents and injuries.
• Operator Cabin Safety: Many models feature enclosed operator cabins designed for maximum safety and comfort. These cabins often come equipped with safety barriers, climate control, and large windows for improved visibility, ensuring the operator is protected while maintaining a clear view of the load during lifting.

Enhanced Structural Design:

The robust construction of double girder cranes, along with safety reinforcements such as sturdy girders and anti-collision sensors, ensures overall load stability, even when handling complex or high-risk loads.

Operational Efficiency: Faster Lifting and Maneuvering with Reduced Downtime

Open winch double girder EOT cranes are built for high operational efficiency, offering faster lifting speeds and smoother maneuvering. These features help reduce downtime and improve productivity, especially in high-demand industrial settings.

Improved Lifting Speeds:

• Faster Hoisting: Open winch cranes can lift and move heavy loads more quickly compared to other types of cranes. This feature is crucial in environments such as manufacturing plants, construction sites, and shipping yards, where time-sensitive operations require quick and reliable equipment.
• Smooth Maneuvering: The open winch mechanism ensures efficient horizontal and vertical movement of the load, enhancing workflow and minimizing idle time during operations. This helps increase throughput, particularly in fast-paced environments.

Reduced Downtime:

• Ease of Maintenance: Open winch cranes are designed for easy maintenance, with readily accessible components that reduce downtime during repairs and servicing.
• Fewer Operational Interruptions: With advanced monitoring systems and predictive maintenance schedules, downtime is minimized, allowing for continuous operation without unnecessary delays. This contributes to improved overall productivity.

Energy Efficiency:

• Optimized Power Usage: Modern open winch cranes are equipped with energy-saving features, such as efficient drive motors and power management systems. These systems automatically adjust power consumption based on load size and lifting conditions, improving energy efficiency and reducing operating costs.

Customization and Versatility: Adaptability to Different Types of Below Hook Devices for Specialized Lifting

Open winch double girder EOT cranes are highly customizable, allowing them to be adapted to a wide variety of lifting needs and industries. Their versatility makes them suitable for numerous applications, from handling bulky materials to delicate items.

Adaptability to Specialized Lifting:

• Below Hook Devices: These cranes can be customized with a variety of below hook devices, such as spreader beams, magnetic lifters, vacuum lifters, and clamshell grabs. These devices are designed for specific lifting applications, such as handling long steel beams, lifting fragile components, or transporting bulk materials.

Flexible Load Handling:

Handling Bulky and Fragile Loads: The versatility of open winch double girder cranes allows them to handle both heavy, bulky materials and fragile components, depending on the attachments used. For example:

• Spreader Beams: Ideal for lifting long, heavy loads such as steel plates or beams.
• Vacuum Lifters: Used for lifting delicate materials like glass or thin metal sheets without causing damage.
• Magnetic Lifters: Perfect for handling ferrous materials, such as steel, without additional rigging or slings.

Tailored for Specific Industries:

• Industry-Specific Customization: Whether for the automotive, steel, construction, or aerospace industries, open winch double girder cranes can be tailored to meet the specific needs of each sector. This includes adjusting lifting speeds, hook configurations, safety features, and control systems based on the types of materials or components being handled.
• Scalability for Future Needs: As operational demands evolve, these cranes can be further customized or upgraded to handle increased loads or new types of materials, ensuring they continue to meet the growing needs of the facility.

Open winch double girder EOT cranes offer numerous advantages in terms of load capacity, safety features, operational efficiency, and customization. Their robust construction, coupled with the ability to adapt to different lifting requirements, makes them a reliable and versatile choice for industries requiring heavy-duty lifting solutions. By improving load handling, minimizing downtime, and ensuring operator safety, these cranes provide long-term value, making them an excellent investment for companies in need of high-performance material handling equipment.

Maintenance and Operation Considerations

Routine Inspection and Maintenance: Importance of Regular Checks for Crane Components and Below Hook Devices

Proper maintenance and regular inspections are essential to ensure the optimal performance, safety, and longevity of open winch double girder EOT cranes, as well as the below hook devices used with them. Regular checks help prevent malfunctions, reduce the risk of accidents, and extend the lifespan of the equipment.

Importance of Regular Inspections:

• Crane Components: Routine checks should cover critical crane components such as hoists, motors, electrical systems, control panels, and safety devices. Regular inspections help detect early signs of wear, corrosion, or other potential issues, allowing for timely repairs.
• Below Hook Devices: Inspection of below hook devices, such as lifting beams, vacuum lifters, and magnetic lifters, is equally important. These devices must be checked for wear and tear, such as worn-out slings or malfunctioning magnetic pads, to ensure that they are functioning optimally and safely.

Common Maintenance Challenges:

• Wear and Tear: Over time, components such as cables, bearings, and motors can wear out due to frequent use. To combat this, proactive replacement schedules and lubricating systems can be implemented.
• Environmental Factors: Cranes working in harsh environments (e.g., high temperatures, corrosive materials) may experience accelerated wear. Regular cleaning and the use of corrosion-resistant materials can help mitigate this.
• Solution: Setting up an effective preventative maintenance program, with a focus on regular lubrication, component replacement, and system upgrades, is key to keeping the crane and below hook devices in top condition.

Training and Operator Requirements: Skillset Required for Operating Cranes with Advanced Lifting Devices

Operating open winch double girder EOT cranes, especially when using specialized below hook devices, requires highly trained personnel. Crane operators must possess both general crane operation skills and the specific knowledge needed to handle the advanced lifting devices safely and effectively.

Operator Skills and Knowledge:

• Crane Operation: Operators should be well-versed in general crane operation, including controlling hoists, traveling mechanisms, and understanding load charts. Familiarity with crane controls and their proper use is essential for smooth and safe operation.
• Below Hook Devices: Operators should be trained to use specific below hook devices like spreader beams, magnetic lifters, and vacuum lifters, understanding their features, load capacities, and safety protocols.

Advanced Skills for Specialized Loads:

• Handling of Sensitive Loads: When dealing with fragile or oversized loads, operators must understand how to position and lift materials carefully, adjusting their techniques based on the load's weight and nature.

  Safety Protocols: Operators should be trained in emergency procedures, including how to safely handle abnormal situations such as equipment malfunction, load imbalance, or power failure.

Training Programs:

• Comprehensive training programs should include both classroom instruction and hands-on experience with cranes and below hook devices. Certification from recognized bodies (e.g., NCCCO in the U.S. or equivalent local certifications) is essential to ensure operators are properly qualified.

Safety Standards and Compliance: Adhering to Industry Safety Standards (e.g., ASME, OSHA)

To ensure the safety of both operators and the crane equipment, adherence to industry safety standards and regulations is mandatory. These standards provide a framework for safe operation, maintenance, and inspection practices, reducing the risk of accidents and injuries.

Key Safety Standards and Compliance Requirements:

• ASME (American Society of Mechanical Engineers): ASME B30.2 covers the safety standards for overhead and gantry cranes. It provides detailed guidelines on crane design, operation, maintenance, and inspections.
• OSHA (Occupational Safety and Health Administration): OSHA regulations, particularly 29 CFR 1910.179 for overhead cranes, mandate safe operational procedures, safety gear for operators, and regular inspections of the crane and lifting devices.

Compliance Areas:

• Inspection and Certification: Cranes and lifting devices must be regularly inspected and certified by qualified personnel to ensure compliance with safety standards.
• Operator Safety: Operators must wear appropriate personal protective equipment (PPE) and adhere to strict safety protocols, such as ensuring clear communication with ground personnel, avoiding overloading, and using proper rigging techniques.
• Maintenance Compliance: Routine maintenance should align with manufacturer recommendations and safety standards. All crane modifications or repairs must be conducted in accordance with relevant safety regulations to prevent compromising the crane's structural integrity.

Staying Up-to-Date with Changes in Safety Standards:

• Industry standards are periodically updated to address new safety challenges and technological advancements. It is essential for operators and maintenance teams to stay informed about these updates to ensure ongoing compliance and best practices.

In summary, maintaining and operating open winch double girder EOT cranes requires regular inspection, skilled operators, and adherence to strict safety standards. Proper training ensures that crane operators are well-equipped to handle advanced lifting devices safely, while compliance with industry standards ensures the safety and longevity of the equipment. Regular maintenance and inspections further minimize operational risks, maximize productivity, and reduce downtime.

Conclusion

Benefits of Using Open Winch Double Girder EOT Cranes with Versatile Below Hook Devices

Open winch double girder EOT cranes, equipped with versatile below hook devices, offer significant advantages in industrial lifting operations. The combination of a robust double girder design with advanced lifting technologies allows for:

• Enhanced Load Handling: These cranes provide high load capacities, making them suitable for a wide range of industrial applications, from heavy machinery to delicate components.
• Improved Safety: With integrated safety features such as anti-sway systems, load monitoring, and emergency stops, both operators and loads are protected during operation.
• Operational Efficiency: Faster lifting speeds and reduced downtime contribute to increased productivity, enabling industries to meet tight operational demands.
• Customization and Flexibility: The adaptability of below hook devices (such as lifting beams, magnetic lifters, and vacuum lifters) ensures the crane can handle a variety of loads with specialized lifting needs, from bulk materials to sensitive components.

The ability to tailor these cranes and their lifting mechanisms to specific tasks makes them indispensable in industries such as automotive, steel manufacturing, aerospace, and port operations.

Applicability Across Various Industries with Specific Load Handling Needs

Open winch double girder EOT cranes are designed to meet the diverse lifting demands across multiple industries. Their versatility ensures that they can handle a wide range of load types, from oversized steel plates to fragile glass panels, and everything in between.

• Manufacturing and Automotive: These cranes are ideal for handling large automotive components, where lifting accuracy and capacity are crucial.
• Steel and Heavy Industry: In steel production and construction, these cranes manage heavy plates, beams, and coils, with specialized below hook devices like magnetic lifters ensuring precise handling of ferrous materials.
• Shipping and Ports: Open winch cranes are widely used in port operations for lifting containers and bulk cargo, where speed, safety, and load stability are paramount.
• Aerospace and Specialized Industries: Cranes in aerospace facilities handle sensitive aircraft components, utilizing custom lifting beams and vacuum lifters to avoid any damage during the lifting process.

The adaptability of these cranes to different load types and sectors ensures that they can meet the unique requirements of various industries, making them an invaluable asset for diverse industrial applications.

Potential for Increasing Crane Capacities and Efficiency

Looking ahead, there is a strong potential for improving crane capacities and operational efficiency:

• Higher Load Capacities: Ongoing advancements in crane design and material science will allow cranes to handle even heavier loads, supporting industries that require the lifting of exceptionally large or dense materials.
• Enhanced Efficiency: With innovations in energy efficiency, faster hoisting systems, and automated operations, open winch double girder EOT cranes will continue to reduce operational downtime and improve cycle times, contributing to higher productivity across industries.
• Sustainability: Future cranes are also expected to incorporate more sustainable technologies, such as energy-efficient motors and greener materials, to minimize environmental impact while maximizing lifting capabilities.

As industries continue to evolve, the open winch double girder EOT crane's ability to integrate new technologies and meet increasing lifting demands will keep it at the forefront of industrial lifting equipment.

In conclusion, open winch double girder EOT cranes, with their versatile below hook devices, are poised to remain essential tools across various industrial sectors. Their capacity to handle diverse loads safely, efficiently, and with customization options makes them indispensable. As technology continues to evolve, these cranes will adapt to meet future challenges, increasing lifting capacities and optimizing efficiency to further enhance industrial operations.
