Dimensions of electric chain hoists for shipping. Small, light & compact size electric chain block, easy transportation, low cost. Electric chain hoist for sale.

Ask for Quotation

Category: Hoist and Crane Specifications

Details
Projects

Electric chain hoist for sale. Small, light & compact size electric chain block, easy transportation, low cost. Check dimensions of electric chain hoists for shipping.

Types of Electric Chain Hoist for Sale

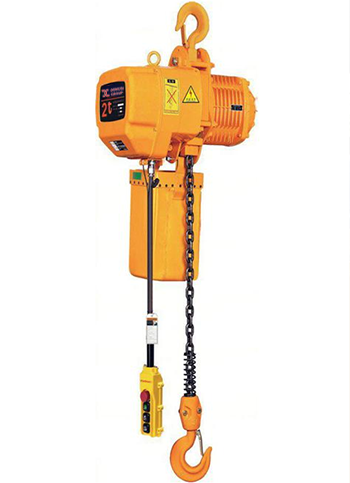

Hook mounted chain fall electric hoist
Hook mounted, lug mounted, eye mounted chain fall electric hoists with no trolley up to 32 ton
The horizontal handling of the chain fall electric hoists are in conjunction with the hoist trolleys. The chain fall electric hoists with hooks or lugs can be used as fixed hoists mounted on supporting structures, and the chain fall electric hoists with trolleys can be used as travelling hoists running on suitable overhead girder beams or rails.

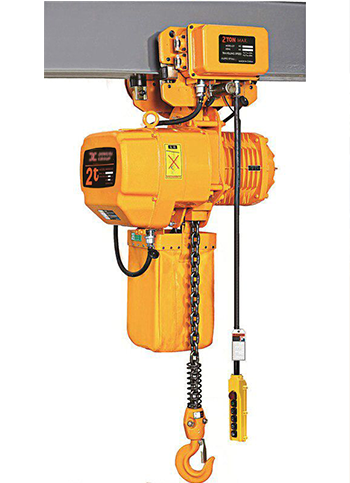

Electric trolley chain hoist
Motorized trolley & electric trolley electric chain hoists up to 35 ton
Powered trolleys or motorized hoist trolley may add a little cost but offering a high efficient chain fall electric hoist solution which will be a cost-effective solution for a high volume material handling. Electric chain blocks with motorized trolley may give you a exceptional return.

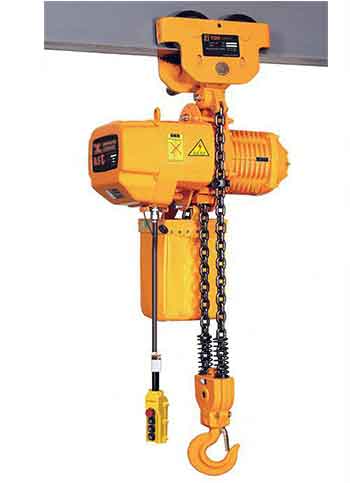

Manual trolley electric chain hoist
Manual trolley electric chain hoists up to 30 ton
The manual trolley chain fall electric hoist is an economical but effective trolley hoists with the combination of manual trolley and electric chain hoists which will be a cost-effective solution for applications where light duty material handling with frequent vertical lifting but less horizontal movement is required.

Low headroom chain electric hoist up to 35 ton
Low headroom chain fall electric hoists are specially designed for workshop with limited working space. With customized designs, the lifting height of low headroom chain fall electric hoists can up to 130 meters, which will be a cost-effective chain fall electric hoist solution for your applications.

Dimensions of Electric Chain Hoists for Shipping

Items	Electric chain hoist specifications	Length of case (M)	Width of case (M)	Height of case (M)	Volume	Net weight (KGS)	Gross weight (KGS)
1	0.5 ton electric chain hoist trolley	0.455	0.315	0.27	0.03869775	17	19
2	0.5 ton -1.5M motorized chain hoist, single chain fall single speed 6.8m/min	0.56	0.34	0.5	0.0952	39	46
3	0.5 ton electric chain hoist trolley 12.2m/min	0.53	0.36	0.36	0.068688	36	40
4	0.5 ton -5M chain hoist, single chain fall single speed	0.56	0.34	0.5	0.0952	41	48
5	0.5 ton hoist trolley	0.53	0.36	0.36	0.068688	20	24
6	0.5 ton -6m electric chain hoist, single chain fall single speed	0.56	0.34	0.5	0.0952	42	49
7	0.5 ton -7m hoist, single chain fall single speed	0.56	0.34	0.5	0.0952	45	52
8	0.5 ton -8m hoist, single chain fall single speed8.1m/min 220/60/3	0.56	0.34	0.5	0.0952	42	49
9	0.5 ton -20M manual travelling type chain fall hoist single chain fall single speed	0.6	0.36	0.53	0.11448	76	86
10	1 ton -1.5M hoist, single chain fall single speed6.6m/min	0.6	0.36	0.54	0.11664	54	62
11	1 ton hoist trolley 11m/min	0.53	0.36	0.36	0.068688	39	43
12	1 ton -2.5M European style electric chain hoist including hoist trolley	1	0.65	0.55	0.3575	60	76
13	1 ton -2.5M hoist, single chain fall single speed7.9m/min220/60/3	0.6	0.36	0.54	0.11664	57	65
14	1 ton hoist trolley 13m/min 220/60/3	0.53	0.36	0.36	0.068688	39	43
15	1 ton -3M hoist, single chain fall single speed	0.6	0.36	0.54	0.11664	57	65
16	1 ton -4M hoist, Hook mounted type, single chain fall single speed	0.6	0.36	0.54	0.11664	58	66
17	1 ton -5M hoist, single chain fall single speed	0.6	0.36	0.5	0.108	59	67
18	1 ton hoist trolley	0.53	0.36	0.36	0.068688	39	43
19	1 ton -5M hoist, single chain fall single speed7.9M/MIN	0.6	0.36	0.54	0.11664	59	67
20	1 ton hoist trolley	0.53	0.36	0.36	0.068688	39	43
21	1 ton -5M hoist, single chain fall double speed6.9/2.3M/MIN	0.68	0.36	0.53	0.129744	74	85
22	1 ton -4M hoist , single chain fall single speed7.9m/min	0.6	0.36	0.54	0.11664	58	66
23	1 ton hoist trolley13m/min	0.53	0.36	0.36	0.068688	39	44
24	1 ton -6m hoist, single chain fall double speed6.9/2.3m/min	0.68	0.36	0.53	0.129744	74	85
25	1 ton hoist trolley11m/min	0.53	0.36	0.36	0.068688	39	43
26	1 ton -3m low headroom hoist, including hoist trolley single chain fall single speed	0.64	0.63	0.6	0.24192	114	129
27	1 ton -6m low headroom hoist including hoist trolley single chain fall single speed	0.62	0.6	0.64	0.23808	121	130
28	1 ton -11.5m hoist, single chain fall single speed	0.6	0.36	0.54	0.11664	62	72
29	1 ton -10m hook mounted type single chain fall single speed	0.6	0.36	0.54	0.11664	63	71
30	1 ton -15m hook mounted type single chain fall single speed	0.6	0.36	0.54	0.11664	68	76
31	1 ton -20m hook mounted type single chain fall single speed	0.6	0.36	0.54	0.11664	74	82
32	1 ton -35 m, electric chain hoist, single chain fall single speed	0.6	0.36	0.54	0.11664	89	97
33	1 ton hoist trolley	0.53	0.36	0.36	0.068688	39	43
34	1.5 ton -2m hoist, double chain fall single speed3.3m/min	0.6	0.36	0.54	0.11664	68	75
35	1.5 ton hoist trolley11m/min	0.57	0.39	0.35	0.077805	47	52
36	1.5 ton -2.5m hoist, Hook mounted type single chain fall single speed6.6m/min	0.68	0.42	0.66	0.188496	108	118
37	1.5 ton -3m hoist, single chain fall single speed8.8m/min	0.68	0.43	0.66	0.192984	105	115
38	1.5 ton hoist trolley single speed	0.57	0.29	0.35	0.057855	45	51
39	1.5 ton -3m hoist	0.7	0.43	0.58	0.17458	/	114
40	1.5 ton hoist trolley	0.59	0.4	0.35	0.0826	/	53
41	1.5 ton -6m hoist, single chain fall single speed	0.68	0.42	0.66	0.188496	116	126
42	1.5 ton hoist trolley, single speed	0.57	0.39	0.35	0.077805	47	52
43	2 ton -3m hoist, double chain fall single speed	0.6	0.36	0.54	0.11664	68	75
44	2 ton -3M hoist, single chain fall single speed8.1m/min	0.68	0.42	0.66	0.188496	108	118
45	2 ton hoist trolley, single speed13m/min	0.57	0.39	0.35	0.077805	47	52
46	2 ton -3M hoist, single chain fall single speed	0.7	0.4	0.5	0.14	/	110
47	2 ton hoist trolley	0.5	0.4	0.3	0.06	/	50
48	2 ton -4M hoist, single chain fall single speed	0.68	0.42	0.66	0.188496	110	120
49	2 ton -6M hoist, single chain fall single speed	0.68	0.42	0.66	0.188496	115	125
50	2 ton -7M hoist , single chain fall single speed	0.68	0.42	0.66	0.188496	118	128
51	2 ton hoist trolley, single speed	0.57	0.39	0.37	0.082251	47	52
52	2 ton -6m hoist, single chain fall single speed	0.73	0.46	0.55	0.18469	/	128
53	2 ton hoist trolley , single speed	0.55	0.36	0.27	0.05346	/	53
54	2 ton -6M hoist single chain fall double speed 6.8/2.3m/min	0.6	0.36	0.54	0.11664	62	70
55	2 ton hoist trolley single speed11m/min	0.57	0.39	0.35	0.077805	47	52
56	2 ton -6.5M European style electric chain hoist	0.87	0.42	0.54	0.197316	100	110
57	2T European style hoist trolley	0.65	0.43	0.31	0.086645	42	47
58	2 ton -10M hoist Hook mounted type single chain fall single speed	0.68	0.42	0.66	0.188496	114	124
59	2 ton -15M hoist Hook mounted type single chain fall single speed	0.68	0.42	0.66	0.188496	125	135
60	2 ton -20M hoist Hook mounted type single chain fall single speed	0.68	0.42	0.66	0.188496	137	147
61	2 ton -20M hoist single chain fall single speed	0.68	0.42	0.66	0.188496	145	155
62	2 ton -15m hoist double chain fall single speed	0.6	0.36	0.54	0.11664	90	98
63	2 ton hoist trolley single speed	0.57	0.39	0.36	0.080028	47	52
64	2 ton chain bag	0.4	0.35	0.55	0.077	8	9
65	2 ton -55 m hoist single chain fall single speed	0.79	0.67	0.78	0.412854	273	290
66	2 ton -10m hoist single chain fall double speed	0.76	0.43	0.68	0.222224	143	155
67	3 ton -10M hoist single chain fall double speed	0.76	0.43	0.68	0.222224	150	162
68	3 ton -8M hoist single chain fall double speed	0.76	0.43	0.68	0.222224	144	156
69	3 ton electric hoist trolley double speed	0.67	0.39	0.36	0.094068	60	67
70	3 ton -3m hoist single chain fall single speed	0.68	0.42	0.66	0.188496	109	119
71	3 ton hoist trolley single speed	0.57	0.39	0.35	0.077805	62	67
72	3 ton -4M hoist double chain fall single speed	0.68	0.42	0.66	0.188496	122	132
73	3 ton hoist trolley single speed	0.57	0.39	0.35	0.077805	60	65
74	3 ton -4M European style chain fall	0.81	0.47	0.67	0.255069	154	170
75	3 ton -2.9M hoist low headroom single chain fall single speed including hoist trolley	0.8	0.68	0.76	0.41344	209	224
76	3 ton -5m hoist single chain fall single speed	0.68	0.42	0.66	0.188496	114	124
77	3 ton hoist trolley single speed	0.57	0.39	0.36	0.080028	55	60
78	3 ton -6m hoist single chain fall single speed	0.68	0.42	0.66	0.188496	114	124
79	3 ton hoist trolley single speed	0.57	0.39	0.36	0.080028	62	67
80	3 ton -7.5m hoist single chain fall double speed	0.76	0.43	0.68	0.222224	137	150
81	3 ton -9m hoist single chain fall single speed	0.73	0.46	0.55	0.18469	126	138
82	3 ton -12M hoist Hook mounted type single chain fall single speed	0.7	0.43	0.52	0.15652	130	140
83	3 ton -9M hoist Hook mounted type single chain fall single speed HHBB	0.81	0.422	0.52	0.1777464	121	130
84	3 ton -10M hoist Hook mounted type single chain fall single speed	0.68	0.42	0.66	0.188496	127	137
85	3 ton -15M hoist Hook mounted type single chain fall single speed	0.68	0.42	0.66	0.188496	141	151
86	3 ton -20M hoist Hook mounted type single chain fall single speed	0.68	0.42	0.66	0.188496	155	165
87	3 ton -15M double chain fall single speed5.2m/min	0.68	0.42	0.66	0.188496	170	180
88	3 ton hoist trolley single speed13m/min	0.57	0.39	0.35	0.077805	60	65
89	3 ton -15M double chain fall single speed4.4m/min	0.68	0.42	0.66	0.188496	172	182
90	3 ton hoist trolley single speed11m/min	0.57	0.39	0.35	0.077805	60	65
91	3 ton chain bag	0.4	0.35	0.55	0.077	8	9
92	5 ton -4M low headroom travelling type with hoist trolley	0.8	0.75	0.76	0.456	270	285
93	5 ton -6m single speed3.2m/min	0.68	0.42	0.66	0.188496	142	162
94	5 ton -6M hoist single speed	0.68	0.42	0.66	0.188496	146	156
95	5 ton hoist trolley single speed	0.62	0.45	0.42	0.11718	72	79
96	5 ton -6m hoist lifting double speed欧荣	0.7	0.43	0.52	0.15652	146	160
97	5 ton hoist trolley	0.61	0.445	0.38	0.103151	72	79
98	5 ton -7m hoist single speed	0.68	0.42	0.66	0.188496	148	158
99	5 ton hoist trolley	0.62	0.45	0.42	0.11718	82	89
100	5 ton -6M low headroom hoist single speed	0.78	0.695	0.7	0.37947	146	158
101	5 ton low headroom hoist trolley	0.61	0.45	0.38	0.10431	72	79
102	5 ton -7.62M hoist single speed	0.68	0.42	0.66	0.188496	158	168
103	5 ton -9M low headroom hoist including hoist trolley single speed3.2m/min, 13m/min	0.8	0.68	0.76	0.41344	274	290
104	5 ton -9.5m hoist single speed	0.68	0.42	0.66	0.188496	170	180
105	5 ton -23m hoist single speed	0.69	0.55	0.66	0.25047	246	258
106	5 ton -30m hoist single speed	0.69	0.55	0.66	0.25047	285	297
107	5 ton hoist trolley525V50HZ	0.62	0.45	0.42	0.11718	72	78
108	5 ton -25m single speed	0.68	0.58	0.66	0.260304	248	261
109	5 ton hoist trolley	0.62	0.45	0.43	0.11997	84	93
110	5 ton chain bag	0.45	0.38	0.83	0.14193	13	14
111	5 ton -30M hoist single speed3.2m/min	0.76	0.76	0.66	0.381216	282	298
112	5 ton hoist trolley single speed13m/min	0.63	0.53	0.36	0.120204	82	89
113	5 ton hoist trolley single speed11m/min	0.62	0.45	0.42	0.11718	72	79
114	5 ton -30M hoist single speed2.7m/min	0.68	0.67	0.66	0.300696	276	288
115	5 ton -30M hoist Hook mounted type single speed2.7m/min	0.69	0.59	0.76	0.309396	280	294
116	10 ton -4m hoist single speed3.2M/MIN 480/60	0.96	0.68	0.91	0.594048	320	340
117	10 ton -5m hoist single speed	0.96	0.68	0.91	0.594048	312	332
118	10 ton hoist trolley double speed4/11m/min	0.71	0.55	0.51	0.199155	86	97
119	10 ton -6m hoist single speed	0.96	0.68	0.91	0.594048	323	343
120	10 ton hoist trolley	0.71	0.55	0.51	0.199155	86	97
121	10 ton -10m hoist single speed	0.96	0.69	0.9	0.59616	367	387
122	10 ton hoist trolley	0.72	0.56	0.5	0.2016	86	97
123	15 ton -9 M hoist 220/60/ single phase including hoist trolley	1.53	0.98	1.14	1.709316		693
