Electric chain hoists are utilized to lift or lower objects, loads, and different kinds of materials. The electric hoist is raised, lowered, and its speed can be increased or decreased using an electric motor and controller, either a wire pendent control or a remote control. For use in industrial production lines and small machine shops where more frequent and quicker lifting is required, electric chain fall hoists are ideal.

All electric chain hoists offer true vertical lift, which means that neither lifting nor lowering a load causes it to deviate from the hoist's centerline.

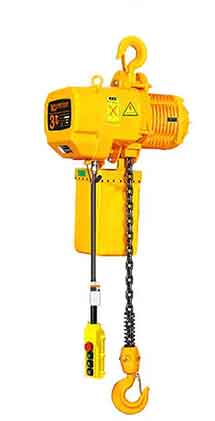

Types of electric chain hoists - Hook suspension chain hoist  , Electric motor trolley chain hoist , Manual trolley chain hoist  and Low headroom electric chain hoists

Usage & Application

• An electric chain hoist are widely used for loads handling with a lifting capacity of 0.5 to 35 tons and a lifting height of 1-50 meters.
• Motorized chain hoists are widely used in the industries of manufacturing, storage, wind power, logistics, port, and construction , etc.
• The electric chain blocks are used for material and objects lifting or loading. They can also be sued for lifting heavy objects for work or repair.
• It can be controlled by a handle on the ground, a wire pendent control, and/or a (no-wire) remote control.
• It can be suspended and fixed for only vertical hoisting , known as hook mounted electric chain hoist or combined with a monorail electric trolley for both vertical hoisting and horizontal travelling.

Electric chain hoists is widely welcomed with the features as following:

• Beautiful appearance, solid and durability.
• Inside gears are hot-quenched, which increases the gear's wear resistance and toughness.
• Compact design, small size, and light body weight
• Reliable, simple to use, and with a broad range of applications.

Structure features of electric chain hoists

• The body is made of high strength tensile shell or die casting aluminum case, extrusion molding process thin-walled precision manufacturing, small size, light weight, and high strength.
• Separate speed-adjusting system, long-service oil bath lubrication system for the level 2 coaxial transmission speed gear mechanism
• Overload protection is provided by the electric hoist powder metallurgy clutch. The brake disc uses a dc magnetic field to provide stable and rapid braking while producing little noise.

Compared with electric wire rope hoist

The advantage of electric chain hoists is that they have a fixed lifting point, unlike electric wire rope hoists. The chain is not easily snarled due to its small size and ease of installation.

However, the chain hoist's speed is slower compared with rope hoist, making it more suitable for precision operation with placement error within 1 cm. Therefore, the electric chain hoist are widely used in mold factory, wind power station, bicycle manufacturing, and stage performance.

Main parts and components of electric chain hoists

Lifting motor

Using a high performance lifting motor with Grade B insulation that can work for 30 minutes with full load.

Lifting chain

• The low carbon steel alloy chain increases the chain's toughness, strength, and wear resistance, ensuring worker safety.
• lLifting chain hardened surface can prevent the damage of the core materials and products to soften, thus make lifting chain keep for a long time high performance.
• The chain can also be extended at the request of the customer, allowing you to use it more conveniently and worry-free.
• The chain has a chain bag, which makes the electric hoist look clean, tidy, and beautiful. The chain bag contains antirust oil, which prevents the chain from rusting and thus extends the service life of the electric hoist.

Double brake system

• Two sets of brake systems not only reduce the possibility of brake failure, but also increase safety and benefit for heat radiation.
• Electromagnetic brake - This new type of brake has fast and forward direction features. The use of asbestos brake lining significantly increased the maintenance cycle. The braking system has been tested over 22500 times.
• Mechanical brake - Very reliable mechanical braking and electromagnetic brake are mutually coordinated, allowing the electric chain hoist to stop at any time.

• The standard chain electric hoist primarily employs a dependable helical gear, which can extend service lift by reducing meshing impact and vibration.
• Special gear design increases gear durability, and gear is made of alloy steel, obtaining the greatest strength through professional fine heat treatment.

Control handle with low voltage

The low-voltage standard on chain hoist handles is 24v-36v. Low voltage can effectively protect the operator from being shocked. (The National standard is 24V-36V.)

Electric Chain Hoist Specifications China Hoist Supplier

As an electric hoist and overhead crane supplier, we have various type of electric chain hoists for your selection. Based on hoisting requriements and application conditions, customized electric chain hoists are available.

HHBB series of electric chain hoist specifications 1 ton -35 ton

HHBB series of hook electric chain hoist specifications 1 ton -35 ton

DHS series electric chain hoist specifications 1 Ton, 2 Ton, 3 Ton, 5 Ton, 10 Ton,

TCH series electric chain hoist specifications 0.5 ton -5 ton

DHP series electric chain hoist specifications 0.5 ton -5 ton

HSY series electric chain hoist specifications 0.5 ton -5 ton

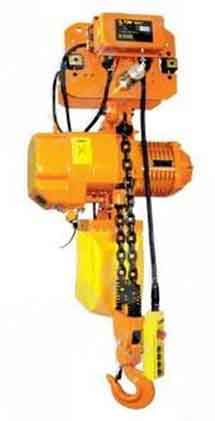

HHBB series of electric chain hoist specifications 1 ton -20 ton

HHBB series of electric chain hoist specifications 1 ton -20 ton

Model	HHBB	HHBB	HHBB	HHBB	HHBB	HHBB	HHBB
lift capacity T	1 ton	1.5 ton	2 ton	3 ton	5 ton	10 ton	20 ton
Testing loading T	1.5Gn	1.5Gn	1.5Gn	1.5Gn	1.25Gn	1.25Gn	1.25Gn
Motor power kw	0.3	0.3	0.3	0.3	0.75	0.75	0.75
Switch	The rain proof type straight control switch
Power voltage	380V      50HZ
Lift speed m/min	0.46	0.46	0.46	0.46	0.46	0.46	0.46
Min. Distance between hooks H  mm	270	350	380	470	600	700	1000
Number of lifting chain falls	1	1	2	2	2	4	8
Lift height m	2.5	2.5	2.5	3	3	3	3
Lift chain diameter mm	6	8	6	8	10	10	10
Net weight kg	26	32	30	37	54	88	195
Gross weight kg	28	34	32	42	66	102	235
Packing size cm	33×34×34	33×34×34	33×34×34	33×34×34	43×36×43	50×50×43	72×72×85
lift 1 more meter increase weight kg	0.835	1.46	1.67	2.92	4.52	9.04	18.08

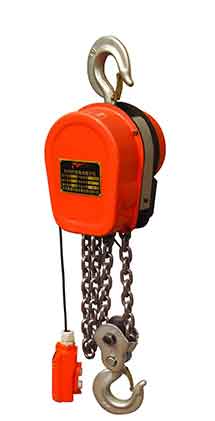

DHS series electric chain hoist specifications 1 Ton, 2 Ton, 3 Ton, 5 Ton, 10 Ton

DHS series electric chain hoist specifications 1 Ton, 2 Ton, 3 Ton, 5 Ton, 10 Ton,

Model	DHS	DHS	DHS	DHS	DHS
Lifting capacity	1 ton	2 ton	3 ton	5 ton	10 ton
Lift speed 5m/min	2.2	1.85	1.15	0.95	0.45
Lift height m	3—12m	3—12m	3—12m	3—12m	3—12m
Disk motor type	YHPE500—4	YHPE750—4	YHPE500—4	YHPE750—4	YHPE750—4
Power	500W	750W	750W	750W	750W
Rotating speed	1380r/min	1380r/min	1380r/min	1380r/min	1380r/min
Voltage	380V	380V	380V	380V	380V
Dead weight	3m.36Kg 6m.40Kg	45Kg 52Kg	42Kg 50Kg	57Kg 70Kg	115Kg 142Kg

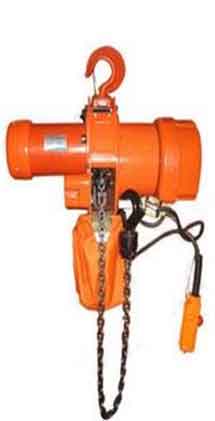

TCH series electric chain hoist specifications 0.5 ton -5 ton

TCH series electric chain hoist specifications 0.5 ton -5 ton

Model	TCH	TCH	TCH	TCH	TCH
Lifting capacity (T)	0.5  ton	1  ton	2  ton	3 ton	5 ton
Lift height（M）	1—50
Lift speed m/min	8.6	6.2	6.7	4.4	2.6
Power（kw）50HZ/60HZ	0.83/1	1.17/1.4	2.5/3	2.5/3	2.5/3
Lift chain diameter(mm)	7.1	7.1	11.2	11.2	11.2
Lift chain quantity	1	1	1	1	2
Testing loading（T)	0.625	1.25	2.5	3.75	6.25
Size (mm)	530	530	725	765	925
Net weight (kg)	53	53	100	102	130

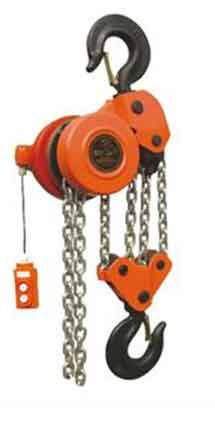

DHP series electric chain hoist specifications 0.5 ton -5 ton

DHP series electric chain hoist specifications 0.5 ton -5 ton

Model	DHP	DHP	DHP	DHP	DHP
Lifitng capacity	1 ton	2 ton	3 ton	5 ton	10 ton
Testing loading	1.25T	2.5T	3.75T	6.25T	12.5T
lifting speed	0.26m/min 0.09m/min	0.26m/min 0.09m/min	0.26m/min 0.09m/min	0.26m/min 0.09m/min	0.26m/min 0.09m/min
Min distance between two hooks mm	300	380	470	600	730
Lifting height	3 M
Motor power	0.5KW	0.8KW	1.1KW	1.5KW	0.8KW
Power voltage	380V  50HZ
Dead weight	42Kg	50Kg	55Kg	62Kg	120Kg
lift 1 more meter increase weight	0.82Kg	1.7Kg	2.9Kg	4.42Kg	8.84Kg

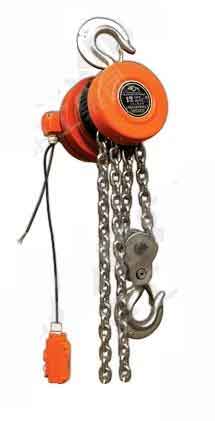

HSY series electric chain hoist specifications 0.5 ton -5 ton

HSY series electric chain hoist specifications 0.5 ton -5 ton

Model	Lift capacity(T)	Lift height (M)	Lift speed（M/Min）	Lifting motor					H steel rail
				Power kw	Rotation r/min	phase	voltage（V）	Frequency hz	mm
HSY	0.5 ton	3-9	7.8	1.1	1440	3	380/ 220	50/60	75- 125
HSY	1  ton	3-9	6.8	1.5	1440	3	380/ 220	50/60	75- 125
HSY	2.5 ton	3-9	6.8	3	1440	3	380/ 220	50/60	82- 153
HSY	2 ton	3-9	3.4	1.5	1440	3	380/ 220	50/60	75- 125
HSY	3 ton	3-9	5.8	3	1440	3	380/ 220	50/60	82- 153
HSY	5 ton	3-9	2.8	3	1440	3	380/ 220	50/60	100- 178
HSY	0.5 ton	3-9	7.8	1.1	1440	3	380/ 220	50/60	58- 127
HSY	2.5 ton	3-9	6.8	3	1440	3	380/ 220	50/60	82- 153
HSY	3 ton	3-9	5.8	3	1440	3	380/ 220	50/60	82- 153
