Manual Bridge Crane Specifications 1 Ton, 2 Ton, 3 Ton 5 Ton, 10 Ton
Your Handy,Small & Most Economical Manual Single Girder Top Running Crane

Manual overhead crane & manual bridge crane for sale, economical single girder overhead crane with top running design, with manual overhead hoist 1-10 ton.

Overview of manual bridge crane specifications

• In General
• Small lifting capacity, low efficiency and speed
• Simple structure, easy to use, no need for power
• light work duty

Supply Scope

• Lifting capacity: 1t~10t, span: 5m~14m, lifting height: 3m~10m, working duty: A1~A3;
• Non-standard products could also be designed and manufactured as your demands.

Applications of manual bridge crane with top running single girder design

• Usually used in warehouse, workshop, power station for installing and maintaining equipment;
• A kind of single girder crane, anyone of the crane, trolley and lifting mechanisms of crane is driven by manual chain;
• Equipped with chain block hoists or electric chain hoists.

Applicable Scope and Conditions of Manual bridge crane

Applied to working environment: -25℃～+40℃, humidity ≤85%, elevation: ≤1000m, power supply: 3-phase, 380V, 50Hz (made according to the order).

Product Specification of Manual Bridge Crane 1 -10 Ton

Mark: For example 5t lifting capacity, 10m span manual operational single girder crane shows as SL5t-10m.

Main Structure and Features

Main composed of bridge frame (main girder + end girders), driving & driven wheels, driving mechanism, monorail trolley and chain block hoist.

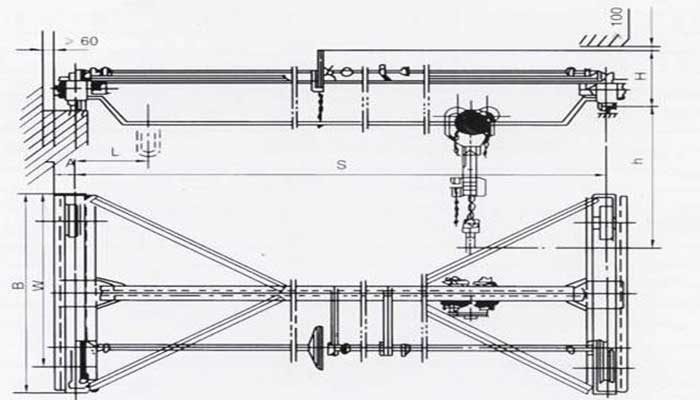

Single girder top running manual overhead crane drawing

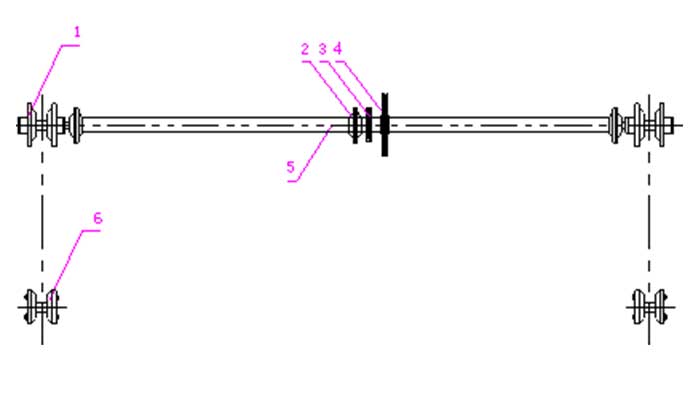

(1) driving wheel （2）flexible coupling （3）rolling bearing （4）chain wheel, （5）transmission shaft （6）driven wheel

Metal Structure

• Main beam is made by I steel, and set on the end beams; monorail trolley travels along the steel;
• End beams are welded by channel steel; the wheels between channel steels travel along rails.

Driving & Driven Wheels

• There are washers between driving wheels and channel steel for adjusting span when installation.

Driving Mechanism

• Flexible coupling composed transmission shafts together, rolling bearing supports them.
• Driving wheel turns following the chain wheel, the make the crane travel.

Monorail Manual Trolley

• Some adjustment is needed when installing trolley according to the specification of Ⅰ steel;
• All kinds of chain block hoists could be hanged on the hoisting ring;
• The lifting capacity could not exceed the rated load of the crane.

Chain Block Hoist,Manual Overhead Hoist

• According to national standard, safe, reliable and durable;   
• High ductility, small volume, light weight, easy to carry, and nice appearance;  
• Small pull force of hand, high strength of machine parts;  
• Lifting goods in the area without power supply.

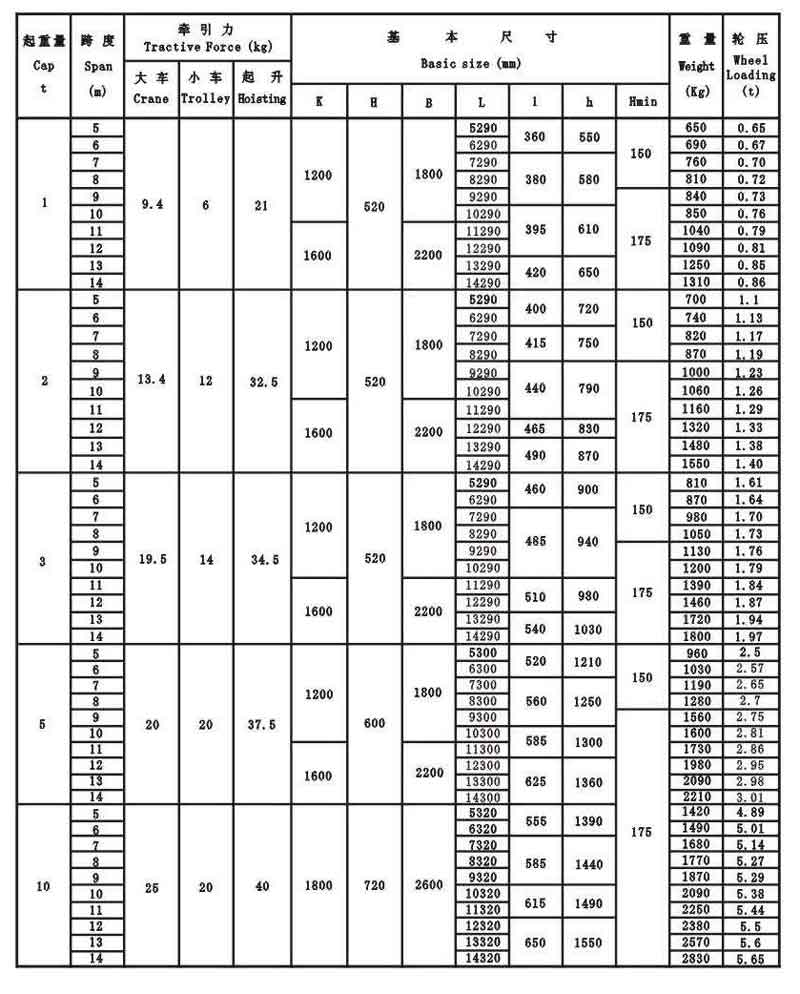

1 ton -10 ton manual overhead crane specification table
