Single Girder Overhead Crane Box Girder Design
FEM, DIN Crane, Low Headroom Design Overhead Crane 5 Ton, 10 Ton, 20 Ton

Single girder overhead crane, box girder crane design, with low headroom wire rope hoist,  light duty single girder overhead crane, 5 ton, 10 ton,  20 ton.European single girder overhead cranes, compact FEM single girder overhead crane design, small & light overhead single girder overhead crane.Good price overhead travelling crane 1-stop service.

European type single girder overhead crane

European type single girder overhead cranes with single girder overhead crane configuration, adopted with various types of electric fem hoists, design with advanced crane concept and technology, manufactured with international standards, i.e. DIN, FEM and ISO. European hoist single girder overhead crane as a specially designed overhead travelling bridge cranes have the advantages of compact design, tight volume, light weighted, high rigidity, and durable quality, etc. The single girder European single girder overhead crane system can offer large space for your production and save your crane cost and investment.

HD series European standard electric hoist single girder overhead cranes is designed with the feature of maximum rigidity for a minimum crane deadweight, which makes the load on the travelling crane runway to a minimum. In this way, it makes the single girder European single girder overhead crane a cost-effective design for the plant and an optimal solution for light duty material handling for your workshop.

Parameters of European single girder overhead crane

HD series European single girder overhead crane is our newly updated single girder overhead crane design for workshops with low or limited headroom or clearance but with larger lifting height requirements. The European single girder overhead crane adopts the advanced crane technology in according to the international standards: DIN (Germany), FEM (Europe), and CE,ISO (International)，working class A5.

The main parameters of the European type single girder overhead crane are as follow:

• Type of Overhead Travelling Crane: HD European single girder overhead crane with box girder design and fem wire rope hoist
• Lifting Capacity of Single Girder Overhead Crane :3.2 ton to20 ton ( 5 ton, 8 ton, 10 ton, 12.5 ton, 16 ton and 20 ton)
• Span of European single girder overhead crane :7.5 m to 28.5 m
• Lifting Height of overhead single girder overhead crane :6m to 18m
• Working Class of European overhead crane :A5
• Ambient Temperature of European crane :-20℃ to 40℃

Crane parts and componenets and electric hoist

• Design and production is based on FEM hoist standards.
• With optimizing low headroom crane design, the lifting height of the overhead travelling bridge crane can be higher due to the minimized crane height under the same plant height.
• With optimizing crane design and low wheel pressure , the European hoist single girder travelling crane can achieve greater lifting capacity under the same strength of the workshop.
• Crane girders of the European single girder overhead crane made of computer - optimized box sections.
• Torsionally rigid end carriages for the single girder overhead crane, with, welded box-section girder design.
• Adjustable wheel group is adopted on the single girder overhead crane, to prevent the crane rail from gnawing.
• Three-In-One mechanism is adopted with frequency conversion makes the European standard electric hoist single girder overhead crane reduce the noise to the best.
• Safety measures of different levels are equipped based on the working duty and conditions including limiters on overloading, height Stroke photoelectric and other security measures. And the recording black box can be adopted based on requirements of customer's. .

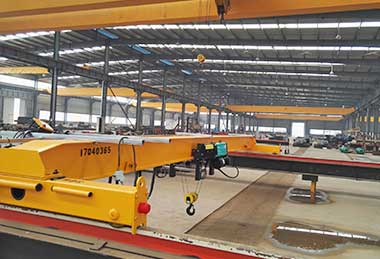

Main Girder, Box Girder Design for Single Girder Crane

Main girder for single girder overhead crane

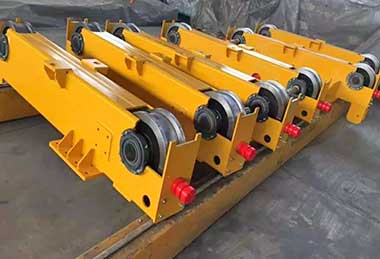

End Carriage / End Girder

End girder for single girder overhead crane

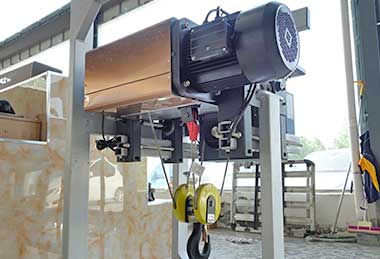

DIN/ FEM Wire Rope Hoist

fem / din hoist for single girder overhead crane

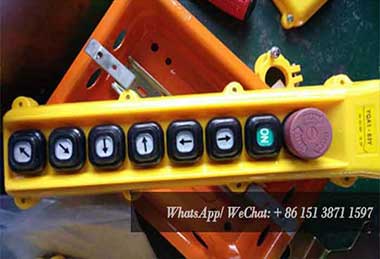

Crane Control

Crane control for fem / din single girder & double girder overhead crane, Remote control or pendant control

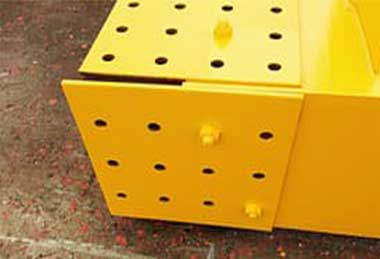

Girder Section

Make the main girder into two or more parts for easier transportation and assembly when the crane span is quite long, i.e, around 30 meters.

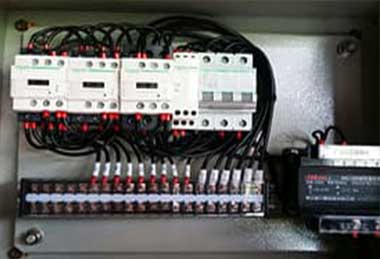

Electric Equipments

For crane and hoist power supply, we typically use Schneider, Yaskawa, and ABB brands.

Personalized configuration

• Optimum integration into existing and new buildings.
• Control pendant suspended for separate travel on the crane girder with display for installation monitoring.
• Radio control with display and proportional push buttons possible (optional).
• Optional radio control with power and signal transmission via energy chain system.

Europeans tyle single girder overhead crane projects

We understand that every industry and workspace is unique, which is why we offer a range of customization options to ensure that your crane is tailored to your specific requirements.

Our single girder bridge cranes are designed to provide reliable and efficient lifting and moving solutions for a variety of industries, including manufacturing, construction, mining, transportation, and logistics. With a customizable crane, you can optimize your workspace and improve your workflow.

We offer a range of customization options, including:

• Capacity: Our single girder bridge cranes can be customized to lift and move loads of varying weights and sizes. Whether you need to move heavy machinery or smaller components, we can design a crane to meet your needs.
• Span: The span of the crane can be customized to fit the dimensions of your workspace. Whether you have a large facility or a smaller workspace, we can design a crane to fit your requirements.
• Height: The height of the crane can be customized to fit the height of your facility. This ensures that you can optimize your vertical space and make the most of your workspace.
• Controls: We offer a range of control options, including pendant and radio remote controls, to ensure that you have the right control system for your specific needs.
• Safety features: Safety is our top priority, which is why we offer a range of safety features such as overload protection, emergency stop buttons, and warning lights.

With our customizable single girder bridge cranes, you can optimize your workspace and improve your workflow. Our team of experts will work with you to design a crane that fits your specific requirements, ensuring that you have the right lifting and moving solution for your business.

Contact us today to learn more about our customizable single girder bridge cranes and how they can benefit your business.

1.5 Ton Overhead Crane for Low Headroom Workshop Maldives
Single girder hoist crane designed for low headroom or space contained workshop or facility. Check 1.5 Ton low headroom overhead crane project installed in Maldives

Ask for overhead hoist crane price

5 Ton Single Girder Eot Crane for Shipbuilding Maldives
Single girder electric wire rope hoist overhead crane 5 ton installed and testing for Malidives shipbuilding workshops. Check low headroom 5 ton single girder overhead crane video now.

Ask for overhead hoist crane price

5 Ton Single Girder Overhead Crane Installation Feedback
5 ton electric hoist overhead crane for sale. 5 ton single girder top running crane, remote control crane tailored for your warehouse. 5 ton warehouse crane feedback.

Ask for overhead hoist crane price

6.3 Ton + 6.3 Ton Double Hoists Crane for Harvester Manufacturer
Single girder top running overhead crane with 6.3 ton + 6.3 ton electric wire rope hoists for Harvester Manufacturer in Australia. Check crane feedback now.

Ask for double hoist single girder overhead crane price

7 Ton Overhead Electric Hoist for Sale Brazil, Remote Control Hoist
7 ton electric overhead electric hoist for sale Brazil, Remote control electric hoist for freestanding overhead Crane. Custom 7 ton electric wire rope hoist for sale.

Ask for 7 ton single girder overhead crane price

Single Girder Top Running Overhead Crane 10 Ton Installation in Bangladesh
Single Girder Top Running Overhead Crane 10 Ton Installation in Bangladesh. Check 10 ton top running crane installation, testing & commissioning video.

Ask for 10 ton single girder overhead crane price

Single Girder Top Running Overhead Crane 10 Ton Commissioning
Single girder overhead crane 10 ton for sale Mali. Check 10 ton overhead crane installation, commissioning & testing video. Overhead crane for your selection. Click to learn more European style Advance crane projects to get your customized design.

Ask for 10 ton single girder overhead crane price

Advantages of European electric hoist single girder overhead crane

Single girder overhead crane has the following advantages:

• Optimized European single girder overhead crane design makes the single girder overhead crane small and compact in volume with, light dead weight,
• Small wheel load pressure makes the European single girder overhead crane compacted in size, saving your workshop space and offering higher lifting,
• The driving capacity of European single girder overhead crane can high up to 20 ton and double lifting speed is available for the single girder design.
• Frequency control of the hoist trolley and crane is available which is more functional and convenient.
• The travelling of the European single girder overhead crane is rather smooth and stable, offering precise assembling of the large mechanical parts, and etc.

Comparison between LD and HD single girder overhead crane

The comparison of the China single girder overhead crane & European crane is presented for your reference to know the features of each type to get the best value electric hoist single girder overhead crane solutions for your workshops.

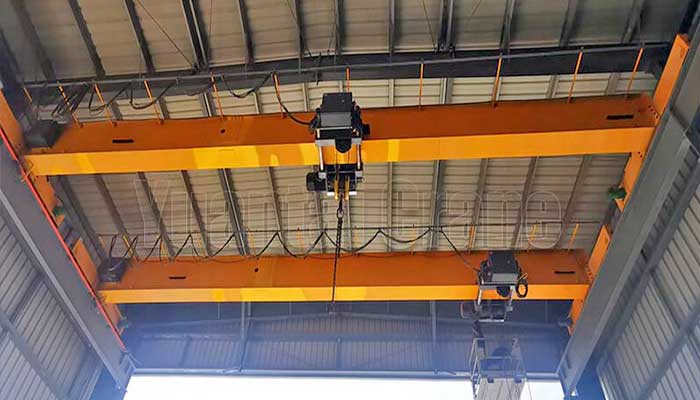

HD single girder overhead crane with European overhead crane style

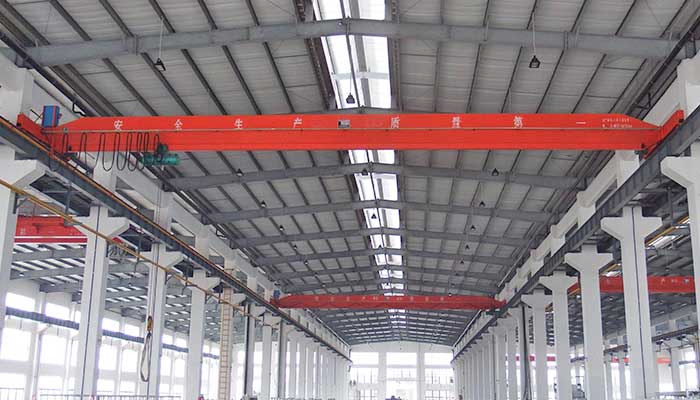

LD single girder overhead crane with Chinese overhead crane style

Crane design & Appearance

• HD single girder overhead crane: Modular design originated from Europe (motor, reducer, electrics separated, easy to maintain)
• LD single girder overhead crane: Integrated design (Hard to maintain)

Main parameters of Single Girder Hoist Crane

• HD European single girder overhead crane:Lifting capacity; 1ton - 16 ton, Lifting Height: 6m to 18m, Span Length:7.5 m to 28.5 m, Working Class: A5,, Ambient Temperature:-20℃ to 40℃
• LD Single Girder Electric Hoist Overhead Crane：Lifting Capacity:1t-20t, Lifting Height: 6m-30m, Span Length: 7.5m-28.5m,,Working Class:A3, A4, Ambient Temperature: -20℃-40℃

Note: The specifications of standard single girder overhead cranes of each type is represented for your reference and custom need, please feel free to contact us.

On Crane Hoists: Euro Rope Hoist vs CD/MD Rop Hoist

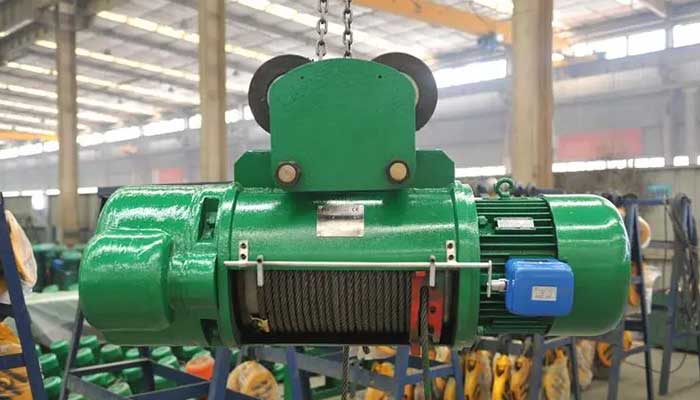

LD single girder overhead crane is  the cheap China traditional electric hoist overhead crane with single girder overhead crane configuration equipped with CD1 or MD1 wire rope hoist as the lifting system.

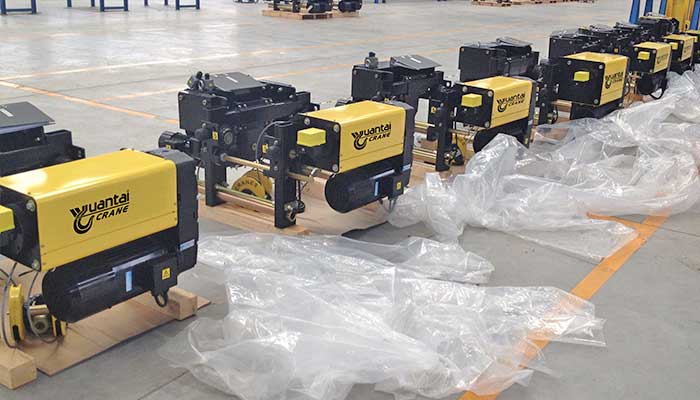

HD single girder overhead crane is the single girder overhead crane designed base on European standards, equiped with European standard FEM wire rope hoists. European type hoist is more advanced and has a higher lifting heigh.

Maintenance

• HDsingle girder overhead crane: Maintenance free, no need to add oil 3~5 years
• LD single girder overhead crane: Gear box, wire rope needs to add oil every year. Will need to a period of downtime for maintenance.

Noise

• HD single girder overhead crane: Little noise, environmental-friendly during operation
• LD single girder overhead crane: Louder noise in warehouse

On Crane price

HD & LD hoist single girder overhead cranes with same specifications may differ with each other in terms of crane price. The hd European standard electric hoist single girder overhead crane price is higher than that of the China type single girder overhead crane but it maybe more economical for the whole project and in long term scheme.
