5 Ton Single Girder Overhead Crane
Custom Electric Overhead Crane & Runway Beam for Bangladesh

Top running single girder overhead crane 5 ton with runway beams for sale Bangladesh.  Check 5 ton bridge crane specifications & get your custom crane design.

Basics of 5 ton single girder overhead crane for Bangladesh

• Crane Type：single girder overhead crane top running design
• Date of Placing Oder：2019.12.30
• Date of Delivery ：2020.5.20
• Way of Transportation： 40HQ,
• Way of Payment：100% irrevocable letter of credit
• Destination country： Bangladesh
• Destination port：FOB, Qingdao
• First Contact：2019.12.30

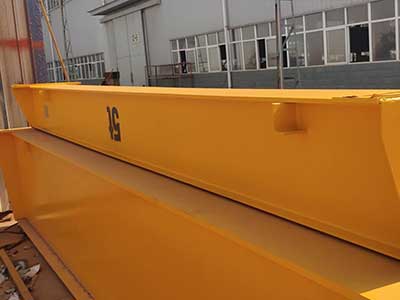

Main girder of single girder overhead crane top running design

5 ton overhead crane main specifications & general requirements

Customized features of 5 ton overhead crane for sale Bangladesh

• An electronic scale is required.
• P18 crane track, with travelling length of 34.28 meters, a total of 68.56 meters .
• 6 mm2 seamless sliding line, 34.28 meters
• Column: H396*199*7*11 meters, weight about 81kg, height: 3.963m, 14 in total, column bottom plate size: 560*400
• The bottom plate of the column uses expansion bolts M24*300, and there are 10 bolts per column, a total of 140. For details, please refer to the large picture of the column footing drawing.
• Rail beam: H396*199*7*11 meters, weight 63kg, travelling length 34.28 meters.
• Including: 2 pieces, 3.756 meters; 2 5.542 meters; 6 pieces, 6.194 meters; 2 pieces,6.394 meters. For details, please refer to our design drawings

Gallary of 5 ton single girder overhead crane for sale Bangladesh

Main girder of 5 ton single girder overhead crane for sale Bangladesh

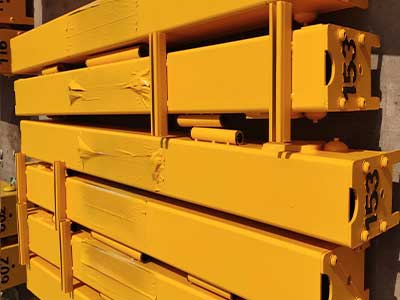

End carriages or end trucks of 5 ton overhead crane for sale Bangladesh

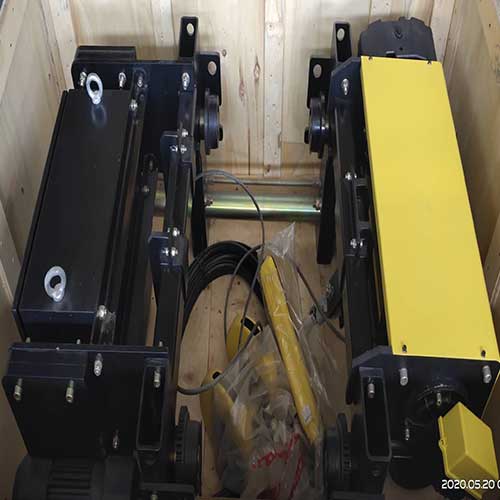

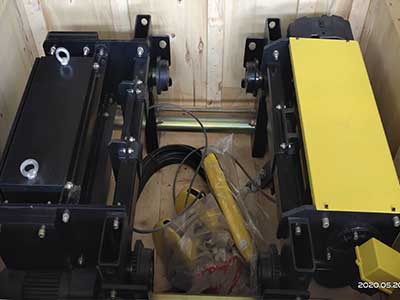

Electric wire rope hoist  for sale Bangladesh

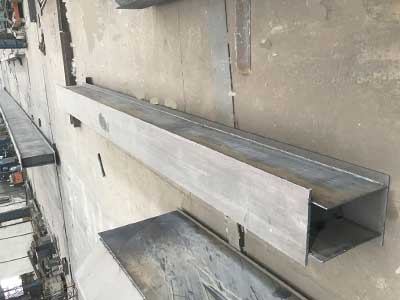

Main girder underconstruction for overhead crane for sale Bangladesh

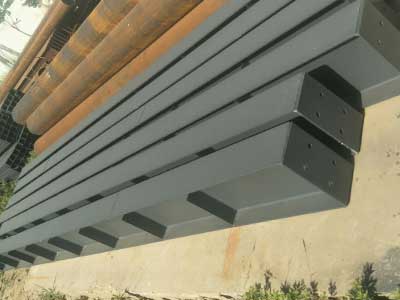

Runway beam for top runnning single girder crane to Bangladesh

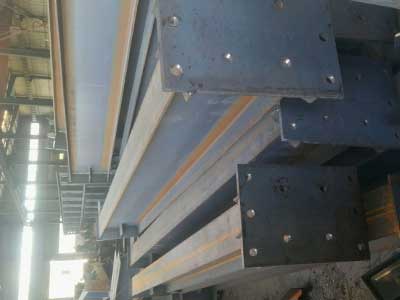

Supporting columns of overhead travelling cranes  Bangladesh
