Motorized single girder underhung cranes or under running crane are the same type of single girder overhead travelling crane. With the underhung cranes design, the end trucks / end carriages move on the bottom flange of the runway beam unlike the top running overhead travelling cranes. With anunderhung overhead crane, the runway beam is often attached and supported by the roof supporting structure, without the requirement of extra floor columns to support the runway. In this way, the underhung bridge crane can be advantageous if floor space and the requirement to reduce floor obstructions is a concern in the factory workshop or warehouse. An single girder underhung crane may also be a good solution for workshops with sloped ceilings or with multiple crane systems.

Single girder underhung cranes are typically adopted for lighter duty material handling with capacity to 10 ton or less. Our overhead suspension cranes are designed to improve crane safety and reduce load cycle times during production in your workshops.

Parameters & specifications of NLX series single girder underslung crane

The NlX series single girder underhung bridge crane is a type of single girder overhead cranes, developed based on the European standards, FEM, DIN & ISO to meet the requirements of European customers. The lifting capacity of European single girder underslung crane is a type of overhead crane with lifting capacity from 1 to 10 ton and the working class is A5. The main parameters of European single girder underslung crane is shown for your reference in the following table. Customized underslung overhead crane is available.

• Lifting capacity of single girder underhung bridge crane:1ton, 2 ton, 3 ton, 5 ton, 10 ton
• Span single of girder underhung bridge crane:3-15 m
• Lifting height of single girder underhung bridge crane:3-100 m
• Working class of single girder underhung bridge crane:A3
• Supplied with European wire rope electric hoist or chain electric hoist

Compared with the LX single girder underhung overhead crane which is developed on the Chinese traditional single girder overhead crane, the European style underslung overhead cranes has the advantages of compact design, lighter deadweight, larger lifting height and elegant appearance, etc.

Chinese types Single girder underlusng crane

European standard single girder underhung bridge crane

Single girder underlsung cranes for sale at good overhead crane price. Hot sale single girder underhung overhead cranes includes 1 ton underhung bridge crane, 2 ton underhung bridge crane,3 ton underhung bridge crane,5 ton underhung bridge crane, 10 ton underhung bridge crane, etc.Process single girder underslung bridge cranes designs are available to meet your specific applications and lifting requirements.

Main structure & complements

Main girder for underhung hung crane

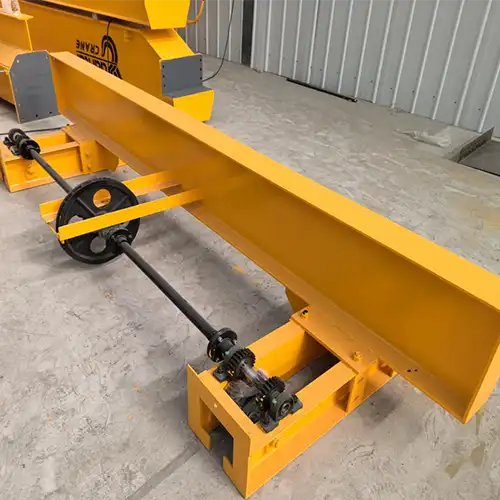

Crane end carriage for underrunning crane

European wire rope hoist for suspension crane

Electric Cabinet

The main underhung bridge crane components are presented for your reference. More underhung bridge crane details, please feel free to contact us.
Features of single girder underhung overhead crane
European under running single girder crane is a light duty material handling craneswhich are attached to the roof of the workplace without floor columns, saving space and lowering cost. The general features of single girder overhead travelling crane with under slung crane design are as following:

• Consistent quality , reliable and stable performance with benefits of overhead traveling crane design
• End truck / end carriage are designed with optimized structure.
• Rigid beam girders or welded box structure crane girders make load distribution optimal.
• Loads can be handled closely near the building walls with process crane design tailored to your applications,
• Attached to the roof structure without requirements of columns maximizing floor space
• Light duty single girder overhead travelling crane designs with capacity around 10 ton or less.

Advantages & limitations of underhung overhead cranes

Due to the unique crane designs, the single girder underhung bridge cranes are with the following advantages and limitations.
Advantages:
The single girder underhung bridge cranes are attached and supported by a roof structure without supportive floor column, free the floor space, which are good solutions for warehouses and workshops where floor space is limited and helps to improve safety and productivity.
And also with the optimizing end approaches, the underslung overhead cranes can enable the monorail hoist to get closer to the end truck or end of the runway, making the loads handling close the wall possible and helping to make the most of facility space and
Limitations:
For being attached to the building roofs, the single girder underhung bridge cranes are limited in lifting capacity which is usually 1 ton, 2 ton, 3 ton, 5 ton or up to 10 tons at most.
Also, an evaluation of the structural strength of your facility's roof are required when thinking of buying an underhung overhead crane to confirm whether it has adequate strength and ability to withstand the weight that imposed by the overhead cranes and the loads lifted. If necessary, the supporting beams can be added to enable load handling with increased capacity.

Applications of single girder underhung overhead cranes

Single girder overhead travelling cranes with underhung crane designs have a wide applications, which are applicable to various industrial application such as general manufacturing, equipment assembly, machinery maintenance, parts exchanging,die handling, and other various material loading and unloading, etc.

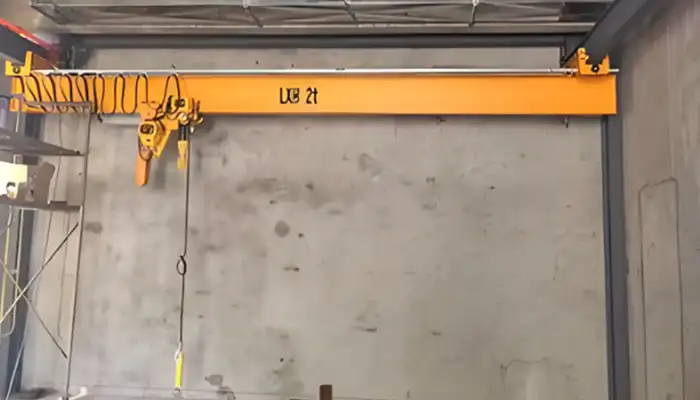

Single girder underhung bridge crane for steel structrure workshop and warehouse, with low headroom ceiling mounted crane design

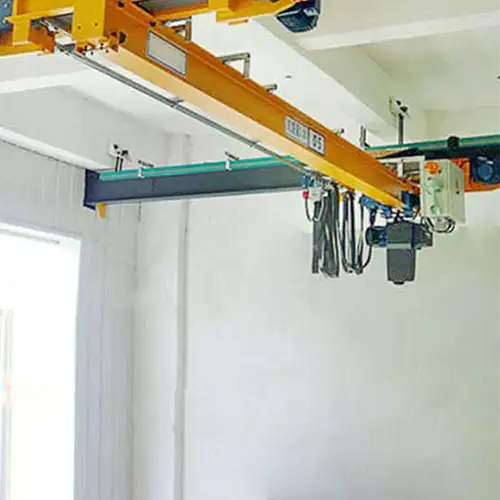

Single girder underhung bridge crane for steel truss roof workshop and warehouse, ceiling mounted crane

Single girder underhung bridge crane for concrete workshop and warehouse, ceiling crane design and low headroom hoist

Single girder underhung bridge crane for concrete workshop and warehouse with free standing underhung bridge crane design

Single girder underhung bridge crane for concrete workshop and warehouse with Eureopan style electric chain hoist design

Single girder underhung bridge crane with explosion proof underhung bridge crane design

Get your underslung overhead travelling cranes

Which type of crane is the best for your application? Usually, the best fit crane type of your specific application is ascertained based on the lifting requirements and application conditions such as the dimensions of your workshops. Consult with your crane manufacturer and installer is the most effective way to confirm the most suitable crane type for your workshop before buying a crane.

Is a single girder underhung bridge crane suitable for your application? Contact us to get professorial suggestions and all the crane options for your applications and facility. And crane maintenance services are also available to make your crane operated at peak efficiency and reliability. Contact us today to see what we can do for your material handing.
