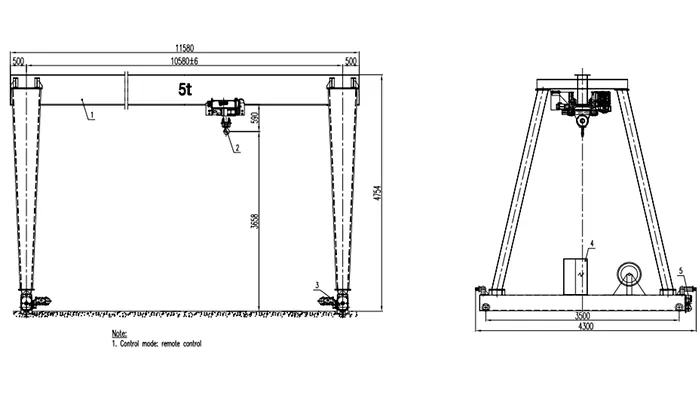

Gantry Crane 5 Ton Compact Indoor Gantry Crane - MHO S10.58m H3.658m

These dimensions come from imperial measurements converted to metric. This is a custom dimension gantry crane designed to fit a specific North American plant:

• Span: 10.58m = 34.7 ft — the actual rail center-to-center distance in the plant
• Lifting height: 3.658m = 12 ft — the required hook lift based on the plant's existing staging heights
• Total girder length: 11.58m = 38 ft — capped to fit inside a 40 ft (12.192m) wide workshop
• Overhangs: 500mm (approx. 20 in) each side — structural extension for end carriages and buffers

This is a common pattern for North American plants where the building was designed in feet. The metric dimensions on the drawing are simply the converted values — the actual fit is based on the original imperial measurements.

Yes — this is exactly the workshop size this custom dimension gantry crane is designed for. The fit works as follows:

• Workshop width: 40 ft = 12.192 m
• Total crane width: 11.58 m = 38 ft
• Side clearance: approx. 0.3 m (12 in) per side — between the crane outer edge and the workshop wall

The 0.3m per-side clearance is tight but workable for a compact indoor gantry crane with ground rails. If your workshop has columns, piping, or equipment along the walls, tell Yuantai — the span or girder length may need to be adjusted further.

The overall height is 4.754m (from rail level to the top of the structure) on this compact gantry crane. The breakdown is:

• Lifting height: 3.658 m — usable hook lift above rail level
• Structural depth: 1.096 m — girder, NR hoist body, and trolley frame above the hook
• Overall height: 4.754 m

For a safe installation, allow at least 100–200mm above 4.754m for structural deflection, tolerance, and maintenance. A practical minimum ceiling height is 4.85m – 4.95m. If your ceiling is lower, the overall height must be reduced — which in turn reduces the 3.658m lift height.

Six numbers on this custom dimension gantry crane drawing must match your site, or the crane will not fit:

If any of these six differ from your site, tell Yuantai before ordering — each change affects price and lead time on the custom dimension gantry crane.

P15 rail is a lighter rail section than P22, and it is the right choice for this compact gantry crane because:

• Lower wheel load (42.2 kN) — the 5t capacity and 3.658m lift produce a lighter load than taller gantry cranes
• Lighter deadweight (4.8t) — the compact structure weighs less, so a lighter rail is sufficient
• Lower rail cost — P15 is more economical than P22 for the same rail length
• Lower foundation cost — the lighter rail needs a less heavy foundation

Do not substitute a heavier rail without checking — but also do not use a lighter rail than P15, because the 42.2 kN wheel load requires at least P15 to distribute the load safely.

This custom dimension gantry crane is supplied with wireless radio remote control only (no pendant station). This is common in compact indoor workshops because:

• Operator mobility — the operator can move to any position around the crane for the best view of the load
• No pendant cable — eliminates a hanging cable that could interfere with stone slabs, moulds, or tall loads
• Cleaner workshop — no pendant station to mount, reducing installation cost and clutter
• Safety at distance — the operator can stand clear of the load path, especially important for stone or fragile loads

If your site requires a pendant as a backup, it can be added as an option. Tell Yuantai at the enquiry stage.

To avoid surprises at installation, these items are outside the custom dimension gantry crane supply scope unless you specifically add them:

• P15 ground rail and rail fasteners
• Rail foundation designed for 42.2 kN wheel load
• Site power supply up to the crane isolator
• Erection crane and site lifting equipment
• Local electrical connection and permits

Because P15 rail is lighter than P22, the rail procurement is often simpler on this compact gantry crane. Yuantai can supply rails, anchor sets, and foundation load drawings as optional items.

Send these ten items and Yuantai will issue a free custom dimension gantry crane CAD drawing, 3D model, and proposal within 24 hours:

1. Workshop internal width — in feet or meters (both accepted)
2. Workshop clear internal height — in feet or meters
3. Required lifting height (m or ft)
4. Required lifting capacity (t)
5. Rail center-to-center distance (span)
6. Rail length / travel distance
7. Power supply (V / Hz / Ph)
8. Lifts per hour or hours per day (duty)
9. Longest load length and weight
10. Control preference: wireless, pendant, or both

The more complete the list, the faster and more accurate the custom dimension gantry crane drawing, 3D model, and quote.

This published custom dimension gantry crane drawing and 3D rendering are a free technical reference — you may use them to plan your site and check fit. A project-specific custom dimension gantry crane GA drawing and 3D model are also free for standard configurations. A design fee may apply only for complex site conditions, non-standard dimensions, or specialized customization engineering. The custom dimension gantry crane drawing remains the property of Yuantai Cranes: unauthorized copying, use, or manufacturing without written authorization is strictly prohibited.
