Tunnel Gantry Crane 5 Ton S4.5m H25m 6m Height Drawing & 3D Model
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Gantry Crane
Tags: 5TonGantryCraneDrawing,5tongantrycrane,TunnelGantryCranes
Overview:
Engineered and manufactured by Yuantai Cranes, this Tunnel Gantry Crane 5 Ton - S4.5m - H25m - 6m Height drawing package details a specialized outdoor tunnel gantry crane (Model: MHO 5t-4.5m A5 / Drawing No: MHO 5-4.5 A5). Custom-designed for tunnel boring and underground excavation projects, this anti-wind outdoor gantry crane features a compact 4.5m span (4.5m total width), a 25m ground gantry runway, a 6m total height, and a 4.7m hook lifting height. Equipped with a 5t European wire rope hoist with 9.5kW ED60% lifting motor and 0.64kW ED40% trolley motor, this tunnel gantry crane features full variable frequency drive (VFD) speed regulation, 2/1 rope reeving with φ11mm wire rope, and a high-torque electromagnetic disc brake. Built for severe outdoor conditions including typhoon weather, it includes anti-wind devices and operates on P22 steel rails over a 13m travel length. Controlled via pendant + wireless remote, this tunnel gantry crane is rated for A5 duty class with a maximum wheel load of 40.3 kN.
Project & Technical Overview
- Equipment Type: Outdoor Tunnel Gantry Crane / Anti-Wind Portal Crane for Tunnel Boring
- Model Number: MHO 5t-4.5m A5 Tunnel Gantry Crane
- Drawing Number: MHO 5-4.5 A5

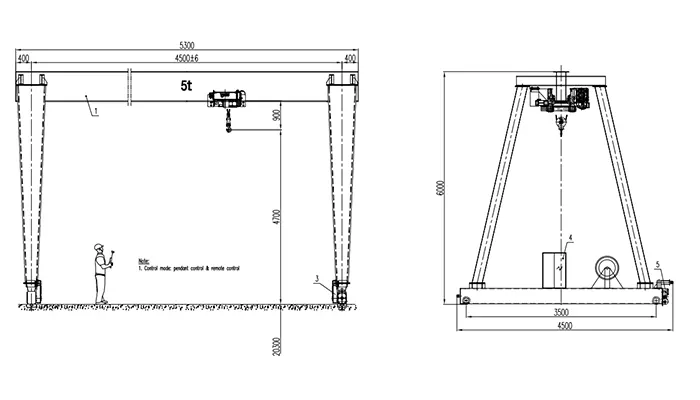

- Drawing Package: Tunnel Gantry Crane 5 Ton S4.5m H25m 6m Height Drawing Outdoor Anti-Wind (A5, Full VFD, P22 Rail) 2D + 3D Drawing Package PDF
- Crane Manufacturer: Yuantai Cranes
- Duty Class: A5 (ISO A5)
- Lifting Capacity: 5.0 t (5000 kg)
- Crane Span: 4.5 m (4500 ± 6 mm Center to Center)
- Total Crane Width: 4.5 m (4500 mm Overall Width with 400 mm Overhangs)
- Ground Gantry Length: 25 m (25,000 mm Runway)
- Total Crane Height: 6.0 m (6000 mm Overall Height)
- Lifting Height: 4.7 m (4700 mm Hook Lift)
- Travel Length: 13 m (13,000 mm Operating Travel)
- Hoist Model: 5t European Wire Rope Hoist with High-Torque Electromagnetic Disc Brake
- Lifting Motor: 9.5 kW (ED60%)
- Trolley Travel Motor: 0.64 kW (ED40%)
- Long Travel Drive: SZW-100 Gear Motors (2 × 0.75 kW) + LDA Reducers (Ratio: 58.95)
- Wire Rope: 2/1 Reeving, φ11 mm Diameter
- Recommended Rail Type: P22 Steel Rail (Max Wheel Load: 40.3 kN)
- Safety Features: Anti-Wind Devices for Typhoon Weather / Electromagnetic Disc Brake
- Control Mode: Pendant Control & Wireless Remote Control
- Speed Control: Full Variable Frequency Drive (VFD) Stepless Speed Regulation
- Environment: Outdoor Use
Tunnel Gantry Crane Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | A5 (ISO A5) |
| Lifting Capacity | 5.0 t (5000 kg) |
| Crane Span | 4.5 m (4500 ± 6 mm) |
| Total Crane Width | 4.5 m (4500 mm with 400 mm overhangs) |
| Ground Gantry Length | 25 m (25,000 mm) |
| Total Crane Height | 6.0 m (6000 mm) |
| Lifting Height | 4.7 m (4700 mm) |
| Travel Length | 13 m (13,000 mm) |
| Wheel Base (Wheel Center Distance) | 3.5 m (3500 mm) / End Carriage Base: 4.5 m |
| Hoisting Speed | 1.6 ~ 10.0 m/min (Full VFD Control) |
| Trolley Traversing Speed | 5.0 ~ 20.0 m/min (Full VFD Control) |
| Crane Long Traveling Speed | 5.0 ~ 20.0 m/min (Full VFD Control) |
| Wire Rope Reeving & Diameter | 2/1 Reeving / φ11 mm |
| Brake Type | High-Torque Electromagnetic Disc Brake |
| Buffer Stroke | 30 mm |
| Recommended Ground Rail | P22 Steel Rail |
| Maximum Wheel Load | 40.3 kN |
| Safety Features | Anti-Wind Devices for Typhoon Weather |
| Control Method | Pendant Control & Wireless Remote Control |
| Environment | Outdoor Use |
Tunnel Gantry Crane Lifting Mechanism & Drive Motor Parameters
| Component / Motor Drive | Specification |
|---|---|
| Hoisting Mechanism Model | 5t European Wire Rope Hoist with High-Torque Electromagnetic Disc Brake |
| Lifting Motor Power | 9.5 kW (ED60%) |
| Trolley Travel Motor Power | 0.64 kW (ED40%) |
| Long Travel Drive Type | SZW-100 Gear Motors + LDA Reducers |
| Long Travel Motor Power | 2 × 0.75 kW (SZW-100, 1350 r/min, Reducer Ratio: 58.95) |
| Wire Rope | 2/1 Reeving, φ11 mm Diameter |
| Brake System | High-Torque Electromagnetic Disc Brake |
| Anti-Wind Device | Subassembly for Typhoon Weather Protection |
Tunnel Gantry Crane Technical Requirement
Note:
- Purpose-Built for Tunnel Boring: This tunnel gantry crane is engineered specifically for tunnel excavation projects, with a compact 4.5m span and 25m ground gantry matched to tunnel portal dimensions.
- Anti-Wind Devices for Typhoon Weather: Equipped with dedicated anti-wind subassembly to secure the tunnel gantry crane during typhoon and severe weather conditions — critical for exposed outdoor tunnel sites.
- High-Torque Electromagnetic Disc Brake: The hoist is fitted with a high-torque electromagnetic disc brake for reliable load holding and emergency stopping, essential for underground material handling.
- Full VFD Stepless Speed Control: All motions on this tunnel gantry crane (hoisting 1.6-10 m/min, trolley 5-20 m/min, long travel 5-20 m/min) feature variable frequency drive regulation for smooth starting, precise positioning, and reduced mechanical wear.
- ED60% Hoist / ED40% Trolley Duty Cycle: The 9.5kW hoist motor at ED60% and 0.64kW trolley motor at ED40% are matched to the intermittent yet demanding duty cycle of tunnel excavation work.
- 2/1 Rope Reeving with φ11mm Wire Rope: The 2/1 reeving configuration doubles the lifting force and reduces rope stress, extending wire rope life in the dusty tunnel environment.
- Pendant + Wireless Remote Control: Dual control allows the operator to work from a safe position — critical when the tunnel gantry crane is operating near excavation faces.
- The tunnel gantry crane drawing and technical parameters shown above are for reference only. For specific tunnel dimensions, wind loads, or custom overhang configurations, please consult us for a free engineering evaluation.
- Depending on custom site requirements or special civil structures, a design fee/price may apply. Contact the Yuantai Cranes engineering team for formal proposals.
- Unauthorized copying, distribution, or manufacturing based on this tunnel gantry crane drawing without written permission from Yuantai Cranes is strictly prohibited. Yuantai Cranes assumes no legal responsibility for unauthorized usage.
How to Get Your Customized Tunnel Gantry Crane
This tunnel gantry crane drawing serves as a specialized outdoor layout template for tunnel boring projects. Yuantai Cranes customizes every tunnel gantry crane to match your specific tunnel portal dimensions, wind load, and excavation handling requirements.
| Process Step | Details |
|---|---|
| Step 1: Share Your Tunnel Project Parameters | Provide us with your tunnel portal dimensions, required capacity, lifting height, ground gantry length, wind load, and local voltage. |
| Step 2: Free CAD Drawing & Engineering Review | Our design team generates custom tunnel gantry crane layout drawings, 3D renderings, and anti-wind anchoring design free of charge. |
| Step 3: Technical Confirmation | We confirm wheel load calculations (40.3 kN), P22 rail specs, SZW drive gearboxes, brake torque, and anti-wind device specs with your team. |
| Step 4: Precision Manufacturing & Global Delivery | Your tunnel gantry crane is manufactured under strict ISO quality standards, factory tested, and delivered straight to your tunnel site. |
Need a Customized Tunnel Gantry Crane Drawing & Quote?
Send us your tunnel project dimensions today. Yuantai technical consultants will provide a free tunnel gantry crane CAD drawing, 3D rendering, and tailored price quote within 24 hours.
FAQs About This Tunnel Gantry Crane 5 Ton - S4.5m - H25m - 6m Height Drawing
Everything clients ask before using this tunnel gantry crane drawing — why the span is only 4.5m, how the anti-wind devices work in typhoon weather, why the hoist is ED60% and trolley ED40%, how the electromagnetic disc brake holds the load, 2/1 rope reeving, P22 rail, and what to send for a project tunnel gantry crane drawing and quote.
1. What is included in this Tunnel Gantry Crane 5 Ton - S4.5m - H25m - 6m Height drawing package?
This tunnel gantry crane drawing package (No. MHO 5-4.5 A5) is delivered as a 2D + 3D Drawing Package PDF. It covers the full tunnel gantry crane: single girder, A-frame legs, end carriages, the 5t European wire rope hoist with high-torque electromagnetic disc brake, trolley traverse, SZW-100 + LDA long travel drives, full VFD electrical panel, anti-wind devices, and pendant + wireless remote control. The tunnel gantry crane drawing clearly marks S4.5m span, 4.5m total width, 25m ground gantry, 6m total height, 4.7m lifting height, and 13m travel length. It does not cover ground rails, rail foundation, or site power supply — those are site-side scope.
2. Why is the span only 4.5m on this tunnel gantry crane — is that enough for tunnel work?
Yes — the 4.5m compact span is purpose-built for tunnel boring and underground excavation because:
- Tunnel portal width — tunnel portals are typically 4–6m wide, so a 4.5m span fits inside the portal opening
- Compact ground gantry — the 25m ground gantry runway runs parallel to the tunnel axis, not across a wide yard
- Low wheel load (40.3 kN) — the compact span reduces structural load, allowing a lighter P22 rail foundation at the portal
- Low total height (6.0m) — fits under tunnel portal clearance and outdoor site constraints
A wider span (10m+) is not needed because tunnel handling is linear along the tunnel axis, not across a wide yard. The 4.5m span is matched precisely to the tunnel portal geometry.
3. How do the anti-wind devices work on this tunnel gantry crane in typhoon weather?
The anti-wind devices on this tunnel gantry crane are a dedicated safety subassembly designed to secure the crane during typhoon and severe weather:
- Rail clamps: Mechanically lock the crane to the P22 rail when parked or during high wind
- Anchoring system: Additional tie-down points secure the gantry structure against wind-induced tipping
- Automatic engagement: The anti-wind system engages when the crane is parked or when wind speed exceeds a set threshold
- Designed for outdoor tunnel sites: Tunnel portals are often in exposed, coastal, or mountainous locations where typhoon wind loads are significant
For sites with extreme wind loads (above 50 m/s), additional anchoring and wind-speed monitoring can be added — tell Yuantai your local wind zone at the enquiry stage.
4. Why is the hoist motor ED60% and the trolley motor ED40% on this tunnel gantry crane?
ED stands for duty cycle (the percentage of time a motor runs within a 10-minute cycle). On this tunnel gantry crane:
- Hoist motor at ED60% — the hoist runs 6 minutes out of every 10, because tunnel work involves frequent lifting and lowering of excavated material
- Trolley motor at ED40% — the trolley runs 4 minutes out of every 10, because trolley travel is short (4.5m span) and less frequent than hoisting
- Why different ED ratings? — matching motor duty to actual use extends motor life, reduces heating, and avoids over-sizing
The ED60% / ED40% split reflects the real working pattern of tunnel excavation: heavy hoisting, lighter trolley movement. This is more efficient than specifying both motors at the same ED.
5. What is the high-torque electromagnetic disc brake, and why is it critical on this tunnel gantry crane?
The high-torque electromagnetic disc brake on this tunnel gantry crane is a critical safety component because:
- Reliable load holding — holds the 5t load securely when the hoist is stopped, even on a slope or during wind gusts
- Fast emergency stopping — engages instantly on power loss or emergency stop
- High braking torque — sized for the 9.5kW hoist motor and 5t rated load, with a safety margin
- Dust resistance — the disc brake design is more resistant to tunnel dust than drum brakes
- Long service life — the disc brake pads are replaceable, extending the hoist's operating life
In tunnel work, where the load may be suspended over workers or equipment, the electromagnetic disc brake is not optional — it is the primary safety mechanism.
6. What does 2/1 rope reeving with φ11mm wire rope mean on this tunnel gantry crane?
2/1 rope reeving means the wire rope passes through a sheave system that creates a 2:1 mechanical advantage. On this tunnel gantry crane:
- 2/1 reeving — the load is supported by two rope falls, doubling the lifting force and halving the rope tension
- φ11mm wire rope — a larger diameter than single-fall hoists, chosen for durability in the dusty tunnel environment
- Benefits — reduced rope wear, longer service life, and smoother hoisting at 1.6-10 m/min
- Trade-off — the hook block is slightly heavier and the hoisting speed at the hook is half the drum speed
The 2/1 reeving is matched to the 5t capacity and 4.7m lift height — a standard configuration for tunnel hoists where reliability is critical.
7. Which numbers on this tunnel gantry crane drawing must match my site exactly?
Seven numbers on this tunnel gantry crane drawing must match your site, or the crane will not fit or operate correctly:
| Drawing Value | What It Must Match On Site | If It Does Not Match |
|---|---|---|
| Span: S4.5m | Tunnel portal width and rail center-to-center distance (4500 ± 6 mm) | Tunnel gantry crane girder and end carriages must be redesigned |
| Total width: 4.5m | Clear width available at the tunnel portal | Interference with portal walls or structures |
| Ground gantry: 25m | Available runway length at the tunnel site | Runway must be shortened or extended |
| Total height: 6.0m | Available clearance at the tunnel portal | Tunnel gantry crane structure must be re-profiled |
| Lifting height: 4.7m | Your required hook lift above rail level | Mast height or hoist reeving must be changed |
| Travel length: 13m | Your operating travel distance along the runway | Power feeding and buffer positions must be re-specified |
| Wind load / typhoon exposure | Local wind zone and typhoon frequency | Anti-wind device specifications must be upgraded |
If any of these seven differ from your site, tell Yuantai before ordering — each change affects price and lead time on the tunnel gantry crane.
8. What site work is NOT covered by this tunnel gantry crane drawing project?
To avoid surprises at installation, these items are outside the tunnel gantry crane supply scope unless you specifically add them:
- P22 ground rail and rail fasteners for the 25m runway
- Rail foundation designed for 40.3 kN wheel load
- Anti-wind anchoring foundation points
- Site power supply up to the crane isolator
- Erection crane and site lifting equipment
- Local electrical connection and permits
Because the tunnel gantry crane operates in an exposed outdoor environment, the anti-wind anchoring foundation is a critical site-side item. Yuantai can provide anchoring load drawings as an optional item — just state this in your enquiry.
9. What do I need to send to get a project tunnel gantry crane drawing, 3D model, and price?
Send these eleven items and Yuantai will issue a free custom tunnel gantry crane CAD drawing, 3D model, and proposal within 24 hours:
- Tunnel portal width and height (m)
- Required lifting height (m)
- Required lifting capacity (t)
- Ground gantry runway length (m)
- Operating travel length (m)
- Power supply (V / Hz / Ph)
- Local wind zone / typhoon exposure
- Lifts per hour or hours per day (duty)
- Longest load length and weight
- Control preference: pendant, wireless, or both
- Any site-specific constraints (slope, dust, humidity)
The more complete the list, the faster and more accurate the tunnel gantry crane drawing, 3D model, and quote.
10. Is this tunnel gantry crane drawing free to use, and is a design fee charged?
This published tunnel gantry crane drawing and 3D rendering are a free technical reference — you may use them to plan your site and check fit. A project-specific tunnel gantry crane GA drawing and 3D model are also free for standard configurations. A design fee may apply only for complex site conditions, extreme wind loads, or specialized customization engineering. The tunnel gantry crane drawing remains the property of Yuantai Cranes: unauthorized copying, use, or manufacturing without written authorization is strictly prohibited.
Tunnel Gantry Crane Applications: Where This Outdoor Anti-Wind Gantry Crane Is Used
This Tunnel Gantry Crane 5 Ton - S4.5m - H25m - 6m Height (MHO 5t-4.5m A5) is configured for tunnel boring projects and outdoor excavation sites where compact span, anti-wind protection, and reliable hoisting are critical. Typical tunnel gantry crane applications include:
| Application / Industry | Typical Handling Task | Why This Tunnel Gantry Crane Fits |
|---|---|---|
| Tunnel boring & excavation | Lifting excavated material, tunnel segments, and equipment at the portal. | S4.5m compact span fits inside tunnel portals; 25m ground gantry runs along the tunnel axis. |
| Underground metro & subway construction | Handling precast tunnel lining segments and excavation spoil at station portals. | 4.7m lift and 6.0m total height fit under portal clearance; ED60% hoist handles frequent lifting. |
| Mountain tunnel portals (typhoon zones) | Outdoor material handling at exposed mountain tunnel entrances. | Anti-wind devices secure the tunnel gantry crane during typhoon and severe weather. |
| Coastal tunnel portals | Handling materials at sea-level or coastal tunnel entrances. | Anti-wind subassembly and outdoor-rated electrical package suit coastal wind exposure. |
| Hydropower & water tunnel portals | Moving equipment and materials at dam or water tunnel entrances. | Compact 4.5m span fits narrow portal geometry; electromagnetic disc brake holds loads safely. |
| Mining & shaft portal handling | Lifting equipment and material at mine shaft or adit entrances. | P22 rail and 40.3 kN wheel load allow a light foundation at the portal site. |
| Outdoor tunnel logistics yards | Storing and moving tunnel segments, steel ribs, and equipment outdoors. | 25m ground gantry and 13m travel length cover the storage and staging area. |
Best-Fit Working Conditions for This Tunnel Gantry Crane
- Tunnel portal width around 4.5m: The S4.5m compact span fits inside narrow tunnel portal geometry.
- Total height under 6.0m: The 6.0m overall height fits under tunnel portal clearance and outdoor site constraints.
- Lifting height around 4.7m: The 4.7m hook lift is matched to standard tunnel portal working heights.
- Outdoor, typhoon-exposed sites: Anti-wind devices and outdoor-rated electrical package secure the crane in severe weather.
- Frequent hoisting duty: ED60% hoist motor and high-torque electromagnetic disc brake handle the demanding tunnel excavation cycle.
- 13m operating travel: The 13m travel length covers typical tunnel portal staging and material handling zones.
- Light rail foundation acceptable: The 40.3 kN wheel load allows P22 rail and a lighter foundation at the tunnel portal.
Applications Where This Tunnel Gantry Crane Is Not Recommended
- Wide yard handling (above S10m): A wider span gantry crane is more suitable — see the MHO 5t-9m or MHO 5t-10m models.
- High lifting requirements above H8m: This tunnel gantry crane has a standard 4.7m lift — for higher lift, see the High Lift Gantry Crane 5 Ton - S10m - H12m.
- Very long runways above 100m: A cable reel or conductor bar long travel gantry crane is more suitable — see the Long Travel Gantry Crane 5 Ton - S20m - H6m - 70m Runway.
- Indoor workshops with low ceilings: The 6.0m total height may exceed indoor clearance — see the MHO 5t-8m low headroom model with 5.59m total height.
- Loads above 20t or duty above A6: A double girder tunnel gantry crane is required.
Yuantai Tunnel Gantry Crane Solutions
Yuantai Cranes provides customized MHO-Series European single girder tunnel gantry crane solutions tailored for tunnel boring projects, underground excavation, and outdoor portal material handling. Every tunnel gantry crane is manufactured to your exact specifications for capacity, span, lifting height, wind load, duty cycle, and electrical power supply.
Typical Tunnel Gantry Crane Technical Specifications:
- Capacity: 1.0–20.0 ton (This Model: 5.0 t)
- Crane Span: 3.0–30.0 m (This Model: S4.5m Compact Span / 4.5m Total Width)
- Ground Gantry Length: Customized to project (This Model: 25 m)
- Lifting Height: Customized up to 30+ meters (This Model: 4.7 m)
- Travel Length: Customized to project (This Model: 13 m)
- Duty Class: A5 / ISO A5 (FEM 2M)
- Hoist Motor: 9.5 kW ED60% (This Model)
- Trolley Motor: 0.64 kW ED40% (This Model)
- Brake Type: High-Torque Electromagnetic Disc Brake
- Wire Rope: 2/1 Reeving, φ11 mm (This Model)
- Drive Mechanism: SZW-100 Gear Motors with Full VFD stepless speed regulation
- Safety Features: Anti-Wind Devices for Typhoon Weather
- Control Method: Pendant Control & Wireless Remote Control
- Power Supply Spec: 220/380/400/415/440/480/575V, 50/60Hz, 3Ph (This Model: 380V 50Hz 3P)
- Environment: Outdoor Use
- Applications: Tunnel boring, underground metro construction, mountain/coastal tunnel portals, hydropower tunnel entrances, and mining shaft handling
Yuantai provides complete tunnel gantry crane project engineering, anti-wind structural design, FAT testing, export packaging, delivery, and installation guidance for global buyers.
Tunnel Gantry Crane Engineering Support & Customization
Working at a tunnel portal exposed to typhoon weather? This tunnel gantry crane drawing demonstrates how Yuantai Cranes custom-engineers compact outdoor gantry cranes with anti-wind devices and high-torque electromagnetic disc brakes for reliable tunnel boring material handling.
| Customer Challenge & Working Condition | Yuantai Tunnel Gantry Crane Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Compact tunnel portal with narrow span Requires a gantry crane that fits inside the portal opening. | S4.5m compact span with 4.5m total width and 25m ground gantry matched to tunnel portal geometry. | Span: S4.5m | Total Width: 4.5m | Ground Gantry: 25m | Height: 6.0m | Capacity: 5.0t (Model: MHO 5t-4.5m A5) |
| Typhoon weather at exposed tunnel portal Requires anti-wind devices to secure the crane in severe weather. | Anti-wind device subassembly with rail clamps and anchoring system for typhoon protection. | Safety: Anti-Wind Devices | Environment: Outdoor | Wind Zone: Typhoon-Class | Wheel Load: 40.3 kN |
| Frequent hoisting in tunnel excavation Requires heavy-duty hoist motor and reliable braking. | 9.5kW ED60% hoist motor with high-torque electromagnetic disc brake and 2/1 rope reeving φ11mm. | Hoist Motor: 9.5kW ED60% | Trolley Motor: 0.64kW ED40% | Rope: 2/1 Reeving φ11mm | Brake: Electromagnetic Disc |
How to Evaluate If This Tunnel Gantry Crane Fits Your Site
- Compact Span for Tunnel Portal: S4.5m span and 4.5m total width fit inside tunnel portal geometry.
- Anti-Wind Protection: Dedicated anti-wind devices secure the tunnel gantry crane in typhoon and severe weather.
- Heavy-Duty Hoisting: 9.5kW ED60% hoist motor and high-torque electromagnetic disc brake handle frequent tunnel excavation lifting.
- 2/1 Rope Reeving: φ11mm wire rope with 2/1 reeving extends rope life in the dusty tunnel environment.
- Full VFD Control: Smooth hoisting (1.6-10 m/min), trolley (5-20 m/min), and long travel (5-20 m/min) reduce shock and sway.
- Dual Control: Pendant + wireless remote allow the operator to work from a safe position near the tunnel face.
- Outdoor-Ready: Anti-wind devices and outdoor-rated electrical package suit exposed tunnel portal sites.
Unsure If This Tunnel Gantry Crane 5 Ton - S4.5m - H25m - 6m Height Layout Fits Your Tunnel Site?
Send us your tunnel portal parameters (Portal Width, Available Height, Runway Length, Wind Zone, and Voltage). Yuantai technical consultants will provide a FREE custom tunnel gantry crane CAD layout drawing, 3D model, and competitive quote within 24 hours.
Yuantai Cranes
Overhead Crane Manufacturer with CE, ISO, SGS, CNEX Certificates.
- Main Specifications - Capacity: 0.5–550 tons | Span: up to 40m | Speed: 0.8–12 m/min | Duty: A3–A7 | Power: 380–690V, 50/60Hz | Control: pendant/remote/cabin
- Full engineering: FEA/PLC/VFD + in-house build + global delivery + on-site support, for workshops, factories, EPC contractors, industrial projects, etc.
- Support: design, manufacturing, testing, service – end-to-end, customized lifting solutions worldwide.
How to Get an Accurate Crane Price for Your Application?
Tips: Copy the spec list, fill in your details, and paste it into the form on the right/ down-below for a quick price.
- Crane type:_____ . (e.g., overhead crane, gantry crane, jib crane)
- Max weight to lift:_____ tons. (e.g., 2t, 5t, 10t, 20t, 50t)
- Lifting height:_____ m. (How high does the hook need to reach?
- Workshop width (span):_____ m . (Distance between the two crane rails)
- Travel distance:_____ m . (How long does the crane need to move along the runway?)
- Control type:_____. (Pendant / remote / cabin Control)
- Power supply:_____. (Local voltage & frequency – e.g., 380V, 50Hz, 3-phase)
- What will it be used for?_____ (e.g., steel fabrication, concrete products, mold handling, general manufacturing, etc.)
- Any special requirements?_____ (e.g., extreme temperature, dusty or explosive environment, special paint color, etc.)
Just leave a message via the contact form and our hoist and crane engineer will contact you with in 24working hours.
Get Your Custom Quote–Quick & Easy
Fill in what you know. Skip what you don't – we'll help.Any question will be reply with 24 working hours
