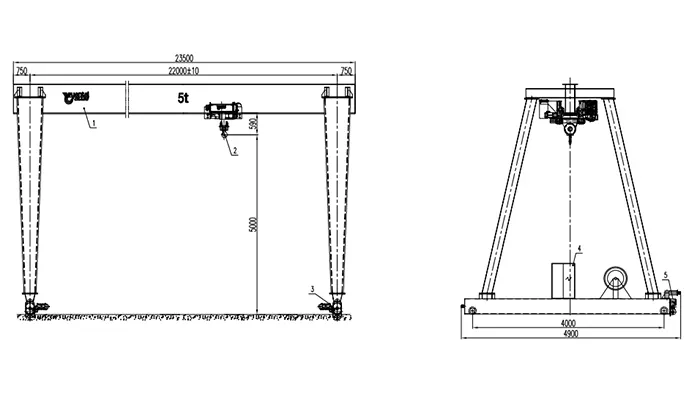

Wide Span Gantry Crane5 Ton S22m H6m Drawing & 3D Model - MHO 5t-22m A5

A 22m wide span gantry crane is chosen when the yard or bay must be covered without intermediate support columns. The advantages are:

• Maximum yard coverage — a single large span gantry crane covers the full 22m width with no internal obstacles
• No intermediate columns — avoids obstructing vehicle access, material staging, or crane paths in the yard
• Faster handling cycles — the trolley can travel the full 22m span without repositioning the crane along the rail
• Simpler civil works — only two rails are needed, rather than multiple rails for multiple cranes

The trade-off is a heavier girder and higher wheel load (59.3 kN) — but for wide outdoor yards, the coverage benefit outweighs the structural cost. If your yard is narrower, a shorter span gantry crane is more economical.

The 23.5m main girder on this wide span gantry crane requires special transport and installation planning:

• Transport: The girder is shipped in one piece if road transport permits, or in 2–3 bolted segments for sites with transport length restrictions
• Segmented design: If segmented, the girder is joined on site with high-strength bolted flange connections, aligned to the drawing's camber specification
• Installation: Requires a large mobile crane or two smaller cranes working together to lift the 23.5m girder onto the A-frame legs
• Foundation timing: Rail foundation and A-frame legs must be installed and leveled before the girder lift

Yuantai provides a transport and installation plan with the drawing package for wide span gantry cranes — tell us your site access and we will advise on segmented vs one-piece shipment.

On this wide span gantry crane, there are two different vertical measurements:

• Lifting height: 6.0 m — the hook travel from its lowest working position to its highest position
• Clear height under girder: 5.0 m — the clearance from ground level to the bottom of the main girder

The 1.0m difference is the hook block and rope space above the 5.0m clearance. In practice, the 5.0m clearance is what your trucks, equipment, or tall loads must fit under when passing through the gantry. The 6.0m lift is how high the hook can raise a load. Always use 5.0m as the passage clearance and 6.0m as the lifting capacity when planning your wide span gantry crane.

Seven numbers on this wide span gantry crane drawing must match your site, or the crane will not fit or operate correctly:

If any of these seven differ from your site, tell Yuantai before ordering — each change affects price and lead time on the wide span gantry crane.

This wide span gantry crane uses a motorized cable reel mounted on the end carriage, rather than a fixed conductor bar. The reasons:

• Lower installation cost — no conductor bar, support brackets, or collector shoes to install along the full rail length
• Outdoor reliability — a cable reel is more resistant to dust, rain, and temperature changes than exposed conductor bars
• Simpler maintenance — only the reel and cable need inspection, not the full conductor line
• Flexible for long runways — the cable reel handles the 22m span travel along the outdoor yard

If your yard is very long (over 100m), a conductor bar may be more economical because a very long cable becomes heavy. Tell Yuantai your rail length and we will advise on cable reel vs conductor bar.

Yes — this wide span gantry crane is configured for outdoor material yards and wide manufacturing bays. The outdoor-ready features include:

• Motorized cable reel — outdoor-rated power feeding
• Full VFD control — smooth travel across the wide span, reducing structural stress from wind and load sway
• Wireless radio remote — the operator can stand at a safe distance in the open yard
• P22 rail with ϕ250mm wheels — designed for outdoor ground rails with 59.3 kN wheel load

For high-wind coastal or typhoon-exposed sites, additional anti-wind rail clamps and anchoring devices must be added — tell Yuantai your wind load requirement at the enquiry stage.

To avoid surprises at installation, these items are outside the wide span gantry crane supply scope unless you specifically add them:

• P22 ground rail and rail fasteners
• Rail foundation designed for 59.3 kN wheel load
• Site power supply up to the crane isolator
• Large erection crane for the 23.5m girder lift
• Local electrical connection and permits
• Anti-wind anchoring devices (if required for your wind zone)

Because the wide span gantry crane girder is long and heavy, installation requires larger erection equipment than a standard gantry crane. Yuantai can provide installation guidance and foundation load drawings as optional items.

Send these eleven items and Yuantai will issue a free custom wide span gantry crane CAD drawing, 3D model, and proposal within 24 hours:

1. Required span (m) — the main driver of wide span design
2. Required lifting height (m)
3. Required clearance under girder (m) — for vehicle passage
4. Required lifting capacity (t)
5. Rail length / travel distance (m)
6. Yard width and any obstacles within the span
7. Power supply (V / Hz / Ph)
8. Lifts per hour or hours per day (duty)
9. Indoor or outdoor environment
10. Wind load / typhoon exposure (if outdoor)
11. Control preference: wireless, pendant, or both

The more complete the list, the faster and more accurate the wide span gantry crane drawing, 3D model, and quote.

This published wide span gantry crane drawing and 3D rendering are a free technical reference — you may use them to plan your yard and check fit. A project-specific wide span gantry crane GA drawing and 3D model are also free for standard configurations. A design fee may apply only for complex site conditions, non-standard spans, or specialized customization engineering. The wide span gantry crane drawing remains the property of Yuantai Cranes: unauthorized copying, use, or manufacturing without written authorization is strictly prohibited.
