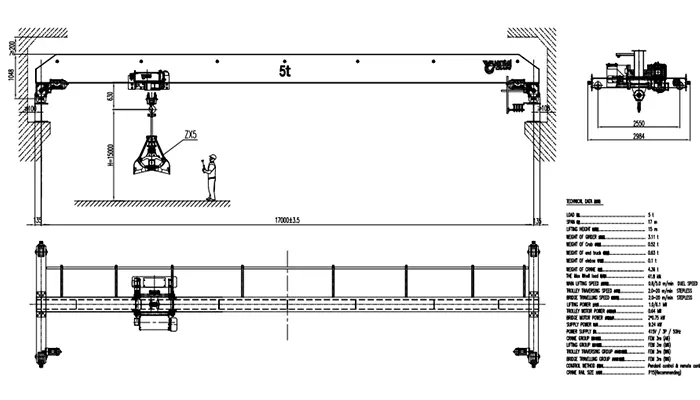

5 Ton Single Girder Overhead Grab Crane Drawing - YT-HD5-17m A6
Yuantai Cranes YT-HD 5t Single Girder Overhead Grab Crane Drawing (Span 17m, Lifting Height 15m, FEM 3m/ISO A6, ZX5 Grab Bucket 0.5m³, Outdoor Duty)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Overhead Crane
Tags: 5TonOverheadCraneDrawing,GrabBucketOverehadCrane,grabcrane
Overview: 5 Ton YT-HD Single Girder Overhead Grab Crane for Outdoor Slag Removal and Water Treatment Applications
Engineered and manufactured by Yuantai Cranes, this technical drawing package features a heavy-duty outdoor 5 Ton YT-HD European-style single girder grab overhead crane system (Model: YT-HD5t-17m A6) with a 17m span, 15m lifting height, and an integrated ZX5 0.5m³ grab bucket (for high-density materials up to 2.8t/m³). Built to heavy-duty FEM 3m / ISO A6 standards, this specialized Yuantai solution is engineered for outdoor industrial water treatment applications, slag removal in settling tanks, and pump station maintenance.
Who is this overhead grab crane for? Ideal for:
- Outdoor industrial water treatment facilities
- Slag removal in settling tanks and sedimentation basins
- Pump station maintenance operations
- Wastewater treatment plants requiring grab handling
- Outdoor bulk material handling with high-density materials
- Continuous outdoor service with weather protection requirements
- Deep-pit operations requiring 15m lifting height
Common search terms for this crane: overhead grab crane, 5 ton grab crane, 17m span grab crane, FEM 3m grab crane, A6 duty grab crane, outdoor overhead crane, slag removal crane, water treatment crane, grab bucket overhead crane, ZX5 grab crane.
Project & Technical Overview
- Equipment Type: YT-HD Single Girder Overhead Grab Crane
- Alternative Names: Overhead grab crane, slag removal crane, water treatment crane, grab bucket bridge crane
- Model Number: YT-HD5t-17m A6
- Drawing PDF: 5 Ton YT-HD Single Girder Overhead Grab Crane for Outdoor Slag Removal and Water Treatment Applications
- Crane Manufacturer: Yuantai Cranes
- Drawing Producer / Engineer: Yuantai Cranes Technical Team
- Duty Class: FEM 3m (ISO A6) Heavy Duty
- Lifting Capacity: 5.0 t
- Span: 17 m
- Lifting Height: 15 m
- Grab Bucket: ZX5 / 0.5 m³ (Wet Material Density 2.8 t/m³)
- Control Method: Pendant control & Remote control
- Special Configuration: Equipped with ZX5 model grab bucket (0.5m³ volume, wet density 2.8t/m³), extra-high 15m lift, FEM 3m (A6) heavy duty group, dual-speed main lifting, VFD stepless travel control, engineered for outdoor service
- Quantity: 1 unit
Buyer Note: This overhead grab crane is specifically designed for outdoor slag removal and water treatment applications. The ZX5 grab bucket with 0.5m³ volume handles high-density materials up to 2.8t/m³, while the 15m lifting height accommodates deep settling tanks and pits.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | FEM 3m (ISO A6) Heavy Duty |
| Lifting Capacity | 5.0 t |
| Span | 17 m |
| Lifting Height | 15 m |
| Grab Bucket Model & Volume | ZX5 / 0.5 m³ (Wet Material Density 2.8 t/m³) |
| Crane Rail Size | P15 (Recommended) |
| Max. Wheel Load | 41.3 kN |
| Power Supply | 415V / 3P / 50Hz |
| Supply Power | 9.24 kW |
| Crane Working Site | Outdoor (Settling Tanks / Slag Removal) |
| Total Crane Height | 2984 mm |
| Trolley Clearance Width | 2550 mm |
| Total Weight | 4.36 t |
| Quantity | 1 unit |
Speeds & Motor Power
| Component / Motor Drive | Specification |
|---|---|
| Main Lifting Speed | 0.8 / 5.0 m/min (DUAL SPEED) |
| Lifting Motor Power | 1.0 / 6.1 kW |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (STEPLESS VFD) |
| Trolley Motor Power | 0.64 kW |
| Bridge Travelling Speed | 2.0 ~ 20 m/min (STEPLESS VFD) |
| Bridge Motor Power | 2 × 0.75 kW |
| Control Method | Pendant & Wireless Remote Control |
Weights Breakdown
| Component | Weight |
|---|---|
| Weight of Crane (Total) | 4.36 t |
| Weight of Girder | 3.11 t |
| Weight of Crab | 0.52 t |
| Weight of End Truck | 0.63 t |
| Weight of Electric Box | 0.11 t |
Classification Groups
| Component | Classification |
|---|---|
| Crane Group | FEM 3m (A6) |
| Lifting Group | FEM 3m (M6) |
| Trolley Traversing Group | FEM 3m (M6) |
| Bridge Travelling Group | FEM 3m (M6) |
Technical Requirement
Note:
- Outdoor Service Design: Engineered for outdoor industrial water treatment applications including slag removal in settling tanks and pump station maintenance.
- Grab Bucket Configuration: Equipped with ZX5 model grab bucket (0.5m³ volume) designed for high-density materials up to 2.8t/m³.
- Extra-High Lifting: 15m lifting height accommodates deep settling tanks, pits, and sedimentation basins.
- Heavy-Duty FEM 3m / A6 Rating: Structural and mechanical design engineered for continuous intensive outdoor use.
- Dual-Speed Lifting with VFD Travel: 0.8/5.0 m/min dual-speed lifting paired with VFD stepless speed control on trolley and bridge travel.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Cranes engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Cranes is strictly prohibited. Yuantai Cranes assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About YT-HD 5t Single Girder Overhead Grab Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, grab bucket configuration, power & control options, and why it is essential for outdoor water treatment and slag removal.
1. What is this overhead grab crane and what is it designed for?
This is a YT-HD 5 Ton Single Girder Overhead Grab Crane with a 17m span and 15m lifting height, designed for outdoor slag removal and water treatment applications. It features an integrated ZX5 0.5m³ grab bucket for handling high-density materials up to 2.8t/m³, with FEM 3m/A6 heavy-duty rating for continuous outdoor service.
Ideal applications: outdoor industrial water treatment facilities, slag removal in settling tanks, pump station maintenance, wastewater treatment plants, and deep-pit operations requiring 15m lifting height.
Alternative names for this crane: overhead grab crane, slag removal crane, water treatment crane, grab bucket bridge crane.
2. What does "YT-HD5t-17m" mean in the model number?
- YT-HD = Yuantai European-style single girder overhead crane series
- 5t = Single lifting capacity: 5-ton hoist
- 17m = Span (distance between runway rail centers) of 17 meters
The lifting height is 15 meters with a total crane height of 2984mm. The crane features a single hoist with dual-speed lifting (0.8/5.0 m/min) and VFD travel control on trolley and bridge.
Grab bucket: ZX5 / 0.5 m³ (wet material density 2.8 t/m³). Duty class: FEM 3m (ISO A6). Power: 415V / 3P / 50Hz.
3. What are the key lifting specifications?
| Lifting Capacity | 5.0 t |
| Span | 17 m |
| Lifting Height | 15 m |
| Grab Bucket | ZX5 / 0.5 m³ (2.8 t/m³ density) |
| Main Lifting Speed | 0.8 / 5.0 m/min (Dual Speed) |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (VFD Stepless) |
| Bridge Travelling Speed | 2.0 ~ 20 m/min (VFD Stepless) |
| Crane Rail Size | P15 (Recommended) |
| Max. Wheel Load | 41.3 kN |
| Supply Power | 9.24 kW |
| Duty Class | FEM 3m (ISO A6) |
| Total Crane Height | 2984 mm |
| Trolley Clearance Width | 2550 mm |
| Total Weight | 4.36 t |
Buyer Tip: If your span or lifting height requirements differ, Yuantai can customize the girder length and lifting height to suit your specific outdoor application.
4. What is the duty class FEM 3m / A6 and what does it mean for my application?
The duty class is FEM 3m / ISO A6, which means:
- Extra heavy duty cycle — suitable for continuous intensive use
- Rated for up to 4,000–8,000+ hours of operation per year
- Ideal for outdoor water treatment, slag removal, and multi-shift industrial operations
- Perfectly matched to the demanding nature of continuous outdoor grab operations
What does this mean for you? If your facility operates continuous slag removal with high-frequency grab cycles, FEM 3m/A6 is the right duty class. For less demanding operations, consider FEM 2m/A5 or lower.
Duty class comparison: A3 = light duty (occasional use), A4 = medium duty (regular intermittent), A5 = heavy duty (regular daily), A6 = extra heavy duty (continuous), A7 = severe duty (round-the-clock).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 415V / 3-Phase / 50Hz
- Lifting Motor: 1.0 / 6.1 kW (Dual Speed)
- Trolley Motor: 0.64 kW
- Bridge Motor: 2 × 0.75 kW
- Total Supply Power: 9.24 kW
Control Modes:
- Pendant control — wired handheld controller with safety voltage
- Wireless remote control — for flexible positioning
Buyer Note: Pre-configured for 415V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 380V, 440V, 575V, or 60Hz), please inform us during inquiry for customization.
6. Why is this grab crane essential for outdoor water treatment and slag removal?
- ZX5 grab bucket (0.5m³) — handles high-density materials up to 2.8t/m³
- 5t capacity — handles heavy industrial sludge and slag
- 17m span — covers large outdoor settling bays and channels
- 15m lifting height — accommodates deep settling tanks and pits
- FEM 3m / A6 rating — suitable for continuous intensive outdoor operation
- Dual-speed lifting with VFD travel — precision positioning with smooth load movement
- Pendant + remote control — operator can work from safe distance with good visibility
- P15 rail compatibility — standardized rail system for smooth travel
- 415V 50Hz compatibility — factory-built for international industrial grids
- Outdoor service design — engineered for water treatment and slag removal applications
Why buyers choose this model: It offers the perfect combination of heavy-duty grab capacity, extra-high lifting reach, and continuous outdoor operation for water treatment facilities, slag removal in settling tanks, and pump station maintenance where reliable grab handling is essential.
How to Get Your Customized Overhead Grab Crane
This drawing serves as a standard technical reference. Since every outdoor site layout and grab handling requirement is unique, Yuantai Cranes customizes every system to fit your exact site specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, span (S), lifting height (H), grab bucket volume, material density, and site layout requirements. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, travel speeds, grab bucket type, and control methods based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your site dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Overhead Grab Crane Solution
Yuantai Cranes provides customized YT-HD Series of overhead grab crane solutions for outdoor industrial water treatment facilities, slag removal in settling tanks, pump station maintenance, and wastewater treatment plants. Each crane is configured according to the required capacity, span, lifting height, grab bucket volume, material density, duty class, control requirements, and operating environment.
Typical Technical Specifications:
- Capacity: 1–12.5 ton (This Model: 5.0 t)
- Span: 5–30 m (This Model: 17 m)
- Lifting Height: Customized according to application (This Model: 15 m)
- Grab Bucket: ZX5 / 0.5 m³ or Customized (This Model: 0.5 m³, 2.8 t/m³ density)
- Duty Class: FEM 1Bm–3m / ISO A3–A6 (This Model: FEM 3m / A6)
- Hoist Type: European Electric Wire Rope Hoist (This Model: Single 5t Hoist, Dual Speed)
- Speeds: Dual-speed lifting, VFD stepless travel control
- Control Method: Pendant Control & Wireless Remote Control
- Power Supply: 220/380/400/415/440/575V, 50/60Hz, 3Ph (This Model: 415V 50Hz 3P)
- Applications: Outdoor water treatment, slag removal, pump station maintenance, and wastewater treatment plants
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete overhead grab crane projects.
Engineering Support & Outdoor Adaptability
Handling heavy industrial sludge, slag, or wet sedimentation in outdoor water treatment basins? This technical drawing illustrates how Yuantai Cranes integrates heavy-duty FEM 3m / ISO A6 structural engineering with high-density grab bucket capabilities for deep outdoor pit operations.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| High-density wet slag removal from outdoor pits Requires specialized grab handling for materials up to 2.8t/m³ bulk density. | Integrated ZX5 model 0.5m³ grab bucket combined with heavy-duty FEM 3m (M6) hoist mechanism. | 0.5m³ grab volume, 2.8t/m³ material density, 5t total load capacity |
| Deep basin lifting & continuous outdoor service Demands high vertical travel and weather-protected heavy duty performance. | 15-meter extended lifting height with weather protection and full FEM 3m (A6) rating across all mechanisms. | 15m lifting height, FEM 3m (A6) duty group, 415V/50Hz power system |
| Dual functionality for maintenance & slag clearing Needs precise control for water pump station maintenance alongside grab operations. | Dual-speed hoisting (0.8/5.0 m/min) with dual pendant and remote control for multi-purpose bay utility. | Lifting (0.8/5.0 m/min Dual), Traversing & Travelling (2.0–20 m/min VFD) |
| Large settling bay coverage requirement Needs wide span to bridge large outdoor settling channels. | 17m span with 2550mm trolley clearance width for comprehensive bay coverage. | Span: 17m | Trolley Clearance: 2550mm | Travel Length: Customized |
How to Evaluate If This Solution Fits Your Facility
- Vertical Clearance & Depth: Engineered for deep-pit applications with an extended 15 meters lifting height and total crane structure height of 2984 mm.
- Span & Track Width: Standardized at a 17 meters span (17000 ± 3.5 mm) to bridge large outdoor settling bays and channels.
- Wheel Load & Rail Specifications: Operates on standard P15 crane rails with a maximum wheel load of 41.3 kN for civil foundation calculation.
- Outdoor Grid Compatibility: Designed for 415V / 3P / 50Hz power grids with an optimized total energy requirement of 9.24 kW.
- Grab Material Compatibility: ZX5 grab bucket optimized for high-density materials up to 2.8t/m³ wet density.
- Duty Cycle Check: FEM 3m / ISO A6 is suitable for continuous intensive outdoor operation.
