5 Ton Single Girder Overhead Crane with Steel Structure Drawing 9.5m Span
Yuantai Cranes YT-HD 5t Single Girder Overhead Crane with Steel Structure Drawing -Span 9.5m, Lifting Height 4m, FEM 2m/ISO A5, Dual-Speed Lifting, VFD Travel, Freestanding Steel Structure.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Overhead Crane
Tags: 5TonOverheadCraneDrawing,5tonoverheadcrane
Overview: 5 Ton YT-HD Single Girder Overhead Crane with Complete Freestanding Steel Structure
Engineered and manufactured by Yuantai Cranes, this technical drawing package features a complete 5 Ton YT-HD European-style single girder overhead crane system paired with a supporting steel structure workstation (Model: YT-HD5t-9.5m A5) with a 9.5m span, 4m lifting height, dual-speed lifting (0.8/5.0 m/min), and VFD variable frequency control for trolley and bridge travel. Designed for a 26-meter longitudinal runway travel length and built to FEM 2m / ISO A5 heavy-duty standards, this custom Yuantai turnkey lifting solution provides complete freestanding material handling support for workshops without pre-existing runway beams.
Who is this overhead crane with steel structure for? Ideal for:
- Facilities lacking load-bearing civil structures or columns
- New factory bays requiring turnkey overhead crane installation
- Leased facilities where building modification is not permitted
- Workshops needing rapid installation without extensive civil work
- Industrial bays requiring independent structural support
- Operations requiring both pendant and remote control flexibility
- Medium-height industrial plants with 4m lifting requirements
Common search terms for this crane: 5 ton overhead crane with steel structure, freestanding overhead crane, single girder overhead crane, 9.5m span crane, FEM 2m overhead crane, turnkey overhead crane, steel structure workstation crane, self-standing bridge crane, YT-HD overhead crane, dual-speed overhead crane.
Project & Technical Overview
- Equipment Type: Steel Structure for YT-HD Single Girder Overhead Crane
- Alternative Names: Freestanding overhead crane, turnkey bridge crane, self-standing overhead crane
- Model Number: YT-HD5t-9.5m A5

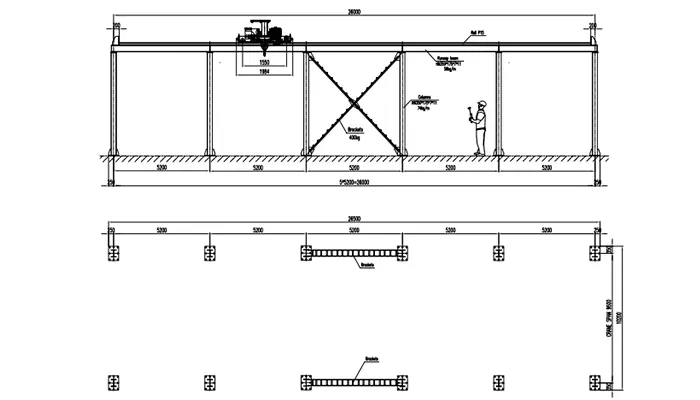

- Drawing PDF: 5 Ton YT-HD Single Girder Overhead Crane with Complete Freestanding Steel Structure
- Crane Manufacturer: Yuantai Cranes
- Drawing Producer / Engineer: Yuantai Cranes Technical Team
- Duty Class: FEM 2m (ISO A5) Heavy Duty
- Lifting Capacity: 5.0 t
- Span: 9.5 m
- Lifting Height: 4.0 m
- Runway Travel Length: 26 m (5 bays @ 5.2m)
- Control Method: Pendant control & Remote control
- Special Configuration: Integrated freestanding steel structure (columns & runway beams for 26m travel), dual-speed main lifting (0.8/5.0 m/min), VFD frequency conversion drives for trolley & bridge travelling
- Quantity: 1 unit
Buyer Note: This is a complete turnkey lifting solution including both the overhead crane and the freestanding steel structure. It eliminates the need for building modification, making it ideal for leased facilities and workshops without pre-existing load-bearing columns.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | FEM 2m (ISO A5) Heavy Duty |
| Lifting Capacity | 5.0 t |
| Span | 9.5 m |
| Lifting Height | 4.0 m |
| Runway Travel Length | 26 m (5 bays @ 5.2m) |
| Crane Rail Size | P15 (Recommended) |
| Max. Wheel Load | 34.4 kN |
| Power Supply | 380V / 3P / 50Hz |
| Supply Power | 7.65 kW |
| Crane Working Site | Indoors |
| Total Structure Height | 5061 mm |
| Overall Width (Columns Outer-to-Outer) | 10200 mm |
| Trolley Clearance Width | 1550 mm |
| Quantity | 1 unit |
Speeds & Motor Power
| Component / Motor Drive | Specification |
|---|---|
| Main Lifting Speed | 0.8 / 5.0 m/min (DUAL SPEED) |
| Lifting Motor Power | 1.0 / 4.9 kW |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (STEPLESS VFD) |
| Trolley Motor Power | 0.45 kW |
| Bridge Travelling Speed | 3.0 ~ 30 m/min (STEPLESS VFD) |
| Bridge Motor Power | 2 × 0.75 kW |
| Control Method | Pendant & Wireless Remote Control |
Weights Breakdown
| Component | Weight |
|---|---|
| Weight of Crane (Total) | 1.39 t |
| Weight of Girder | 0.44 t |
| Weight of Crab | 0.43 t |
| Weight of End Truck | 0.40 t |
| Weight of Electric Box | 0.06 t |
| Total Steel Structure Weight | 1990 kg |
Classification Groups
| Component | Classification |
|---|---|
| Crane Group | FEM 2m (A5) |
| Lifting Group | FEM 2m (M5) |
| Trolley Traversing Group | FEM 2m (M5) |
| Bridge Travelling Group | FEM 2m (M5) |
Technical Requirement
Note:
- Complete Turnkey Solution: Includes both the overhead crane and the freestanding steel structure (HN350 columns & runway beams with diagonal bracing) for 26m travel length.
- Dual-Speed Main Lifting: 0.8/5.0 m/min dual-speed lifting for precision positioning and fast material movement.
- VFD Travel Control: Stepless frequency conversion on trolley traverse (2-20 m/min) and bridge travel (3-30 m/min) eliminates load swing.
- Dual Control System: Pendant control and wireless remote control for flexible operation.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Cranes engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Cranes is strictly prohibited. Yuantai Cranes assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About YT-HD 5t Single Girder Overhead Crane with Steel Structure
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for facilities without load-bearing columns.
1. What is this overhead crane with steel structure and what is it designed for?
This is a YT-HD 5 Ton Single Girder Overhead Crane with a complete freestanding steel structure (Model: YT-HD5t-9.5m A5), featuring a 9.5m span and 4m lifting height. It is designed for facilities lacking load-bearing civil structures or columns, providing a turnkey lifting solution with independent structural support for 26m longitudinal travel.
Ideal applications: new factory bays, leased facilities, workshops requiring rapid installation without civil work, and industrial bays needing independent structural support.
Alternative names for this crane: freestanding overhead crane, turnkey bridge crane, self-standing overhead crane, steel structure overhead crane.
2. What does "YT-HD5t-9.5m" mean in the model number?
- YT-HD = Yuantai European-style single girder overhead crane series
- 5t = Single lifting capacity: 5-ton hoist
- 9.5m = Span (distance between runway rail centers) of 9.5 meters
The lifting height is 4.0 meters with a total structure height of 5061mm. The crane features a single hoist with dual-speed lifting (0.8/5.0 m/min) and VFD travel control on trolley and bridge.
Duty class: FEM 2m (ISO A5). Power: 380V / 3P / 50Hz. Travel length: 26 m (5 bays @ 5.2m).
3. What are the key lifting specifications?
| Lifting Capacity | 5.0 t |
| Span | 9.5 m |
| Lifting Height | 4.0 m |
| Runway Travel Length | 26 m (5 bays @ 5.2m) |
| Main Lifting Speed | 0.8 / 5.0 m/min (Dual Speed) |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (VFD Stepless) |
| Bridge Travelling Speed | 3.0 ~ 30 m/min (VFD Stepless) |
| Crane Rail Size | P15 (Recommended) |
| Max. Wheel Load | 34.4 kN |
| Supply Power | 7.65 kW |
| Duty Class | FEM 2m (ISO A5) |
| Total Structure Height | 5061 mm |
| Overall Width | 10200 mm (outer-to-outer columns) |
| Total Steel Structure Weight | 1990 kg |
Buyer Tip: If your span or lifting height requirements differ, Yuantai can customize the girder length and steel structure to suit your specific building layout.
4. What is the duty class FEM 2m / A5 and what does it mean for my application?
The duty class is FEM 2m / ISO A5, which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for industrial workshops, fabrication plants, and assembly bays
- Perfectly matched to the demanding nature of regular industrial material handling
What does this mean for you? If your facility operates multiple shifts per day with regular lifting, FEM 2m/A5 is the right duty class. For occasional use, consider FEM 1Bm/A3 or A4 duty cranes.
Duty class comparison: A3 = light duty (occasional use), A4 = medium duty (regular intermittent), A5 = heavy duty (regular daily), A6 = extra heavy duty (continuous).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 380V / 3-Phase / 50Hz
- Lifting Motor: 1.0 / 4.9 kW (Dual Speed)
- Trolley Motor: 0.45 kW
- Bridge Motor: 2 × 0.75 kW
- Total Supply Power: 7.65 kW
Control Modes:
- Pendant control — wired handheld controller with safety voltage
- Wireless remote control — for flexible positioning
Buyer Note: Pre-configured for 380V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 415V, 440V, 575V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for facilities without load-bearing columns?
- Complete turnkey solution — includes both overhead crane and freestanding steel structure
- No building modification required — independent steel columns and runway beams support the crane
- Rapid installation — pre-engineered steel structure minimizes site work
- 26m travel length — covers long production bays with 5 bays @ 5.2m
- Dual-speed lifting — 0.8/5.0 m/min for precision positioning and fast movement
- VFD travel control — stepless speed control eliminates load swing
- FEM 2m / ISO A5 rating — suitable for regular daily heavy-duty use
- Dual control system — pendant and wireless remote for flexible operation
- Low wheel load (34.4 kN) — minimizes foundation requirements
- P15 rail compatibility — standardized crane rails for smooth travel
Why buyers choose this model: It offers the perfect combination of complete turnkey installation, freestanding structure flexibility, and heavy-duty rating for facilities without pre-existing load-bearing columns or civil structures.
How to Get Your Customized Overhead Crane with Steel Structure
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Cranes customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, span (S), lifting height (H), and building layout requirements. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, travel speeds, and control methods based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
