5 Ton Single Girder Overhead Crane Drawing - YT-HD5-21.6m A6

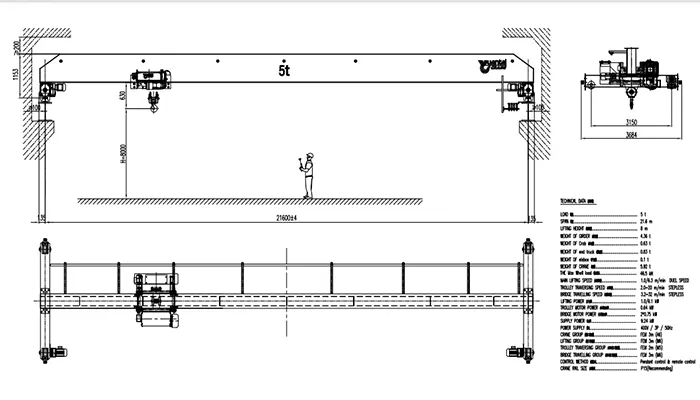

Yuantai Cranes YT-HD 5t Single Girder Overhead Crane Drawing (Span 21.6m, Lifting Height 8m, FEM 3m/ISO A6, High-Speed Bridge Travel 32 m/min, Full VFD Stepless Control)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Overhead Crane
Tags: 5TonOverheadCraneDrawing,5tonoverheadcrane
Overview: 5 Ton YT-HD Single Girder Overhead Crane with 21.6m Long Span and High-Speed Bridge Travel
Engineered and manufactured by Yuantai Cranes, this technical drawing package features a large-span, high-speed 5 Ton YT-HD European-style single girder overhead crane system (Model: YT-HD5t-21.6m A6) with an extended 21.6m span, 8m lifting height, dual-speed hoisting, and high-speed VFD bridge travelling up to 32 m/min. Built to heavy-duty FEM 3m / ISO A6 work classification standards, this custom Yuantai solution is engineered for long-distance transport along extended runways (up to 104 meters) in modern manufacturing plants and logistics bays.
Who is this overhead crane for? Ideal for:
- Large-span manufacturing plants requiring wide bay coverage
- Long-distance transport along extended runways (up to 104m)
- Modern logistics bays requiring high-speed material handling
- Continuous multi-shift operations requiring FEM 3m/A6 duty rating
- Facilities requiring high-speed bridge travel up to 32 m/min
- Industrial bays with P15 runway rails
- Operations requiring precision load handling with dual-speed hoisting
Common search terms for this crane: 5 ton overhead crane, single girder overhead crane, 21.6m span crane, FEM 3m overhead crane, A6 duty overhead crane, high-speed overhead crane, long span overhead crane, European style overhead crane, YT-HD overhead crane, full VFD overhead crane.
Project & Technical Overview
- Equipment Type: YT-HD Single Girder Overhead Crane
- Alternative Names: European style overhead crane, long span bridge crane, high-speed overhead crane
- Model Number: YT-HD5t-21.6m A6
- Drawing PDF: YT-HD 5t Single Girder Overhead Crane Drawing 21.6m Span (FEM 3m/A6, 32m/min Travel)
- Crane Manufacturer: Yuantai Cranes
- Drawing Producer / Engineer: Yuantai Cranes Technical Team
- Duty Class: FEM 3m (ISO A6) Heavy Duty
- Lifting Capacity: 5.0 t
- Span: 21.6 m
- Lifting Height: 8 m
- Runway Travel Length: 104 m
- Control Method: Pendant control & Remote control
- Special Configuration: Long-span 21.6m girder design, high-speed bridge travel (3.2–32 m/min VFD stepless), dual-speed hoisting (1.0/6.3 m/min), FEM 3m (A6) heavy duty group classification
- Quantity: 1 unit
Buyer Note: This overhead crane is specifically designed for large-span, long-distance transport applications. The 21.6m span with 32 m/min high-speed bridge travel maximizes material handling efficiency across extended runways up to 104 meters.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | FEM 3m (ISO A6) Heavy Duty |
| Lifting Capacity | 5.0 t |
| Span | 21.6 m |
| Lifting Height | 8 m |
| Runway Travel Length | 104 m |
| Crane Rail Size | P15 (Recommended) |
| Max. Wheel Load | 46.5 kN |
| Power Supply | 400V / 3P / 50Hz |
| Supply Power | 9.24 kW |
| Crane Working Site | Indoors |
| Total Crane Height | 3684 mm |
| Trolley Clearance Width | 3150 mm |
| Total Weight | 5.92 t |
| Quantity | 1 unit |
Speeds & Motor Power
| Component / Motor Drive | Specification |
|---|---|
| Main Lifting Speed | 1.0 / 6.3 m/min (DUAL SPEED) |
| Lifting Motor Power | 1.0 / 6.1 kW |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (STEPLESS VFD) |
| Trolley Motor Power | 0.64 kW |
| Bridge Travelling Speed | 3.2 ~ 32 m/min (STEPLESS VFD) |
| Bridge Motor Power | 2 × 0.75 kW |
| Control Method | Pendant & Wireless Remote Control |
Weights Breakdown
| Component | Weight |
|---|---|
| Weight of Crane (Total) | 5.92 t |
| Weight of Girder | 4.36 t |
| Weight of Crab | 0.63 t |
| Weight of End Truck | 0.83 t |
| Weight of Electric Box | 0.10 t |
Classification Groups
| Component | Classification |
|---|---|
| Crane Group | FEM 3m (A6) |
| Lifting Group | FEM 3m (M6) |
| Trolley Traversing Group | FEM 2m (M5) |
| Bridge Travelling Group | FEM 3m (M6) |
Technical Requirement
Note:
- Long-Span Design: 21.6m span with European box girder structure engineered for FEM 3m (A6) heavy-duty rating, minimizing structural deflection.
- High-Speed Bridge Travel: VFD frequency controlled bridge motors delivering stepless travel speeds from 3.2 up to 32 m/min with smooth acceleration for long-distance transport.
- Dual-Speed Hoisting: 1.0/6.3 m/min dual-speed lifting for precision positioning and fast material movement.
- Extended Runway: Designed for 104m runway travel length with VFD stepless control on trolley and bridge travel.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Cranes engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Cranes is strictly prohibited. Yuantai Cranes assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About YT-HD 5t Single Girder Overhead Crane (A6, 21.6m)
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for large-span, long-distance material handling.
1. What is this overhead crane and what is it designed for?
This is a YT-HD 5 Ton Single Girder Overhead Crane with a 21.6m span and 8m lifting height, designed for large-span, long-distance material handling in modern manufacturing plants and logistics bays. It features a single 5-ton hoist with high-speed VFD bridge travel (up to 32 m/min) and FEM 3m/A6 heavy-duty rating for extended runways up to 104 meters.
Ideal applications: large-span manufacturing plants, long-distance transport along extended runways, modern logistics bays, and continuous multi-shift operations requiring FEM 3m/A6 duty rating.
Alternative names for this crane: European style overhead crane, long span bridge crane, high-speed overhead crane, A6 duty overhead crane.
2. What does "YT-HD5t-21.6m" mean in the model number?
- YT-HD = Yuantai European-style single girder overhead crane series
- 5t = Single lifting capacity: 5-ton hoist
- 21.6m = Span (distance between runway rail centers) of 21.6 meters
The lifting height is 8 meters with a total crane height of 3684mm. The crane features a single hoist with dual-speed lifting (1.0/6.3 m/min) and high-speed VFD travel control on trolley and bridge.
Duty class: FEM 3m (ISO A6). Power: 400V / 3P / 50Hz. Runway length: 104 m.
3. What are the key lifting specifications?
| Lifting Capacity | 5.0 t |
| Span | 21.6 m |
| Lifting Height | 8 m |
| Runway Travel Length | 104 m |
| Main Lifting Speed | 1.0 / 6.3 m/min (Dual Speed) |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (VFD Stepless) |
| Bridge Travelling Speed | 3.2 ~ 32 m/min (VFD Stepless) |
| Crane Rail Size | P15 (Recommended) |
| Max. Wheel Load | 46.5 kN |
| Supply Power | 9.24 kW |
| Duty Class | FEM 3m (ISO A6) |
| Total Crane Height | 3684 mm |
| Trolley Clearance Width | 3150 mm |
| Total Weight | 5.92 t |
Buyer Tip: If your span or lifting height requirements differ, Yuantai can customize the girder length and lifting height to suit your specific building layout.
4. What is the duty class FEM 3m / A6 and what does it mean for my application?
The duty class is FEM 3m / ISO A6, which means:
- Extra heavy duty cycle — suitable for continuous intensive use
- Rated for up to 4,000–8,000+ hours of operation per year
- Ideal for large-span manufacturing plants and multi-shift logistics operations
- Perfectly matched to the demanding nature of continuous long-distance material handling
What does this mean for you? If your facility operates continuous multi-shift operation with high-frequency lifting, FEM 3m/A6 is the right duty class. For less demanding operations, consider FEM 2m/A5 or lower.
Duty class comparison: A3 = light duty (occasional use), A4 = medium duty (regular intermittent), A5 = heavy duty (regular daily), A6 = extra heavy duty (continuous), A7 = severe duty (round-the-clock).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 400V / 3-Phase / 50Hz
- Lifting Motor: 1.0 / 6.1 kW (Dual Speed)
- Trolley Motor: 0.64 kW
- Bridge Motor: 2 × 0.75 kW
- Total Supply Power: 9.24 kW
Control Modes:
- Pendant control — wired handheld controller with safety voltage
- Wireless remote control — for flexible positioning
Buyer Note: Pre-configured for 400V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 380V, 415V, 440V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for large-span, long-distance material handling?
- 5t capacity — handles heavy production components
- 21.6m span — covers large industrial bays and wide production lines
- 8m lifting height — practical vertical reach for medium-height workshops
- High-speed bridge travel (32 m/min) — reduces transit time across long runways up to 104m
- Full VFD stepless control — precision positioning on all motions
- FEM 3m / ISO A6 rating — suitable for continuous intensive multi-shift operation
- Pendant + remote control — operator can work from safe distance with good visibility
- P15 rail compatibility — standardized rail system for smooth travel
- 400V 50Hz compatibility — factory-built for international industrial grids
- Indoor use — protected from harsh environments
Why buyers choose this model: It offers the perfect combination of large-span coverage, high-speed bridge travel, full VFD precision control, and heavy-duty rating for modern manufacturing plants and logistics bays where long-distance material handling efficiency is essential.
How to Get Your Customized Overhead Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Cranes customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, span (S), lifting height (H), and building layout requirements. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, travel speeds, and control methods based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Single Girder Overhead Crane Solution
Yuantai Cranes provides customized YT-HD Series of European-style single girder overhead crane solutions for large-span manufacturing plants, long-distance transport applications, and modern logistics bays. Each crane is configured according to the required capacity, span, lifting height, runway length, duty class, control requirements, and operating environment.
Typical Technical Specifications:
- Capacity: 1–12.5 ton (This Model: 5.0 t)
- Span: 5–30 m (This Model: 21.6 m)
- Lifting Height: Customized according to application (This Model: 8 m)
- Runway Length: Customized (This Model: 104 m)
- Duty Class: FEM 1Bm–3m / ISO A3–A6 (This Model: FEM 3m / A6)
- Hoist Type: European Electric Wire Rope Hoist (This Model: Single 5t Hoist, Dual Speed)
- Speeds: Dual-speed lifting, high-speed VFD stepless travel control (up to 32 m/min)
- Control Method: Pendant Control & Wireless Remote Control
- Power Supply: 220/380/400/415/440/575V, 50/60Hz, 3Ph (This Model: 400V 50Hz 3P)
- Rail Type: P15 (Recommended) or Customized
- Applications: Large-span manufacturing plants, long-distance transport along extended runways, and modern logistics bays
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete overhead crane projects.
Engineering Support & Workshop Adaptability
Managing material handling across large-span bays and long travel paths? This technical drawing illustrates how Yuantai Cranes combines box girder structural rigidity over a 21.6m span with accelerated 32 m/min VFD travel speed to optimize long-distance transport efficiency.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Long travel distance in extended bays (104m runway) Requires high bridge travel speed to reduce transit time across the workshop. | VFD frequency controlled bridge motors delivering stepless travel speeds from 3.2 up to 32 m/min with smooth acceleration. | Bridge travel speed 3.2–32 m/min VFD, 104m runway length |
| Wide bay coverage with high load stability Demands optimal deflection control across a wide 21.6m span. | European box girder structure engineered for FEM 3m (A6) heavy-duty rating, minimizing structural sway and weight. | 21.6m span (21600 ± 4 mm), 4.36t girder weight, FEM 3m (A6) |
| Precise load handling & versatile control Needs reliable dual-speed hoisting for exact position placement. | Dual-speed main lifting (1.0/6.3 m/min) with dual pendant control and ergonomic wireless remote control system. | Lifting (1.0/6.3 m/min Dual), Pendant & Remote control |
| High wheel load runway requirements Requires heavy-duty rail system for continuous operation. | Designed for P15 heavy-duty crane rails with 46.5 kN max wheel load. | Rail: P15 (Recommended) | Max Wheel Load: 46.5 kN |
How to Evaluate If This Solution Fits Your Facility
- Span & Envelope Dimensions: Spans 21.6 meters (21600 ± 4 mm) with a overall crane structure height of 3684 mm and 8 meters lift.
- Long-Distance Duty Rating: Rated at FEM 3m / ISO A6 across crane and lifting groups, designed for continuous multi-shift operation.
- Wheel Load & Rail Integration: Max wheel load of 46.5 kN on recommended P15 crane rails for 104m runway length.
- Grid & Energy Efficiency: Standard 400V / 3P / 50Hz power supply with an efficient connected power rating of 9.24 kW.
- Duty Cycle Check: FEM 3m / ISO A6 is suitable for continuous intensive multi-shift operation.
Unsure If This Layout Fits Your Plant?
Send us your site dimensions (Length, Span, and Clear Height). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
