5 Ton Single Girder Overhead Crane Drawing - YT-HD5-23.5m A5
Yuantai Cranes YT-HD 5t Single Girder Overhead Crane Drawing (Span 23.5m, Lifting Height 8m, FEM 2m/ISO A5, High-Speed Bridge Travel 32 m/min, CE Certified Motors, 50mm Rail)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Overhead Crane
Tags: 5tonoverheadcrane
Overview: 5 Ton YT-HD Single Girder Overhead Crane with 23.5m Long Span and 50mm Rail Compatibility
Engineered and manufactured by Yuantai Cranes, this technical drawing package features an extra-long span 5 Ton YT-HD European-style single girder overhead crane system (Model: YT-HD5t-23.5m A5) with an extended 23.5m span, 8m lifting height, dual-speed hoisting, and high-speed VFD bridge travelling up to 32 m/min. Built to FEM 2m / ISO A5 standards, this custom Yuantai solution features CE-certified travel motors and custom-designed wheel assemblies specifically engineered for existing 50mm top-width crane rails in wide industrial bays.
Who is this overhead crane for? Ideal for:
- Wide industrial bays requiring extra-long span coverage
- Facilities with existing 50mm top-width runway rails
- Retrofit applications requiring modern European crane on existing rails
- High-speed material handling across long runways up to 104m
- Continuous multi-shift operations requiring FEM 2m/A5 duty rating
- International projects requiring CE-certified crane components
- Operations requiring precision load handling with dual-speed hoisting
Common search terms for this crane: 5 ton overhead crane, single girder overhead crane, 23.5m span crane, FEM 2m overhead crane, A5 duty overhead crane, high-speed overhead crane, long span overhead crane, European style overhead crane, YT-HD overhead crane, CE certified overhead crane, 50mm rail overhead crane.
Project & Technical Overview
- Equipment Type: YT-HD Single Girder Overhead Crane
- Alternative Names: European style overhead crane, long span bridge crane, high-speed overhead crane, retrofit overhead crane
- Model Number: YT-HD5t-23.5m A5

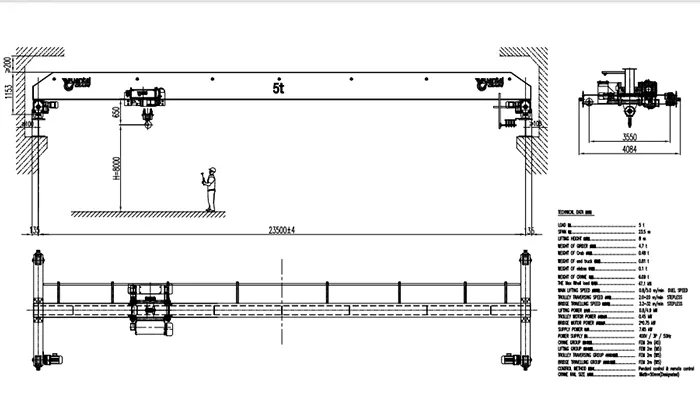

- Drawing PDF:5 Ton YT-HD Single Girder Overhead Crane with 23.5m Long Span and 50mm Rail Compatibility
- Crane Manufacturer: Yuantai Cranes
- Drawing Producer / Engineer: Yuantai Cranes Technical Team
- Duty Class: FEM 2m (ISO A5) Heavy Duty
- Lifting Capacity: 5.0 t
- Span: 23.5 m
- Lifting Height: 8 m
- Control Method: Pendant control & Remote control
- Special Configuration: Long-span 23.5m girder construction, CE-certified travel motors, designated 50mm rail head width compatibility, dual-speed hoisting (0.8/5.0 m/min), VFD stepless travel control (3.2–32 m/min bridge speed)
- Quantity: 1 unit
Buyer Note: This overhead crane is specifically designed for retrofit applications requiring compatibility with existing 50mm top-width runway rails. The CE-certified travel motors and custom-machined wheel assemblies eliminate the need for expensive rail replacement while delivering high-speed 32 m/min travel across extra-wide 23.5m spans.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | FEM 2m (ISO A5) Heavy Duty |
| Lifting Capacity | 5.0 t |
| Span | 23.5 m |
| Lifting Height | 8 m |
| Crane Rail Size | Width = 50mm (Designated) |
| Max. Wheel Load | 47.1 kN |
| Power Supply | 400V / 3P / 50Hz |
| Supply Power | 7.65 kW |
| Crane Working Site | Indoors |
| Total Crane Height | 4084 mm |
| Trolley Clearance Width | 3550 mm |
| Total Weight | 6.09 t |
| Quantity | 1 unit |
Speeds & Motor Power
| Component / Motor Drive | Specification |
|---|---|
| Main Lifting Speed | 0.8 / 5.0 m/min (DUAL SPEED) |
| Lifting Motor Power | 0.8 / 4.9 kW |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (STEPLESS VFD) |
| Trolley Motor Power | 0.45 kW |
| Bridge Travelling Speed | 3.2 ~ 32 m/min (STEPLESS VFD) |
| Bridge Motor Power | 2 × 0.75 kW (CE Certified) |
| Control Method | Pendant & Wireless Remote Control |
Weights Breakdown
| Component | Weight |
|---|---|
| Weight of Crane (Total) | 6.09 t |
| Weight of Girder | 4.71 t |
| Weight of Crab | 0.48 t |
| Weight of End Truck | 0.81 t |
| Weight of Electric Box | 0.10 t |
Classification Groups
| Component | Classification |
|---|---|
| Crane Group | FEM 2m (A5) |
| Lifting Group | FEM 2m (M5) |
| Trolley Traversing Group | FEM 2m (M5) |
| Bridge Travelling Group | FEM 2m (M5) |
Technical Requirement
Note:
- Existing Rail Compatibility: Custom machined end truck wheel sets designed specifically to operate safely on 50mm top-width rail profiles, avoiding expensive rail replacement.
- Long-Span Design: 23.5m span with European box girder structure engineered for FEM 2m (A5) heavy-duty rating, minimizing structural deflection.
- High-Speed Bridge Travel: CE-certified VFD frequency controlled bridge motors delivering stepless travel speeds from 3.2 up to 32 m/min with smooth acceleration.
- Dual-Speed Hoisting: 0.8/5.0 m/min dual-speed lifting for precision positioning and fast material movement.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Cranes engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Cranes is strictly prohibited. Yuantai Cranes assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About YT-HD 5t Single Girder Overhead Crane (23.5m, A5)
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for long-span retrofit applications.
1. What is this overhead crane and what is it designed for?
This is a YT-HD 5 Ton Single Girder Overhead Crane with a 23.5m span and 8m lifting height, designed for wide industrial bays and retrofit applications requiring compatibility with existing 50mm top-width runway rails. It features a single 5-ton hoist with high-speed VFD bridge travel (up to 32 m/min) and CE-certified travel motors.
Ideal applications: wide industrial bays, facilities with existing 50mm rails, retrofit applications, high-speed material handling across long runways, and continuous multi-shift operations requiring FEM 2m/A5 duty rating.
Alternative names for this crane: European style overhead crane, long span bridge crane, high-speed overhead crane, retrofit overhead crane.
2. What does "YT-HD5t-23.5m" mean in the model number?
- YT-HD = Yuantai European-style single girder overhead crane series
- 5t = Single lifting capacity: 5-ton hoist
- 23.5m = Span (distance between runway rail centers) of 23.5 meters
The lifting height is 8 meters with a total crane height of 4084mm. The crane features a single hoist with dual-speed lifting (0.8/5.0 m/min) and high-speed VFD travel control on trolley and bridge.
Duty class: FEM 2m (ISO A5). Power: 400V / 3P / 50Hz. Rail: 50mm top width (designated).
3. What are the key lifting specifications?
| Lifting Capacity | 5.0 t |
| Span | 23.5 m |
| Lifting Height | 8 m |
| Crane Rail Size | 50mm Top Width (Designated) |
| Main Lifting Speed | 0.8 / 5.0 m/min (Dual Speed) |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (VFD Stepless) |
| Bridge Travelling Speed | 3.2 ~ 32 m/min (VFD Stepless) |
| Max. Wheel Load | 47.1 kN |
| Supply Power | 7.65 kW |
| Duty Class | FEM 2m (ISO A5) |
| Total Crane Height | 4084 mm |
| Trolley Clearance Width | 3550 mm |
| Total Weight | 6.09 t |
Buyer Tip: If your span or lifting height requirements differ, Yuantai can customize the girder length and lifting height to suit your specific building layout and existing rail profile.
4. What is the duty class FEM 2m / A5 and what does it mean for my application?
The duty class is FEM 2m / ISO A5, which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for wide industrial bays and multi-shift manufacturing operations
- Perfectly matched to the demanding nature of regular long-distance material handling
What does this mean for you? If your facility operates multiple shifts per day with regular lifting, FEM 2m/A5 is the right duty class. For continuous round-the-clock operations, consider FEM 3m/A6 or higher.
Duty class comparison: A3 = light duty (occasional use), A4 = medium duty (regular intermittent), A5 = heavy duty (regular daily), A6 = extra heavy duty (continuous), A7 = severe duty (round-the-clock).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 400V / 3-Phase / 50Hz
- Lifting Motor: 0.8 / 4.9 kW (Dual Speed)
- Trolley Motor: 0.45 kW
- Bridge Motor: 2 × 0.75 kW (CE Certified)
- Total Supply Power: 7.65 kW
Control Modes:
- Pendant control — wired handheld controller with safety voltage
- Wireless remote control — for flexible positioning
Buyer Note: Pre-configured for 400V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 380V, 415V, 440V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for long-span retrofit applications?
- 5t capacity — handles heavy production components
- 23.5m span — covers extra-wide industrial bays
- 8m lifting height — practical vertical reach for medium-height workshops
- 50mm rail compatibility — custom-machined wheels match existing rail profiles
- High-speed bridge travel (32 m/min) — reduces transit time across long runways
- CE-certified travel motors — international compliance for global projects
- Full VFD stepless control — precision positioning on all motions
- FEM 2m / ISO A5 rating — suitable for regular daily heavy-duty use
- Pendant + remote control — operator can work from safe distance with good visibility
- 400V 50Hz compatibility — factory-built for international industrial grids
Why buyers choose this model: It offers the perfect combination of extra-long span coverage, high-speed bridge travel, and 50mm rail compatibility for retrofit applications where expensive rail replacement must be avoided while maintaining FEM 2m/A5 heavy-duty performance.
How to Get Your Customized Overhead Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Cranes customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, span (S), lifting height (H), existing rail profile, and building layout requirements. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, travel speeds, wheel profiles, and control methods based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Single Girder Overhead Crane Solution
Yuantai Cranes provides customized YT-HD Series of European-style single girder overhead crane solutions for wide industrial bays, retrofit applications, and long-distance transport operations. Each crane is configured according to the required capacity, span, lifting height, existing rail profile, duty class, control requirements, and operating environment.
Typical Technical Specifications:
- Capacity: 1–12.5 ton (This Model: 5.0 t)
- Span: 5–30 m (This Model: 23.5 m)
- Lifting Height: Customized according to application (This Model: 8 m)
- Duty Class: FEM 1Bm–3m / ISO A3–A6 (This Model: FEM 2m / A5)
- Hoist Type: European Electric Wire Rope Hoist (This Model: Single 5t Hoist, Dual Speed)
- Speeds: Dual-speed lifting, high-speed VFD stepless travel control (up to 32 m/min)
- Control Method: Pendant Control & Wireless Remote Control
- Power Supply: 220/380/400/415/440/575V, 50/60Hz, 3Ph (This Model: 400V 50Hz 3P)
- Rail Type: 50mm Top Width (Designated) or Customized
- Applications: Wide industrial bays, retrofit applications, and long-distance transport operations
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete overhead crane projects.
Engineering Support & Workshop Adaptability
Retrofitting a modern European-style crane onto existing building runway rails? This technical drawing illustrates how Yuantai Cranes custom-engineers wheel tread profiles to fit 50mm designated rail heads while delivering fast 32 m/min VFD travel across extra-wide 23.5m spans.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Compatibility with existing 50mm runway rails Avoids expensive rail replacement by matching new end truck wheels to existing track geometry. | Custom machined end truck wheel sets designed specifically to operate safely on 50mm top-width rail profiles. | Designated rail top width = 50mm, 47.1 kN max wheel load |
| Wide span coverage with smooth high-speed transit Requires rapid travel without excessive frame sway or load vibration across a 23.5m bay. | Rigid box girder design paired with CE-certified VFD drive motors for stepless acceleration up to 32 m/min. | 23.5m span (23500 ± 4 mm), Bridge travel 3.2–32 m/min VFD, CE motors |
| Energy-efficient & precise indoor lifting Demands controlled positioning and low power consumption. | Dual-speed hoisting (0.8/5.0 m/min) with a compact total connected power rating of only 7.65 kW. | Lifting (0.8/5.0 m/min Dual), 8m lift height, 7.65 kW supply power |
| International compliance requirement Requires CE-certified components for global projects. | CE-certified bridge travel motors and electrical components for international safety compliance. | CE certified travel motors, 400V/50Hz power system |
How to Evaluate If This Solution Fits Your Facility
- Span & Total Profile Height: Bridges an extra-wide 23.5 meters span (23500 ± 4 mm) with a total structural height profile of 4084 mm and 8 meters lifting clearance.
- Rail Customization: Tailored for existing runway rails with a designated top width of 50 mm and a maximum wheel load of 47.1 kN.
- Duty Classification & Safety: Rated at FEM 2m / ISO A5 duty class with CE-certified bridge motors for international compliance.
- Power & Control Flexibility: Powered by standard 400V / 3P / 50Hz with dual control methods (Pendant control & Ergonomic Remote control).
- Duty Cycle Check: FEM 2m / ISO A5 is suitable for regular daily multi-shift operation.
Unsure If This Layout Fits Your Plant?
Send us your site dimensions (Length, Span, Clear Height, and Existing Rail Profile). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
