Single Girder Overhead Crane with Duel Hoist 5t+5t 18m 9m

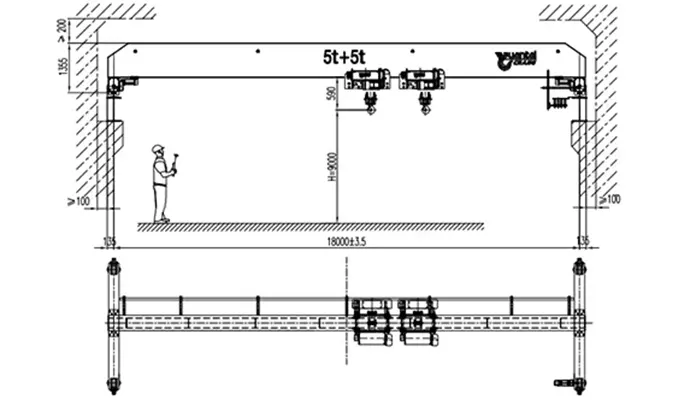

Yuantai Crane YT-HD 5t+5t Single Girder Overhead Crane Drawing (Span 18m, Lifting Height 9m, FEM 2m/ISO A5, Dual Hoists, Full VFD, Anti-Sway Function
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Overhead Crane
Tags: 5Ton+5Ton,doublehoistcrane,TandemLifting
Overview: 5t+5t YT-HD Single Girder Overhead Crane with Dual Hoists, Full VFD and Anti-Sway Function
Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package features a 5t+5t YT-HD European-style single girder overhead crane system (Model: HD5t+5t-18m A5) with an 18m span, 9m lifting height, full frequency conversion, and anti-sway function. Built to FEM 2m / ISO A5 heavy-duty standards, this custom Yuantai lifting solution features dual 5-ton hoists mounted on a single girder, providing flexible and reliable material handling for industrial workshops and fabrication plants.
Who is this overhead crane for? Ideal for:
- Industrial workshops handling long, heavy, or sensitive loads
- Fabrication plants requiring dual-point synchronized lifting
- Assembly lines needing anti-sway precision positioning
- Facilities with limited overhead space requiring low-headroom design
- Workshops with existing P22 runway rails
- Indoor material handling with high-duty cycles
- Operations requiring stepless speed control across all motions
Common search terms for this crane: 5t+5t overhead crane, dual hoist overhead crane, 18m span overhead crane, FEM 2m overhead crane, anti-sway overhead crane, full VFD overhead crane, European style overhead crane, single girder overhead crane, 10 ton overhead crane, precision positioning crane.
Project & Technical Overview
- Equipment Type: YT-HD Single Girder Overhead Crane
- Alternative Names: European style overhead crane, dual hoist bridge crane, anti-sway overhead crane
- Model Number: HD5t+5t-18m A5
- Drawing PDF: 5t+5t YT-HD Single Girder Overhead Crane with Dual Hoists, Full VFD and Anti-Sway Function
- Crane Manufacturer: Yuantai Crane Machinery
- Drawing Producer / Engineer: Yuantai Crane Technical Team
- Duty Class: FEM 2m (ISO A5) Heavy Duty
- Lifting Capacity: 5.0 t + 5.0 t (Dual Hoist)
- Span: 18 m
- Lifting Height: 9 m
- Control Method: Pendant control & Remote control
- Special Configuration: Dual hoists on main girder (2x 5t hoist), full frequency conversion (stepless speed control), anti-sway function
- Quantity: 1 unit
Buyer Note: This overhead crane system is specifically designed for dual-point synchronized lifting and precision load positioning. The full VFD stepless control and anti-sway function make it ideal for handling long, heavy, or sensitive workpieces in industrial workshops.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | FEM 2m (ISO A5) Heavy Duty |
| Lifting Capacity | 5.0 t + 5.0 t (Dual Hoist) |
| Span | 18 m |
| Lifting Height | 9 m |
| Crane Rail Size | P22 (Recommended) |
| Max. Wheel Load | 73.8 kN |
| Power Supply | 380V / 3P / 50Hz |
| Supply Power | 12.6 kW |
| Crane Working Site | Indoors |
| Total Crane Height | 3184 mm |
| Trolley Clearance Width | 2650 mm |
| Quantity | 1 unit |
Speeds & Motor Power
| Component / Motor Drive | Specification |
|---|---|
| Main Lifting Speed | 0.8 ~ 5.0 m/min (STEPLESS) |
| Lifting Motor Power | 4.9 + 4.9 kW |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (STEPLESS) |
| Trolley Motor Power | 0.44 + 0.44 kW |
| Bridge Travelling Speed | 2.0 ~ 20 m/min (STEPLESS) |
| Bridge Motor Power | 2 × 0.96 kW |
| Anti-Sway Function | Integrated (Full Frequency Conversion) |
Weights Breakdown
| Component | Weight |
|---|---|
| Weight of Crane (Total) | 5.96 t |
| Weight of Girder | 4.22 t |
| Weight of Crab | 0.46 + 0.46 t |
| Weight of End Truck | 0.72 t |
| Weight of Electric Box | 0.1 t |
Classification Groups
| Component | Classification |
|---|---|
| Crane Group | FEM 2m (A5) |
| Lifting Group | FEM 2m (M5) |
| Trolley Traversing Group | FEM 2m (M5) |
| Bridge Travelling Group | FEM 2m (M5) |
Technical Requirement
Note:
- Dual Hoist Configuration: 5t + 5t electric wire rope hoists on a single girder with synchronized stepless speed control for dual-point lifting.
- Full Frequency Conversion: All motions (lifting, trolley traverse, bridge travel) feature stepless VFD speed control for precision positioning.
- Anti-Sway Function: Integrated anti-sway technology prevents load oscillation during assembly and positioning operations.
- European Low Headroom Design: Compact 3184mm total crane height maximizes vertical lifting range within limited overhead building space.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About YT-HD 5t+5t Single Girder Overhead Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for dual-point synchronized lifting with anti-sway precision.
1. What is this overhead crane and what is it designed for?
This is a YT-HD 5t+5t Single Girder Overhead Crane with an 18m span and 9m lifting height, designed for industrial workshops requiring dual-point synchronized lifting and precision load positioning. It features dual 5-ton hoists on a single girder with full frequency conversion and anti-sway function.
Ideal applications: fabrication plants handling long workpieces, assembly lines requiring anti-sway precision, and facilities needing stepless speed control across all motions.
Alternative names for this crane: European style overhead crane, dual hoist bridge crane, anti-sway overhead crane, full VFD overhead crane.
2. What does "HD5t+5t-18m" mean in the model number?
- HD = YT-HD European-style single girder overhead crane series
- 5t+5t = Dual hoist configuration: two 5-ton hoists
- 18m = Span (distance between runway rail centers) of 18 meters
The lifting height is 9 meters with a total crane height of 3184mm. The crane features dual hoists on a single girder with full frequency conversion and anti-sway function.
Duty class: FEM 2m (ISO A5). Power: 380V / 3P / 50Hz. Rail: P22 (recommended).
3. What are the key lifting specifications?
| Lifting Capacity | 5.0 t + 5.0 t (Dual Hoist) |
| Span | 18 m |
| Lifting Height | 9 m |
| Lifting Speed | 0.8 ~ 5.0 m/min (Stepless) |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (Stepless) |
| Bridge Travelling Speed | 2.0 ~ 20 m/min (Stepless) |
| Anti-Sway Function | Integrated |
| Crane Rail Size | P22 (Recommended) |
| Max. Wheel Load | 73.8 kN |
| Supply Power | 12.6 kW |
| Duty Class | FEM 2m (ISO A5) |
| Total Crane Height | 3184 mm |
| Trolley Clearance Width | 2650 mm |
| Total Weight | 5.96 t |
Buyer Tip: If your span or lifting height requirements differ, Yuantai can customize the girder length and lifting height to suit your specific building layout.
4. What is the duty class FEM 2m / A5 and what does it mean for my application?
The duty class is FEM 2m / ISO A5, which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for industrial workshops, fabrication plants, and assembly halls
- Perfectly matched to the demanding nature of continuous industrial material handling
What does this mean for you? If your facility operates multiple shifts per day with regular lifting, FEM 2m/A5 is the right duty class. For occasional use, consider FEM 1Bm/A3 or A4 duty cranes.
Duty class comparison: A3 = light duty (occasional use), A4 = medium duty (regular intermittent), A5 = heavy duty (regular daily), A6 = extra heavy duty (continuous).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 380V / 3-Phase / 50Hz
- Lifting Motor: 4.9 + 4.9 kW (Dual Hoist)
- Trolley Motor: 0.44 + 0.44 kW
- Bridge Motor: 2 × 0.96 kW
- Total Supply Power: 12.6 kW
Control Modes:
- Pendant control — wired handheld controller with safety voltage
- Remote control — wireless operation for flexible positioning
Buyer Note: Pre-configured for 380V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 415V, 440V, 575V, or 60Hz), please inform us during inquiry for customization.
Anti-Sway Advantage: Full frequency conversion with integrated anti-sway function eliminates load oscillation during precision assembly operations.
6. Why is this crane suitable for dual-point synchronized lifting with anti-sway precision?
- Dual 5t hoists (10t total) — handles long, heavy, and unwieldy workpieces
- Full frequency conversion — stepless speed control on all motions (lifting, trolley, bridge)
- Anti-sway function — prevents load oscillation during assembly and positioning
- European low headroom design — compact 3184mm total height maximizes vertical lifting range
- FEM 2m / ISO A5 rating — suitable for regular daily heavy-duty use
- Pendant + remote control — operator can work from safe distance with good visibility
- P22 rail compatibility — smooth traveling on standard runway rails
- Indoor use — protected from harsh environments
Why buyers choose this model: It offers the perfect combination of dual-point synchronized lifting, full VFD precision control, and anti-sway technology for industrial workshops where long, heavy, or sensitive loads require precise positioning and smooth handling.
How to Get Your Customized Overhead Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, span (S), lifting height (H), and building layout requirements. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, travel speeds, and control methods based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Single Girder Overhead Crane Solution
Yuantai Cranes provides customized YT-HD Series of European-style single girder overhead crane solutions for industrial workshops, fabrication plants, assembly halls, and precision manufacturing facilities. Each crane is configured according to the required capacity, span, lifting height, duty class, control requirements, and operating environment.
Typical Technical Specifications:
- Capacity: 1–12.5 ton (This Model: 5.0 t + 5.0 t Dual Hoist)
- Span: 5–30 m (This Model: 18 m)
- Lifting Height: Customized according to application (This Model: 9 m)
- Duty Class: FEM 1Bm–3m / ISO A3–A6 (This Model: FEM 2m / A5)
- Hoist Type: European Electric Wire Rope Hoist (This Model: Dual 5t Hoists)
- Speeds: Full VFD stepless control with anti-sway function
- Control Method: Pendant Control & Wireless Remote Control
- Power Supply: 220/380/400/415/440/575V, 50/60Hz, 3Ph (This Model: 380V 50Hz 3P)
- Rail Type: P22 (Recommended) or Customized
- Applications: Industrial workshops, fabrication plants, assembly lines, and precision manufacturing operations
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete overhead crane projects.
Engineering Support & Workshop Adaptability
Need an efficient material handling system for handling long, heavy, or sensitive loads in industrial indoor workshops? This technical drawing illustrates how Yuantai Crane optimizes dual-hoist synchronization, full VFD stepless control, and anti-sway performance for demanding plant operations.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Dual-point synchronized lifting & long workpiece handling Required for safely lifting, balancing, or flipping long and unwieldy loads. | Dual hoist configuration (5t + 5t) operating on a single main girder with synchronized stepless speed control. | Twin 5t hoists, total lifting capacity 10t (5t+5t) |
| Restricted overhead space & low headroom clearance Maximizing hook travel path within limited workshop vertical building space. | European low-headroom design minimizing the vertical space occupied by the hoist trolley on the girder. | Compact total crane height (3184mm) & 9m lifting height |
| Precision load positioning & anti-sway requirement Preventing load oscillation during assembly lines and smooth positioning. | Full frequency conversion stepless speed control across all motions paired with integrated anti-sway functionality. | Lifting (0.8–5.0 m/min), Trolley (2.0–20 m/min), Bridge (2.0–20 m/min) |
| Existing P22 runway rails Facility already equipped with standard P22 crane rails. | Designed for P22 rail compatibility ensuring smooth traveling and optimal durability. | Rail: P22 (Recommended) | Max Wheel Load: 73.8 kN |
How to Evaluate If This Solution Fits Your Facility
- Height Check: Ensure your workshop clear height accommodates the 9 meters lifting height plus top safety clearance (≥200mm) and bridge height (3184 mm).
- Span & Width Check: The standard span is 18 meters, which can be 100% customized to match your building width.
- Foundation & Runway Requirement: The maximum wheel load is 73.8 kN, providing exact load data for civil engineering verification on existing runway beams.
- Rail Specification: Designed for standard P22 rails to ensure smooth traveling and optimal durability.
- Power Supply Compatibility: Pre-configured for 380V / 50Hz / 3P electrical supply (customizable to match your local plant voltage).
