10t+10t Twin Hoist Single Girder Overhead Crane Drawing - HD10t+10t-22.86m A5
Yuantai Cranes YT-HD 10t+10t Twin Hoist Single Girder Overhead Crane Drawing (Span 22.86m, Lifting Height 9m, FEM 2m/ISO A5, Full VFD Stepless Control, P30 Rail)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Overhead Crane
Tags: 10Ton+10Ton,doublehoistcrane,20TonOverheadCrane
Overview: 10t+10t YT-HD Twin Hoist Single Girder Overhead Crane for Tandem Lifting of Long Loads

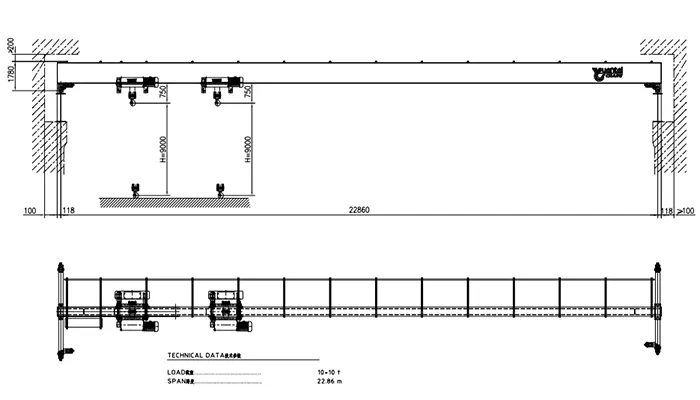

This technical drawing package covers a 10t+10t twin hoist European-style single girder overhead crane (Model: YT-HD10t+10t-22.86m A5) designed by Yuantai Cranes. The crane features a 22.86m span, 9m lifting height, full VFD stepless speed control, and dual 10t wire rope hoists mounted on a single bridge. Built to FEM 2m / ISO A5 standards, this system provides balanced tandem lifting for long or bulky loads and is configured for P30 runway rails in industrial workshops.
Who is this twin hoist overhead crane for? Ideal for:
- Lifting long steel profiles, pipes, or assemblies requiring 2-point hook support
- Wide factory bays requiring 22.86m span coverage
- Facilities with existing P30 runway rails
- Operations requiring balanced tandem lifting without double-girder complexity
- Steel fabrication and structural assembly plants
- Continuous multi-shift operations requiring FEM 2m/A5 duty rating
- Projects requiring VFD stepless control for load sway prevention
Common search terms for this crane: 10t+10t overhead crane, twin hoist overhead crane, dual hoist bridge crane, 22.86m span crane, FEM 2m overhead crane, A5 duty overhead crane, P30 rail overhead crane, tandem lifting crane, European style overhead crane, YT-HD overhead crane.
Project & Technical Overview
- Equipment Type: YT-HD Single Girder Overhead Crane (Twin Hoist)
- Alternative Names: Twin hoist bridge crane, dual hoist overhead crane, tandem lifting crane
- Model Number: YT-HD10t+10t-22.86m A5
- Drawing PDF:YT-HD 10t+10t Twin Hoist Single Girder Overhead Crane Drawing 22.86m Span (FEM 2m/A5, P30 Rail)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: FEM 2m (ISO A5) Heavy Duty
- Lifting Capacity: 10 t + 10 t (Dual Hoist)
- Span: 22.86 m
- Lifting Height: 9 m
- Designated Rail: P30 Rail
- Control Options: Pendant Control & Independent Wireless Remote Control
- Special Configuration: Dual 10t hoists, full-frequency stepless speed control across all motions, fitted for P30 crane rails, optimized for tandem handling of long structural materials
- Quantity: 1 unit
Buyer Note: This twin hoist overhead crane is specifically designed for tandem lifting of long or bulky loads. By placing two independent 10t hoists on a single 22.86m box girder, the system enables two-point balanced lifting without requiring a complex double-girder setup.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | FEM 2m (ISO A5) Heavy Duty |
| Rated Load | 10 t + 10 t (Dual Hoist) |
| Span (S) | 22.86 m |
| Lifting Height (H) | 9.0 m |
| Designated Rail | P30 Rail |
| Max. Wheel Load | 144.2 kN |
| Power Supply | 415V / 3P / 50Hz |
| Total Connected Power | 20.2 kW |
| Operating Environment | Indoors (-10°C to +40°C) |
| Top Clearance Required | 1780 mm + 200 mm safety gap |
| Trolley Overall Width | 3150 mm (wheelbase) / 3589 mm overall |
| Total Crane Weight | 11.81 t |
| Quantity | 1 unit |
Operating Speeds & Drive System
| Component / Motor Drive | Specification |
|---|---|
| Hoisting Speed | 0.7 ~ 4.0 m/min (Stepless VFD) |
| Lifting Motors | 7.5 kW + 7.5 kW |
| Trolley Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Trolley Motors | 1.1 kW + 1.1 kW |
| Bridge Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Bridge Motors | 2 × 1.5 kW |
| Control Method | Pendant & Wireless Remote Control |
Weight Distribution
| Component | Weight |
|---|---|
| Total Crane Weight | 11.81 t |
| Main Girder Structure | 8.08 t |
| Wire Rope Hoists (Crabs) | 0.81 t + 0.81 t |
| End Carriage Assemblies | 2.01 t |
| Electrical Control Cabinet | 0.11 t |
FEM / ISO Duty Classifications
| Component | Classification |
|---|---|
| Crane Duty Group | FEM 2m / ISO A5 |
| Hoisting Mechanism | FEM 2m / ISO M5 |
| Trolley Travel Mechanism | FEM 2m / ISO M5 |
| Bridge Travel Mechanism | FEM 2m / ISO M5 |
Technical Requirement
Note:
- Twin Hoist Configuration: Two 10t European hoists operating on a single bridge, allowing independent or synchronized hoisting for long or flexible items requiring 2-point hook support.
- P30 Rail Compatibility: End truck wheels engineered to match the top head profile of P30 rail sections while managing high wheel loads up to 144.2 kN.
- Full VFD Stepless Control: Variable frequency drives on hoist, trolley, and bridge travels prevent sudden acceleration shocks over wide 22.86m spans.
- Dual Control System: Comes standard with dual control interfaces (Wireless Remote Control plus wired Pendant Back-up).
- The dimensional data and layout drawings provided above serve as general technical references. Customized drawings are provided for specific plant dimensions upon request.
- Non-standard site requirements or specialized engineering design modifications may involve engineering service costs. Contact Yuantai Cranes for formal proposals.
- All drawing content is protected. Unauthorized copying or manufacturing based on this drawing without prior written permission from Yuantai Cranes is strictly prohibited.
Key Facts About YT-HD 10t+10t Twin Hoist Overhead Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for tandem lifting of long loads.
1. What is this twin hoist overhead crane and what is it designed for?
This is a YT-HD 10t+10t Twin Hoist Single Girder Overhead Crane with a 22.86m span and 9m lifting height, designed for tandem lifting of long or bulky loads in wide industrial workshops. It features dual 10t hoists on a single bridge with full VFD stepless control and P30 rail compatibility.
Ideal applications: lifting long steel profiles, pipes, or assemblies requiring 2-point hook support, steel fabrication and structural assembly plants, and operations requiring balanced tandem lifting without double-girder complexity.
Alternative names for this crane: twin hoist bridge crane, dual hoist overhead crane, tandem lifting crane, twin hoist overhead crane.
2. What does "HD10t+10t-22.86m" mean in the model number?
- HD = YT-HD European-style single girder overhead crane series
- 10t+10t = Dual hoist configuration: two 10-ton hoists
- 22.86m = Span (distance between runway rail centers) of 22.86 meters
The lifting height is 9 meters with a total crane height requiring 1780mm (+200mm safety) clearance above rail top. The crane features dual hoists on a single girder with full VFD stepless control on all motions.
Duty class: FEM 2m (ISO A5). Power: 415V / 3P / 50Hz. Rail: P30.
3. What are the key lifting specifications?
| Rated Load | 10 t + 10 t (Dual Hoist) |
| Span (S) | 22.86 m |
| Lifting Height (H) | 9.0 m |
| Designated Rail | P30 Rail |
| Hoisting Speed | 0.7 ~ 4.0 m/min (Stepless VFD) |
| Trolley Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Bridge Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Max. Wheel Load | 144.2 kN |
| Total Connected Power | 20.2 kW |
| Duty Class | FEM 2m (ISO A5) |
| Top Clearance Required | 1780 mm + 200 mm safety gap |
| Trolley Overall Width | 3150 mm (wheelbase) / 3589 mm overall |
| Total Crane Weight | 11.81 t |
Buyer Tip: If your span or lifting height requirements differ, Yuantai can customize the girder length and lifting height to suit your specific building layout.
4. What is the duty class FEM 2m / A5 and what does it mean for my application?
The duty class is FEM 2m / ISO A5, which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for steel fabrication plants and structural assembly facilities
- Perfectly matched to the demanding nature of regular tandem lifting operations
What does this mean for you? If your facility operates multiple shifts per day with regular tandem lifting, FEM 2m/A5 is the right duty class. For continuous round-the-clock operations, consider FEM 3m/A6 or higher.
Duty class comparison: A3 = light duty (occasional use), A4 = medium duty (regular intermittent), A5 = heavy duty (regular daily), A6 = extra heavy duty (continuous), A7 = severe duty (round-the-clock).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 415V / 3-Phase / 50Hz
- Lifting Motors: 7.5 kW + 7.5 kW
- Trolley Motors: 1.1 kW + 1.1 kW
- Bridge Motors: 2 × 1.5 kW
- Total Connected Power: 20.2 kW
Control Modes:
- Pendant control — wired handheld controller with safety voltage
- Wireless remote control — independent remote for flexible positioning
Buyer Note: Pre-configured for 415V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 380V, 400V, 440V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for tandem lifting of long loads?
- Dual 10t hoists (20t total) — handles long, heavy, and unwieldy workpieces
- Independent or synchronized hoisting — allows two-point balanced lifting for long steel profiles and pipes
- 22.86m span — covers wide industrial bays and production lines
- 9m lifting height — practical vertical reach for structural assembly operations
- Full VFD stepless control — prevents load sway during tandem lifting
- P30 rail compatibility — heavy-duty rail system for high wheel loads (144.2 kN)
- FEM 2m / ISO A5 rating — suitable for regular daily heavy-duty use
- Pendant + remote control — operator can work from safe distance with good visibility
- 415V 50Hz compatibility — factory-built for international industrial grids
- Single girder design — simpler and more cost-effective than double-girder twin hoist systems
Why buyers choose this model: It offers the perfect combination of dual-point tandem lifting, full VFD precision control, and P30 rail compatibility for wide-span industrial applications where long loads require balanced 2-point hook support without the complexity of a double-girder crane.
How to Get Your Customized Twin Hoist Overhead Crane
Because workshop headroom, bay length, and runway rail conditions vary, Yuantai Cranes custom-builds each single-girder crane system to match site requirements.
| Process Step | Details |
|---|---|
| Step 1: Provide Facility Dimensions | Send required capacity, span length, lifting height, and building clearance measurements. |
| Step 2: GA Drawing Preparation | Yuantai engineers produce a custom General Arrangement (GA) drawing and technical proposal. |
| Step 3: Technical Fine-Tuning | Adjust travel speeds, power supply specs, hook coverage, and control features to fit your workflow. |
| Step 4: Production & Inspection | Equipment is manufactured under factory QA protocols, complete with pre-shipment FAT verification. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Twin Hoist Overhead Crane Solution
Yuantai Cranes provides customized YT-HD Series of twin hoist overhead crane solutions for steel fabrication plants, structural assembly facilities, and wide-span industrial workshops. Each crane is configured according to the required capacity, span, lifting height, rail profile, duty class, control requirements, and operating environment.
Typical Technical Specifications:
- Capacity: 1–12.5 ton per hoist (This Model: 10 t + 10 t Dual Hoist)
- Span: 5–30 m (This Model: 22.86 m)
- Lifting Height: Customized according to application (This Model: 9 m)
- Duty Class: FEM 1Bm–3m / ISO A3–A6 (This Model: FEM 2m / A5)
- Hoist Type: European Electric Wire Rope Hoist (This Model: Dual 10t Hoists)
- Speeds: Full VFD stepless control on all motions
- Control Method: Pendant Control & Wireless Remote Control
- Power Supply: 220/380/400/415/440/575V, 50/60Hz, 3Ph (This Model: 415V 50Hz 3P)
- Rail Type: P30 (Designated) or Customized
- Applications: Steel fabrication, structural assembly, and wide-span industrial workshops requiring tandem lifting
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete overhead crane projects.
Engineering Support & Workshop Adaptability
This layout addresses common requirements for handling long steel profiles, pipes, or assemblies across wide factory bays. By placing two independent 10t hoists on a single 22.86m box girder, the system enables two-point balanced lifting without requiring a complex double-girder setup.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Lifting long or flexible items requiring 2-point hook support Standard single hoist cannot balance long loads safely. | Two 10t European hoists operating on a single bridge, allowing independent or synchronized hoisting. | 10t + 10t capacity, 2× 7.5 kW hoisting motors, 0.81t individual hoist weight |
| Direct fit on standard P30 runway rails Existing rail infrastructure requires matched wheel profile. | End truck wheels engineered to match the top head profile of P30 rail sections while managing high wheel loads. | P30 rail profile, 144.2 kN maximum wheel load, 2.01t end truck assembly |
| Controlled movement without load sway Requires smooth acceleration and deceleration across wide span. | Stepless VFD drives on hoist, trolley, and bridge travels to prevent sudden acceleration shocks over wide spans. | 22.86m span, 0.7–4.0 m/min lift VFD, 2–20 m/min travel VFD |
| High wheel load runway requirements Requires heavy-duty rail system for continuous operation. | Designed for P30 heavy-duty crane rails with 144.2 kN max wheel load. | Rail: P30 (Designated) | Max Wheel Load: 144.2 kN |
How to Evaluate If This Solution Fits Your Facility
- Span & Vertical Clearance: Fits a 22.86m span with 9.0m hook lift and requires 1780mm (+200mm) vertical clearance above rail top.
- Rail Structure Load: Civil support structures and runway beams must support a maximum wheel load of 144.2 kN on P30 rails.
- Power Supply & Duty Cycle: Configured for 415V / 3P / 50Hz power supply under FEM 2m / ISO A5 operating duty.
- Operator Interface: Comes standard with dual control interfaces (Wireless Remote Control plus wired Pendant Back-up).
- Twin Hoist Compatibility: Ensure your lifting applications require dual-point tandem lifting for long or bulky loads.
Unsure If This Layout Fits Your Plant?
Send us your site dimensions (Length, Span, Clear Height, and Existing Rail Profile). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
