Cab Crane & Cab Operated Overhead Crane & Gantry Cranes
Crane cab basic helps to find proper crane cab for your overhead crane and gantry crane. Custom design crane cab is are offered for various industrial applications.. Check the popular cab crane now. Get your cab crane to ensure your crane operator safety.
Cab crane & cab operated crane
Cab crane is a crane used crane cabs as the operated control, usually can be classified into overhead cab crane and gantry cab crane.
Overhead cab crane

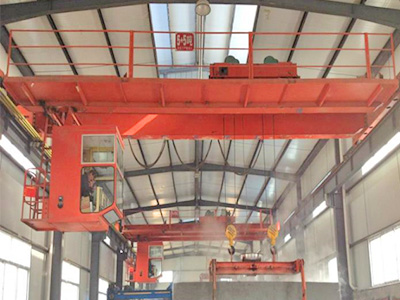

Crane cab on overhead crane
Main parameters of cab overhead crane
- Overhead cab crane Lifting Capacity: 5~550t
- Overhead cab crane Span Length: 10.5~35.5m
- Overhead cab crane Working Class: A4~A7
- Overhead cab crane Ambient Temperature: -20~40℃
Types of overhead cranes, double girder overhead crane, European double girder overhead crane, ladle overhead crane and other types of overhead cranes, which all can be operated with crane cabs. If you need any overhead cab crane, please feel feel to contac us.
Gantry Cab Crane

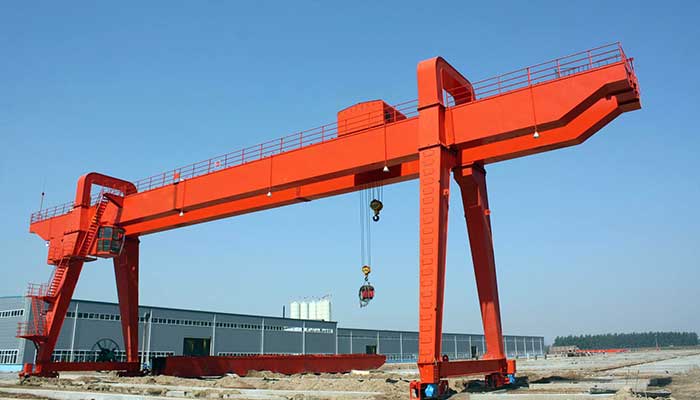

Crane cab on gantry crane
Main parameters of cab gantry crane
- Gantry Cab Crane Lifting Capacity: 5~500t
- Gantry Cab Crane Span Length: 12~35m
- Gantry Cab Crane Working Class: A5, A6
- Gantry Cab Crane Ambient Temperature: -25~40℃
Advantages of cab crane
With cab crane, the safety of crane operator can be improved and also,it enables the crane driver to perform real-time monitoring of the operating status of the cab operated crane, hook and loads. The general advantages of the cab cranes are as following:
- Ergonomic design
- Dependable safety device
- Broad view, comfortable operating environment.
- High quality, advanced welding and fabrication process
- Long lasting and, eye-appealing exterior
Based on the principles of ergonomic and safety, our overhead cab cranes and gantry cab cranes provide a good vision and comfortable operation environment , equipped with reliable safety protection device, processed with advanced technology,with beautiful appearance. Processed overhead cab cranes and gantry cab cranes are available to meet the particular industrial crane applications to provide comfortable working environment to ensure your crane operator safety and crane operation safety.
Features of cab operatedd crane
Our crane operator's cabs are widely adopted in various industrial cranes including indoor overhead travelling cranes and outdoor gantry cranes applied in various industrial sectors such as, mining, steel, construction, port, etc.The general features of our cab cranes are as following:
- With ergonomics design, our cab cranes help to improve crane operation safety and efficiency and ensure your operator's health and comfortableness.
- The crane driver's cab is sealed and dust proof with protection class of IP55.
- The steel structure of the crane operator's cab is safe, reliable, novel, and smooth in appearance.
- The glass window of cab crane is made of fully tempered glass, offering good sealing performance, a broad field of view, and convenient sliding, and the door of cab crane can be designed with inwards or outward opening, based on your requirement.
- Indoor floor of the cab crane is made of detachable steel plate, covered with anti-skid insulation rubber and plastic carpet.
- Interior decoration of crane driver's cabin adopts the materials of fireproof, waterproof, sound insulation and heat insulation.to ensure the safety of the crane operator and ensure noise in the cab crane during operation is under 70 decibels.
Applications of cab crane- overhead cab crane & gantry cab operated crane
The cab cranes and cab cranes are widely adopted on various industrial overhead cranes and industrial gantry cranes to provide crane driver high safety, broad view and comfortable operating environment which will reduce the distraction of noise, high temperature, and strong vibration and other hash factors, etc. The cab cranes or cab operated cranes are wildly used in various industrial sectors such as port , container and storage, waste disposal , building , paper making , mechanical machining , material handling and shipping, etc.

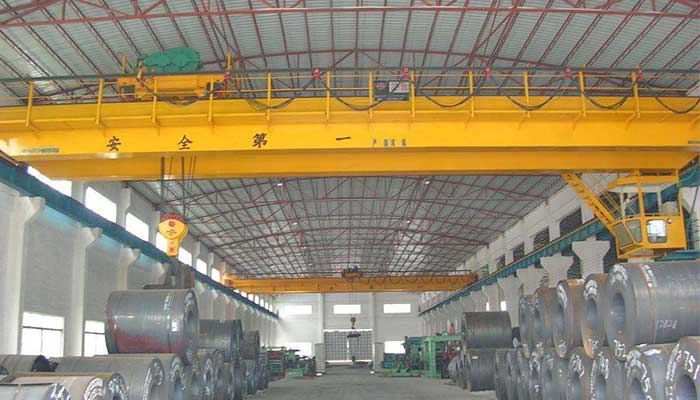

Double girder overhead cab crane
Process characteristicsof cab crane
- The steel plate structure of cab crane is fabricated in one time forming by laser cutting machine.
- The welding of cab crane is processed in compliance with the GB / T welding standard and with the factory inspection
- Sand flushing process of steel plate is aimed to remove all grease, dirt, oxide skin, rust, corrosives, old paint and other impurities, etc.
- The painting of the cab crane is consisted of 3 layers including epoxy zinc rich primer, epoxy intermediate paint, and polyurethane finish which will be tested manually on paint thickness test and adhesion to ensure the quality and smoothness of the cab crane's painting.
Types of crane cabs
Crane cabin also called crane operator's cab is an important crane component of overhead travelling cranes and gantry cranes to secure crane operation in the various application even in the harsh applications. The crane cabins are widely used on various industrial overhead travelling cranes and gantry cranes including container crane, ship unloader, rubber port gantry crane, shore container gantry crane, metallurgical use overhead travelling bridge crane, general use bridge crane and general use gantry cranes, etc.
Crane cabin
Crane oeprator cab
Overhead crane cabin
Crane cabs Configurations
The selection of the suitable crane cab for your overhead travelling cranes and gantry cranes will help to better the performance of the cab operated cranes. Generally, the crane cabins and crane operator's cabs are available in three primary configurations:
- A fixed crane cabin is one type of the most frequently used crane cabins which is installed below the walkway underneath the crane main girder.
- An independently traveling crane cab refers to the crane cabin that runs on the track along the main girder underneath the walkway. The independent travelling crane cab offers the crane operator the optimal optical line of sight needed at any given time.
- Trolley crane cabs refers to the crane cabs that moves with the trolley and is always positioned in front of the load.
The parts and components of Standard crane cab including:
- A ceiling light;
- Safety rails and grilles (footrest);
- Outlets and sockets; a door locker;
- Insulation floor rubber mat;
- An oscillating fan;
- Clothes-hook;
Optional:
- Air Conditioner
- Crane Operator Console
- Windshield wiper & washer;
- Roller blinds;
- Alarm; fire-extinguisher;
- Spare sockets/outlet;
- Door limit switch,
- Pedal-controller; -
- Other on request
Process cab crane service
Processed overhead cab cranes and gantry cab cranes are available to meet the particular industrial material handling applications to provide comfortable working environment to ensure your crane operator safety and crane operation safety.If you need any process overhead cab cranes, gantry cab cranes or other crane parts or components, please feel free to contact us.
Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
