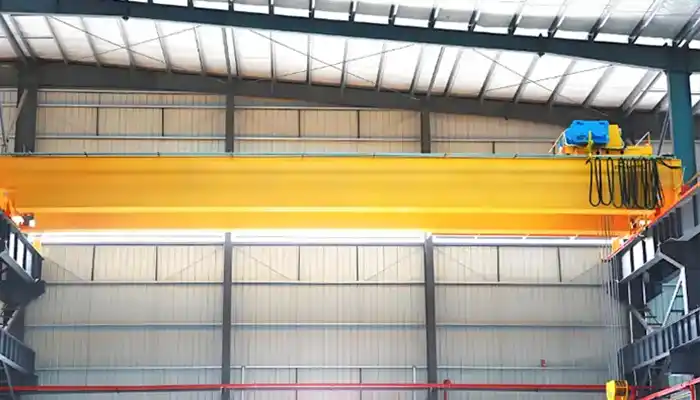

Europeanstandard FEM / DIN open winch travelling bridge craneis a heavy dutydouble girder overhead crane, equipped European style open winch trolley as the lifting mechanism, with heavy duty cranes hooks for wide industrial material handling applications. The European open winch travelling bridge craneis the latest version of double girder overhead crane, designed with FEM standards, developed on the base of traditional hook crane, therefore, European open winch overhead crane has the advantagesof compact structure, tough and strong and light dead weight, high safety and reliability,and wideindustrial applications.

Specifications of European style overhead open winch crane

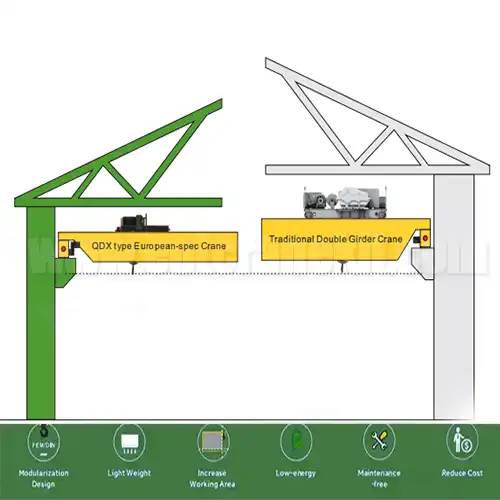

• Overhead crane types: QDX type of European standard double girder travelling bridge cranes
• Lifting capacityof overhead open winch crane :5t, 10t, 16/3.2t, 20/5t, 32/5t, 50/10t, 75/20t, 125/32t, 160/32t, 200/32t, 250t, 320t, etc.
• Spanof overhead open winch crane : 10.5m, 13.5m, 16.5m, 19.5m, 22.5m, 25.5m, 28.5m, 31.5m, 46.5m.etc.
• Working class of overhead open winch crane :A3, A4, A5, A6, A7, A8
• Crane control of overhead open winch crane :1. ground control,2. cab control 3. remote control.
• European style open winch crane are available with process We can design and manufacture special products under the requirements of users.

Europeanstandard FEM / DIN open winch travelling bridge craneis a heavy dutydouble girder overhead crane, equipped European style open winch trolley as the lifting mechanism, with heavy duty cranes hooks for wide industrial material handling applications.

Conmponent & Structure

European standard double girder overhead crane with open winch trolley, your heavy duty winch crane up to 320 ton, wide specifications hook cranes for wide application.To meet the various industrial applications, the modular crane winch can be combined with featured parts and components to meet particular applications such as the turn over trolley, anti-sway device, automatic positioning device, monitoring , or remote diagnostic devices, and various below-the-hook devices etc.

Optimized european style girder design
Delicate cutting with high precision ,
Automatic welding, non-destructive testing, Epoxy zinc-rich pain, with 10+ years life

Din /FEM open winch trolley
Large capacity up to 800 ton, higher efficiency
process crane design for your specific lifting requirements.

Intelligent control
Intelligent safety system
Ethernet/4G remote access

Moudular end carriage
Light weight, small size
Module joint designing

Drum and wire rope
Large rope drum diameter, Compact hoist dimensions, minimized hook approaches .

Festoon cable
Flat cable with good elasticity, Easy use air socket plug-in connection,, Maintenance-free, long life

FEM style open winch

The crane winch are designed for process cranes for heavy duty industrial applications.  To meet the various industrial applications, the modular crane winch can be combined with featured parts and components to meet particular applications such as the turn over trolley, anti-sway device, automatic positioning device, monitoring , or remote diagnostic devices,  and various below-the-hook devices etc. The main specifications of European electric winch trolley are for your reference. For processed crane winch, please confirm with our engineer.

Main parameters of European crane winch

• Capacity of European crane winch :10 ton - 500 ton
• Lifting height of European crane winch: As your request
• Working Duty of European crane winch :M5
• Crane traveling of European crane winch:3-30 m/min
• Process crane winch are available for your particular industrial needs and applications.

Features & advantages of European open winch crane

European standard, Advanced hook cranes.

The European open winch bridge crane is designed and developed based on the tough and strong hook crane, with the standard of FEM / DIN, which can meet the requirements of various industrial in terms of efficiency, safety and stability.

With optimized design, advanced technology, and latest and top rank components and parts, the European open winch travelling bridge cranes has the advantages of energy saving and little noise, easy operation, excellent performance , reliable quality, smooth braking and good view operation room. With modular design, the fem crane hashigh interchangeability, excellent versatility, and convenientmaintenanceservice.

High quality and advanced components and parts.

Based on the original hook crane, the new generation open winch double girder overhead crane has been improvedby adopting latest advanced parts and components, such as, Yseries electric motor, advanced hoisting limiter& overload limiter, and optimized electrical control cabin,hydraulic push-rod brake, electric -lighting set, communication device.

European style open winch trolley

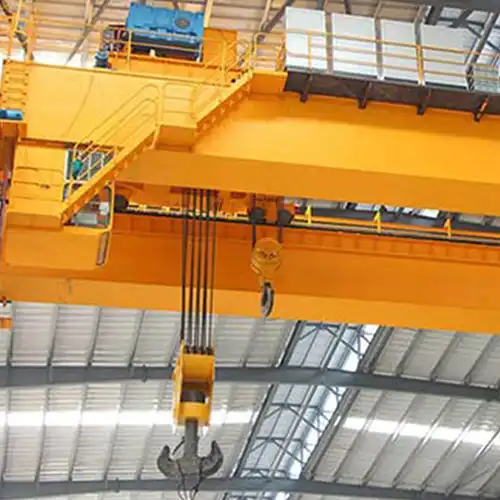

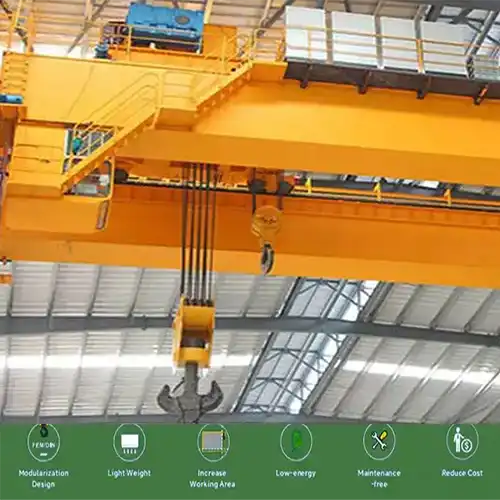

Double girder open winch crane

High crane price, but cost-effective crane solution.

Advanced crane components and parts are adopted to meet the requirements and satisfy users and at same time the crane cost is also increased but in the long run and in terms of future needs and maintenance, the Advanced European open winch travelling bridge cranes is a cost-effectivecrane solution. Contact our engineer to get a suitable crane solution for your needs now and that of future.

Application

The European travelling bridge cranes are widely used in general manufacturing workshops such as machinery assembly metal structure , machinery maintenanceand other workshops for general material handling The European overhead crane is recommendedto be operated at theapplicationenvironment with thetemperaturebetween -20 ℃and 40 ℃, and relative humidity less than 85%.

The European open cranecan be equipped with themain crane hook and auxiliary hook whichcan be used alone or all together, for efficient material handling in various application such asopen storage forhandling loads with long lifting points such as wood, Paper, bar, etc.

Metal Processing Industrial
Iron, steel, aluminum & basic metal processing industry cranes. Industry cranes for metal process- EAF charging & ladle crane, forging crane, finished product crane & scrap crane - for metallurgy harsh conditions, safe overhead travelling crane.

General Manufacturing
Types of industrial hoist & cranes for general manufacturing- Various types of industrial overhead crane systems for multiple sectors of manufacturing, integrated solution, maximum productivity, cost-effective price.

Mining Industry
Mining industry cranes, Coal mine crane systems - Safe industrial overhead crane & industrial gantry crane system for ore, limestone, coke, coal, slag, loose clay handling, explosion proof and durable.

Energy Industry
Energy generation|Industrial cranes for types of power plants - Industrial cranes & hoists systematic solutions for various power plants,i.e, traditional fuel power & waste renewable energy, wind power, hydroelectric, biomass energy, etc.

Machinery and Equipment
Industrial material handling cranes for mechanical engineering- Material handling cranes for mechanical engineering industry - overhead industrial crane solution for manufacturing of light & heavy machinery & equipment.

Pulp & Paper Industry
Pulp & paper| Industrial crane systems for paper making - Industrial overhead crane system for pulp & paper industry , full overhead travelling crane services, cost-effective paper making cranes for your paper mills.

Waste Management Industry
Waste management|Waste recycle & sorting industry cranes - Industrial overhead cranes for waste sorting&recycling. Types of industrial cranes in incinerator for mixing, stacking, handling and stirring of the waste materials, etc.

Wood , Timber & Furniture
Industrial cranes and hoists systems for timber & wood processing. Diverse overhead crane & hoists designs for material handling in sawmills or furniture plants, etc.

Shipbuilding & Boat Making
Industry crane systems for shipyard material handling, i.e, components assembly, boats & yachts lifting, etc. Reliable & safety industry crane system.

Plastic & Rubber
Industrial hoist and crane solution for plastic & rubber industry- Injection mould installation & Die exchanging- Efficient & Accurate heavy lifting systems.

Construction and Infrastructure
Industrial material lift for construction & infrastructure- types of industry overhead travelling cranes, gantry & hoist crane system- Reliable & cost-effective.

Chemical Industry
Industry cranes for chemical & petrochemical material handling, explosion proof overhead crane & hoist system for hazardous environment.

Automobile Industry
Automotive | Industrial overhead crane & hoist for automobile - Industrial cranes for automotive industry from press & assembly lines to workstations & warehouses, i.e., open winch crane & Light kbk, jib crane & chain hoists,etc.
