Underslung Bridge Crane 2.5 Ton, Pendent Control Crane Estonia

Underslung bridge crane 2.5 ton, single girder design, economical pendent control crane for sale Estonia. Check underhung crane specifications now.

Crane for Sale LX Underslung bridge crane
Crane specifications 2.5 ton - 12.14m span - 3 m lifting height
Destination country Estonia
Way of transportation By shipping

Category: Custom EOT Crane Manufacturing

Your Trusted Overhead Crane Manufacturer & Supplier

Underslung Bridge Crane 2.5 Ton for Sale Estonia
Single Girder Bridge Crane , Pendent Control Crane

Underslung bridge crane 2.5 ton, single girder design, economical pendent control crane for sale Estonia. Check underhung crane specifications now.

Basics of 2.5 ton underslung bridge crane for Estonia

  • Crane Type:underhung bridge crane
  • Date of Placing Oder:2018.6.22
  • Date of Delivery :2018.7.15
  • Way of Transportation: LCL
  • Way of Payment:TT
  • Destination country: Estonia
  • Destination port:FOB, Qingdao
  • First Contact:2017.1

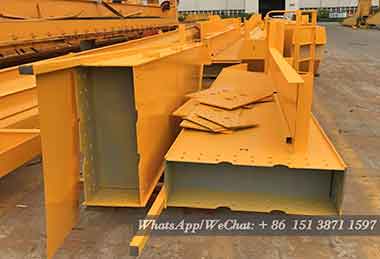

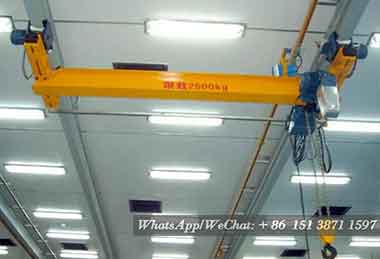

2.5 ton underslung bridge crane for sale Estonia

2.5 ton underslung crane specifications & general requirements

Crane type

Single girder underslung bridge crane

Model

LX

Working Class

A3

Capacity

2.5 ton

Span length (m)

12.14M

Lifting Height(M)

3m

Crane control

Pendent control

Voltage

380v,50hz,3p

Color

Yellow

Application

Indoor use

Quantity

1

Customs declaration information registration

  • The actual Chinese and English name of the goods: Single girder bridge crane
  • Chinese and English name of cargo declaration: Single girder bridge crane
  • Inland transportation cost from factory to port: USD 500
  • Port charges: USD 150

Gallary of underslung bridge crane 2.5 ton for sale Estonia

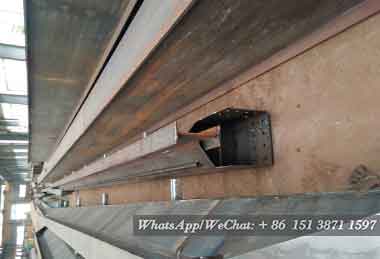

Main girder of 2.5 ton underslung bridge crane under construction to Estonia

Main girder of 2.5 ton underslung bridge crane under construction to Estonia

Main parts of underslung bridge crane for sale Estonia
Main parts of underslung bridge crane for sale Estonia
Main girder of 2.5 ton underslung bridge crane for sale Estonia

Main girder of 2.5 ton underslung bridge crane for sale Estonia

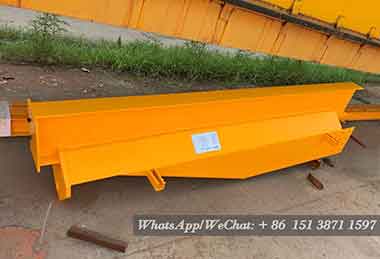

Main girder of single girder underslung bridge crane for sale Estonia

Main girder of single girder underslung bridge crane for sale Estonia

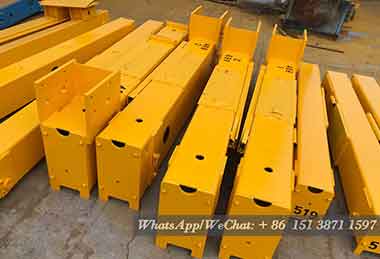

End carriages of single girder bridge crane for sale Estonia

End carriages of single girder bridge crane for sale Estonia

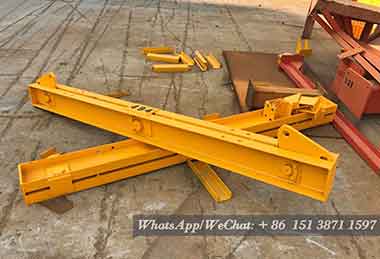

Main parts and components of underslung overhead crane 2.5 ton for sale Estonia

Main parts and components of underslung overhead crane 2.5 ton for sale Estonia

Underslung bridge crane

When supporting steel construction is not practicable and optimum hook coverage is required, an underslung bridge crane is an excellent choice.

Underslung bridge cranes, also known as under-hung, under-running, or suspension cranes, are suitable for industries and warehouses that require a large amount of free space with no obstructions. They make for flexible production flow and improve safety and accessibility. This type of overhead electric eot crane runs on track beams that are mounted on the building's roof structure, eliminating the need for supporting floor columns. The travelling bridge crane runs on the bottom flanges of track beams suspended from the roof or ceiling.

Advantages underslung bridge crane have over top running cranes

  • Enable the electric hoists to move close to the end carriage's or beam's end.
  • Enable the crane beam to approach the factory wall or the end of the crane runway.
  • Makes the cantilevered bridge crane beam possible, in which the electric hoist can travel on the extended cantilevers of the main girder and go beyond the end carriage and track beam.

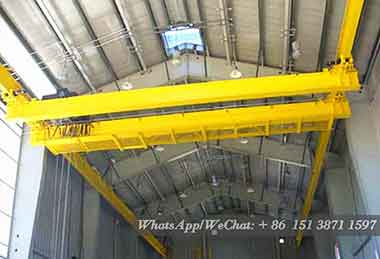

Underslung bridge cranes are available in single and double girder configurations, as well as single and multi-span spans. We manufacture underslung bridge cranes with lifting capacities of up to 10 ton, however as explained below, our most popular variants are 10t and less.

The underslung bridge crane can be equipped with a variety of smart technologies and software to improve productivity, reduce cycle times, eliminate human error, and monitor and extend the underslung bridge crane's life. Load dependant speeds, sway control to limit load swing, over-speed protection, a design working period monitor, and other condition monitoring devices are among the smart features.

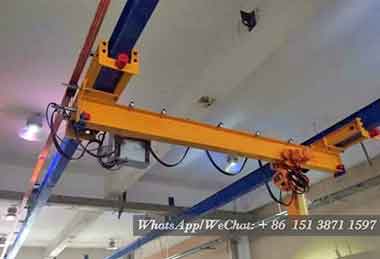

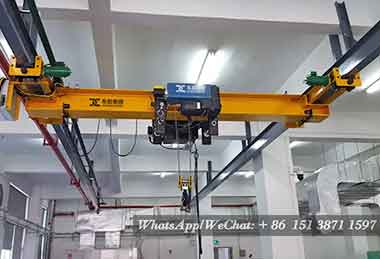

Single span under-slung cranes

Depending on capacity and span, rolled section beams or manufactured box beams are used in the design of single girder underslung bridge cranes. We are able to maximize the possible height of lift in each application by using a variable girder connection design. The possibility of cantilevers (lateral overhangs) is introduced by the suspended end carriage design, which increases hook coverage by enabling the hoist and loads to move over the runway track line.

A variety of crane control systems, such as remote radio control or a push button pendant suspended from and moving across the crane bridge, can be provided for the underslung bridge crane. Due to the limits of the supporting structures, most underslung bridge cranes have capacities of 10 ton or less and can be fitted with either electric wire rope hoists or electric chain hoists. For more details of these advantages go to 'NLX single girder underslung bridge crane unique features.

Multi span under-slung cranes

Our multi-span underslung canes systems are the ideal choice for aircraft assembly plants and maintenance hangars because they can be hung over very wide work areas without obstructing access or factory floor productivity. The crane beam is constructed with an articulating joint at each inner suspension point to provide excellent traction at each wheel set. Electric wire rope hoists or electric chain hoists can be added to the multi-span underslung bridge crane.
