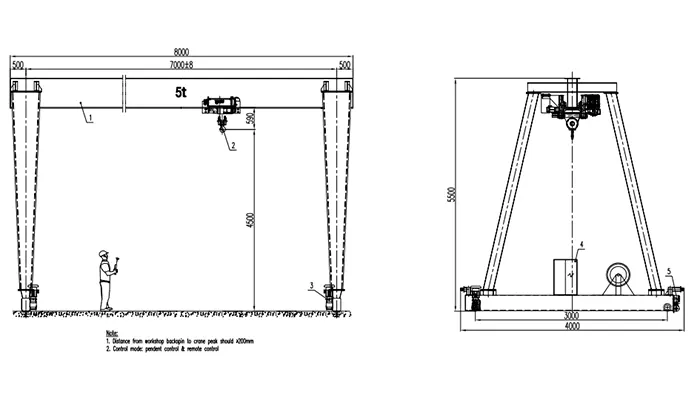

5 Ton Single Girder Gantry Crane 2D & 3 D Drawing MHO 5t-7m-4.5m
Download the 5 ton European single girder gantry crane drawing (MHO 5t-7m A5). 7m span, 4.5m lift, mid-spec VFD control, motorized cable reel with 25m cable, 400V 50Hz 3P, P22 rail, ISO A5 duty. Free 2D + 3D drawing package PDF and custom quote within 24
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Gantry Crane
Tags: 5TonGantryCraneDrawing
Overview:
Engineered and manufactured by Yuantai Cranes, this technical drawing and 3D rendering package details a mid-spec 5 Ton European Single Girder Gantry Crane (Model: MHO 5t-7m A5 / Drawing No: MHO 5-7 A5). Built for reliable outdoor material handling, it features a 7.0m span (8.0m overall girder length), a 4.5m hook lift height, and a total structure height of 5.5m. The crane incorporates variable frequency speed control across hoisting (0.8–5.0 m/min) and long travel (5.0–10.0 m/min) motions for smooth operations. Equipped with a motorized cable reel containing 25 meters of power cable, this unit is designed to operate on a 400V 50Hz 3P power supply using P22 steel rails. Rated for ISO A5 duty class with a maximum wheel load of 41.8 kN and total deadweight of approx. 4.8 tons.
Project & Technical Overview
- Equipment Type: European Single Girder Gantry Crane / Outdoor Portal Crane
- Model Number: MHO 5t-7m A5 Gantry Crane (Mid Configuration)
- Drawing Number: MHO 5-7 A5
- 2D + 3D Drawing Package: 5 Ton European Single Girder Gantry Crane Drawing 7m Span Mid Spec (ISO A5, 400V 50Hz 3P)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: ISO A5
- Lifting Capacity: 5.0 t (5000 kg)
- Crane Span: 7.0 m (7000 ± 8 mm Center to Center)
- Total Beam Length: 8.0 m (8000 mm Overall Beam)
- Lifting Height: 4.5 m (4500 mm Hook Lift)
- Overall Crane Height: 5.5 m (5500 mm)
- Power Supply Method: Motorized Cable Reel with 25m Cable
- Recommended Rail Type: P22 Steel Rail (Max Wheel Load: 41.8 kN)
- Motor Drives: 4.0kW Hoist, 0.45kW Trolley Traverse, 2×0.75kW Long Travel
- Power Supply: 400V / 50Hz / 3P
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | ISO A5 |
| Lifting Capacity | 5.0 t (5000 kg) |
| Crane Span | 7.0 m (7000 ± 8 mm) |
| Total Girder Length | 8.0 m (8000 mm) |
| Lifting Height | 4.5 m (4500 mm) |
| Overall Crane Height | 5.5 m (5500 mm) |
| Wheel Base (Wheel Center Distance) | 3.0 m (3000 mm) / End Carriage Base: 4.0 m |
| Hoisting Speed | 0.8 ~ 5.0 m/min (Variable Frequency Control) |
| Trolley Traversing Speed | 2.0 ~ 20.0 m/min (Variable Frequency Control) |
| Crane Long Traveling Speed | 5.0 ~ 10.0 m/min (Variable Frequency Control) |
| Recommended Ground Rail | P22 Steel Rail |
| Maximum Wheel Load | 41.8 kN |
| Control Method | Pendant Control & Wireless Remote Control |
| Power Supply | 400V / 50Hz / 3P |
| Total Crane Weight | 4.8 t (approx. 4800 kg) |
Lifting Mechanism & Drive Motor Parameters
| Component / Motor Drive | Specification |
|---|---|
| Hoisting Mechanism Model | 5t European Spec Low-Headroom Hoist |
| Lifting Motor Power | 4.0 kW (NR) |
| Trolley Travel Motor Power | 0.45 kW (NR) |
| Long Travel Motor Power | 2 × 0.75 kW (SZ, 1350 r/min, Reducer Ratio: 58.95) |
| Power Supply Mechanism | Motorized Cable Reel with 25m Power Cable |
Technical Requirement
Note:
- VFD Motion & Mid-Spec Configuration: Equipped with variable frequency speed regulation for both hoisting (0.8–5.0 m/min) and long travel (5.0–10.0 m/min) to ensure smooth operation during indoor/outdoor lifting tasks.
- Motorized Cable Reel Integration: Includes a dedicated motorized cable drum mounted on the end carriage with 25 meters of heavy-duty power cable for flexible travel distance.
- European Low-Headroom Design: Compact structure maximizing 4.5m hook lift within a 5.5m total height envelope.
- The drawing and technical data shown above are for reference only. For specific project conditions or custom dimensions, please contact us for a free consultation.
- Depending on site complexity or special customization requirements, a design fee/price may apply. Contact the Yuantai Cranes engineering team for formal proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without official authorization from Yuantai Cranes is strictly prohibited. Yuantai Cranes assumes no legal responsibility for unauthorized usage.
How to Get Your Customized Yuantai Gantry Crane
This drawing represents a standardized technical proposal. Yuantai Cranes customizes every single girder gantry crane to match your specific site footprint and lifting specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Send us your required capacity, span, lifting height, travel distance, and local power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will prepare tailored layout drawings, 3D models, and technical proposals free of charge. |
| Step 3: Technical Confirmation | We confirm wheel load limits, motor options, cable reel specs, and safety configurations with you. |
| Step 4: Manufacturing & Global Delivery | Your crane will be produced under strict ISO/CE standards, tested, and delivered directly to your project site. |
Need a Customized Drawing & Quote for Your Facility?
Send us your project dimensions today. Yuantai technical consultants will provide a free CAD drawing, 3D rendering, and tailored price quote within 24 hours.
FAQs About This Drawing Project (MHO 5t-7m A5 Mid Configuration)
Everything clients ask before using this drawing — what "mid configuration" means, how the motorized cable reel works, why hoisting and long travel are VFD, and what to send for a project drawing and quote.
1. What does "mid configuration" mean on this drawing — what is included?
Mid configuration means this crane sits between an economy model and a premium full-Siemens package. The drawing package (No. MHO 5-7 A5) includes a 2D general arrangement drawing and a 3D rendering model covering: single girder, A-frame legs, end carriages, the 5t European low-headroom hoist, trolley traverse, long travel drives, VFD control on hoisting and long travel, a motorized cable reel with 25m cable, 400V 50Hz 3P electrical panel, and pendant + wireless dual control. It does not include ground rails, rail foundation, or site power supply.
2. What is the difference between this mid-spec version and the premium Siemens version?
Both are MHO 5t-7m A5 cranes with the same 7.0m span, 4.5m lift, 3.0m wheel base, and 41.8 kN wheel load. The differences are in the drive package and power supply:
| Feature | Mid Configuration (This Drawing) | Premium Siemens Version |
|---|---|---|
| Motor Brand | Standard crane motors (NR / SZ) | Siemens / Innomotics |
| Hoist Motor | 4.0 kW | 6.1 kW (FDH109) |
| VFD Scope | Hoisting + Long Travel | Full VFD (Hoist + Trolley + Travel) |
| Hoisting Speed | 0.8 ~ 5.0 m/min | 0.71 ~ 4.92 m/min |
| Long Travel Speed | 5.0 ~ 10.0 m/min | 2.0 ~ 20.0 m/min |
| Power Supply | 400V / 50Hz / 3P | 380V / 50Hz / 3P |
| Best For | Cost-effective smooth lifting | Sway-free long-load handling |
Choose the mid configuration when you need smooth VFD lifting and traveling at a lower cost, but do not handle 6m pipe bundles or high-wind coastal sites.
3. Why is only hoisting and long travel VFD, while trolley is not highlighted?
In the mid configuration, the VFD package focuses on the two motions that most affect load control and operating cost:
- Hoisting VFD (0.8–5.0 m/min) — prevents shock loading on the wire rope and gives precise vertical placement
- Long travel VFD (5.0–10.0 m/min) — smooth acceleration and deceleration along the rail, reducing rail wear and load swing
- Trolley traverse (2.0–20.0 m/min) — also VFD controlled in this drawing, but the speed range is wider because trolley travel is short
If your project needs full VFD with Siemens motors for long pipe bundles, see the premium MHO 5t-7m A5 Siemens version.
4. How does the motorized cable reel with 25m cable work?
The motorized cable reel is mounted on the end carriage and automatically winds or unwinds the power cable as the crane travels along the rail. Key points:
- 25m cable length — supports a travel distance of up to about 25m per run (depending on reel position and sag)
- No fixed conductor bar needed — saves the cost of an enclosed conductor line or festoon system
- Motorized tensioning — keeps the cable taut and prevents dragging or damage
- Outdoor rated — suitable for open yards and dusty environments
If your rail length is longer than 25m, the cable length or the power supply method (conductor bar / festoon) must be re-specified.
5. Which numbers on this drawing must match my site exactly?
Five numbers must match your site, or the crane will not fit or operate correctly:
| Drawing Value | What It Must Match On Site | If It Does Not Match |
|---|---|---|
| Span: 7.0 m | Center-to-center distance of your two rails (7000 ± 8 mm) | Girder and end carriages must be redesigned |
| Overall beam length: 8.0 m | Clear width available for the crane to sit between obstacles | Interference with walls, columns, or structures |
| Overall height: 5.5 m | Available headroom above rail level | Crane cannot be installed or hook travel is reduced |
| Lifting height: 4.5 m | Your required hook lift above rail level | Mast height or hoist reeving must be changed |
| Cable length: 25 m | Your rail travel distance | Cable reel or power supply method must be re-specified |
If any of these five differ from your site, tell Yuantai before ordering — each change affects price and lead time.
6. Can this mid-spec crane handle long loads or 6m pipe bundles?
This mid configuration is designed for general outdoor lifting — not specifically for long pipe bundles. It can lift long loads within its 5t capacity, but it lacks the full VFD trolley control and Siemens torque curve that eliminate sway on 6m bundles. For that application, choose the premium MHO 5t-7m A5 Siemens version. If your loads are under 4m and you need smooth VFD lifting at a lower cost, this mid-spec drawing is the better fit.
7. My power supply is not 400V/50Hz/3P — can this drawing still be used?
Yes. The mechanical drawing does not change with voltage — girder, span, wheel base, and hook path stay the same. Only the electrical package changes: motor windings, VFD settings, contactors, cable reel rating, and panel components are re-specified for your supply. This applies to 380V/50Hz, 415V/50Hz, 440V/60Hz, or 220V/60Hz. It is a standard customization, not a redesign.
8. What site work is NOT covered by this drawing project?
To avoid surprises at installation, these items are outside the crane supply scope unless you specifically add them:
- P22 ground rail and rail fasteners
- Rail foundation, concrete beams, and anchor bolts
- Site power supply up to the crane isolator
- Erection crane and site lifting equipment
- Local electrical connection and permits
Yuantai can supply rails, anchor sets, and foundation load drawings as optional items — just state this in your enquiry so they appear in the quotation.
9. What do I need to send to get a project drawing and price for my site?
Send these nine items and Yuantai will issue a free custom CAD drawing and proposal within 24 hours:
- Required lifting capacity (t)
- Rail gauge / span (m)
- Required lifting height (m)
- Rail length / travel distance (m) — important for cable reel sizing
- Power supply (V / Hz / Ph)
- Lifts per hour or hours per day (duty)
- Indoor or outdoor, wind load if outdoor
- Longest load length and weight
- Control preference: pendant, wireless, cabin, or dual
The more complete the list, the faster and more accurate the drawing and quote.
10. Is this drawing free to use, and is a design fee charged?
This published drawing and 3D rendering are a free technical reference — you may use them to plan your site and check fit. A project-specific GA drawing and 3D model are also free for standard configurations. A design fee may apply only for complex site conditions, non-standard spans, or specialized customization engineering. The drawing remains the property of Yuantai Cranes: unauthorized copying, use, or manufacturing without written authorization is strictly prohibited.
Product Applications: Where This Mid-Spec 5 Ton Gantry Crane Is Used
This mid configuration MHO 5t-7m A5 crane is built for sites that need smooth VFD lifting and traveling at a controlled cost, without the premium full-Siemens package. The motorized cable reel makes it especially suitable for yards without fixed conductor bars. Typical applications include:
| Application / Industry | Typical Handling Task | Why This Drawing Fits |
|---|---|---|
| General outdoor stockyards | Lifting and moving pallets, crates, and general cargo up to 5t. | VFD hoisting and long travel give smooth starts without the cost of a full premium drive package. |
| Steel & metal storage yards | Handling short profiles, plate, and bar stock up to 4m length. | 4.5m lift height and 7m span cover standard storage rows; 41.8 kN wheel load keeps rail foundation light. |
| Precast concrete yards | Moving moulds and short precast elements outdoors. | Low headroom design and VFD travel reduce shock loading on moulds. |
| Equipment maintenance yards | Lifting pumps, motors, and machine components in open areas. | Pendant + wireless dual control lets the operator choose the best viewing position. |
| Logistics & transit yards without conductor bars | Loading and unloading trucks where fixed busbars are not installed. | Motorized cable reel with 25m cable supplies power without the cost of an enclosed conductor line. |
| Fabrication & welding bays (outdoor) | Moving weldments and fabricated parts between stations. | Compact European profile gives 4.5m hook lift within only 5.5m overall height. |
| Rental & temporary yards | Short-term or relocatable outdoor lifting. | Self-contained cable reel power supply makes relocation easier than a fixed conductor system. |
Best-Fit Working Conditions
- Sites without fixed conductor bars: The motorized cable reel with 25m cable eliminates the need for an enclosed conductor line or festoon system.
- General outdoor lifting (loads up to 4m): VFD hoisting and long travel provide smooth handling for standard cargo, not long pipe bundles.
- Cost-sensitive projects: Mid configuration delivers VFD smoothness with standard crane motors instead of premium Siemens drives.
- Light rail foundation: 41.8 kN wheel load on P22 rail keeps civil work economical.
- Sites without building columns: Ground-rail travel means no roof runway or building structure is required.
Applications Where This Configuration Is Not Recommended
- 6m long pipe bundles or long profiles: The mid configuration lacks full VFD trolley and Siemens torque curve — choose the premium MHO 5t-7m A5 Siemens version for sway-free long-load handling.
- High-wind coastal sites: This drawing does not include anti-toppling structural design or anti-wind anchoring — see the premium version for wind-exposed yards.
- Very deep pits or shafts: This drawing has a standard 4.5m lift — for deep vertical reach, see the MHO 5t-4.65m A5 model with 4m + 25m extended hook travel.
- Rail travel longer than 25m: The 25m cable reel limits travel distance; a conductor bar or longer cable must be specified.
- Continuous production or high cycle rates: Step up to ISO A6 / FEM 3M, which requires a different hoist and motor selection.
