5t Single Girder Overhead Crane Drawing - YT-HD5-5m A5
Yuantai Cranes YT-HD 5t Single Girder Overhead Crane Drawing (Span 5m, Lifting Height 3m, FEM 2m/ISO A5, Full VFD Stepless Control)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Overhead Crane
Tags: 5TonOverheadCraneDrawing,5tonoverheadcrane
Overview: 5 Ton YT-HD Single Girder Overhead Crane with Compact 5m Span and Full VFD Control
Engineered and manufactured by Yuantai Cranes, this technical drawing package features a 5 Ton YT-HD European-style single girder overhead crane system (Model: YT-HD5t-5m A5) with a compact 5m span, 3m lifting height, and full VFD stepless frequency conversion control. Built to FEM 2m / ISO A5 heavy-duty standards, this custom Yuantai lifting solution provides flexible, precise, and reliable material handling for compact industrial workshops and fabrication facilities.
Who is this overhead crane for? Ideal for:
- Compact industrial workshops with limited floor space
- Small fabrication bays requiring precise lifting
- Facilities with lightweight runway structures
- Workshops with low headroom clearance
- Precision assembly operations requiring stepless speed control
- Facilities with 440V/60Hz power systems
- Indoor material handling with high-duty cycles
Common search terms for this crane: 5 ton overhead crane, single girder overhead crane, 5m span crane, FEM 2m overhead crane, compact overhead crane, full VFD overhead crane, European style overhead crane, YT-HD overhead crane, lightweight overhead crane, workshop overhead crane.
Project & Technical Overview
- Equipment Type: YT-HD Single Girder Overhead Crane
- Alternative Names: European style overhead crane, compact overhead crane, lightweight bridge crane
- Model Number: YT-HD5t-5m A5

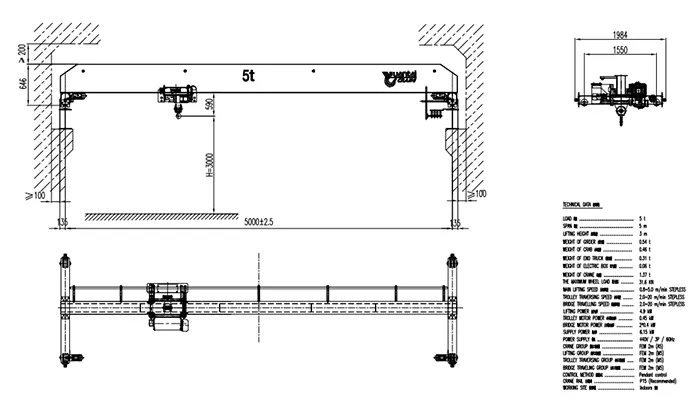

- Drawing File: YT-HD 5t Single Girder Overhead Crane Drawing 5m Span (FEM 2m, Full VFD)
- Crane Manufacturer: Yuantai Cranes
- Drawing Producer / Engineer: Yuantai Cranes Technical Team
- Duty Class: FEM 2m (ISO A5) Heavy Duty
- Lifting Capacity: 5.0 t
- Span: 5 m
- Lifting Height: 3 m
- Control Method: Pendant control
- Special Configuration: Single hoist on main girder (1x 5t hoist), full frequency conversion VFD control (stepless speed regulation)
- Quantity: 1 unit
Buyer Note: This overhead crane system is specifically designed for compact workshops with limited space. The ultra-lightweight European design (total weight 1.37t) and low wheel loads make it ideal for facilities with lightweight runway structures and low headroom clearance.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | FEM 2m (ISO A5) Heavy Duty |
| Lifting Capacity | 5.0 t |
| Span | 5 m |
| Lifting Height | 3 m |
| Crane Rail Size | P15 (Recommended) |
| Max. Wheel Load | 31.6 kN |
| Power Supply | 440V / 3P / 60Hz |
| Supply Power | 6.15 kW |
| Crane Working Site | Indoors |
| Total Crane Height | 1984 mm |
| Trolley Clearance Width | 1550 mm |
| Total Weight | 1.37 t |
| Quantity | 1 unit |
Speeds & Motor Power
| Component / Motor Drive | Specification |
|---|---|
| Main Lifting Speed | 0.8 ~ 5.0 m/min (STEPLESS) |
| Lifting Motor Power | 4.9 kW |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (STEPLESS) |
| Trolley Motor Power | 0.45 kW |
| Bridge Travelling Speed | 2.0 ~ 20 m/min (STEPLESS) |
| Bridge Motor Power | 2 × 0.4 kW |
| Speed Regulation | Full VFD (Variable Frequency Drive) on all motions |
Weights Breakdown
| Component | Weight |
|---|---|
| Weight of Crane (Total) | 1.37 t |
| Weight of Girder | 0.54 t |
| Weight of Crab | 0.46 t |
| Weight of End Truck | 0.31 t |
| Weight of Electric Box | 0.06 t |
Classification Groups
| Component | Classification |
|---|---|
| Crane Group | FEM 2m (A5) |
| Lifting Group | FEM 2m (M5) |
| Trolley Traversing Group | FEM 2m (M5) |
| Bridge Travelling Group | FEM 2m (M5) |
Technical Requirement
Note:
- Compact European Design: Ultra-lightweight single girder crane (1.37t total) with low wheel loads, ideal for lightweight runway structures and compact workshops.
- Full Frequency Conversion: All motions (lifting, trolley traverse, bridge travel) feature stepless VFD speed control for precision positioning.
- Low Headroom Design: Compact 1984mm total crane height maximizes vertical lifting range within limited overhead building space.
- 440V 60Hz Compatibility: Motor drives and electrical controls are built for 440V/60Hz 3-phase power grids.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Cranes engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Cranes is strictly prohibited. Yuantai Cranes assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Key Facts About YT-HD 5t Single Girder Overhead Crane
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for compact workshops with limited headroom.
1. What is this overhead crane and what is it designed for?
This is a YT-HD 5 Ton Single Girder Overhead Crane with a 5m span and 3m lifting height, designed for compact industrial workshops requiring precise lifting with limited floor space. It features a single 5-ton hoist on a lightweight European-style girder with full VFD stepless control.
Ideal applications: compact workshops, small fabrication bays, facilities with lightweight runway structures, and precision assembly operations requiring stepless speed control.
Alternative names for this crane: European style overhead crane, compact overhead crane, lightweight bridge crane, single girder overhead crane.
2. What does "YT-HD5t-5m" mean in the model number?
- YT-HD = Yuantai European-style single girder overhead crane series
- 5t = Single lifting capacity: 5-ton hoist
- 5m = Span (distance between runway rail centers) of 5 meters
The lifting height is 3 meters with a total crane height of 1984mm. The crane features a single hoist with full VFD stepless control on all motions.
Duty class: FEM 2m (ISO A5). Power: 440V / 3P / 60Hz. Rail: P15 (recommended).
3. What are the key lifting specifications?
| Lifting Capacity | 5.0 t |
| Span | 5 m |
| Lifting Height | 3 m |
| Lifting Speed | 0.8 ~ 5.0 m/min (Stepless) |
| Trolley Traversing Speed | 2.0 ~ 20 m/min (Stepless) |
| Bridge Travelling Speed | 2.0 ~ 20 m/min (Stepless) |
| Crane Rail Size | P15 (Recommended) |
| Max. Wheel Load | 31.6 kN |
| Supply Power | 6.15 kW |
| Duty Class | FEM 2m (ISO A5) |
| Total Crane Height | 1984 mm |
| Trolley Clearance Width | 1550 mm |
| Total Weight | 1.37 t |
Buyer Tip: If your span or lifting height requirements differ, Yuantai can customize the girder length and lifting height to suit your specific building layout.
4. What is the duty class FEM 2m / A5 and what does it mean for my application?
The duty class is FEM 2m / ISO A5, which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for industrial workshops, fabrication plants, and assembly bays
- Perfectly matched to the demanding nature of regular industrial material handling
What does this mean for you? If your facility operates multiple shifts per day with regular lifting, FEM 2m/A5 is the right duty class. For occasional use, consider FEM 1Bm/A3 or A4 duty cranes.
Duty class comparison: A3 = light duty (occasional use), A4 = medium duty (regular intermittent), A5 = heavy duty (regular daily), A6 = extra heavy duty (continuous).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 440V / 3-Phase / 60Hz
- Lifting Motor: 4.9 kW
- Trolley Motor: 0.45 kW
- Bridge Motor: 2 × 0.4 kW
- Total Supply Power: 6.15 kW
Control Modes:
- Pendant control — wired handheld controller with safety voltage
Buyer Note: Pre-configured for 440V/60Hz 3-phase power. If your facility uses a different voltage (e.g., 380V, 415V, 575V, or 50Hz), please inform us during inquiry for customization.
VFD Advantage: Full frequency conversion on all motions provides stepless speed regulation and eliminates load swing during precision operations.
6. Why is this crane suitable for compact workshops with limited headroom?
- 5t capacity — handles workshop components
- 5m compact span — ideal for small bays and limited floor space
- 3m lifting height — practical vertical reach for compact workshops
- Ultra-lightweight design — total weight only 1.37t reduces runway structural requirements
- Full VFD stepless control — precision positioning on all motions
- Low headroom design — compact 1984mm total height fits low-clearance buildings
- FEM 2m / ISO A5 rating — suitable for regular daily heavy-duty use
- Pendant control — simple, reliable operation with good visibility
- P15 rail compatibility — low wheel load (31.6 kN) minimizes civil engineering costs
- 440V 60Hz compatibility — factory-built for North American industrial grids
Why buyers choose this model: It offers the perfect combination of compact design, lightweight structure, full VFD precision control, and heavy-duty rating for small workshops where space and headroom are limited but reliable 5-ton lifting is still required.
