Single Girder Overhead Crane Drawing 5/3 Ton, 5.24m Span, FEM 2
View the Yuantai YT-HD 5/3 ton single girder overhead crane drawing with a 15.24 m span, 9.144 m lifting height, and FEM 2m/A5 duty class.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Overhead Crane
Tags: 5tonoverheadcranedrawing
Overview:
Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package features a 5/3 Ton YT-HD European-style single girder overhead crane system (Model: HD5/3t-15.24m A5) with a 15.24m span, 9.144m lifting height, and a total structure length of 18.3m supported by steel columns and runway beams. Built to FEM 2m / ISO A5 heavy-duty standards, this custom Yuantai lifting solution features two electric hoists (5-ton and 3-ton capacity) mounted on a single girder with a 6-ton capacity bridge design, providing flexible and reliable material handling for industrial workshops and fabrication plants.
Project & Technical Overview
- Equipment Type: YT-HD Single Girder Overhead Crane
- Model Number: HD5/3t-15.24m A5
- Drawing Number: HD5/3-15.24m A5
- Crane Manufacturer: Yuantai Crane Machinery
- Drawing Producer / Engineer: Yuantai Crane Technical Team
- Control Method: Pendant control & Remote control
- Special Configuration: Dual hoists on main girder (1x 5t hoist & 1x 3t hoist), 6t capacity bridge structure, includes steel columns (HN450*200*9*14) & runway beams (HN400*200*8*13) with ladder-type inter-column bracing (L75*5 / L50*4)

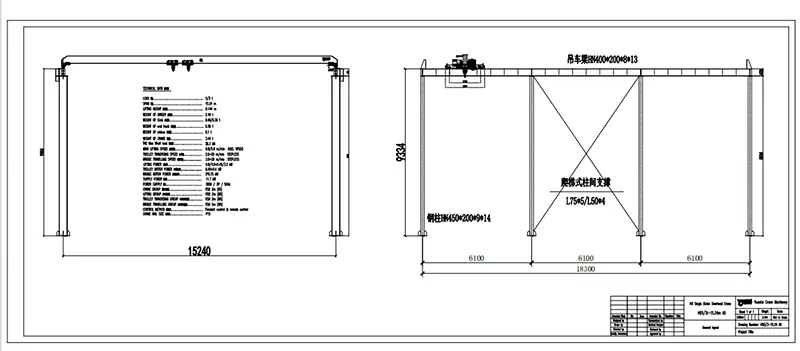

Click to Check The PDF Drawing of YT-HD Single Girder Overhead Crane Drawing 5/3 Ton (15.24m Span, FEM 2m)
Technical Data
Technical Parameter | Specification |
Load | 5/3 t |
Span | 15.24 m |
Lifting Height | 9.144 m |
Crane Rail Size | P15 |
Max. Wheel Load | 38.3 kN |
Power Supply | 380V / 3P / 50Hz |
Supply Power | 11.7 kW |
Column Spacing | 6.1 m (3 bays, total length 18.3 m) |
Total Structure Height | 9.334 m |
Steel Column Specification | HN450*200*9*14 |
Runway Beam Specification | HN400*200*8*13 |
Inter-column Bracing Specification | Ladder-type bracing L75*5 / L50*4 |
Speeds & Motor Power
- Main Lifting Speed: 0.8/5.0 m/min (Dual speed) | Lifting Power: 0.8/4.9 + 0.45/3.3 kW
- Trolley Traversing Speed: 2.0 ~ 20 m/min (Stepless frequency conversion) | Trolley Motor Power: 0.45 + 0.4 kW
- Bridge Travelling Speed: 2.0 ~ 20 m/min (Stepless frequency conversion) | Bridge Motor Power: 2 × 0.75 kW
Weights Breakdown
- Weight of Crane (Total): 3.44 t
- Weight of Girder: 2.16 t
- Weight of Crab: 0.46 / 0.38 t
- Weight of End Truck: 0.38 t
- Weight of Electric Box: 0.1 t
Classification Groups
- Crane Group: FEM 2m (A5)
- Lifting Group: FEM 2m (M5)
- Trolley Traversing Group: FEM 2m (M5)
- Bridge Travelling Group: FEM 2m (M5)
Related Products & Solutions
- Yuantai European-Style Wire Rope Hoists
Explore high-efficiency European electric wire rope hoists with compact designs and variable frequency drives. - YT-HD European Single Girder Overhead Crane (1t - 12.5t)
Browse European-style overhead cranes engineered for higher FEM duty classes and large spans. - Crane End Trucks & Travelling Kits
Durable wheel assemblies, gear motors, and end beams for overhead bridge cranes. - Steel Structure Workstations & Runway Conductor Systems
Custom engineered steel columns, runway beams, and safe power delivery components for material handling plants.
Important Note & Service Information
Note:
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
How to Get Your Customized Yuantai Overhead Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
Step 1: Share Your Site Parameters | Provide us with your required capacity, span (S), lifting height (H), and building layout requirements. |
Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, travel speeds, and control methods based on your operational environment. |
Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Single Girder Overhead Crane Solution
Yuantai Cranes provides customized YT-HD-Series of single girder overhead crane solutions for factories, workshops, warehouses and general industrial material handling. Each crane is configured according to the required capacity, span, lifting height, duty class, building conditions and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–20 ton
- Crane Span: 7.5–31.5 m
- Lifting Height: Customized according to application
- Duty Class: ISO A3–A5 / FEM 1Am–3M
- Hoist: Wire Rope Hoist / European Hoist
- Control: Pendant Control / Radio Remote / Cabin
- Power Supply: 380/400/415V, 50/60Hz, 3Ph / Customized
- Running Configuration: Top Running / Under Running
- Lifting Attachments: Hook / C Hook / Magnetic / Grab / Spreader / Customized
- Applications: Factories, workshops, warehouses, production lines, machine maintenance and loading areas
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete single girder overhead crane projects.
Engineering Support & Workshop Adaptability
Need an overhead crane for a newly leased facility, a light steel building, or a workshop without pre-existing concrete columns? This technical drawing illustrates how Yuantai Crane customizes self-standing steel structures and multi-hoist configurations to adapt to complex plant conditions.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| No load-bearing concrete pillars or brackets Ideal for leased or light steel workshops needing a independent runway system. | Integrated self-standing steel column system with runway beams and bracing—no modification to the existing building required. | HN450 Steel Columns + HN400 Runway Beams (6.1m bay spacing, 18.3m total length) |
| Dual-point lifting & multi-station flexibility Required for flipping long workpieces or handling both heavy and light loads. | Dual hoist configuration (5t + 3t) operating on a single girder engineered with a 6-ton capacity bridge design. | Independent 5t & 3t electric wire rope hoists with stepless frequency control |
| High vertical clearance requirement Maximizing hook travel path within limited overhead building space. | European-style low headroom bridge crane design maximizing vertical lifting range. | Lifting height: 9.144m within a 9.334m overall structure height |
| Precision positioning & heavy-duty cycle Preventing load sway during assembly and supporting long operational hours. | Dual-speed lifting combined with VFD stepless travel control under FEM 2m / ISO A5 classification. | Dual lifting speed (0.8/5.0 m/min) & stepless travel speed (2.0–20 m/min) |
How to Evaluate If This Solution Fits Your Facility
- Height Check: Ensure your workshop clear height under the truss is greater than 9.5 meters (equipment total height: 9.334m, lifting height: 9.144m).
- Span & Width Check: The standard span is 15.24 meters (50 ft), which can be 100% customized to match your building width.
- Foundation Requirement: The maximum wheel load is 38.3 kN, providing a direct reference for your civil engineers to verify slab load capacity.
- Modular Extension: The longitudinal runway uses 6.1m bays (20 ft). You can easily scale the system length (e.g., 30m, 50m) by adding standard columns and runway beams.
