Grab bucket crane for coal mining

Grab bucket crane with process crane designs are available. Tailored grab bucketed crane with process crane designs are the most cost-effective overhead travelling crane solutions for your material handling in mining application. Contact us to get your special minging industrial cranes design and specific grab bucket eot crane drawing.

Main parameters of grab bucket eot crane

• Crane type: Grab bucket eot crane, single girder or double girder crane designs
• Max. grabbing load of grab bucket eot crane : 30t
• Span of grab bucket eot crane: Customized
• Working class of grab bucket eot crane: A6,A7,A8
• Long traveling speed of grab bucket eot crane: 5~50m/min
• Cross traveling speed of grab bucket eot crane: 3~30m/min

Grab bucket eot crane for coal mining, safe, reliable & affordable grab crane

Heavy-duty process cranes for the mining industry need to be able to carry extra-heavy and dangerous loads and they must also be protected against corrosion from heat, dust, moisture and constant use. Clescrane has a range of cranes built to withstand the toughest environments.

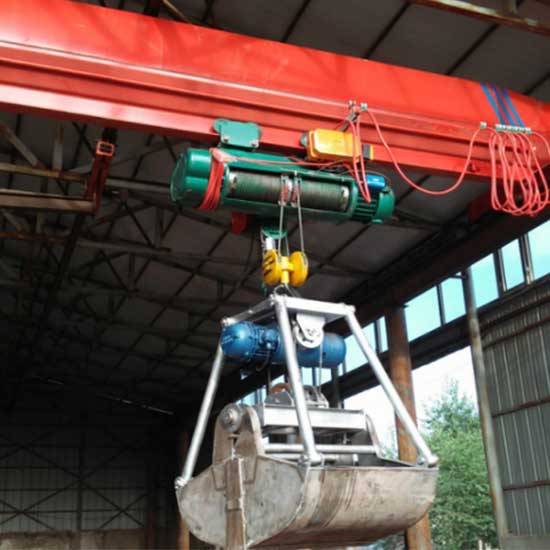

Single girder overhead travelling crane with grab bucket for mining

Double girder overhead travelling crane with grab bucket for mining

Safety and durability grab bucket eot crane for harsh coal mine applications

Underground mining is more demanding compared to strip mining which requires a higher standard to the material handling cranes in terms of crane safety and reliability. On excavating tunnels and shafts is usually underground around 4 km, where gas, heat, dust makes the harsh conditions more hazardous and the limited work space make the installation of the machinery equipment more challenging.

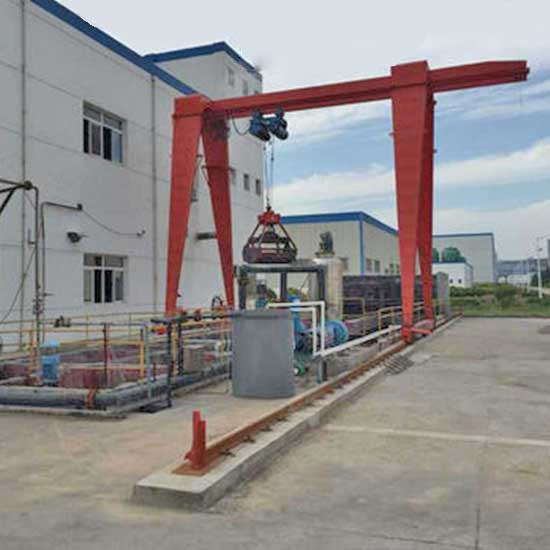

Single girder gantry crane with grab bucket for mining

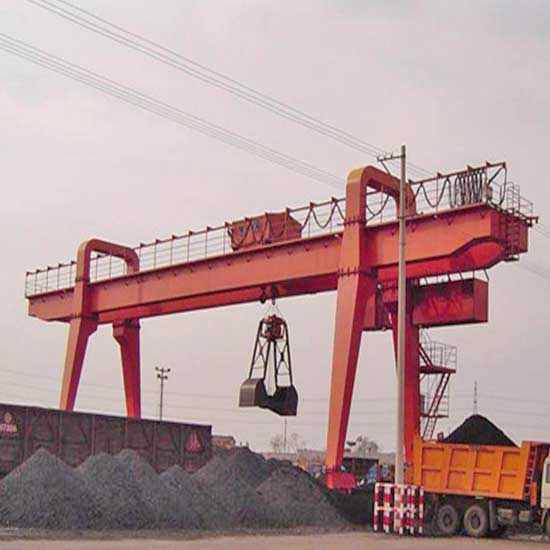

Double girder gantry crane with grab bucket for mining

The heavy-duty cranes for open cast mining industry are required to carry-heavy and hazardous loads, under the high temperature, dust, moisture conditions and also to stand again the abrasion and corrosion caused by frequent operation, so the protection level of mining travelling crane is very high, and all the crane parts and crane components are the best. A remote monitor system is available according to requirement which will help to provide an quick solution in case of an emergency.

Automatic control make the operation of mining crane simple and easy, which will help you to move the load to the designated place at any time. The heavy duty mining travelling cranes are equipped with various protective components, crane operator's protective device and other safety devices and measurements.

Grab bucket for Coal Handling

When working with coal, high output rates are critical. Specialized coal grabs are used to provide high capacity and low dead weight coal and coke handling solutions. The most common coal grabs so far are high enclosed types which are popular for coal unloading with environment friendly design.

Features of coal handling grabs

• Large volume, Light Weight & Durable Quality -Coal is typically handled in huge quantities, therefore high production rates are critical. Due to coal is easy to grasp, and low in density, the coal grab volumes can be fairly large. Because the clamshell grab bucket is constructed of high quality steel, the coal mine grabs are significantly stronger with a reduced dead weight, and what's more,  the structure of grab shell can be remained in shape without deformation.
• Easy lubrication, Maintenance & Enhanced safety  -Because of the huge volume, the grabs are larger, and for the operating personnel's safety and ease of maintenance, the grab buckets are frequently equipped with a central greasing system. The method ensures that the entire upper structure is properly lubricated without the need to climb the grab.
• Enclosed shell Design,  Environment friendly Operation -Most coal grabs have high enclosed model grab structure shells to reduce material loss and contamination. Overlapping lips can reduce material loss and maintenance even further.

Applications of mining industrial crane and hoist system

To ensure safety, reliability and durability, our grab bucket cranes are designed, fabricated and installed strictly in compliance with high standards. Our mining travelling cranesare proved to have high safety and durability for the excavation sites and even underground applications.

The explosion proof hoists cranes with process crane designs are good material handling crane solutions for applications where explosive gases may have the possibility of existence. And also our mining travelling craneswith processed low-headroom crane designs will help to make the most of your available space in the limited space applications.

Our mining crane can be processed to adapt to your particular application even the harsh and hazardous environment where may have the explosive gas formed by inflammable gas, steam and air of which explosion proof grade is less than B grade and ignition group is more than T4(135DC) group. And the explosion proof electric hoist can be adopted in 1 area or 2 area, not 0 area. More information about mining travelling cranesand hoists, ,please feel free to contact us.

Hoist & Cranes for General Use

As one of the best crane manufactuer and supplier in China, we offer crane sevices for turnkey crane projects ie.overhead, gantry & jib cranes and other travelling cranes from crane degin, manufactuering & installation, and crane parts supplying, etc.

Electric chain hoist
Electric chain hoists mounted on hook, lug, manual or electric hoist trolley for types of electric chain hoist cranes with capacity of 500kg, 5 ton, 10 ton, 32 ton.

Electric wire rope hoist
Types of wire rope hoists designs for overhead hoist cranes- explosion-proof cable hoist, low profile wire hoist & single & double girder hoists for your hoist cranes.

Air Hoist & Pneumatic Hoist
Safe & fast air operated hoists. Air hoist & pneumatic hoist is a compressed air powered hoist & air operated hoists, various hoist designs,wide specification, good price.

European style single girder overhead crane
European standard overhead hoist crane, Small overhead crane:European single girder overhead cranes, compact FEM hoist crane design, small & light overhead hoist crane.

Suspension Crane
1 ton -10 ton underhung bridge crane, light single girder overhead crane design, suspended on overhead roof, free floor space, economical underhung crane.

FEN standard open winch crane
FEM/ DIN open winch bridge crane-European standard double girder overhead crane with open winch trolley, your heavy duty winch crane up to 320 ton.

A frame gantry crane
Single girder hoist gantry cranes, FEM,DIN & ISO standards: Single beam gantry cranes, European style box girder, FEM hoists for 3 ton, 5 ton, 10 ton, & 16 ton load handling.

Double girder gantry crane
European style double girder hoist trolley gantry cranes: European type double girder gantry cranes with FEM standard wire rope hoists trolley with capacity of 5 ton up to 75 ton for sale.

Floor mounted slewing jib crane
Free standing jib crane-Pillar mounted jib crane is a free standing jib crane with pillar jib mounted on floor, for short & crowded lifting, capacity up to 16 ton.

Wall mounted jib crane
Wall mounted jib crane & wall bracket jib crane with I beam & tie rod design for light duty handling with capacity up 2 ton. or less building structure changes.

KBK light crane
Light crane kbk system-kbk light crane systems, flexible kbk crane & rigid kbk crane, modular crane design, cost-effective workstation crane solution, tailored light duty bridge crane.

Portable gantry crane
Portable gantry crane & Economical mobile gantry-250 kg - 10 ton portable gantry cranes & mobile gantry cranes with adjustable / fixed gantry for small & light material handling.

Contact us to get tailored overhead crane design, free CAD overhead crane drawing, defined overhead crane specifications for your particular application with lower overhead crane costs & good overhead crane price. Send an overhead crane inquiry to your latest eot crane price now!

Get your grab bucket cranes

Process grab bucket crane design, cost-effective overhead crane solution

Made-to-order crane & hoist design are available to meet your specific setups & needs, which may include explosion proof design, low headroom design, and spark resistant and corrosion-resistant design, etc. Contact us to get your process grab bucket crane drawing and specific grab bucket eot crane price.

Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
