Suspension cranes is a type of light duty overhead travelling crane, which is attached to the workshop existing roof structure , with no requirement of the supporting columns. Being mounted on the ceiling of the workshop, the suspension cranes makes the entire workshop area available for production. By taking advantage of the existing roof structure, the suspension crane can save your time and cost to a large extend and also the installation of stand-alone steel superstructures makes the suspension crane adaptable to changed production requirements

Due to being mounted to the ceiling structure, the roof structure has to be inspected to make sure it has the ability to support the weight of the suspension crane and the load to lift. Free consultation on the suspension is offered and please leave us a message about your roof structure to get your suspension crane design.

European FEM Standard Suspension Crane

European type Suspension Crane is a type of overhead travelling bridge crane designed based on the European crane standards and FEM standards,, mounted on the roof of the workplace without bracket, offering larger space for production and lowering cost. The crane trolley is compact and small in volume which enables the loads to be lifted to the place as near as possible to the wall of the facility. The moving range of crane trolley can exceed crane span through side jib. The lifting capacity of European Suspension Crane is from 1 ton to 20 ton and the crane duty class is A5. Customized overhead travelling underslung crane is available.

Main parameters of European Suspension Crane

• Overhead Travelling Crane Type:NLX European type suspension crane
• Lifting Capacity of European Standard Suspension Crane: 1~20t
• Span Length of European Standard Suspension Crane: ≥ 6m
• Working Class of European Standard Suspension Crane:A5
• Ambient Temperature of European Standard Suspension Crane: -25~40℃

Single girder underhung cranes are typically adopted for lighter duty material handling with capacity to 10 ton or less. Our overhead suspension cranes are designed to improve crane safety and reduce load cycle times during production in your workshops.

Single girder suspension crane

• European standard single girder suspension crane helps you to take the most of your existing plant by mounting directly on the existing roof structure and saves the cost of rail supporting beam which is needed for the non-suspension overhead travelling crane.

Double girder suspension crane

NLX European standard double girder suspension crane is usually grouped into the following two crane types:

• 1) The suspension crane is equipped with hanged I beam rails and the electric hoist is moving on the rails on top of upper cover plate of the main bridge girders or hanged on the lower web plates of the two bridge girders.
• 2) The suspension underslung cranes run on support rail beam of plant, the lifting hoist is suspended on two bridge girders' web-plates.

Our overhead crane design engineers will offer you the customize suspension crane design for you based on your specialized plant structure,, making the best use of your existing workshops or new workshop effectively and reasonably.

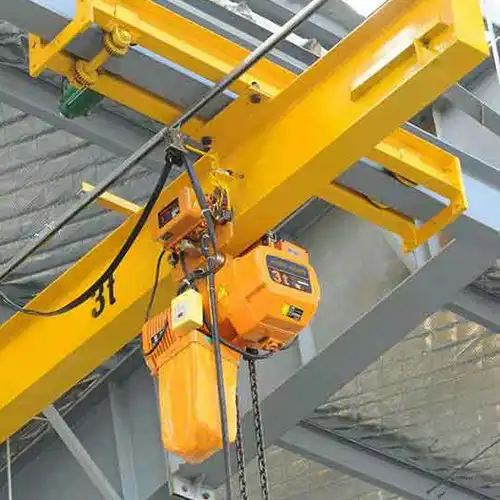

Traditional single girder suspension crane

China traditional suspension crane is a single girder overhead travelling crane, with single beam girder running on the suspension track, and usually equipped with CD1 type single speed wire rope hoist and/or MD1 type double speed wire rope electric hoist.The suspension crane / underhung crane is consisted of main bridge girder, cross beam, electric hoist, electric parts, lifting mechanic devices, etc.

The single girder suspension crane is a kind of light duty single girder Overhead Crane, The lifting capacity of the single girder suspension overhead travelling crane is 1 – 10 ton, and the crane span is 3m to 15 m, and the traveling speed is 20 m/min and 30m/min. Custom designed overhead travelling suspension crane is provided according to application conditions and lifting requirements.

Main parameters of traditional single girder suspension crane

• Product Type ： LX Traditional single girder suspension / Suspension Crane
• Lifting capacity of suspension crane： 1~10t
• Span length of suspension crane： 3~15m
• Working class of suspension crane： A3
• Ambient temperature of suspension crane: -20~40℃

The standard under slung crane is supposed to used in the general material handling environment in machinery assembly, warehouse, storage, where no dangerous substance or media to ensure the safety of applications.

Usually, the overhead suspension crane is single girder design but under special conditions, double girder design is also available.

• Single girder suspension crane:A single girder suspension cranes usually adopt the Under slung hoist and underslung trolley as the lifting mechanism, travelling along the bottom flange of the bridge beam girder.
• Double girder suspension cranes：A double girder suspension cranes can move its electric hoist and trolley along on the top or on the bottom of the bridge beam girders.

Note: The single girder design ceiling mounted suspension crane is widely used for lighter duty service and lower-capacity material handling whereas the double girder suspension crane design is used for higher capacity material handling or to get larger lifting height but with higher crane cost.. If you need suspension crane with special crane design, please leave a message below and reply will be given within 24 working hours.

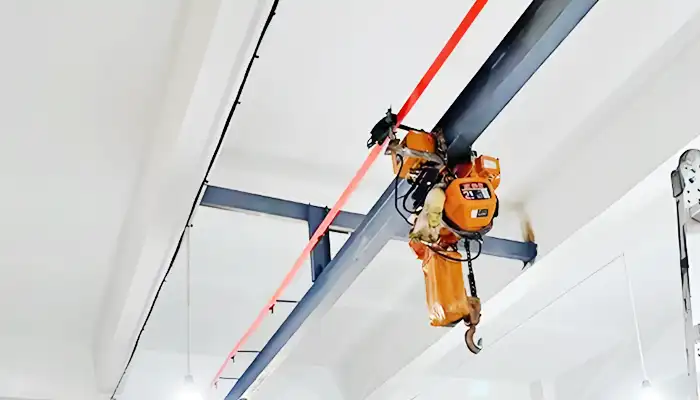

Suspension crane with monorail design

The monorail suspension crane is also named as ceiling mounted monorail crane or ceiling crane which offers an overhead travelling crane solution for workshops with limited space to make the most of the available space and the existing building structure, with the adding columns if required for heavy duty lifting or more complex design.

Main parameters of the monorail crane system

Lifting capacity of the monorail suspension crane：250kg-15000kg

Lifting height of of the monorail suspension crane：3m-120m

Working duty of of the monorail suspension crane：A3, A4

Mounting types of of the monorail suspension crane: Ceiling mounted or floor mounted

Types of monorail hoists: Electric hoists or manual hoists , Chain hoists or Wire rope hoist

Rail type of the monorail crane: I beam or H beam

The ceiling mounted monorail crane also known as ceiling crane offers an overhead material handling solution for workshops with limited space to make the most of the available space and the existing building structure, with the adding columns if required for heavy duty lifting or more complex design.Customized monorail suspension cranes are available for your customized applications. Contact us to get your monorail suspension crane design and monorail suspension crane price.

Suspension crane with kbk design

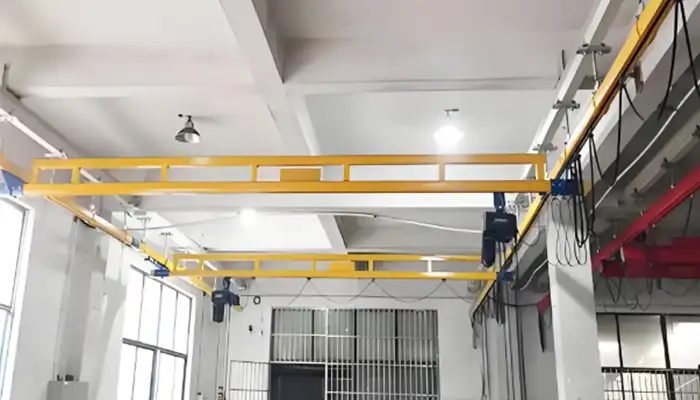

kbk suspension cranes are light crane systems which are offered with process crane designs to meet your particular applications.

Our suspension kbk light crane systems are available with the following options:

• Loading capacity of kbk suspension crane: 50kg-3.2t ,
• Span of kbk suspension crane:0.7m-12m,
• Working class of kbk suspension crane: A1-A6

Due to the light crane system design, the monorail kbk cranes are usually attached or suspended to the ceiling roof structures or other existing structures of the building facilities, with the features of Cost-effective due low material cost and building costs for supportive columns or structures,Maximize your floor space when no additional supportive columns required and offering large lifting height for being attached to roof ceiling structures, etc. Contact us to get more information.

Advantages & benefits

An underslung crane or under-running overhead travelling crane rides on the lower flange of the crane girder beam, comparing with a top running overhead eot crane.

• Crane Support structure - Under slung overhead travelling cranes can be directly suspended and mounted on the roof structure of the workshop or other overhead beam. Top running overhead cranes require independent supporting columns to support the crane end trucks / end carriage and the crane bridge beam.
• Lifting Capacity -The Suspension Cranes is designed for lighter material handling for being mounted on workshop ceiling structure with the lifting capacity of no more than10 ton. Comparatively, the top running overhead cranes has higher capacity,which can be up to 550 ton.
• Crane Configuration -Due to the light capacity, Suspension Cranes is normally designed with the single girder configuration, but in particular case, double girder suspension crane is adopted but with much higher cost. Whereas, the top running overhead crane is more frequently adopted the configuration of double girder crane designs.
• Floor space - Being mounted to the existing ceiling trusses or the roof structure of the workshop, Suspension cranes can make full use of the available height and the limit space , offering larger workshop space for the production and providing great side approach, making the best use of your facility's width and height . Overhead suspension crane is the first choice for wokshops with limit overhead clearance or headroom
• On crane i beam & Crane tracking -Being bolted to the I beam, a suspension crane will encounter fewer tracking problems than a top-running overhead crane, making the building structure.in secure,which outcomes the top running overhead cranes at meanwhile it limits the crane movement and lessens the chances of rail misalignment.
• On realignment-On realignment, a suspension crane systems may need greater downtime due to the alignment required for the suspension and the rigging. In contrast, the realignment of top-running overhead crane systems is much easier but the top running cranes need more frequent rail alignment checks and rail alignment.
• Free standing designs for factory with no existing structure -Free standing suspension crane designs can be applied in workshops with no existing supporting structures but it needs supporting / mounting columns to support crane runways, crane system and loads.
• On lifting height of suspension crane-Comparatively, the suspension crane offers less hook height and lift height than that of top running overhead crane due to the bridge girder and electric hoist are hang underneath the crane runways.
• Installation of suspension cranes-As for crane installation and crane service, the procedure of a suspension crane can be complex and may need longer time.Due to the suspension bridge crane is suspended from the runways,it will take longer time to check the alignments , but on the other hand , because of the i beam design, the suspension crane is easier to maintain the alignment and causes fewer problems in tracking safe to building structure

When buying a suspension crane

On buying an overhead travelling suspension crane, the following factors should be considered

• Is your facility's structure strong enough to support the suspension crane system and the rated loads?
• When the ceiling roof mounted suspension crane is not possible, the freestanding overhead crane system will be an option but with a shortcoming that a freestanding suspension eot crane system will take certain floor space of the workshop.

Generally, the Under slung overhead bridge crane offers flexibility, functionality, and ergonomic solutions, whereas the top running overhead travelling crane kits is featured of higher lifting capacity, lifting heights and more overhead room or clearance room.
