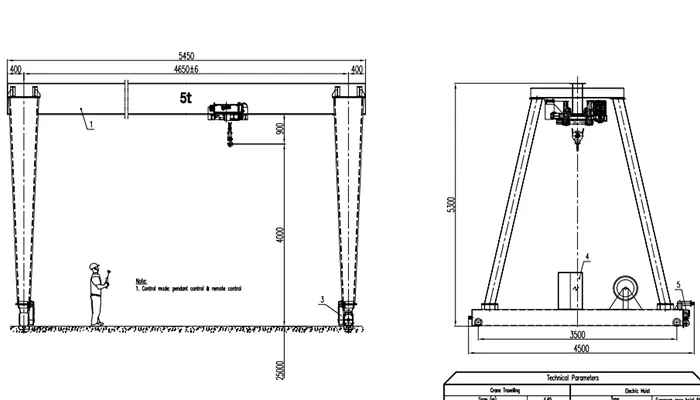

5 Ton European Single Girder Gantry Crane Drawing - MHO 5t-4.65m A5
Yuantai Crane 5t European Single Girder Gantry Crane Drawing - MHO 5-4.65 A5, 4.65m Span, 4.0m+25.0m High Lifting Height, 5t European Spec Hoist, P22 Rail, 440V 60Hz 3P, ISO A5 Duty Rating)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Gantry Crane
Tags: 5TonGantryCraneDrawing
Overview:
Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package specifies a high-performance 5 Ton European Single Girder Gantry Crane (Model: MHO 5t-4.65m A5 / Drawing No: MHO 5-4.65 A5). Built to FEM/ISO European standards, it features a compact A-frame structural layout with a 4.65m span (5.45m total beam length) and an exceptional 4.0m + 25.0m high-lifting capability. Outfitted with a 5t European-spec low-headroom wire rope hoist, it offers smooth variable-frequency speed control on both trolley and crane travel drives. Rated for ISO A5 duty class, it operates on a 440V 60Hz 3P industrial power grid and runs on standard P22 ground rails with a maximum wheel load of 40.3 kN.
Project & Technical Overview
- Equipment Type: European Single Girder Gantry Crane / Outdoor Portal Crane
- Model Number: MHO 5t-4.65m A5 Gantry Crane
- Drawing PDF File: 5 Ton European Single Girder Gantry Crane Drawing - MHO 5t-4.65m A5
- Crane Manufacturer: Yuantai Cranes
- Duty Class: ISO A5
- Lifting Capacity: 5.0 t (5000 kg)
- Crane Span: 4.65 m (4650 ± 6 mm Center to Center of Rails)
- Total Beam Length: 5.45 m (5450 mm Overall Length)
- Lifting Height: 4.0 m Nominal Lift + 25.0 m Extended Hook Reach
- Hoisting Mechanism: 5t European Spec Low-Headroom Electric Wire Rope Hoist
- Recommended Rail Type: P22 Steel Rail (Max Wheel Load: 40.3 kN)
- Motor Drives: 9.5kW Hoist, 0.6kW Trolley Traverse, 2×0.75kW Long Travel
- Power Supply: 440V / 60Hz / 3P
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | ISO A5 |
| Lifting Capacity | 5.0 t (5000 kg) |
| Crane Span | 4.65 m (4650 ± 6 mm) |
| Total Girder Length | 5.45 m (5450 mm) |
| Lifting Height | 4.0 m + 25.0 m (Extended Vertical Travel) |
| Overall Crane Height | 5.3 m (5300 mm) |
| Wheel Base (Wheel Center Distance) | 3.5 m (3500 mm) / End Carriage Length: 4.5 m |
| Hoisting Speed | 1.6 ~ 10.0 m/min (Dual Speed / VFD) |
| Trolley Traversing Speed | 5.0 ~ 20.0 m/min (Variable Frequency Driven) |
| Crane Long Traveling Speed | 5.0 ~ 20.0 m/min (Variable Frequency Driven) |
| Recommended Ground Rail | P22 Steel Rail |
| Maximum Wheel Load | 40.3 kN |
| Control Method | Pendant Control & Wireless Remote Control |
| Power Supply | 440V / 60Hz / 3P |
| Total Crane Weight | 5.31 t (approx. 5310 kg) |
Lifting Mechanism & Motor Parameters
| Component / Motor Drive | Specification |
|---|---|
| Hoisting Mechanism Model | 5t European Spec Wire Rope Hoist |
| Lifting Motor Power | 9.5 kW |
| Trolley Travel Motor Power | 0.6 kW |
| Long Travel Motor Power | 2 × 0.75 kW (1350 r/min, Reducer Ratio: 58.95) |
Technical Requirement
Note:
- European Standard Low-Headroom Design: Features compact structural dimensions and optimized hook clearance, allowing maximum vertical hook travel in tight or height-restricted production areas.
- High-Lift Rope Capacity: Tailored with extended drum winding capacity (4m nominal + 25m extended hook depth) suitable for outdoor shafts, multi-story yard loading, or deep foundation operations.
- VFD Stepless Speed Control: Both trolley (5-20 m/min) and long-travel (5-20 m/min) drives utilize frequency inverters to ensure smooth starting, exact load positioning, and minimal sway.
- Outdoor Protection & Anti-Wind Devices: Equipped with outdoor power feeding assemblies and anti-wind rail clamping devices to ensure operational safety in open yards.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
How to Get Your Customized Yuantai Gantry Crane
This drawing serves as a standard technical reference. Since every outdoor yard or workshop rail layout is unique, Yuantai Crane customizes every single girder gantry crane to match your exact site dimensions.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, span, lifting height, rail length, and power supply specifications. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune wheel load calculations, track foundation requirements, motor ratings, and anti-wind accessories. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Facility?
Send us your site dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
FAQs About This Drawing Project (MHO 5t-4.65m A5)
Everything clients ask before using this drawing — what is included, which numbers must match your site, what can be customized, and what to send for a project drawing and quote.
1. What is included in this drawing project — is it the whole crane or just the steel structure?
This drawing (No. MHO 5-4.65 A5) is a complete gantry crane general arrangement drawing. It covers the full machine: single girder, A-frame legs, end carriages, the 5t European low-headroom wire rope hoist, trolley traverse, long travel drives, 440V 60Hz 3P electrical panel with VFDs, and pendant + wireless dual control. It does not cover ground rails, rail foundation, pit civil works, or site power supply — those are site-side scope and can be quoted separately if you need them.
2. Can I build from this drawing directly, or is it reference only?
This drawing is issued as a standard technical reference. It is fully dimensioned and shows the real configuration of the MHO 5t-4.65m A5 crane, but it is not a manufacturing release drawing. Before production, Yuantai issues a project-specific GA drawing based on your confirmed site data, and manufacturing only starts after you approve that drawing. Unauthorized copying, use, or manufacturing based on this drawing without written authorization from Yuantai Crane Machinery is strictly prohibited.
3. Which numbers on this drawing must match my site exactly?
Four numbers must match your site, or the crane will not fit:
| Drawing Value | What It Must Match On Site | If It Does Not Match |
|---|---|---|
| Span: 4.65 m | Center-to-center distance of your two rails (4650 ± 6 mm) | Girder and end carriages must be redesigned |
| Overall beam length: 5.45 m | Clear width available for the crane to sit between obstacles | Interference with walls, columns, or structures |
| Overall height: 5.3 m | Available headroom above rail level | Crane cannot be installed or hook travel is reduced |
| Lifting height: 4.0 m + 25.0 m | Your actual pit depth or vertical hook travel required | Rope drum length must be changed (shorter or longer) |
If any of these four differ from your site, tell Yuantai before ordering — each one is adjustable, but each change affects price and lead time.
4. Why is the span only 4.65 m but the lift 29 m? Does my site need this?
This is a short-span, long-lift configuration built for a specific job: lowering loads deep below the rail line while keeping a narrow crane footprint and a low wheel load (40.3 kN). It fits sites such as:
- Deep pits, shafts, or foundation excavations
- Multi-level outdoor yards where loads move between an upper and lower level
- Narrow rail gauge areas with deep vertical handling needs
If your yard is wide and flat, you do not need this ratio — a longer span with a normal 6–12 m lift will be more stable and more economical. Send your rail gauge and pit depth, and Yuantai will confirm whether this drawing fits or whether a standard MHO layout is better.
5. Can I reduce the 25 m extended lift if my pit is shallower?
Yes. The 25 m extended reach comes only from drum rope capacity. If your pit is 8 m deep, the hoist is supplied with shorter rope and a smaller drum — which reduces hoist size, crane weight, and price. There is no reason to pay for 25 m of rope if your site needs less. Always give Yuantai your actual pit depth or hook travel, not the reference figure from this drawing.
6. My power supply is not 440V/60Hz/3P — is this drawing still usable?
Yes. The mechanical drawing does not change with voltage — girder, span, wheel base, and hook path stay the same. Only the electrical package changes: motor windings, VFD settings, contactors, and panel components are re-specified for your supply. This applies to 380V/50Hz, 400V/50Hz, 415V/50Hz, 220V/60Hz, or 575V/60Hz. It is a standard customization, not a redesign.
7. What site work is NOT covered by this drawing project?
To avoid surprises at installation, these items are outside the crane supply scope unless you specifically add them:
- P22 ground rail and rail fasteners
- Rail foundation, concrete beams, and anchor bolts
- Pit or shaft civil structure
- Site power supply up to the crane isolator
- Erection crane and site lifting equipment
- Local electrical connection and permits
Yuantai can supply rails, anchor sets, and foundation load drawings as optional items — just state this in your enquiry so they appear in the quotation.
8. What do I need to send to get a project drawing and price for my site?
Send these eight items and Yuantai will issue a free custom CAD drawing and proposal within 24 hours:
- Required lifting capacity (t)
- Rail gauge / span (m)
- Pit depth or hook travel required (m)
- Rail length / travel distance (m)
- Power supply (V / Hz / Ph)
- Lifts per hour or hours per day (duty)
- Indoor or outdoor, wind load if outdoor
- Control preference: pendant, wireless, cabin, or dual
The more complete the list, the faster and more accurate the drawing and quote.
9. How long from enquiry to delivery for a project based on this drawing?
Typical timeline for a customized MHO gantry crane project:
- Technical clarification + free CAD drawing: 1–3 working days
- Drawing approval + commercial confirmation: 3–7 working days
- Manufacturing: 20–35 working days (depends on span, capacity, duty)
- FAT inspection + packing: 3–5 working days
- Shipping: depends on destination port and vessel schedule
Non-standard spans, higher duty classes, or cabin control can extend manufacturing. Confirm the final schedule in writing at order stage.
10. Is this drawing free to use for my project, and is a design fee charged?
This published drawing is a free technical reference — you may use it to plan your site and check fit. A project-specific GA drawing is also free for standard configurations. A design fee may apply only for complex site conditions, non-standard spans, or specialized customization engineering. The drawing itself remains the property of Yuantai Crane Machinery: unauthorized copying, use, or manufacturing without written authorization is strictly prohibited, and Yuantai assumes no liability for consequences arising from unauthorized use.
Product Applications: Where This 5 Ton Gantry Crane Is Used
The short-span, long-lift layout of the MHO 5t-4.65m A5 makes it a specialized tool rather than a general-purpose yard crane. It is chosen when loads must travel far below the rail line inside a narrow rail gauge, or when a compact crane must serve a multi-level handling point. Typical applications include:
| Application / Industry | Typical Handling Task | Why This Drawing Fits |
|---|---|---|
| Deep foundation & shaft construction | Lowering and lifting tools, rebar cages, buckets, and equipment into deep pits, shafts, or caissons. | The 25 m extended hook reach handles deep vertical travel, while the 4.65 m span fits a narrow site boundary. |
| Precast concrete yards | Moving moulds, lifting precast elements, and servicing curing pits or lower-level storage areas. | Low headroom design and VFD trolley travel give precise positioning over moulds without a tall structure. |
| Multi-level outdoor storage yards | Transferring loads between an upper rail level and a lower yard, basement, or sunken storage bay. | The 4.0 m + 25.0 m split allows both normal lifting above rail and deep lowering below rail in one crane. |
| Stone & marble processing yards | Handling slabs and blocks in a narrow yard, including loading below ground level or into pits. | P22 rail and 40.3 kN wheel load keep the rail foundation light in yards with limited civil work. |
| Water treatment & pumping stations | Lifting pumps, valves, and screens from deep wet wells or underground chambers. | Outdoor anti-wind rail clamps and outdoor power feed suit open plant areas and elevated wind exposure. |
| Steel & fabrication workshops | Servicing a narrow bay or a pit-type furnace, quench tank, or assembly recess. | Compact A-frame and low headroom allow installation where an overhead bridge crane cannot be built. |
| Equipment maintenance & repair bays | Lifting engines, pumps, or heavy components out of inspection pits. | Pendant + wireless dual control lets the operator stand at the pit edge for a clear view of the load. |
Best-Fit Working Conditions
- Narrow rail gauge, deep vertical reach: When site width is limited but lifting depth is large, this short-span / long-lift ratio is more practical than a wide-span crane.
- Outdoor, open-air yards: The crane is configured with outdoor power feeding and anti-wind rail clamping for open storage and plant areas.
- Intermittent, moderate-duty handling: ISO A5 suits yards that lift several times per hour, not continuous production lines.
- Light rail foundation: The 40.3 kN wheel load and P22 rail reduce civil work compared with heavier box-girder gantry cranes.
- Sites without building columns: Ground-rail travel means no roof runway or building structure is required.
Applications Where This Configuration Is Not Recommended
- Wide, flat storage yards: A longer span with a normal 6–12 m lift is more stable and more economical.
- Continuous production or high cycle rates: Step up to ISO A6 / FEM 3M, which requires a different hoist and motor selection.
- Indoor workshops with existing overhead cranes: A bridge crane on building runways is usually the better fit.
- Very heavy or long loads: Above 20 t or with long rigid loads, a double girder gantry crane is required.
Yuantai European Gantry Crane Solutions
Yuantai Cranes provides customized MHO-Series of European single girder gantry crane solutions for machinery workshops, precast yard handling, stone processing, and logistics storage. Each crane is configured according to the required capacity, span, lifting height, rail length, duty class, wind resistance requirements, and operating environment.
Typical Technical Specifications:
- Capacity: 1.0–20.0 ton (This Model: 5.0 t)
- Crane Span: 3.0–30.0 m (This Model: 4.65 m)
- Lifting Height: Customized up to 30+ meters (This Model: 4.0 m + 25.0 m extended lift)
- Duty Class: ISO A5 (FEM 2M)
- Travel Speeds: Variable frequency speed regulation (5~20 m/min)
- Control Method: Pendant Control & Wireless Radio Remote Control
- Power Supply: 220/380/400/415/440/575V, 50/60Hz, 3Ph (This Model: 440V 60Hz 3P)
- Applications: Outdoor equipment handling, precast concrete yards, granite/marble yards, and industrial storage bays
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete gantry crane projects.
Engineering Support & Gantry Crane Customization
Need flexible outdoor lifting without installing building columns or roof runways? This technical drawing illustrates how Yuantai Crane engineers European single girder gantry cranes with a 4.65m span and extended 29m lift height to optimize material handling efficiency.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Deep vertical lifting requirements for outdoor pits or multi-story structures Requires high rope capacity and smooth variable frequency hoisting. | European 5t hoist fitted with extended drum capacity supporting 4m + 25m hook travel with VFD control. | Capacity: 5.0t | Lifting Height: 4.0m+25.0m | Hoist Power: 9.5kW (Model: MHO 5t-4.65m A5) |
| Compact yard footprint with high wheel load restrictions Requires optimized A-frame legs and even ground pressure distribution. | Sturdy A-type leg design with 3.5m wheel base running on P22 rails with max wheel load of 40.3 kN. | Span: 4.65m | Beam Length: 5.45m | Rail: P22 | Max Wheel Load: 40.3 kN |
| 440V 60Hz 3-phase industrial power environment Requires customized motor windings and dual-control electrical configuration. | 440V 60Hz electrical system equipped with dual control (pendant station + wireless remote). | Power: 440V 60Hz 3P | Long Travel Motors: 2×0.75kW | Duty Class: ISO A5 |
How to Evaluate If This Solution Fits Your Facility
- Flexible Outdoor Deployment: Moves along ground rails without relying on plant building structures.
- European Compact Design: Low headroom, light deadweight, and reduced wheel loads minimize rail foundation costs.
- Extended Vertical Lift: Capable of 29.0m total lifting height for deep pit or multi-level material hoisting.
- Dual Control System: Includes both wired pendant and long-range wireless remote control for safe operator positioning.
Unsure If This Layout Fits Your Facility?
Send us your site dimensions (Rail Length, Required Span, Lifting Height, and Power Supply). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
