40 Ton /15 Ton Overhead Crane with Hoist Trolley for Uzbekistan

Double girder overhead crane for sale Uzbekistan, 40 ton /15 ton double hoist overhead crane, pendent control. Check overhead crane specifications now.

Crane for sale Double Hoist Overhead Crane
Crane specifications 40 ton/15 ton - 16.49 m span - 8.4 m lifting height
Way of delivery Railway
Country of destination Uzbekistan

Category: Custom EOT Crane Manufacturing

Your Trusted Overhead Crane Manufacturer & Supplier

40 Ton /15 Ton Overhead Crane for Uzbekistan
Double Hoist Overhead Crane, Pendent Control

Double girder overhead crane for sale Uzbekistan, 40 ton /15 ton double hoist overhead crane, pendent control. Check overhead crane specifications now.

Basics of 40 ton / 15 ton double hoist overhead crane for Uzbekistan

  • Crane Type:double hoist overhead crane
  • Date of Placing Oder:2018.6.11
  • Date of Delivery :2018.7.15
  • Way of Transportation: Railway transportation, 40GP*2,
  • Way of Payment:30% TT
  • Destination country: Uzbekistan
  • Destination port:CIP Tashkent
  • First Contact:2015.6


Double girders of double hoist overhead cranes for Uzbekistan Project 40 ton /15 ton

Double girders of double hoist overhead cranes for Uzbekistan Project 40 ton /15 ton


Double hoist overhead crane main specifications & general requirements

Crane type

Double Hoist Overhead Crane

Model

LH

Working Class

A3

Capacity

40 ton / 15 ton

Span length (m)

16.49 M

Lifting Height(M)

8.3 m

Crane control

Pendent control

Voltage

380v,60hz,3p

Color

Yellow

Quantity

5

Customized features of double hoist overhead crane for sale Uzbekistan

  • Seamless sliding contact line 20mm2,  60M
  • Existing workshop track, tread 70mm
  • with a relay
  • The main beam of the double hoist overhead crane needs to be cut and the size is arbitrary. It needs to be loaded with 40GP containers (11.8M*2.3M*2.3M)
  • the delivery time is 35 days, please attach great importance to ensure ontime delivery .
  • CI, BL, CO, customs declaration documents and insurance documents need to be provided within 3 days after the double rail hoist crane delivered.
  • A test report is required
  • One-piece hoist trolley, the total height of double hoist eot crane does not exceed 1700mm

Gallary of double hoist overhead crane for sale Uzbekistan

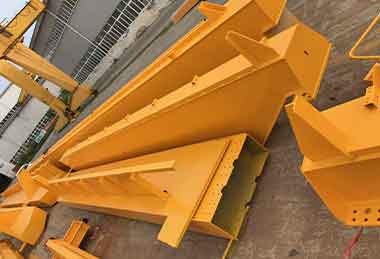

Main girder of double hoist overhead crane 40 ton / 15 ton for sale Uzbekistan

Main girder of double hoist overhead crane 40 ton / 15 ton for sale Uzbekistan

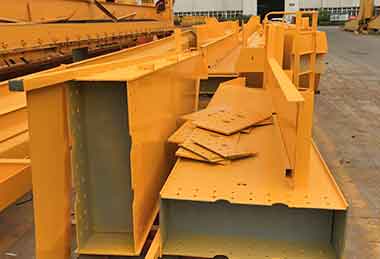

Double main girders of 40 ton / 15 ton overhead crane for sale Uzbekistan

Double main girders of 40 ton / 15 ton overhead crane for sale Uzbekistan

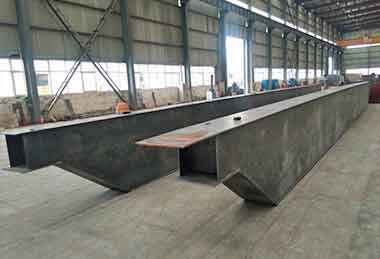

16.49 M main girder of double hoist overhead crane needs to be cut into two sections

16.49 M main girder of double hoist overhead crane needs to be cut into two sections for loading into containers for delivery Uzbekistan

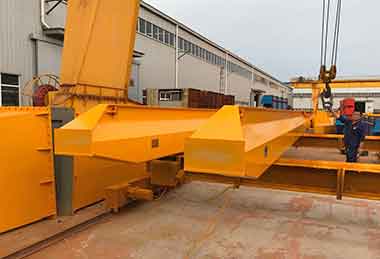

Double hoist crane main girder for sale Uzbekistan

Double hoist crane main girder for sale Uzbekistan

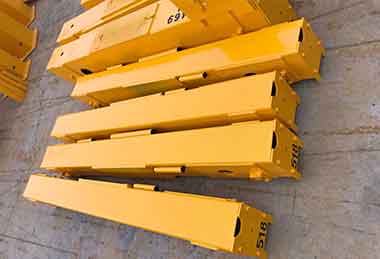

End carriages of double girder hoist crane for Uzbekistan project

End carriages of double girder hoist crane for Uzbekistan project

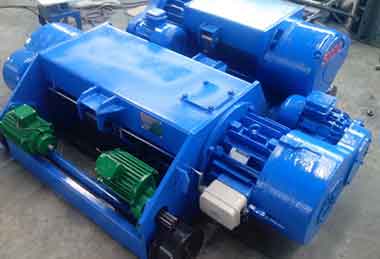

Overhead crane hoist trolley for sale Uzbekistan

Overhead crane hoist trolley for sale Uzbekistan

Overhead Cranes for Sale Uzbekistan

Uzbekistan is always one of our overhead crane markets.  According to related statics, China, Russia, and Turkey are Uzbekistan's largest crane suppliers in terms of value, accounting for 75 percent of total imports. It is followed by Lithuania, Iran, Kazakhstan, and Japan, which account for another 15% of the total.

In terms of value, China has become the most important foreign market for Uzbekistan's crane exports, accounting for 88 percent of total exports.Crane export prices averaged USD 20,095 per unit in 2020, a -43.6 percent decrease from the previous year.The average price of crane imports in 2020 was US$60,733 per unit, up 75% from the previous year.
