How to fit an overhead travelling crane for garage? Garage Crane Selection
How to fit an overhead crane for small garage? Which type of overhead crane is right for your garage? Check garage material handling problems & solutions now.
Material handling problems in small garage
Do you have a garage that isn't too big? It's not a bad thing to admit it. This is a problem that many guys confront, and it can leave you with a lot of concerns and doubts.
- Is it possible that my garage will ever feel spacious?
- Is my garage's size forcing me to slow down?
- Is it safe for me to work in such a confined space without the proper equipment?
Difficulties
It's difficult to fit a lot of essential equipment into a small garage. Hydraulic jacks, engine cranes, and heavy-duty work-piece supports all take up a lot of room, but they're really useful when you need them.
Maybe you should just bite the bullet and store everything in your garage. Sure, they'll come in handy at some point, but where do they go when they're not in use?In your way, that's where they are!
Filling your garage with tools seems fantastic until you really have to use it. Then it's a pain to have to move everything out and back in again, or work around everything.
While having more tools makes work easier, having to work around them in a small, tight garage makes it much more difficult.
But it's not all doom and gloom. You don't have to choose between having heavy lifting gear that make some jobs easier and others possible and having a garage that is easy to work in.
An overhead crane is the best choice for a small garage.
What's an overhead crane?
Depending on the use, overhead cranes are available in a variety of configurations. Jib cranes, bridge cranes, gantry cranes, and other types of cranes are among them. While most overhead cranes are utilized in an industrial setting, some varieties can also be used in non-industrial settings.

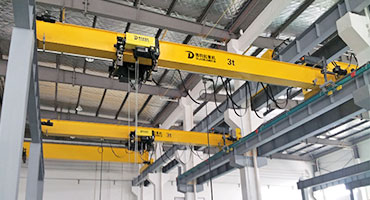

Single girder overhead travelling crane
Single girder overhead crane specifications: Capacity:3.2 ton to 16 ton, Span: 7.5m to 28.5m,Lifting Height: 6m to 18m,Working Class:A5. Ask for single girder overhead crane price.
Double girder overhead travelling crane
Double girder overhead crane specifications: Capacity:5 ton to 100ton,Span: 10.5m to 31.5m,Lifting Height: 6m to 18m,Working Class:A5- A7. Ask for double girder overhead crane price.
Suspension crane
Underslung overhead crane specifications: Capacity:0.5 ton to 10 ton, Span: 3m to 31.5m, Lifting Height: 6m to 18m,Working Class:A3 to A5. Ask for underrunning crane price & suspension crane price.
KBK crane
Overhead kbk crane specifications: Capacity: 125Kg-5000Kg,Lifting Height: 2.5m-12m,Maximum Span : 3-10m,Working Class: A3. Ask for kbk crane price & kbk light crane price.
Industrial crane
Customized industrial cranes for various industries such as, steel mill, oil & gas, automobile, machinery assembly, mining, general processing, etc.. Ask for industrial overhead crane price.
Process crane
For your specific applications, the process cranes are provided to meet your specific conditions and lifting requirements to save your crane costs.. Ask for process crane price.
- Overhead crane - one of the most frequently used overehad travelling cranes used indoors.
- Workstation cranes are the sorts of overhead cranes that can be utilized in a non-industrial location, such as your garage.Workstation cranes are similar to overhead cranes, however they are smaller and can fit in your garage. Because it can still lift and move heavy objects, a workstation crane will operate well as a garage overhead crane.
- A jib crane or a gantry crane are two other possibilities that might work in your garage. Jib cranes are most economical material handling solution for short distance material handling is limited garage.
- Gantry Crane is also an type of overhead crane, which has one or two supporting legs and are widely used in applications where overhead bridge crane is not proper.
Is an overhead crane worth it?
While most people would benefit from having an overhead crane in their garage, it may not be worth the initial investment for others.
You probably don't need a dedicated overhead crane in your garage if you just want to execute a sick LS swap on your project car and not mess with engine swaps or gearbox repair after that.
You might be able to get away with renting an engine crane for the period you'll need it.
An overhead crane, on the other hand, will make your life a lot easier if you're a home garage mechanic or a strong motor enthusiast who plans on doing a lot of car work.
Even if you don't work on cars, overhead cranes can still work for you.
I do a lot of woodworking, and I can tell you from personal experience that moving a massive 8x8 oak beam by oneself is not as enjoyable as it may appear.
When you have the support of a nice chain hoist, those huge beams become a lot more manageable. When you need to move a large number of 2x12s from your workstation to your table saw, it also comes in useful.
If you're still unsure whether an overhead crane in your garage is worth the money, please contact us. While the majority of our clients are large corporations, we've also worked with a lot of hobbyists and small business owners, and we can help you figure out what will work best for you.
Single girder gantry crane
Single girder gantry crane specifications: Capacity: 1ton-20ton, Span Length: 8~30m, Working Class: A3, A4. Ask for single girder gantry crane price.
L leg single girder gantry crane
L types gantry crane specifications: Capacity 5ton -32ton, Span Length: 18~35m, Working Class: A5, A6.Ask for l leg single beam gantry crane price.
Truss girder gantry crane
Truss gantry crane specifications: Capacity: 1 ton -50 ton, Span Length: 12~35m, Working Class: A5, A6. Ask for truss gantry crane price.
Double girder gantry crane
Double girder gantry crane specifications: Capacity: 5 ton - 500 ton, Span Length: 12~35m, Working Class: A5, A6.Ask for double girder gantry crane price.
Semi gantry crane
Semi-gantry crane specifications: Capacity: 2 ton- 10 ton, Span Length: 8~20m, Working Class: A3, A4.Ask for semi-gantry crane price.
Portable gantry crane
Portable gantry crane specifications: Capacity:0.25 ton -10ton, Span length: 2~16m,Lifting height : 2~12m, Working class : A2.Ask for small gantry crane price.
How to fit an overhead travelling crane in your small garage?
When it comes to operating in a small garage, efficiency is the word of the game. Although overhead cranes are extremely powerful, they take up surprisingly little room!
In comparison to a huge engine crane, you can lift large objects like automobile engines all day and transfer them around very simply. The finest aspect is that you don't have to straddle a massive steel frame; instead, you simply move the engine along the hoist track with the help of the chain and work piece.
The standing supports, which will likely protrude out a couple inches from the wall, and the I-Beam, which can be right in line with your rafters, will take up the most of the overhead crane's space.
If you use an overhead crane that can move not only side to side but also forward and backward, you'll need to install it beneath the rafters. Even in a small garage, there's a good chance you won't knock your head on it, and you'll have an incredibly adaptable piece of equipment.
Most people will not require a complicated overhead crane, therefore yours will most likely be located between the ceiling rafters.
How to mount an overhead crane to my ceiling?
"Well, it'd be wonderful not to have some support beams in my garage," you may reply. They don't take up much room, but it would look better if they were removed. I'll simply install a chain hoist in my rafters."
Rafters are sturdy; I've stood a few feet above the ground on just a couple of rafters and felt very safe.
I wouldn't want to be underneath a rafter that is carrying the entire weight of an automobile engine, though. I wouldn't want to be under that engine at all!
Putting excessive weight loads on wood is a tragedy waiting to happen. Bridges are now constructed of steel and concrete for a purpose.
You don't want to be the poor sap under a load-bearing piece of rotten wood as it deteriorates over time.
Steel, on the other hand, has an extremely long lifespan. Steel is the best material to use when you need something to hold a lot of weight. Support beams are the way to go.
Overhead crane pros
Safer operation
You won't have to rely on unsteady jack stands, engine mounts, or saw horses if you have a sturdy, reliable crane in your workshop.
High speed
Sure, they make collapsible engine hoists, but setting them up takes a lot longer than pulling a chain to your work piece. Having an overhead crane put up and ready to use in your garage can make your work not only safer but also much faster. There will be no more wasting time with setup.
Higher material handling efficiency in your garage
You will save space in your garage by not having to keep large hoists that will get in the way while not in use. This is important in a large garage, but it is even more important in a tiny garage. The less you have to deal with, the more productive your work will be.
Pillar jib crane
Pillar jib crane specifications-Capacity:0.5 ton -10 ton, Arm length: 3-12m, Lifting height: 3-8m, Rotating : 180, 270, 360 ,Working class: A3.Ask for free standing jib crane price.
Wall mounted jib crane
Wall mounted jib crane specifications-Capacity: 0.25 ton-2 ton, Arm length: 2-6m, Lifting height: 2-6m, Rotating : 180, Working class: A3.Ask for wall mounted jib crane price.
Wall travelling jib crane
Wall-travelling jib crane specifications-Capacity: 0.25 ton-10 ton, Span: 3-10m, Lifting height: 3-8m, Rotating : 180,Working class: A3. Ask for wall travelling jib crane price.
Slewing jib crane
Slewing jib cranes -floor & wall jib cranes- flexible swing or slewing jib arm & rotary crane design, 180, 270 &360 degree rotating jib crane for sale. Ask for slewing jib crane price.
Portable jib crane
Portable jib crane specifications- Capacity: 0.08 ton,1 ton, Lifting Height: 1.5- 3m, Turning Radius: 2m, 3m, Rotation Angle: 360°, Working class: A3.Ask for portable jib crane price.
Process jib crane
Process jib cranes for your specific application to lower your jib crane cost. Contact us to get your customized process jib crane design and your jib crane rate and crane price.
How to get an garage overhead crane?
An overhead crane would make your work safer, faster, and more efficient, as you already know. So, how do you go about getting one? It's simple: just contact PWI and we'll take care of the rest.
Here's what happens once you phone us:
- We'll work with you to decide the crane size you require.
- We'll get the crane to you and set it up in your garage.
- Knowing that your garage is one step closer to becoming the ideal workspace will give you peace of mind.
Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
